Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

34 part groups · 3 illustrations

Illustrations

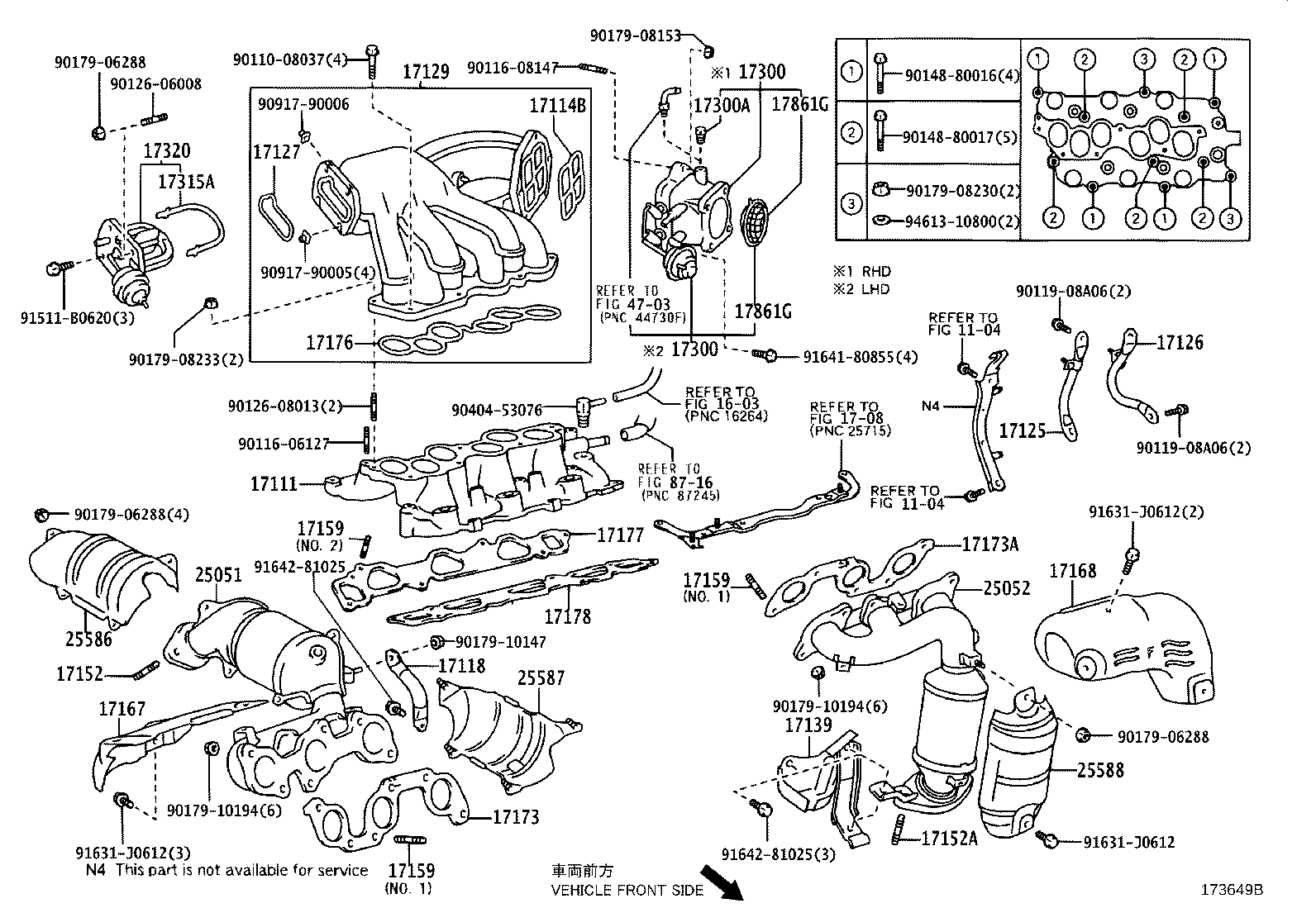

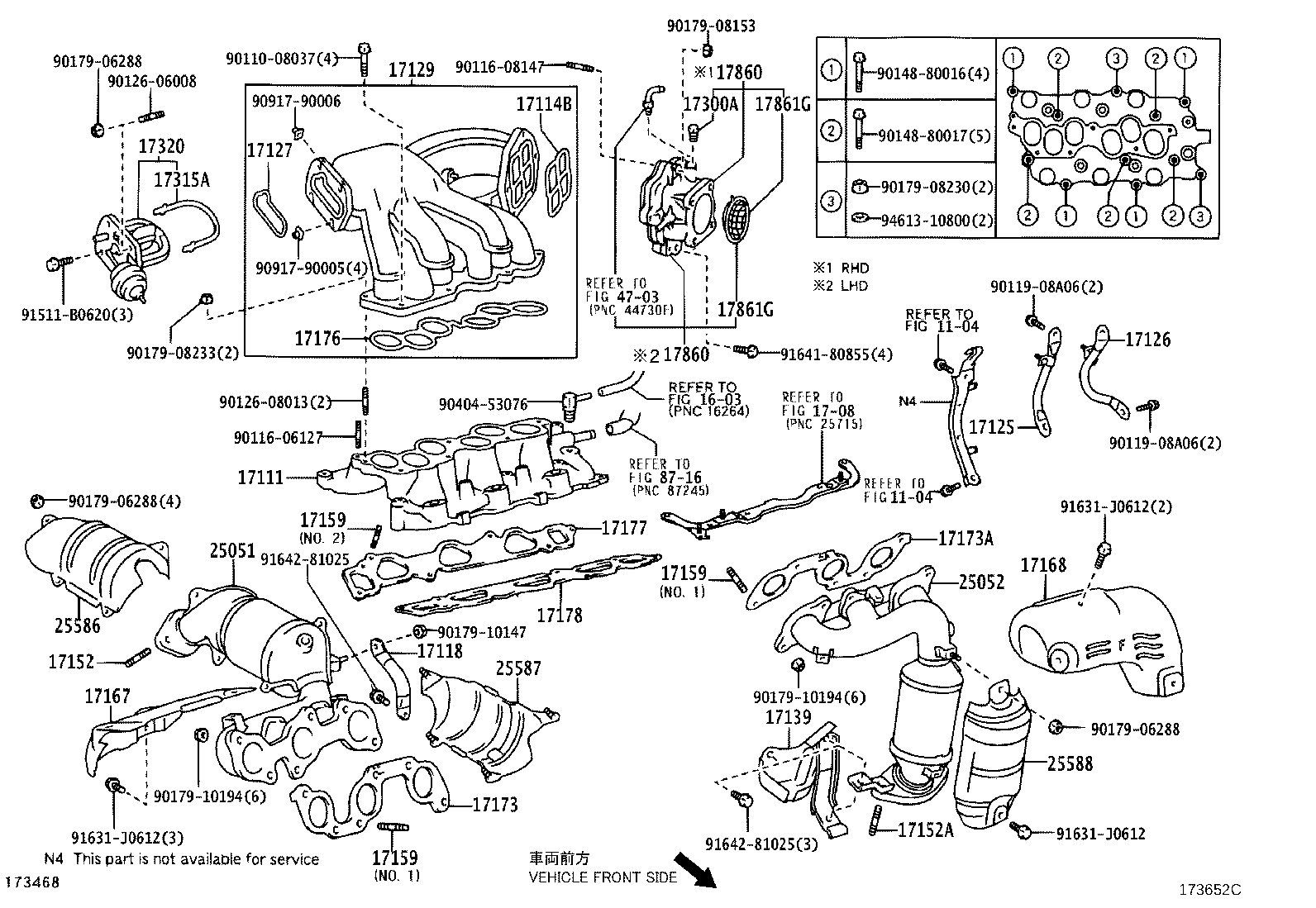

Figure 174744G 174744G 2006-01 → — Figure 173649B 173649B 2003-02 → — Figure 173652C 173652C 2003-02 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17139 Stay, Manifold, NO.2
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17190 Tank Assy, Intake Air Surge
17300 Valve Assy, Intake Air Control
17300A Plug, W/Head Taper Screw(FOR AIR CONTROL VALVE)
17315A Gasket, Intake Air Control Valve
17320 Valve Assy, Intake Air Control, NO.2
17860 Connector Assy, Intake Air
17861G Gasket, Intake Air Connector
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25052 Converter Sub-assy, Exhaust Manifold, NO.2
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25588 Insulator, Manifold Converter, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
