Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

21 part groups · 3 illustrations

Illustrations

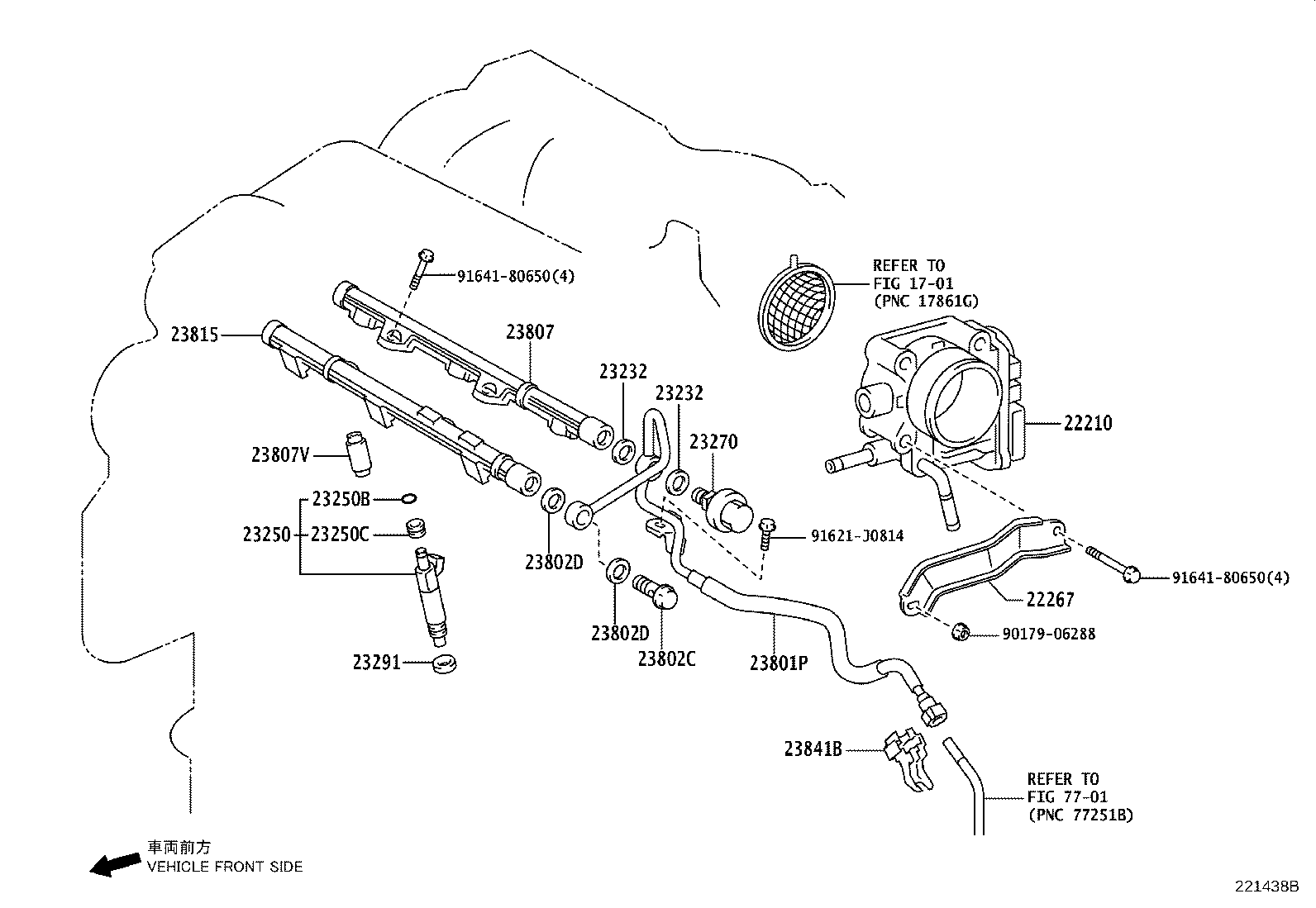

Figure 221865D 221865D 2006-01 → 2008-12 Figure 221438B 221438B 2003-02 → — Figure 223520 223520 2003-02 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23232 Gasket(FOR FUEL PUMP HOSE)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23801P Pipe Sub-assy, Fuel, NO.1
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23815 Pipe, Fuel Delivery, NO.2
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23845C Insulator, Fuel Pipe
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
