Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

27 part groups · 2 illustrations

Illustrations

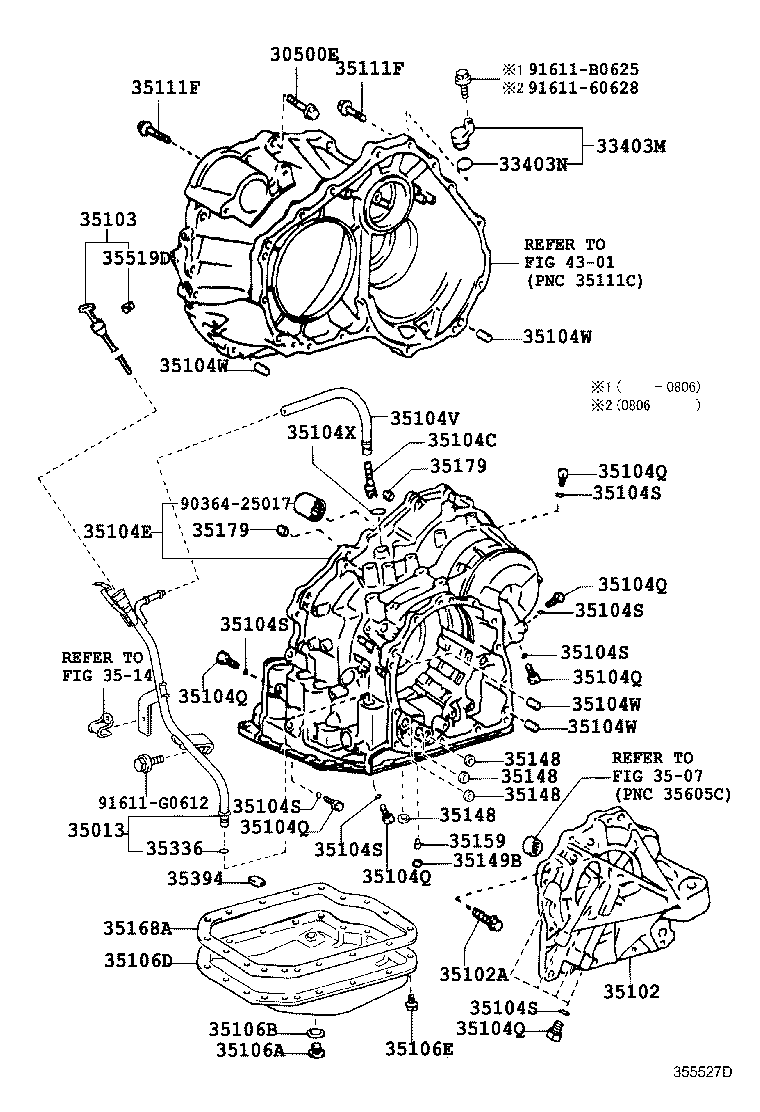

Figure 354242A 354242A 2003-02 → 2006-01 Figure 355527D 355527D 2006-01 → 2008-12

Part groups

PNCDescription
30500E Bolt(FOR TRANSAXLE & ENGINE SETTING)
33403M Cover Sub-assy, Speedometer Driven Hole (ATM)
33403N Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013 Tube Sub-assy, Transmission Oil Filler
35102 Cover Sub-assy, Transaxle Rear
35102A Bolt (FOR TRANSAXLE REAR COVER SETTING)
35103 Gage Sub-assy, Transmission Oil Level
35104C Plug, Breather, NO.2 (ATM)
35104E Case Sub-assy, Automatic Transaxle
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35104W Pin, Straight (FOR TRANSAXLE CASE)
35104X Ring, O (FOR BREATHER PLUG)
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106D Pan Sub-assy, Automatic Transaxle Oil
35106E Bolt (FOR TRANSAXLE OIL PAN)
35111F Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
35148 Gasket, Governor Apply, NO.1
35149B Gasket, Transaxle Case 2ND Brake
35159 Gasket, Brake Drum
35168A Gasket, Automatic Transaxle Oil Pan
35179 Gasket, Overdrive Brake
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
