Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

16 part groups · 2 illustrations

Illustrations

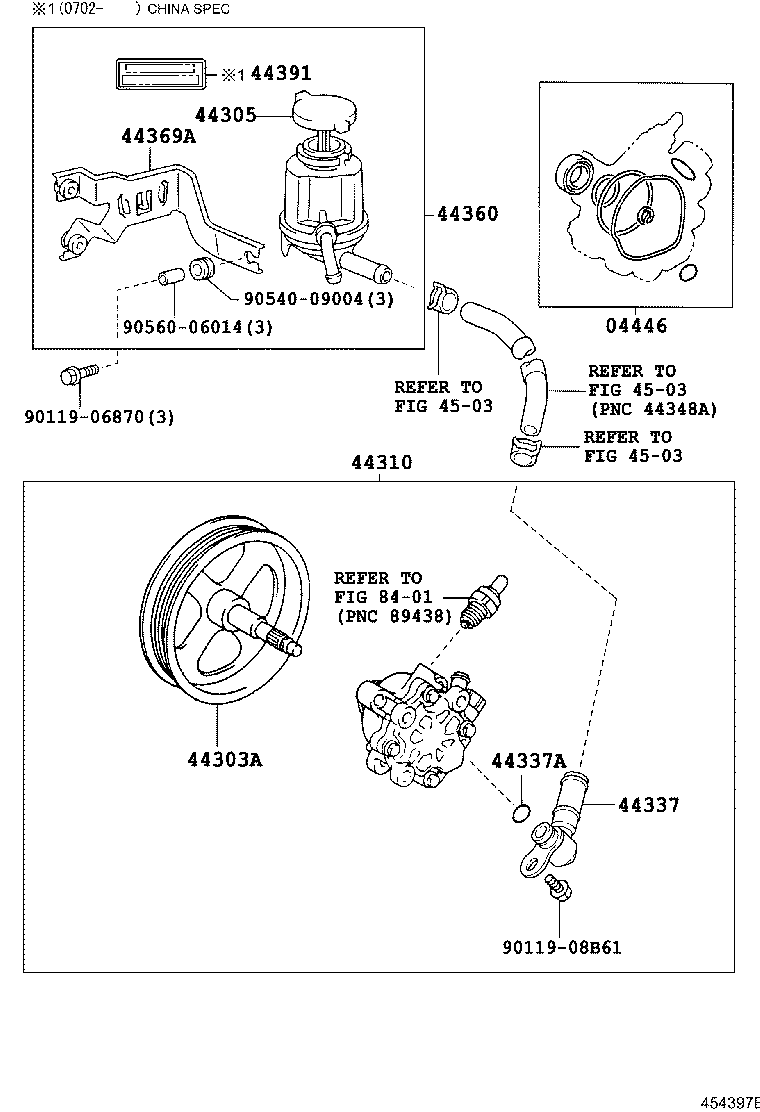

Figure 453523B 453523B 2003-02 → 2006-01 Figure 454397B 454397B 2006-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44308A Ring, O(FOR PRESSURE PORT UNION)
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
44391 Plate, Power Steering Oil Reservoir Caution
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
