Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04

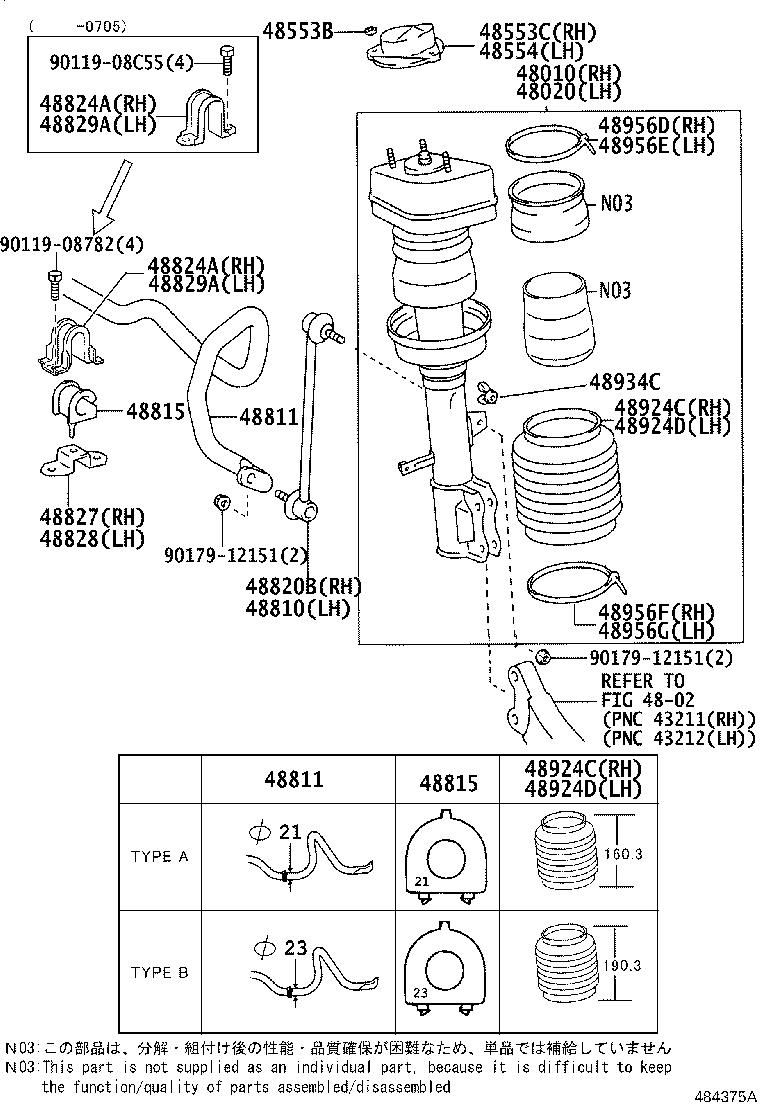

Front Spring & Shock Absorber

36 part groups · 2 illustrations

PNC	Description
48010	Cylinder Assy, Pneumatic, Front RH W/Shock Absorber
48020	Cylinder Assy, Pneumatic, Front LH W/Shock Absorber
48131	Spring, Front Coil, RH
48132	Spring, Front Coil, LH
48157B	Insulator, Front Coil Spring, Upper RH
48157C	Insulator, Front Coil Spring, Upper LH
48158B	Insulator, Front Coil Spring, Lower RH
48158C	Insulator, Front Coil Spring, Lower LH
48331B	Bumper, Front Spring, RH
48331C	Bumper, Front Spring, LH
48471B	Seat, Front Coil Spring, Upper RH
48471C	Seat, Front Coil Spring, Upper LH
48510	Absorber Assy, Shock, Front RH
48520	Absorber Assy, Shock, Front LH
48553B	Nut(FOR FRONT SHOCK ABSORBER CAP)
48553C	Cap, Front Shock Absorber, RH
48554	Cap, Front Shock Absorber, LH
48603	Support Sub-assy, Front Suspension, RH
48603B	Bearing(FOR FRONT SUSPENSION SUPPORT RH)
48609	Support Sub-assy, Front Suspension, LH
48609C	Bearing(FOR FRONT SUSPENSION SUPPORT LH)
48810	Link Assy, Front Stabilizer, LH
48811	Bar, Stabilizer, Front
48815	Bush, Front Stabilizer Bar, NO.1
48820B	Link Assy, Front Stabilizer, RH
48824A	Bracket, Front Stabilizer, NO.1 RH
48827	Bracket, Front Stabilizer, NO.2 RH
48828	Bracket, Front Stabilizer, NO.2 LH
48829A	Bracket, Front Stabilizer, NO.1 LH
48924C	Cover, Front Pneumatic Cylinder, Outer RH
48924D	Cover, Front Pneumatic Cylinder, Outer LH
48934C	Connector, Height Control Tube
48956D	Band, Front Pneumatic Cylinder Cover, Upper RH
48956E	Band, Front Pneumatic Cylinder Cover, Upper LH
48956F	Band, Front Pneumatic Cylinder Cover, Lower RH
48956G	Band, Front Pneumatic Cylinder Cover, Lower LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
