Toyota Lexus RX300/330/350
2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe
Supported model
Data version 2009-04

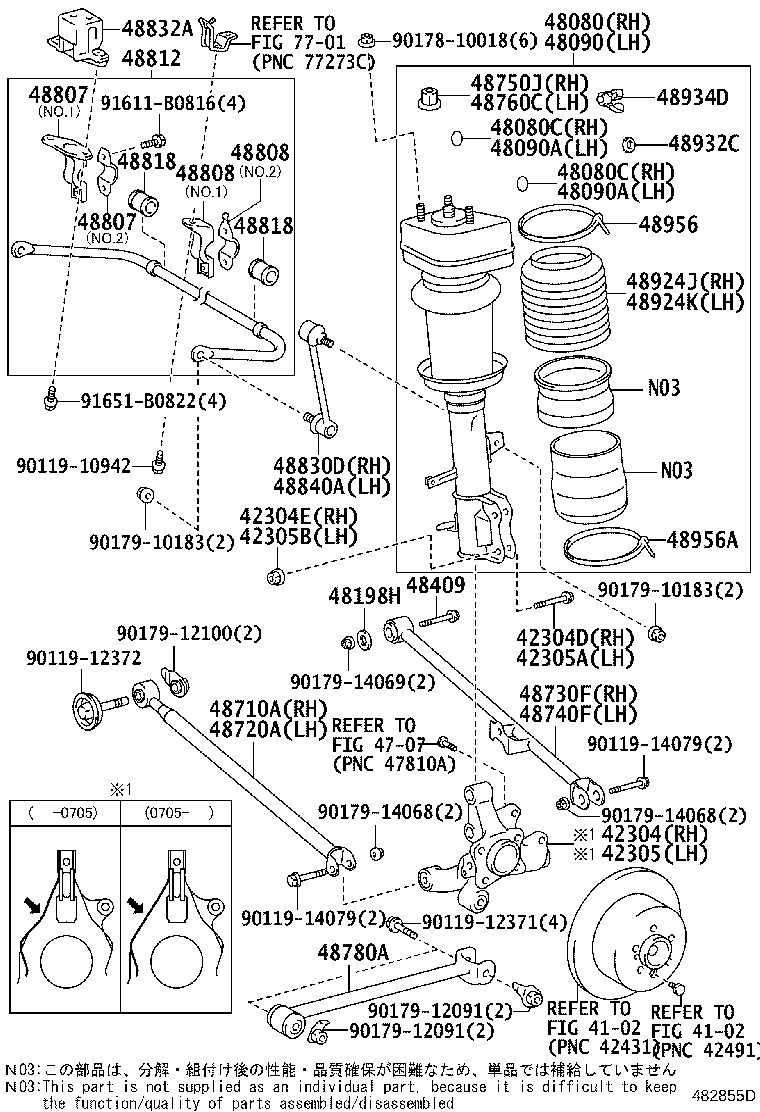

Rear Spring & Shock Absorber
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42304D | Bolt (FOR REAR AXLE CARRIER RH) |
| 42304E | Nut (FOR REAR AXLE CARRIER RH) |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 42305A | Bolt (FOR REAR AXLE CARRIER LH) |
| 42305B | Nut (FOR REAR AXLE CARRIER LH) |
| 48080 | Cylinder Assy, Pneumatic, Rear RH W/Shock Absorber |
| 48080C | Ring, O(FOR REAR PNEUMATIC CYLINDER RH) |
| 48090 | Cylinder Assy, Pneumatic, Rear LH W/Shock Absorber |
| 48090A | Ring, O(FOR REAR PNEUMATIC CYLINDER LH) |
| 48198H | Cam, Camber Adjust, NO.2 |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48750H | Support Assy, Rear Suspension, RH |
| 48750J | Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) |
| 48750K | Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) |
| 48753B | Cover, Rear Suspension Supoport, NO.1 RH |
| 48753C | Cover, Rear Suspension Supoport, NO.1 LH |
| 48760B | Support Assy Rear Suspension, LH |
| 48760C | Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) |
| 48760D | Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) |
| 48780A | Rod Assy, Strut, Rear |
| 48807 | Bracket, Rear Stabilizer Bar, RH |
| 48808 | Bracket, Rear Stabilizer Bar, LH |
| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48832A | Bracket, Rear Stabilizer Bar, NO.1 |
| 48840A | Link Assy, Rear Stabilizer, LH |
| 48924J | Cover, Rear Pneumatic Cylinder, Outer RH |
| 48924K | Cover, Rear Pneumatic Cylinder, Outer LH |
| 48932C | Plate, Height Control Tube |
| 48934D | Connector, Height Control Tube |
| 48956 | Band, Rear Height Control Cover, NO.1 |
| 48956A | Band, Rear Height Control Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
