Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

68 part groups · 14 illustrations

Illustrations

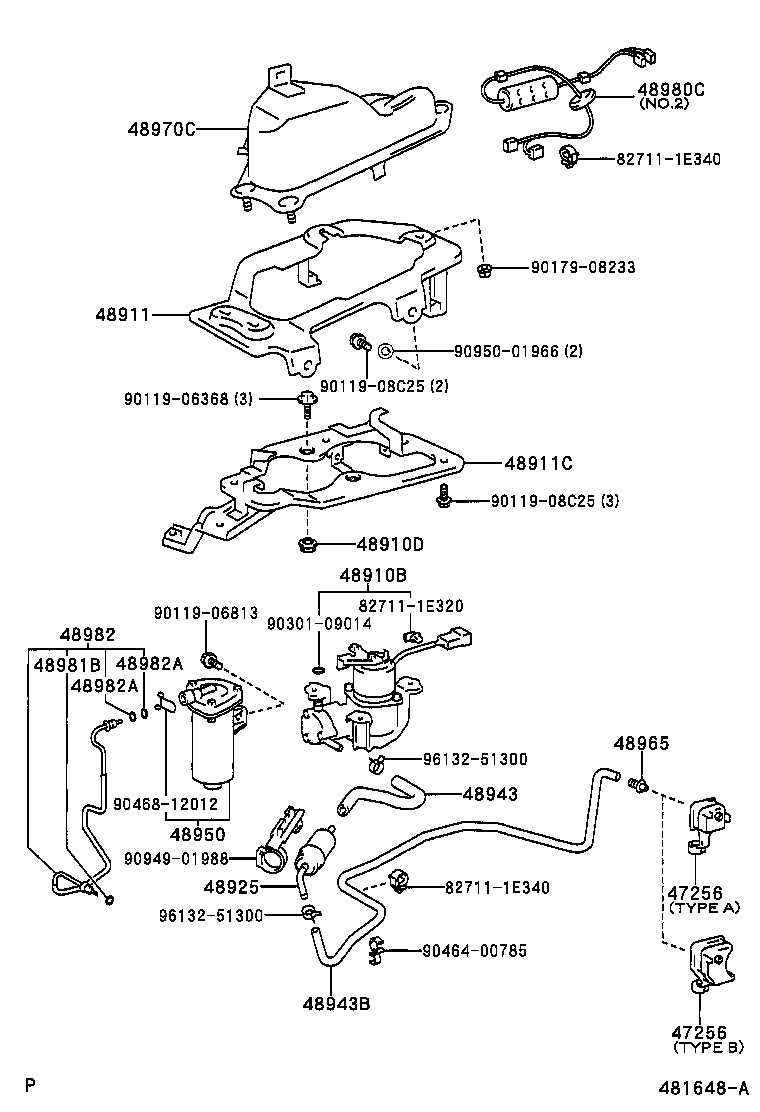

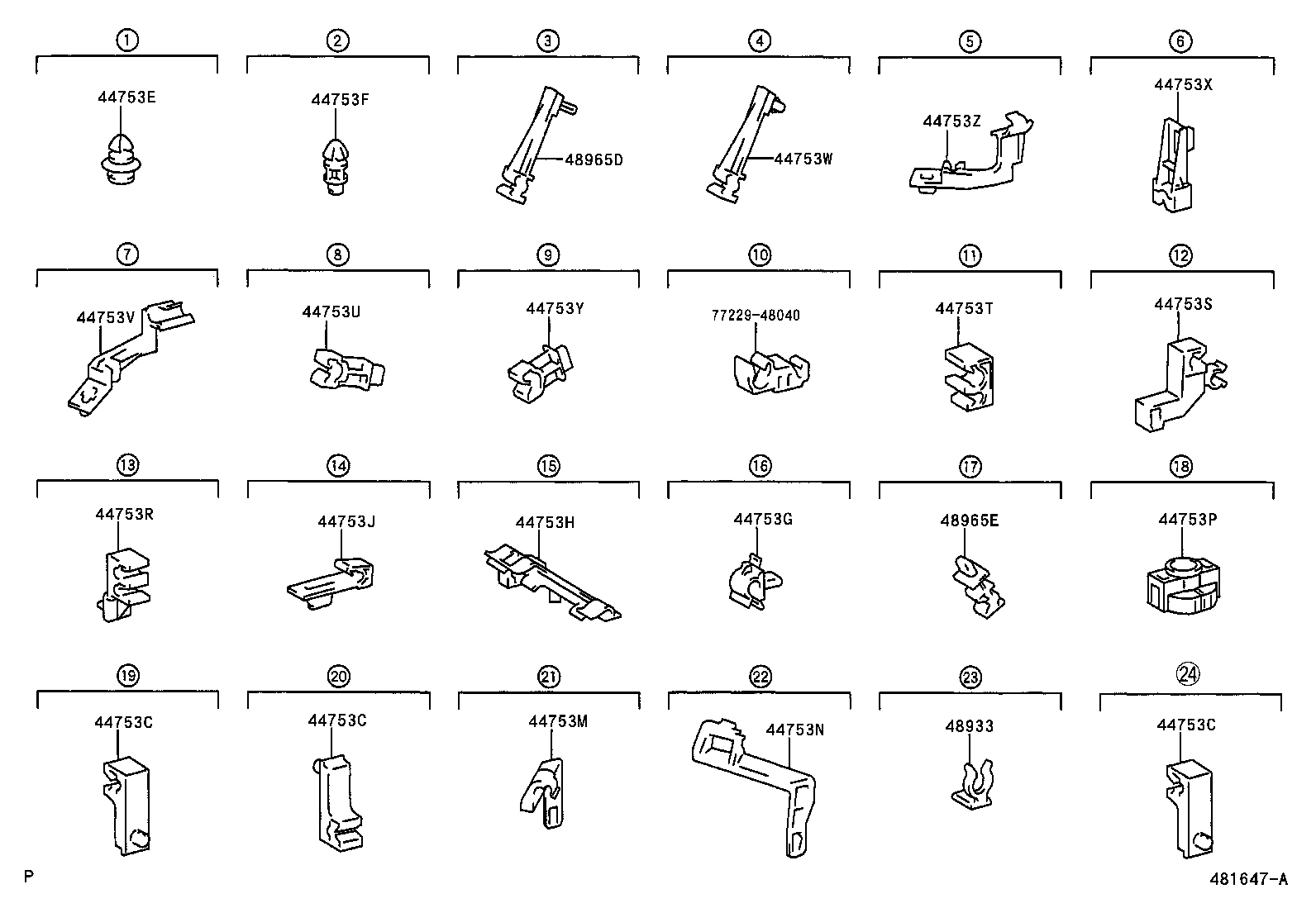

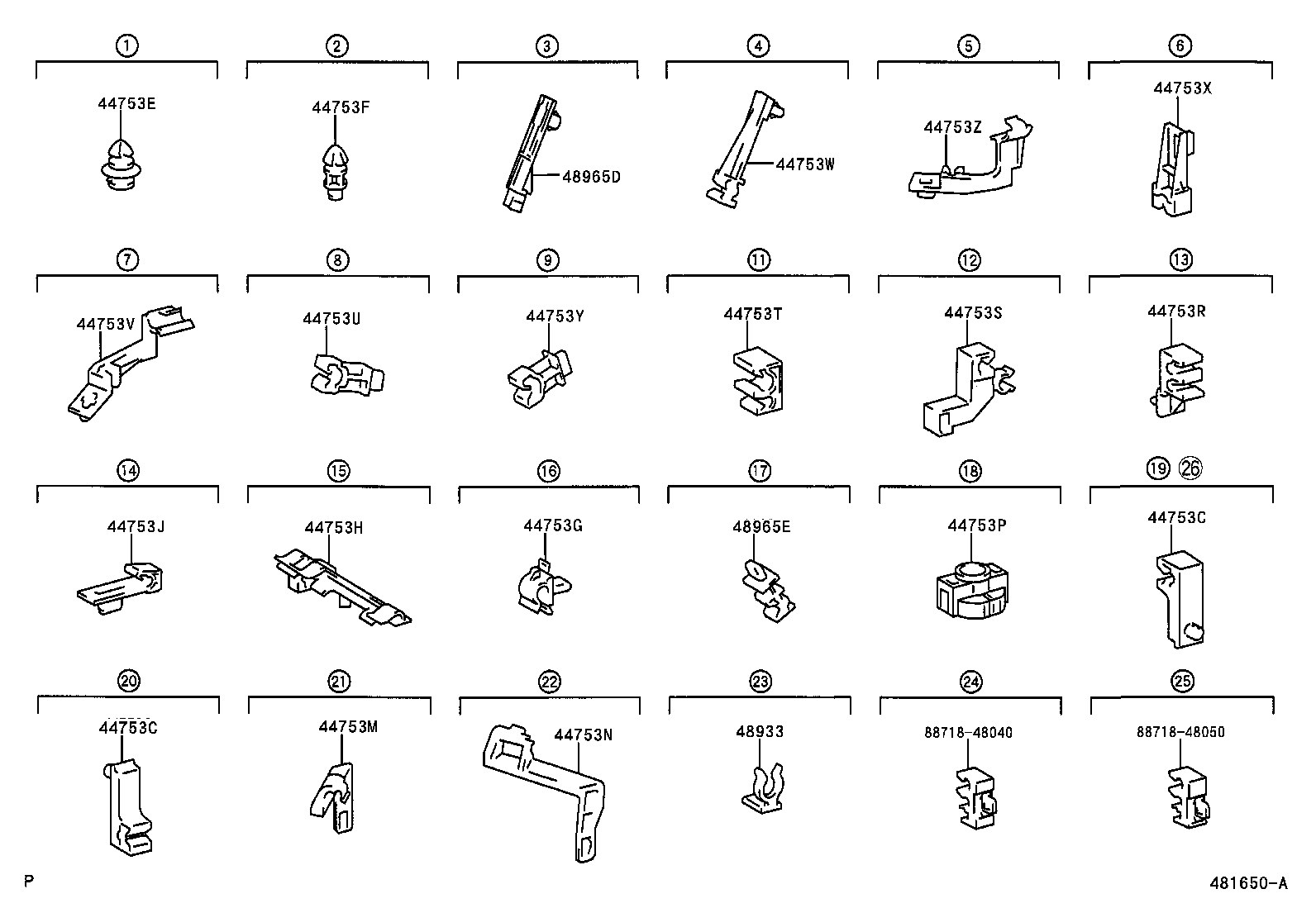

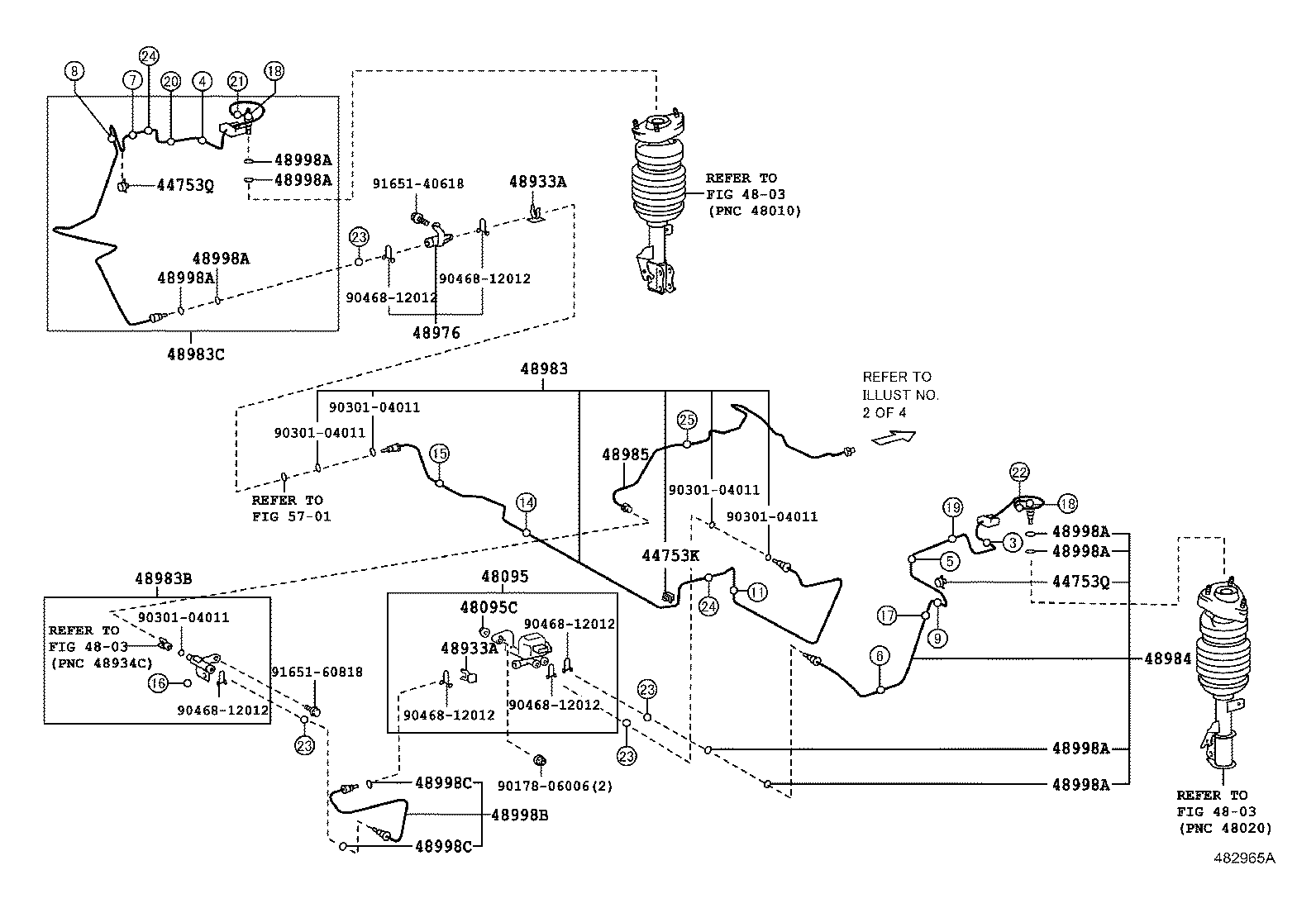

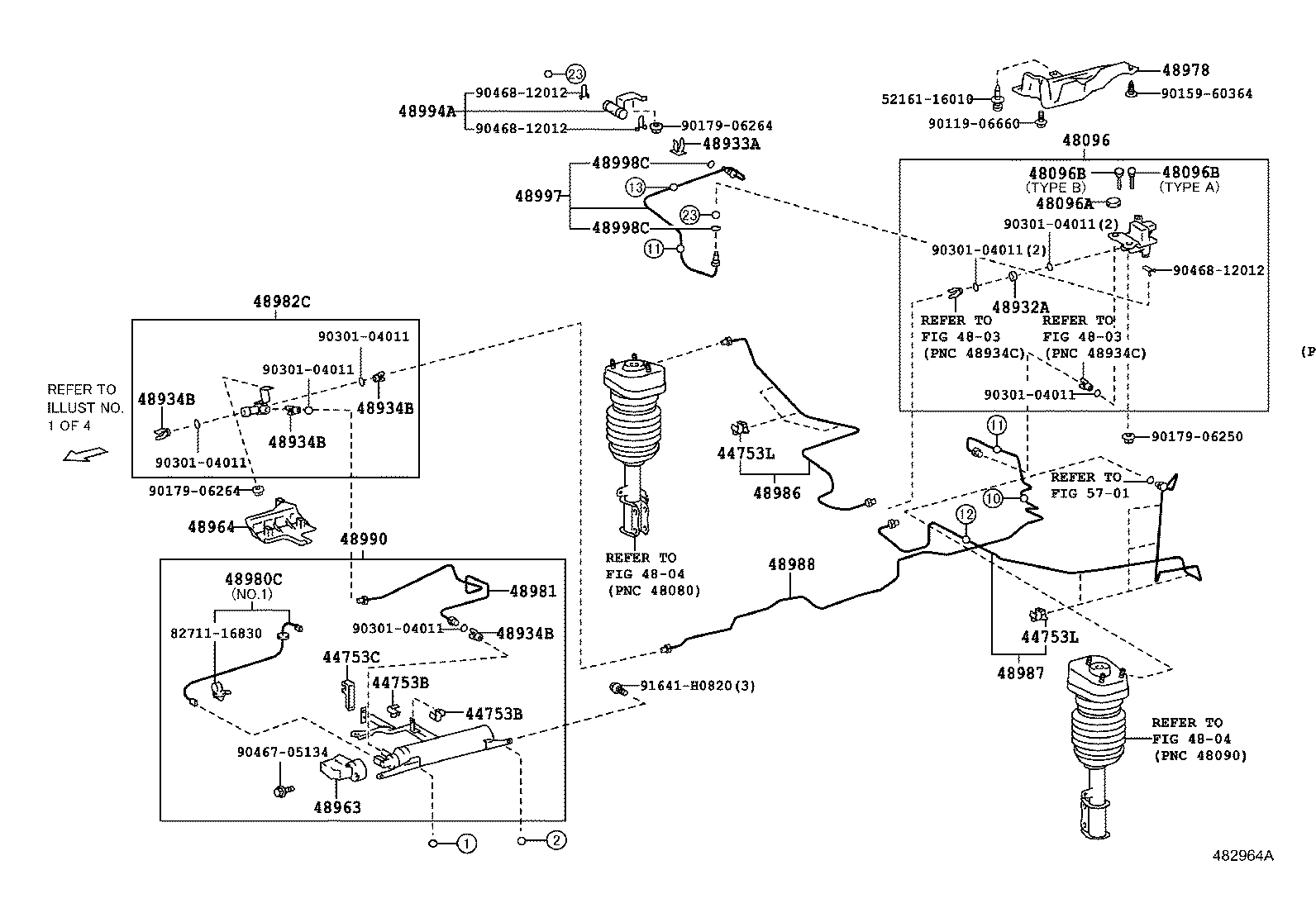

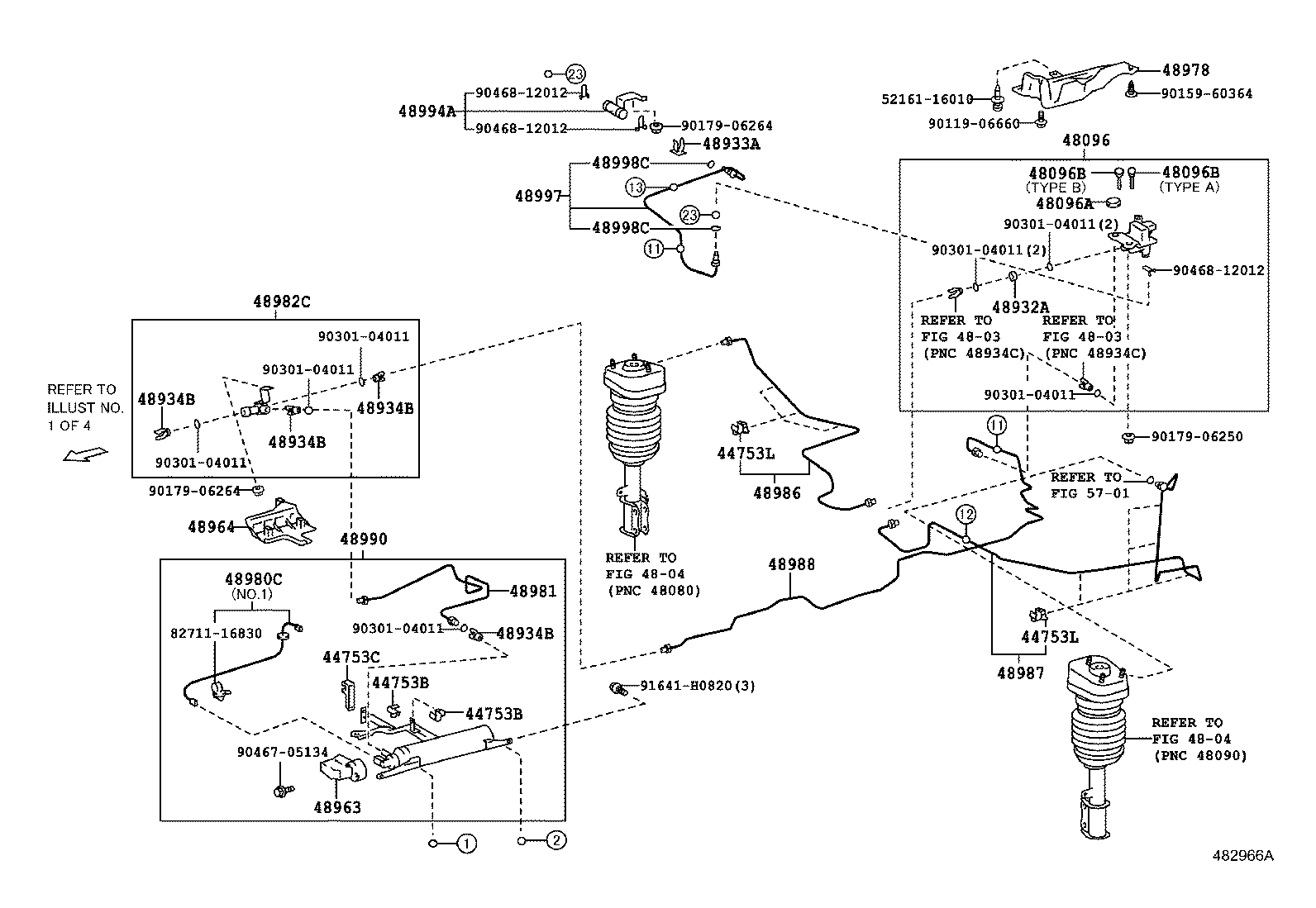

Figure 481646H 481646H 2003-02 → 2006-01 Figure 481646H 481646H 2006-01 → — Figure 482965A 482965A 2003-02 → 2006-01 Figure 482965A 482965A 2006-01 → — Figure 482964A 482964A 2003-02 → 2006-01 Figure 482964A 482964A 2006-01 → — Figure 482966A 482966A 2003-02 → 2006-01 Figure 482966A 482966A 2006-01 → — Figure 481647A 481647A 2003-02 → 2006-01 Figure 481647A 481647A 2006-01 → — Figure 481650A 481650A 2003-02 → 2006-01 Figure 481650A 481650A 2006-01 → — Figure 481648A 481648A 2003-02 → 2006-01 Figure 481648A 481648A 2006-01 → —

Part groups

PNCDescription
44753B Clamp, Height Control Tube, NO.1
44753C Clamp, Height Control Tube, NO.2
44753E Clamp, Height Control Tube, NO.3
44753F Clamp, Height Control Tube, NO.4
44753G Clamp, Height Control Tube NO.5
44753H Clamp, Height Control Tube NO.6
44753J Clamp, Height Control Tube NO.7
44753K Clamp, Height Control Tube NO.8
44753L Clamp, Height Control Tube NO.9
44753M Clamp, Height Control Tube NO.10
44753N Clamp, Height Control Tube NO.11
44753P Clamp, Height Control Tube NO.12
44753Q Clamp, Height Control Tube NO.13
44753R Clamp, Height Control Tube NO.14
44753S Clamp, Height Control Tube NO.15
44753T Clamp, Height Control Tube NO.16
44753U Clamp, Height Control Tube NO.17
44753V Clamp, Height Control Tube NO.18
44753W Clamp, Height Control Tube NO.19
44753X Clamp, Height Control Tube NO.20
44753Y Clamp, Height Control Tube NO.21
44753Z Clamp, Height Control Tube NO.22
47256 Grommet, Cap
48095 Valve Sub-assy, Height Control, NO.1
48095C Bush(FOR HEIGHT CONTROL VALVE NO.1)
48096 Valve Sub-assy, Height Control, NO.2
48096A Bush, NO.2(FOR HEIGHT CONTROL VALVE)
48096B Cushion, NO.2(FOR HEIGHT CONTROL VALVE)
48910B Compressor Assy, Height Control
48910D Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR)
48911 Bracket, Height Control Compressor
48911C Bracket, Rear Height Control Compressor
48925 Filter, Height Control
48932A Plate, Height Control Tube
48933 Holder, Air Connector Clip
48933A Holder, Front Height Control Air Connector Clip
48934B Connector, Height Control Tube
48943 Hose, Height Control, NO.1
48943B Hose, Height Control, NO.2
48950 Dryer Assy, Height Control
48963 Cover, Height Control Tank
48964 Cover, Height Control Case
48965 Clamp, Height Control Tube
48965D Clamp, Height Control Tube, NO.2
48965E Clamp, Haight Control Tube, NO.3
48970C Cap(FOR HEIGHT CONTROL COMPRESSOR)
48976 Way, Height Control
48978 Cover, Height Control Compressor
48980C Harness Assy, Height Control Valve
48981 Tube, Height Control, NO.1
48981B Ring, O(FOR HEIGHT CONTROL TUBE NO.1)
48982 Tube, Height Control, NO.2
48982A Ring, O(FOR HEIGHT CONTROL TUBE NO.2)
48982C Way, NO.2(FOR HEIGHT CONTROL TUBE)
48983 Tube, Height Control, NO.3
48983B Way, NO.3(FOR FRONT HEIGHT CONTROL TUBE)
48983C Tube, Height Control, Front NO.3
48984 Tube, Height Control, NO.4
48985 Tube, Height Control, NO.5
48986 Tube, Height Control, NO.6
48987 Tube, Height Control, NO.7
48988 Tube, Height Control, NO.8
48990 Tank Assy, Pneumatic W/Tube
48994A Way, NO.1(FOR REAR HEIGHT CONTROL TUBE)
48997 Tube, Height Control, Rear NO.4
48998A Ring, O(FOR REAR HEIGHT CONTROL TUBE NO.5)
48998B Tube, Height Control, Rear NO.11
48998C Ring, O(FOR REAR HEIGHT CONTROL TUBE NO.11)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
