Toyota Lexus RX300/330/350
2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe
Supported model
Data version 2009-04

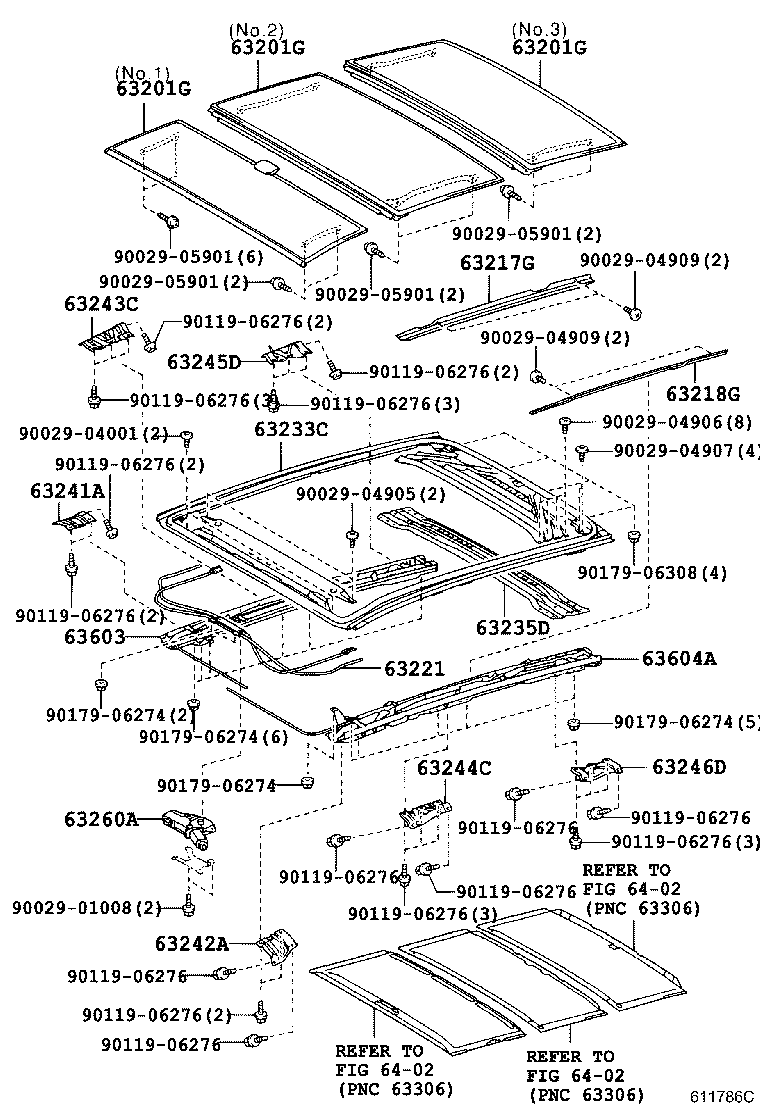

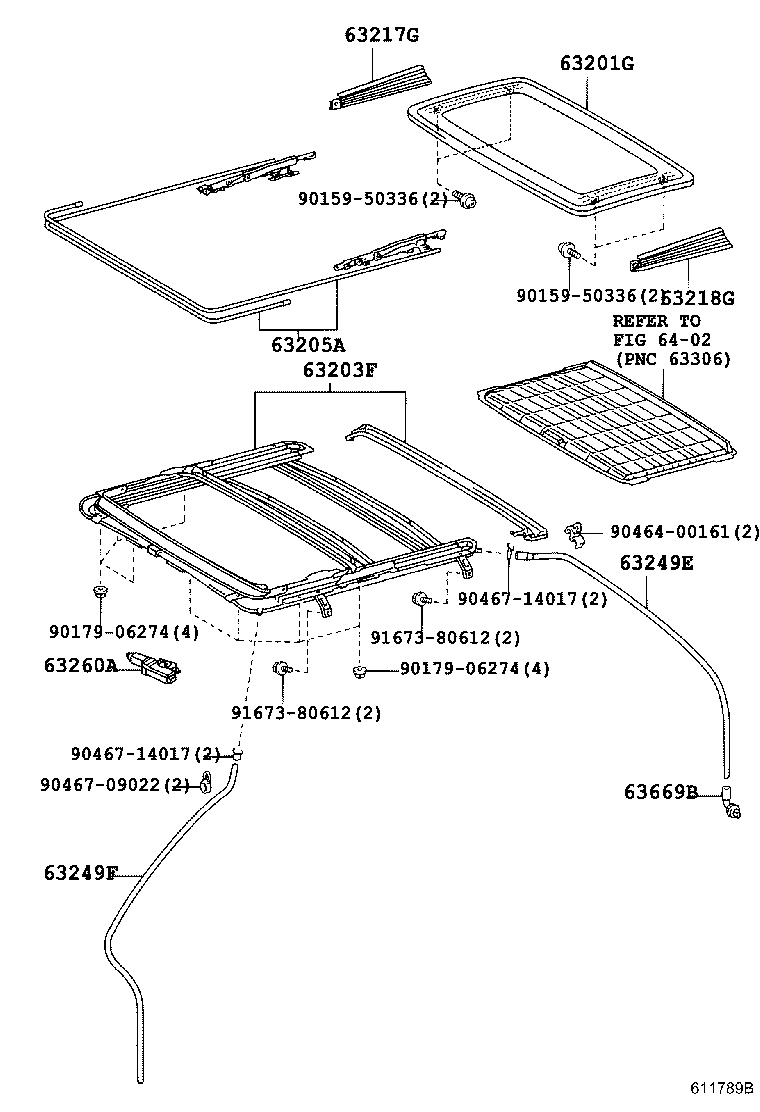

Roof Panel & Back Window Glass
47 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63112A | Panel, Roof, NO.2 |
| 63113A | Panel, Roof, NO.3 |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63123C | Reinforcement, Roof Panel |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63185D | Bracket, Roof Rack, Front |
| 63185H | Bracket, Roof Rack |
| 63187A | Bracket, Roof Rack, Rear |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63233C | Panel, Sliding Roof Housing |
| 63235D | Frame, Sliding Roof Housing, Center |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63409A | Support Sub-assy, Roof Rack, Center |
| 63437C | Seal, Roof Carrier |
| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63479 | Retainer, Roof Inner Rack |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63498B | Cap, Roof Carrier |
| 63603 | Rail Sub-assy, Sliding Roof Drive, RH |
| 63604A | Rail Sub-assy, Sliding Roof Drive, LH |
| 63669B | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
