Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

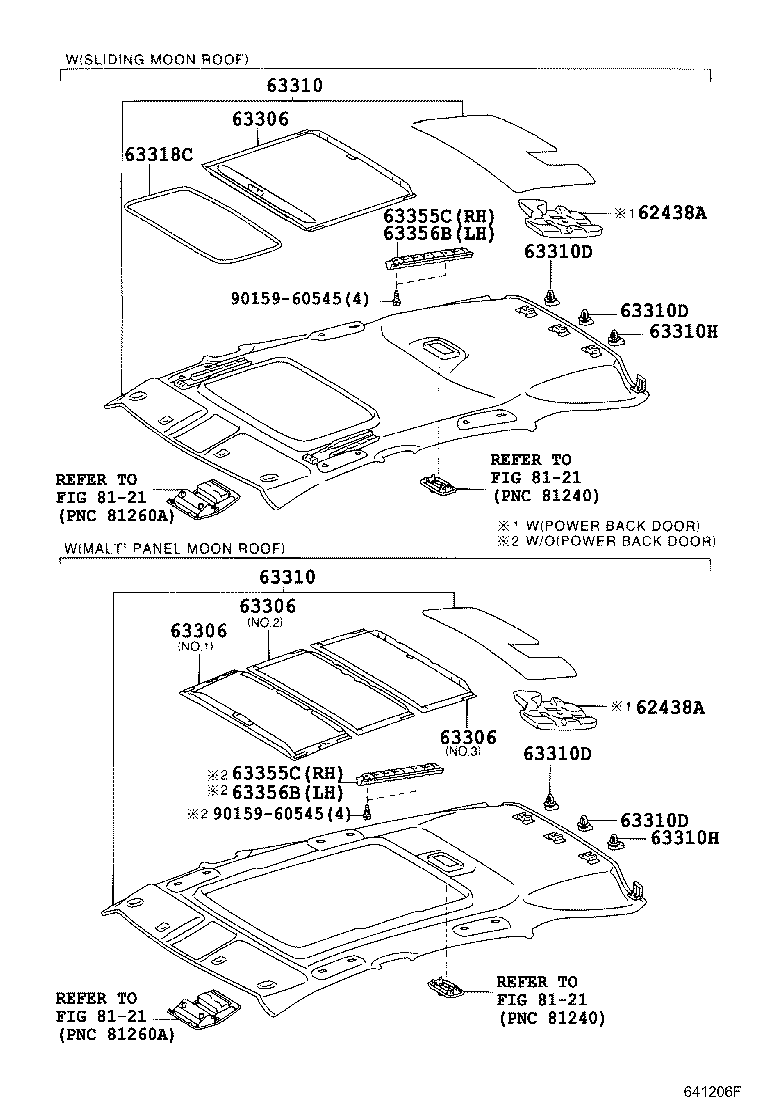

Figure 641216D 641216D 2003-02 → — Figure 641206F 641206F 2003-02 → —

Part groups

PNCDescription
62438A Pad, Roof Side Rail, Rear LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
