Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 4 illustrations

Illustrations

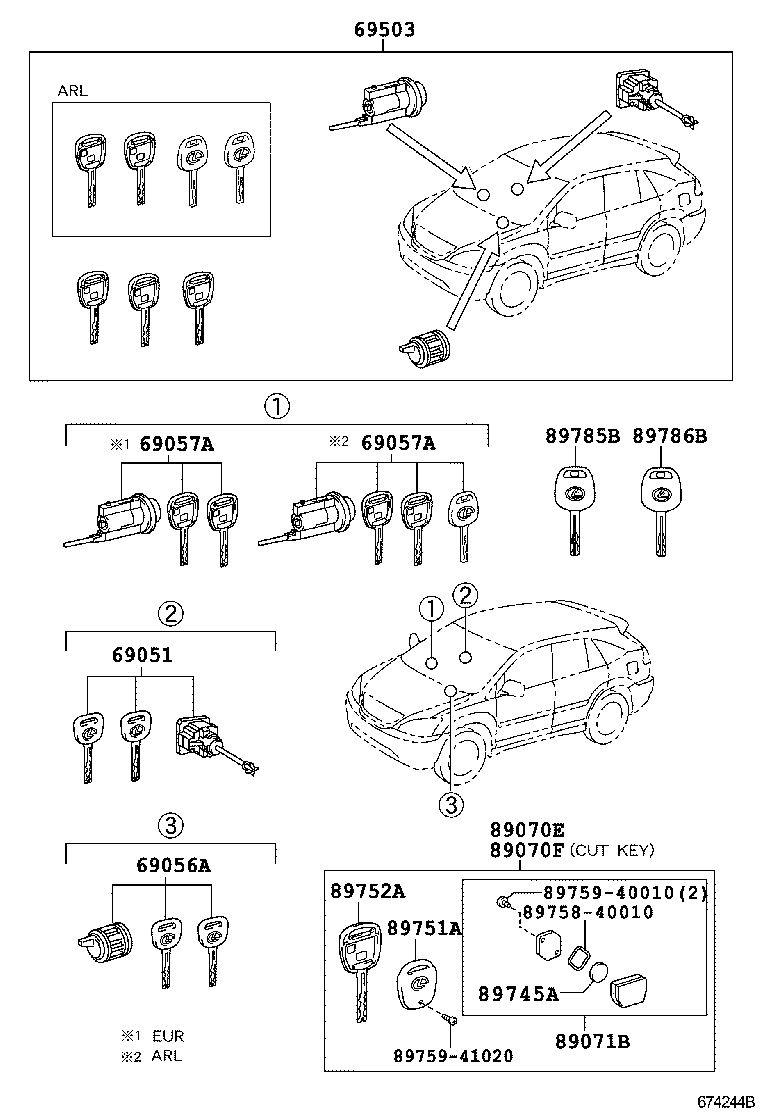

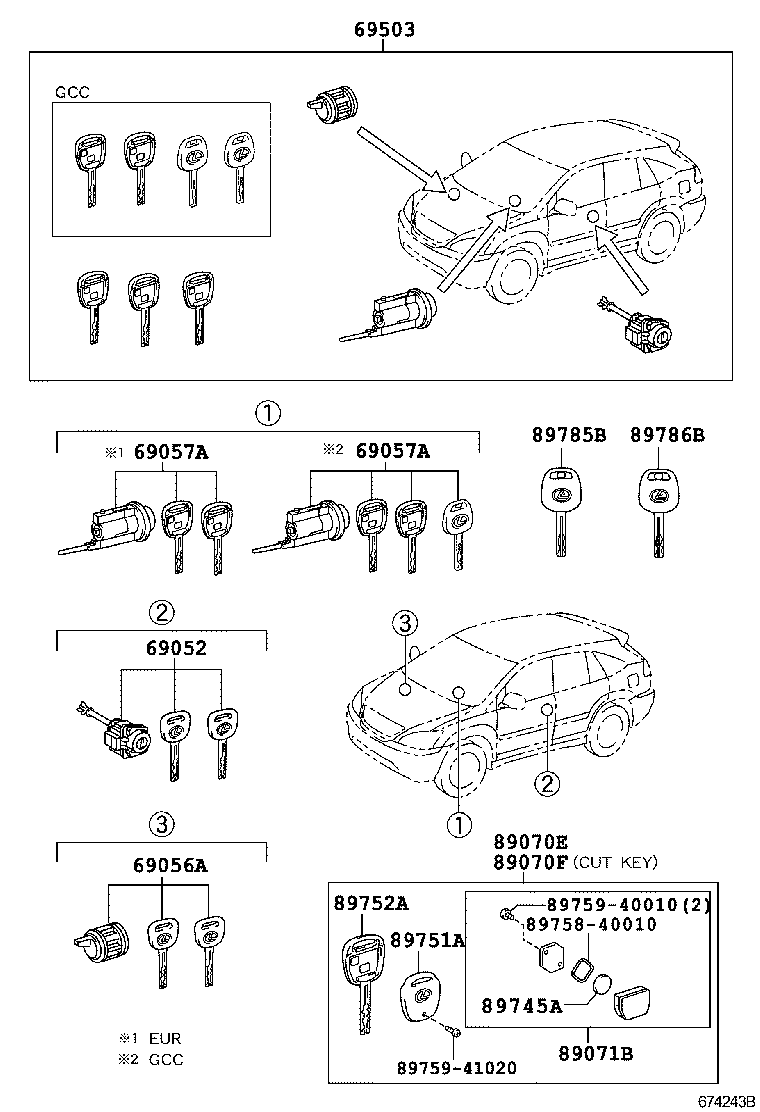

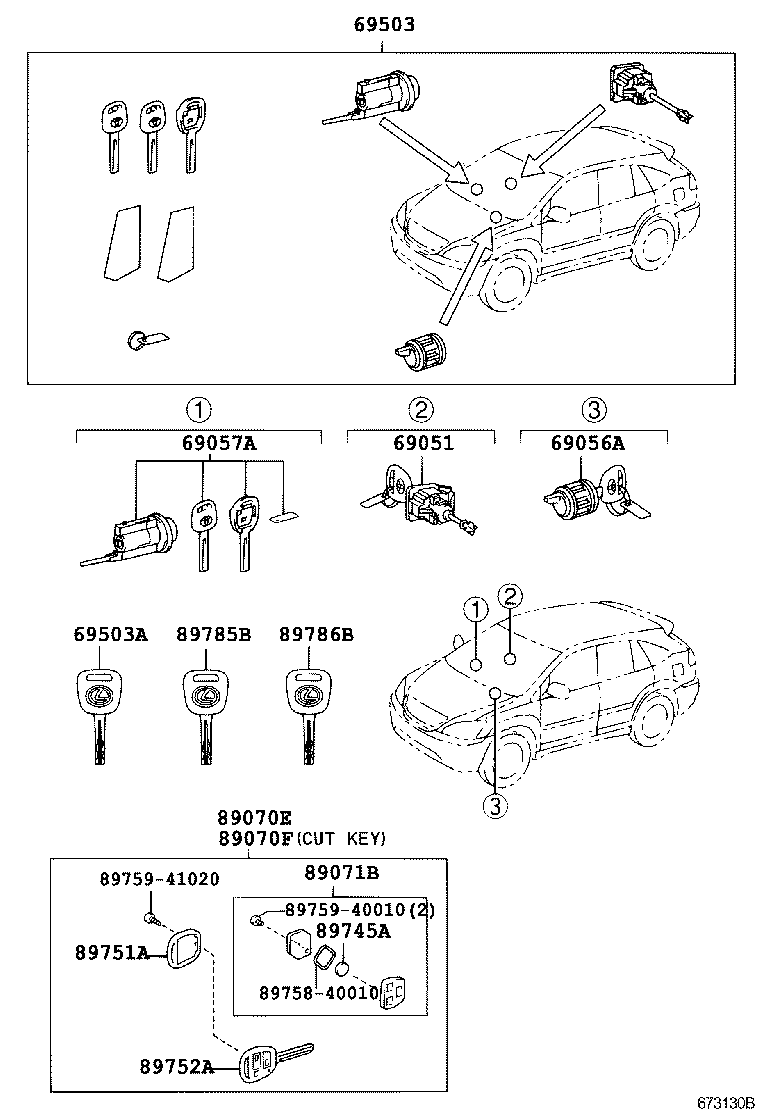

Figure 673129B 673129B 2003-02 → 2006-01 Figure 673130B 673130B 2003-02 → 2006-01 Figure 674243B 674243B 2006-01 → — Figure 674244B 674244B 2006-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
