Toyota Lexus RX300/330/350
2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe
Supported model
Data version 2009-04

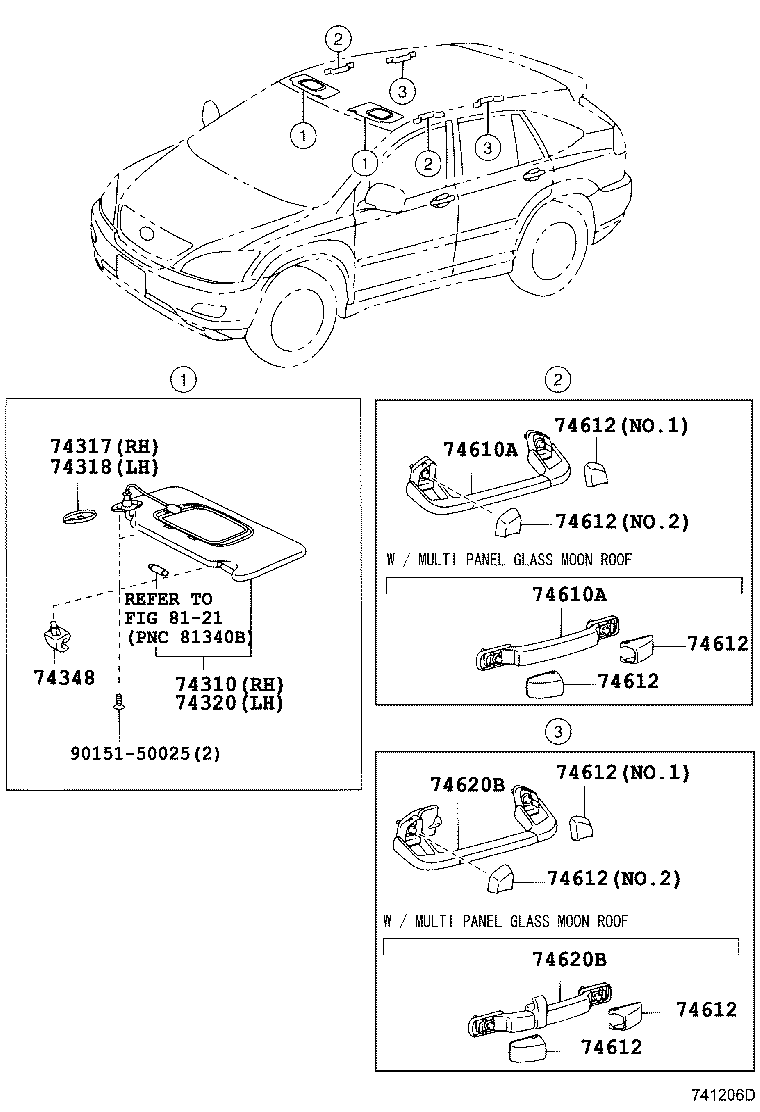

Armrest & Visor
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74221 | Cover, Door Armrest, RH |
| 74222 | Cover, Door Armrest, LH |
| 74230A | Panel Assy, Front Door Armrest Base, RH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |
| 74261 | Cover, Rear Door Armrest, RH |
| 74262 | Cover, Rear Door Armrest, LH |
| 74270 | Panel Assy, Rear Door Armrest Base, RH |
| 74280 | Panel Assy, Rear Door Armrest Base, LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
