Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

33 part groups · 5 illustrations

Illustrations

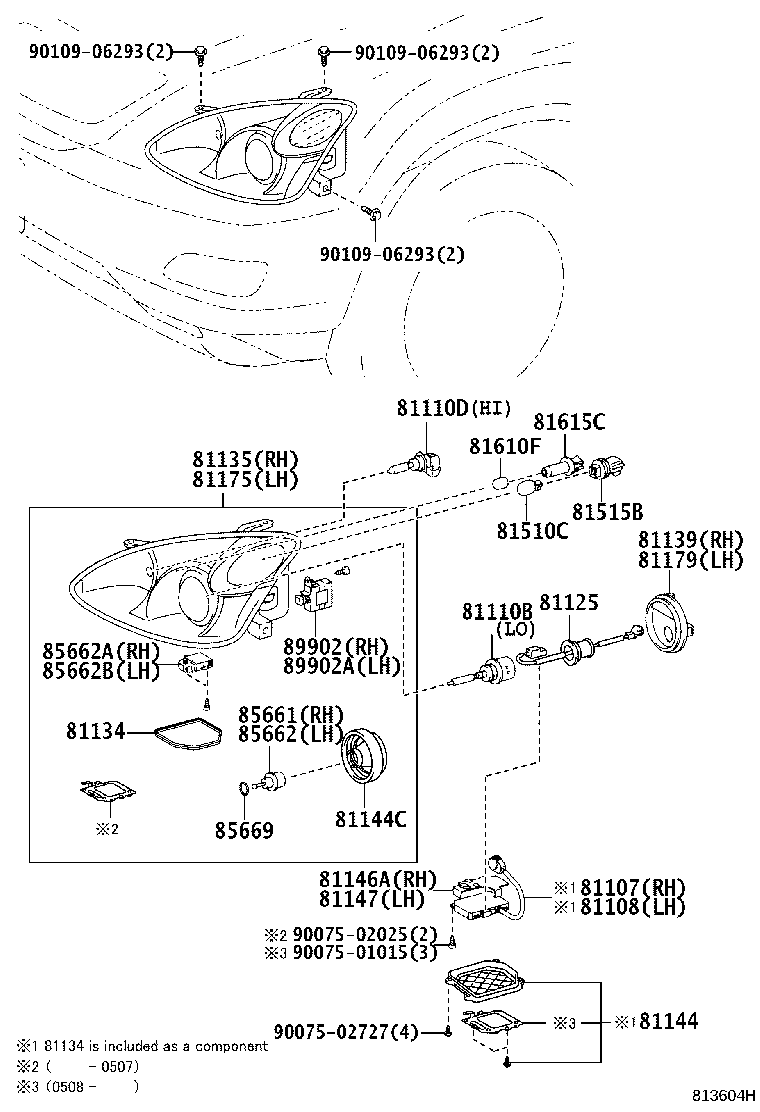

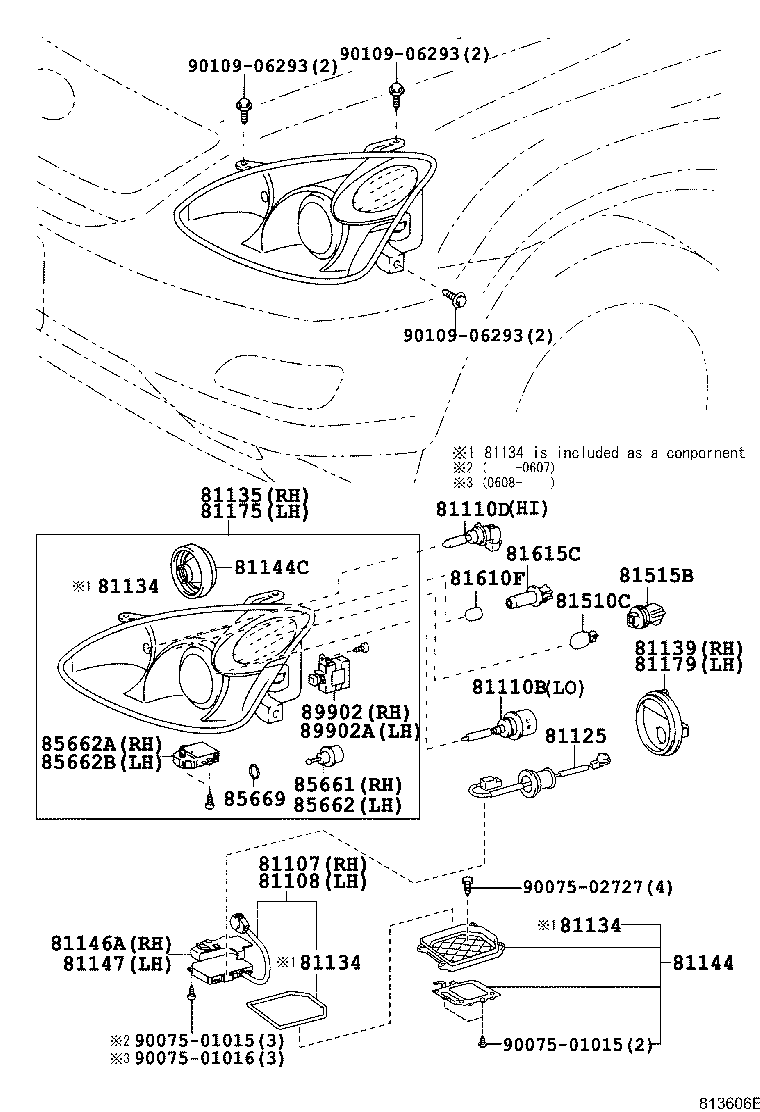

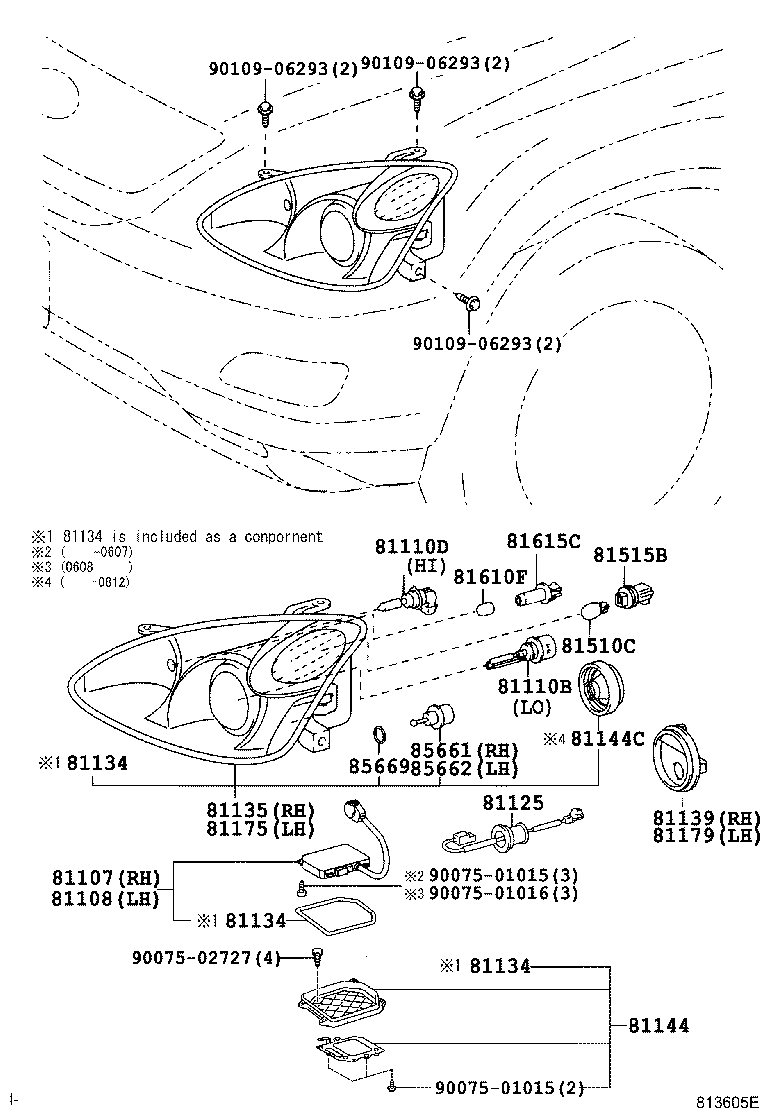

Figure 812534O 812534O 2003-02 → 2006-01 Figure 813604H 813604H 2003-02 → 2006-01 Figure 813605E 813605E 2006-01 → — Figure 813606E 813606E 2006-01 → — Figure 812500A 812500A 2003-02 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81125 Cord, Headlamp
81126A Plate, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81146A Fitting, Headlamp, RH
81147 Fitting, Headlamp, LH
81166 Plate, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85662A Motor, Light Reflector, RH
85662B Moter, Light Reflector, LH
85669 Packing, Headlamp Leveling Motor Base
89902 Computer Sub-assy, Headlamp Swivel, RH
89902A Computer Sub-assy, Headlamp Swivel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
