Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

24 part groups · 3 illustrations

Illustrations

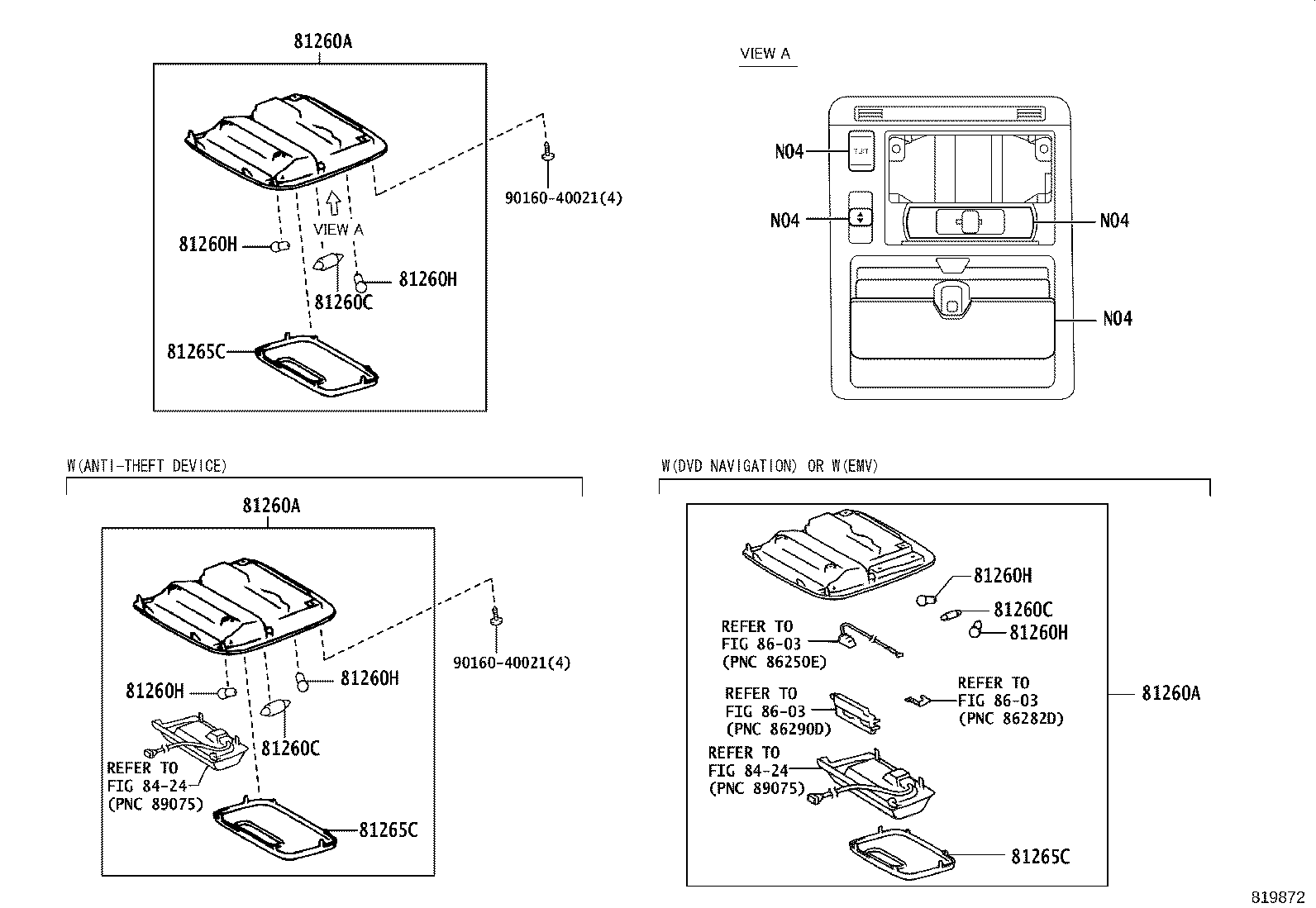

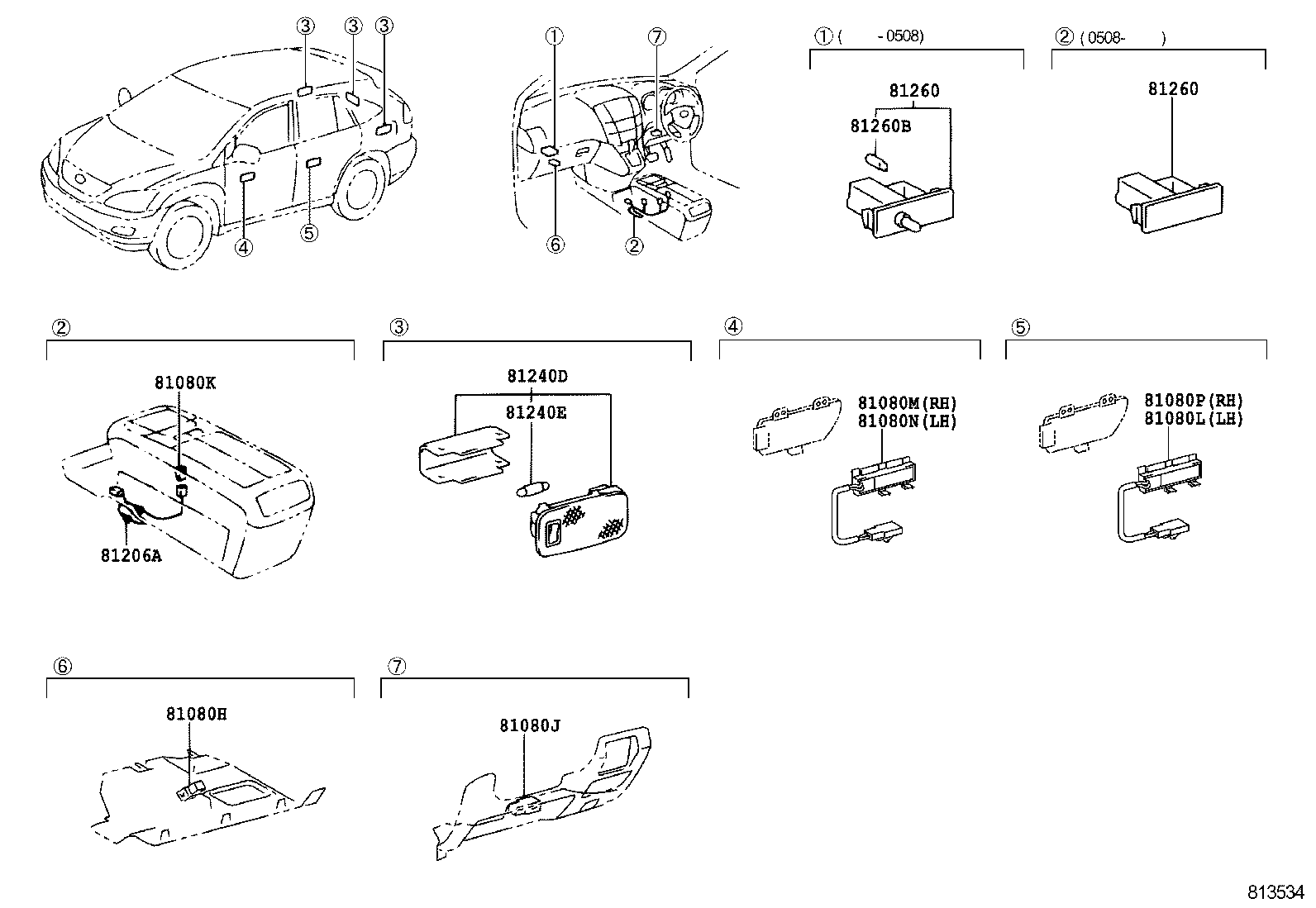

Figure 812520M 812520M 2003-02 → — Figure 819872 819872 2003-02 → — Figure 813534 813534 2003-02 → —

Part groups

PNCDescription
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81206A Lamp Sub-assy, Console Box
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230H Bulb(FOR FRONT DOOR COURTESY LAMP RH)
81230L Bulb(FOR FRONT DOOR COURTESY LAMP LH)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241 Lens, Room Lamp, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260B Bulb(FOR GLOVE BOX)
81260C Bulb(FOR MAP LAMP)
81260H Bulb(FOR MAP LAMP), NO.2
81265C Lens, Map Lamp, NO.1
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
