Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

48 part groups · 17 illustrations

Illustrations

Figure 823443D

823443D 2003-02 → —

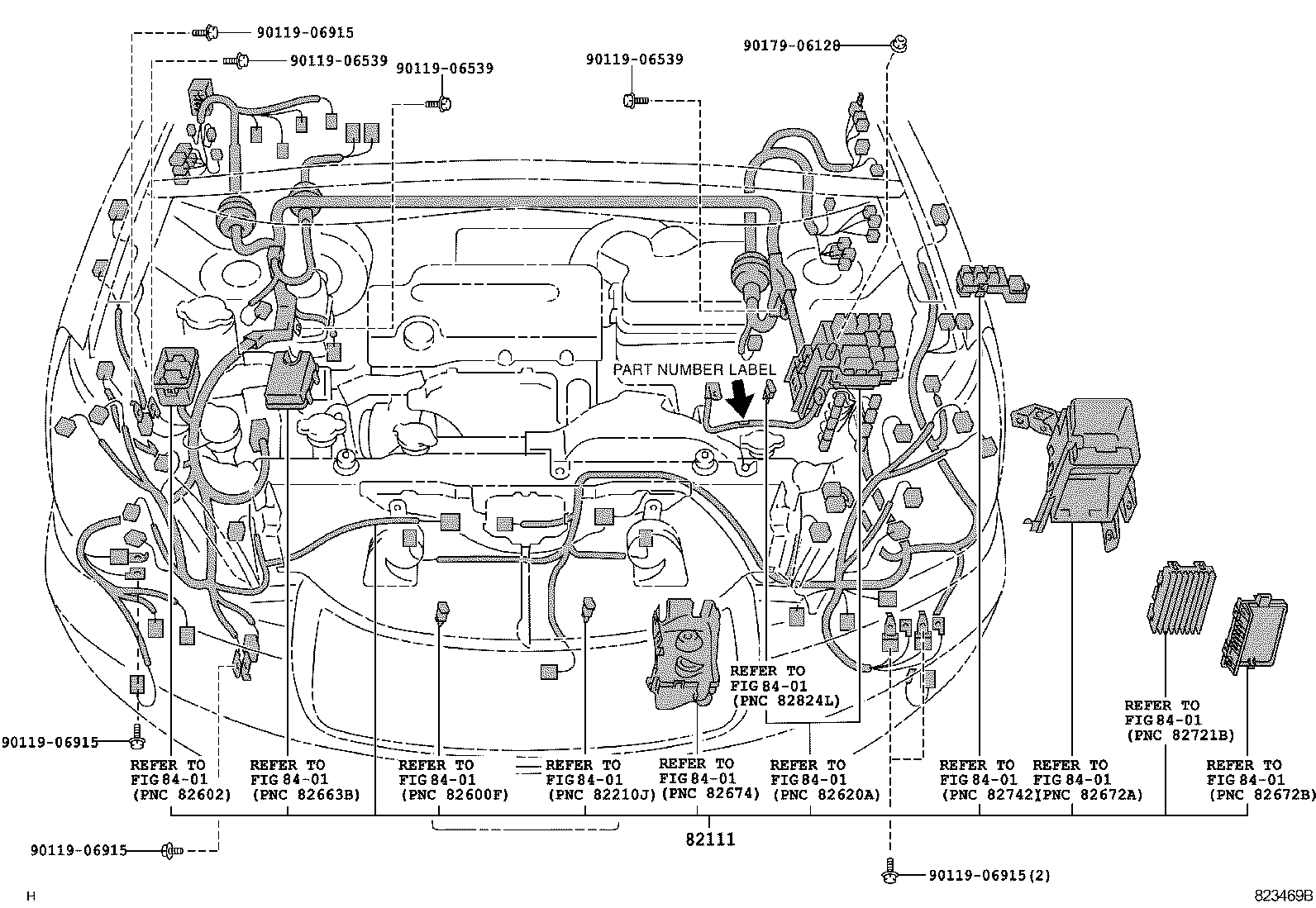

Figure 823469B

823469B 2003-02 → —

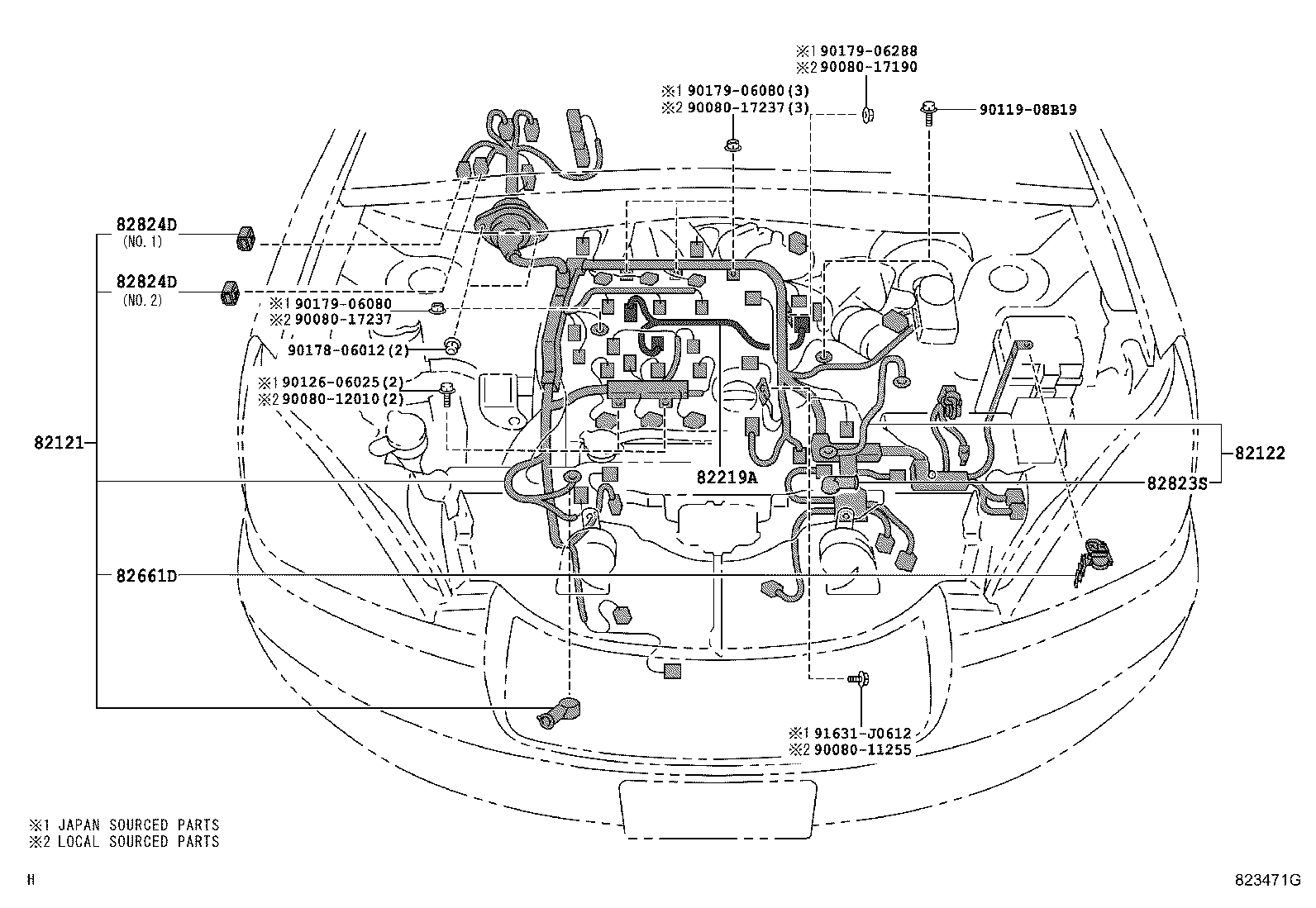

Figure 823471G

823471G 2003-02 → 2006-01

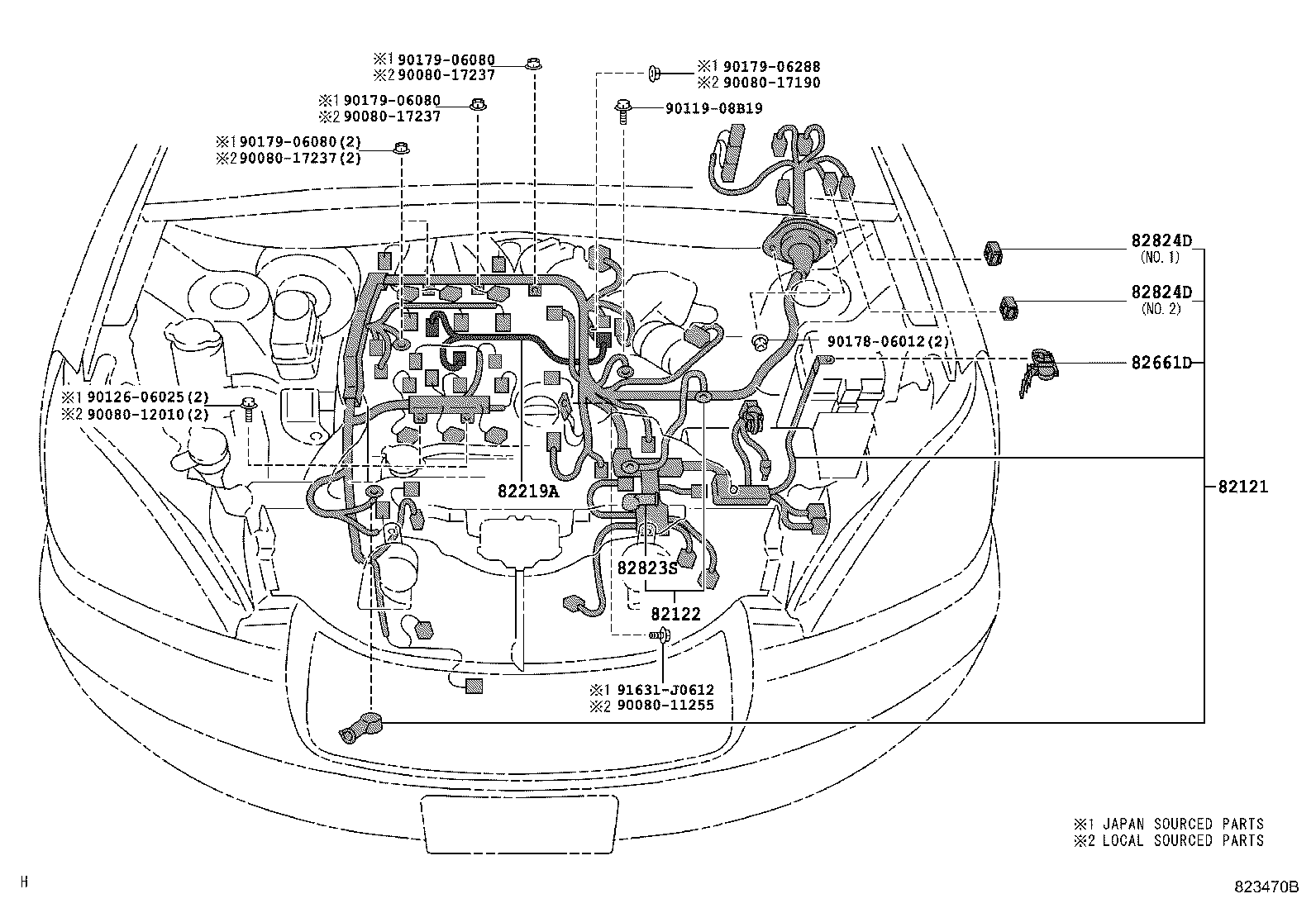

Figure 823470B

823470B 2003-02 → 2006-01

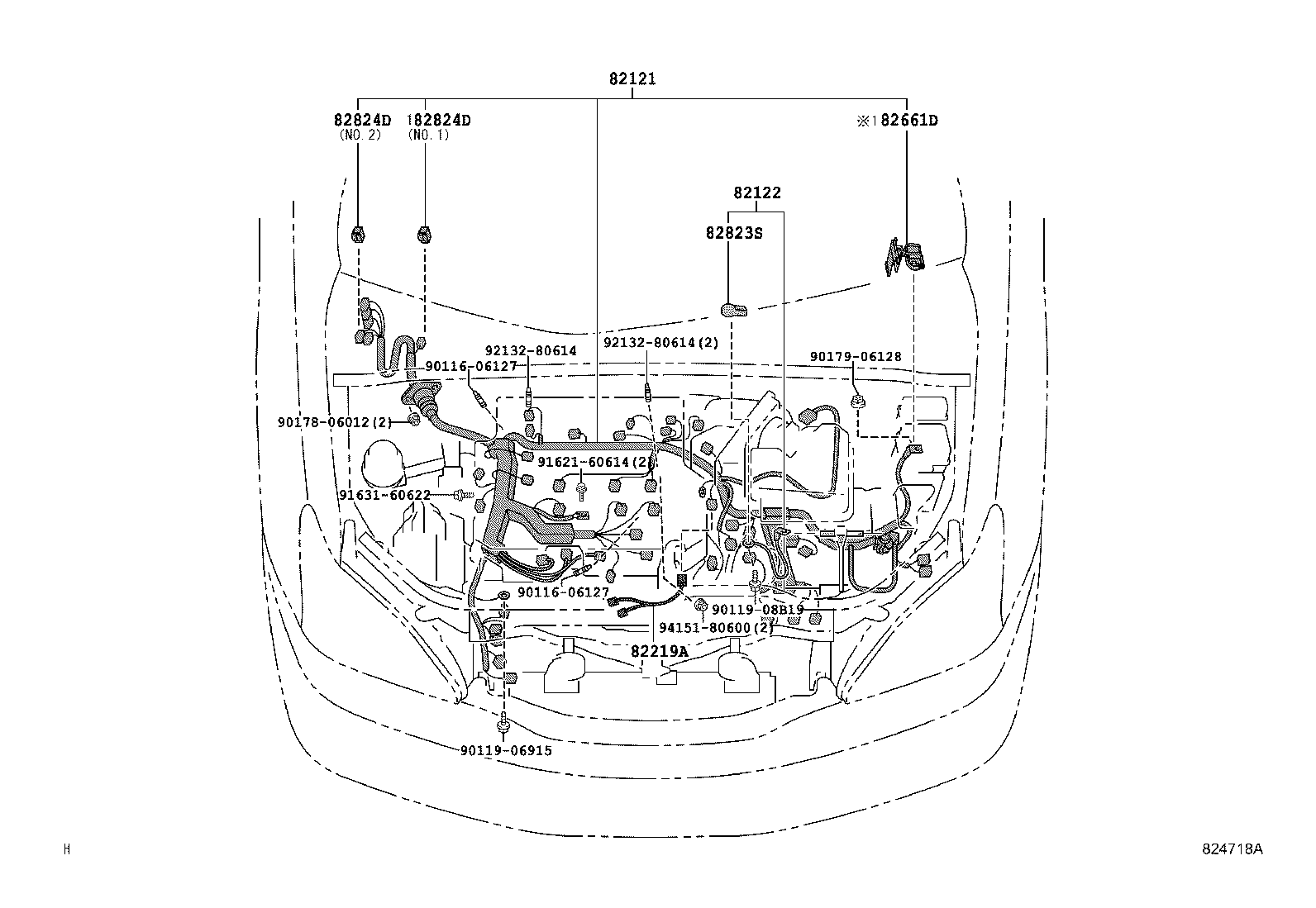

Figure 824718A

824718A 2006-01 → —

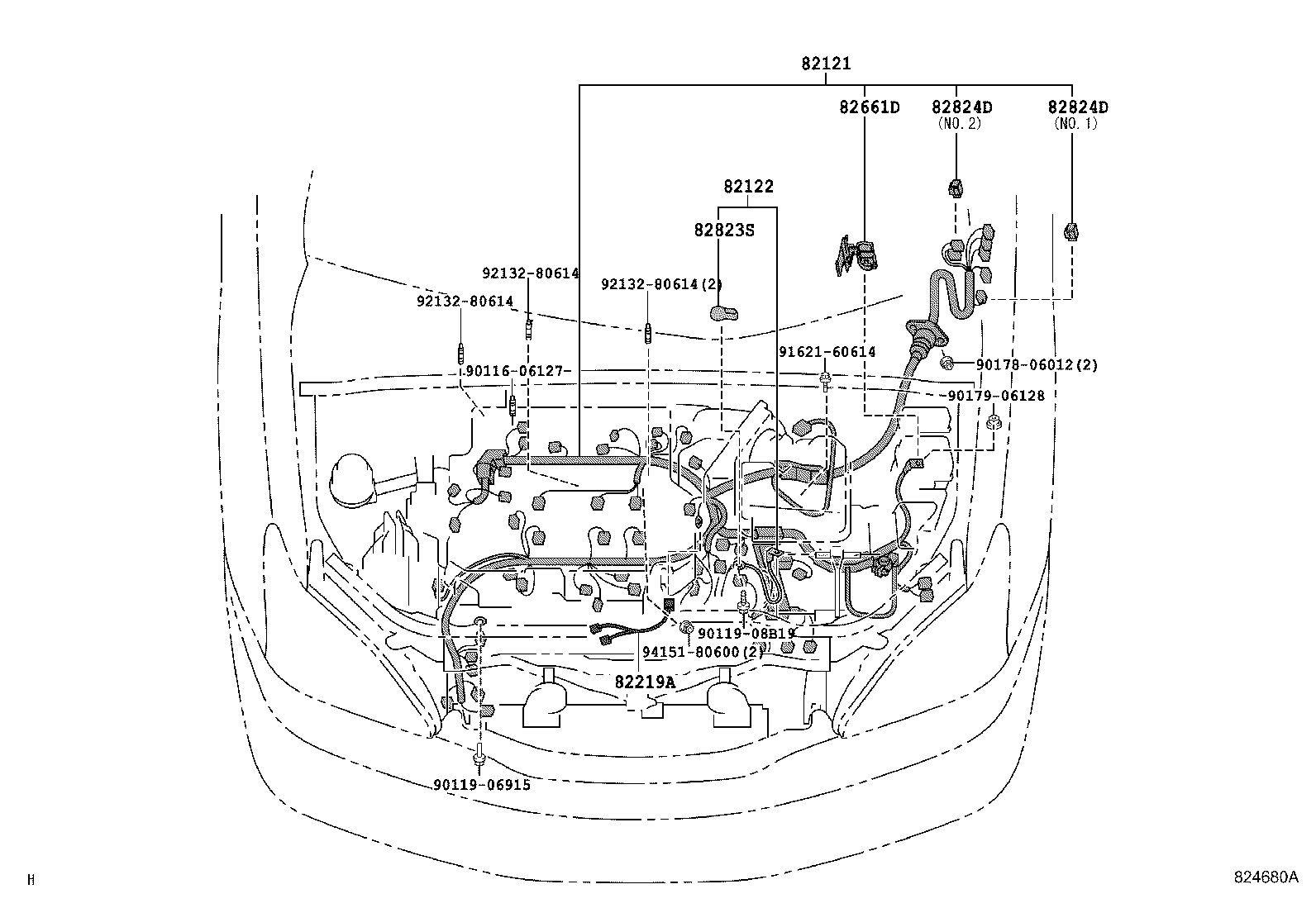

Figure 824680A

824680A 2006-01 → —

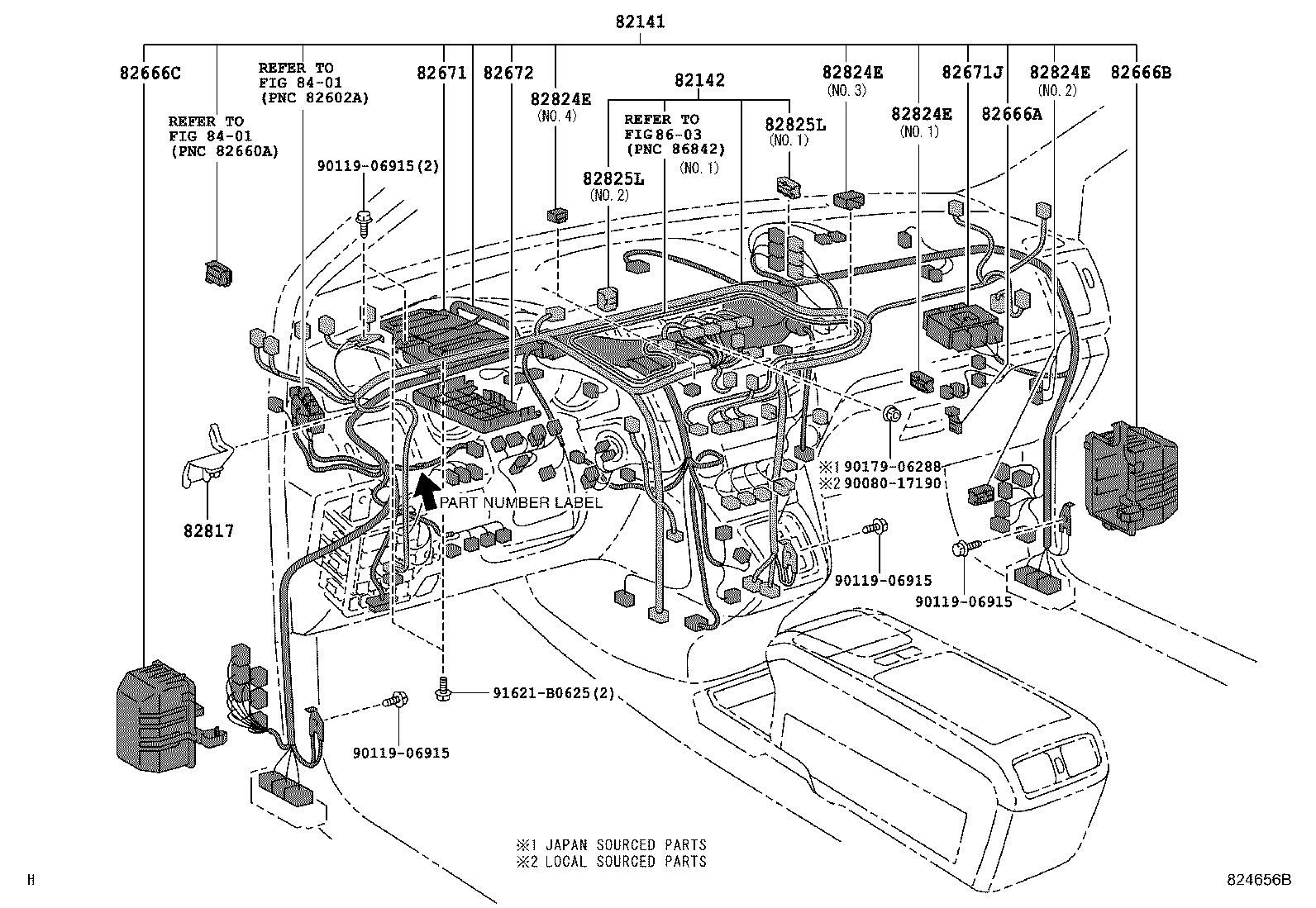

Figure 824656B

824656B 2003-02 → —

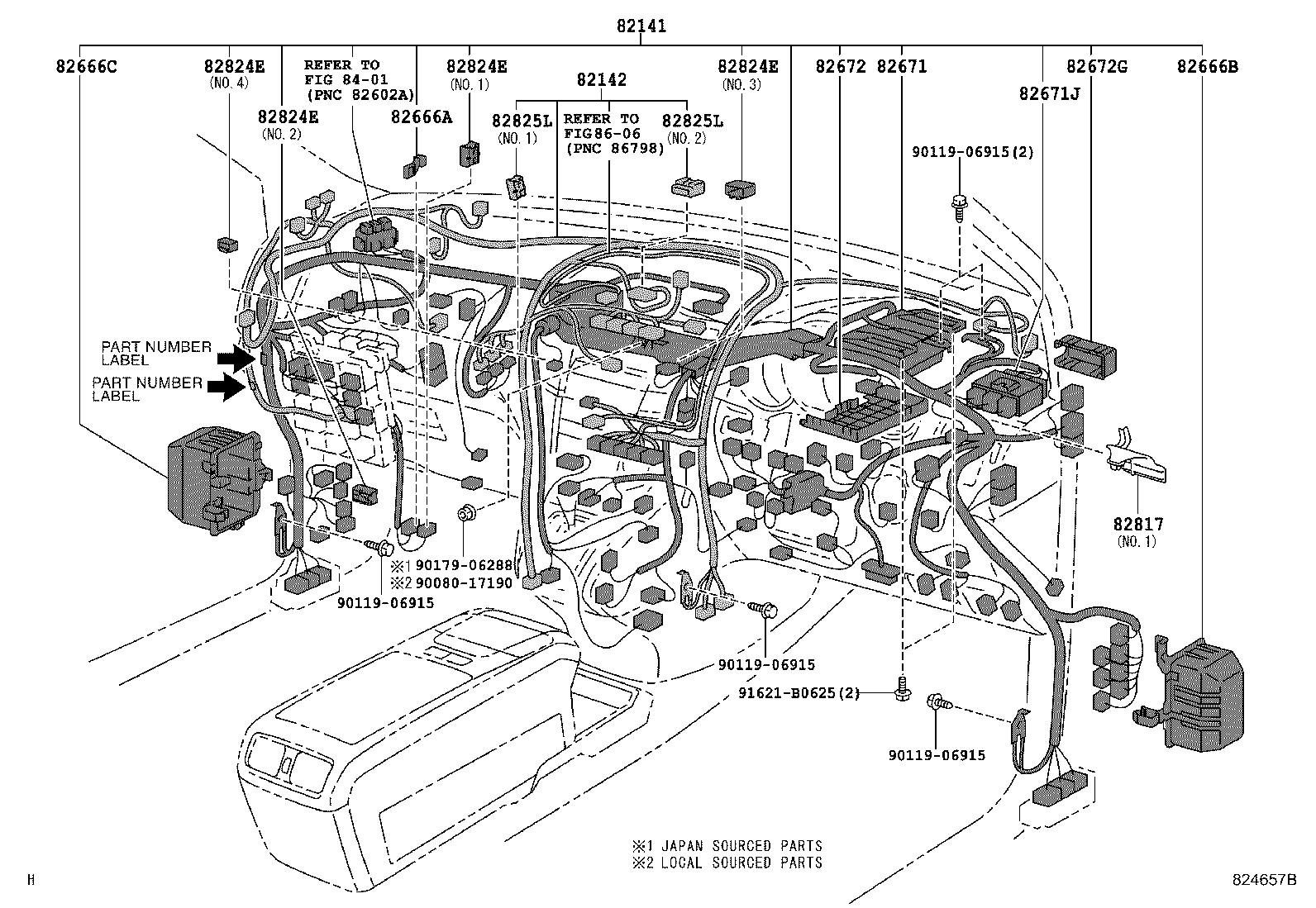

Figure 824657B

824657B 2003-02 → —

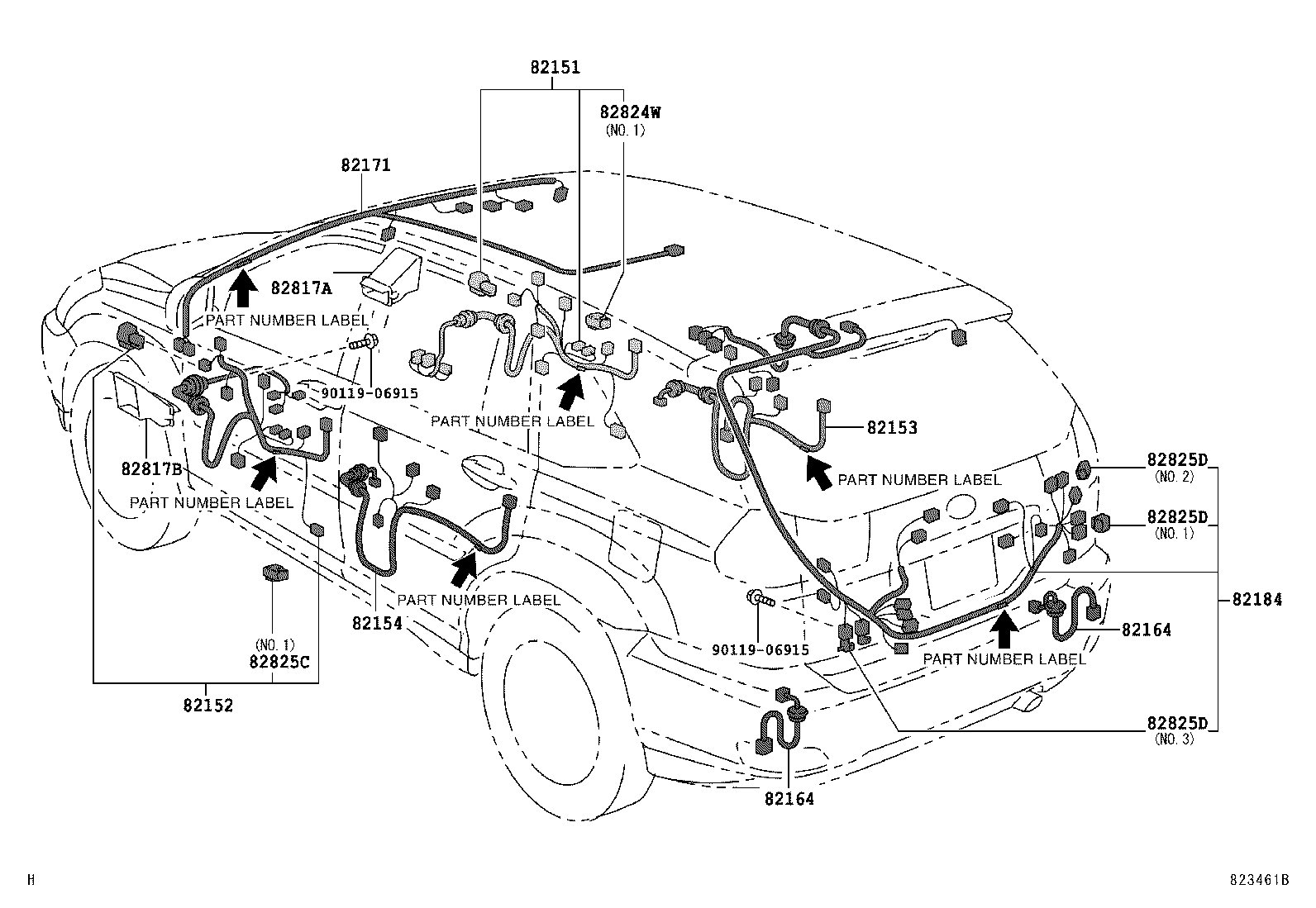

Figure 823461B

823461B 2003-02 → —

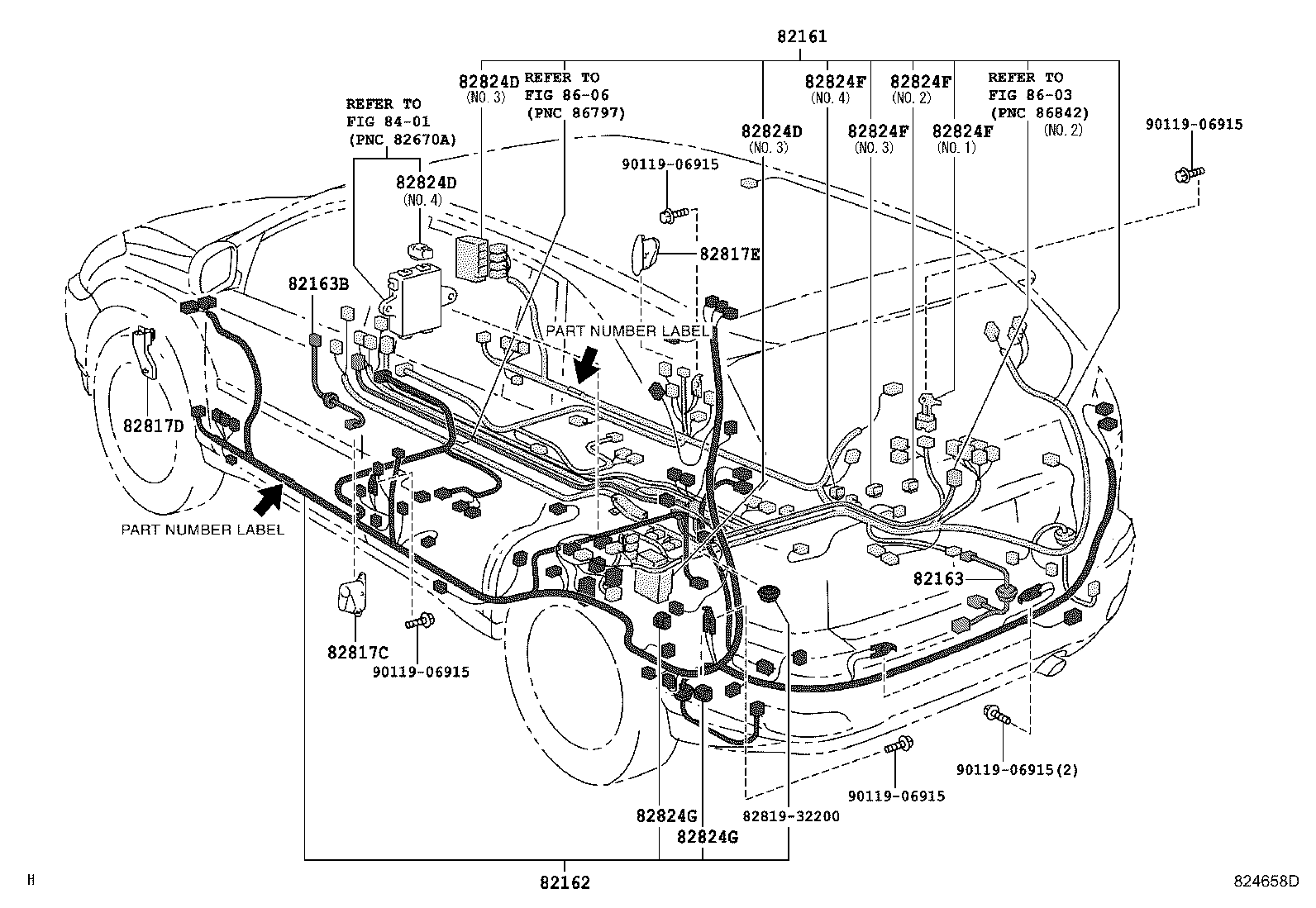

Figure 824658D

824658D 2003-02 → —

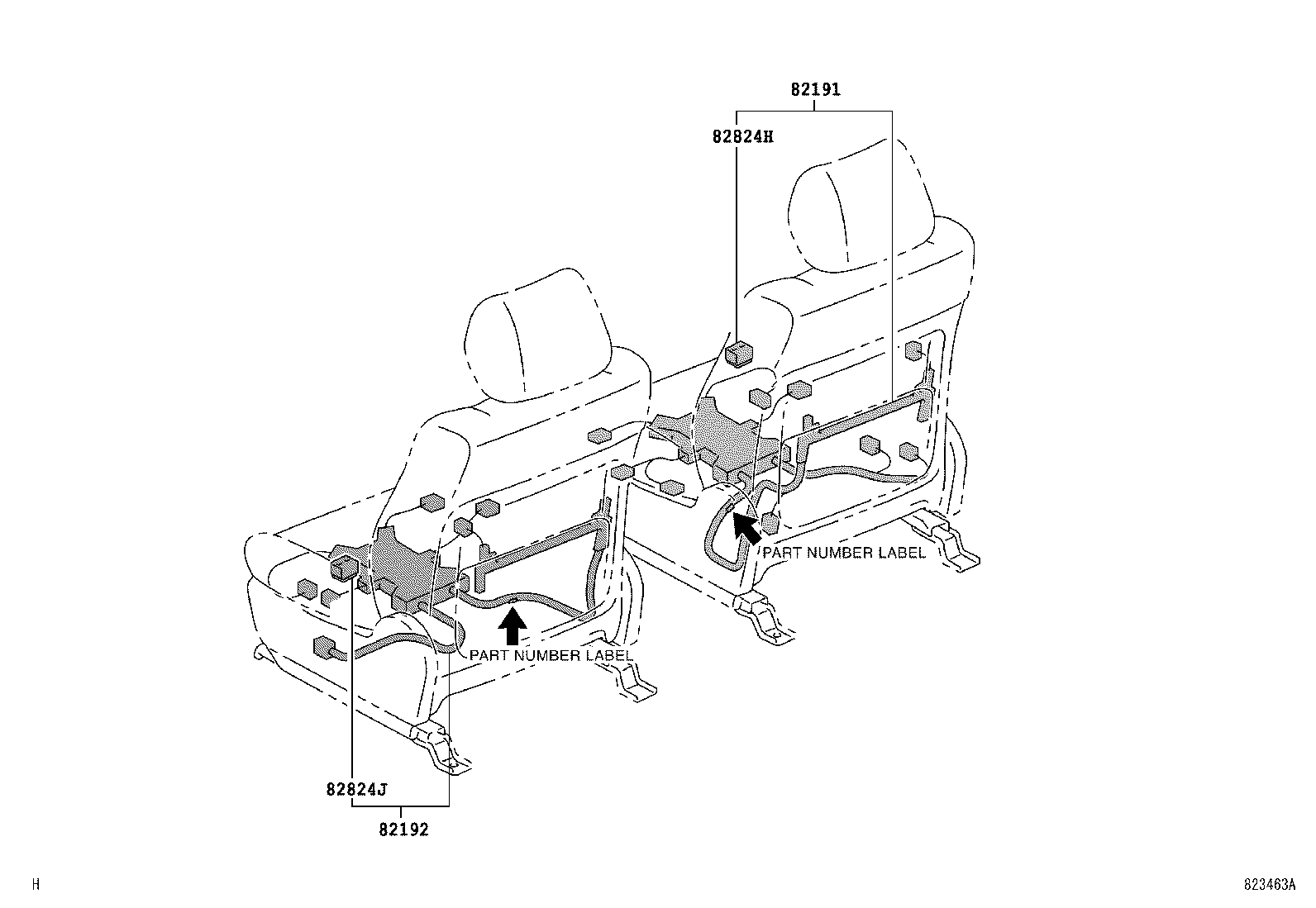

Figure 823463A

823463A 2003-02 → —

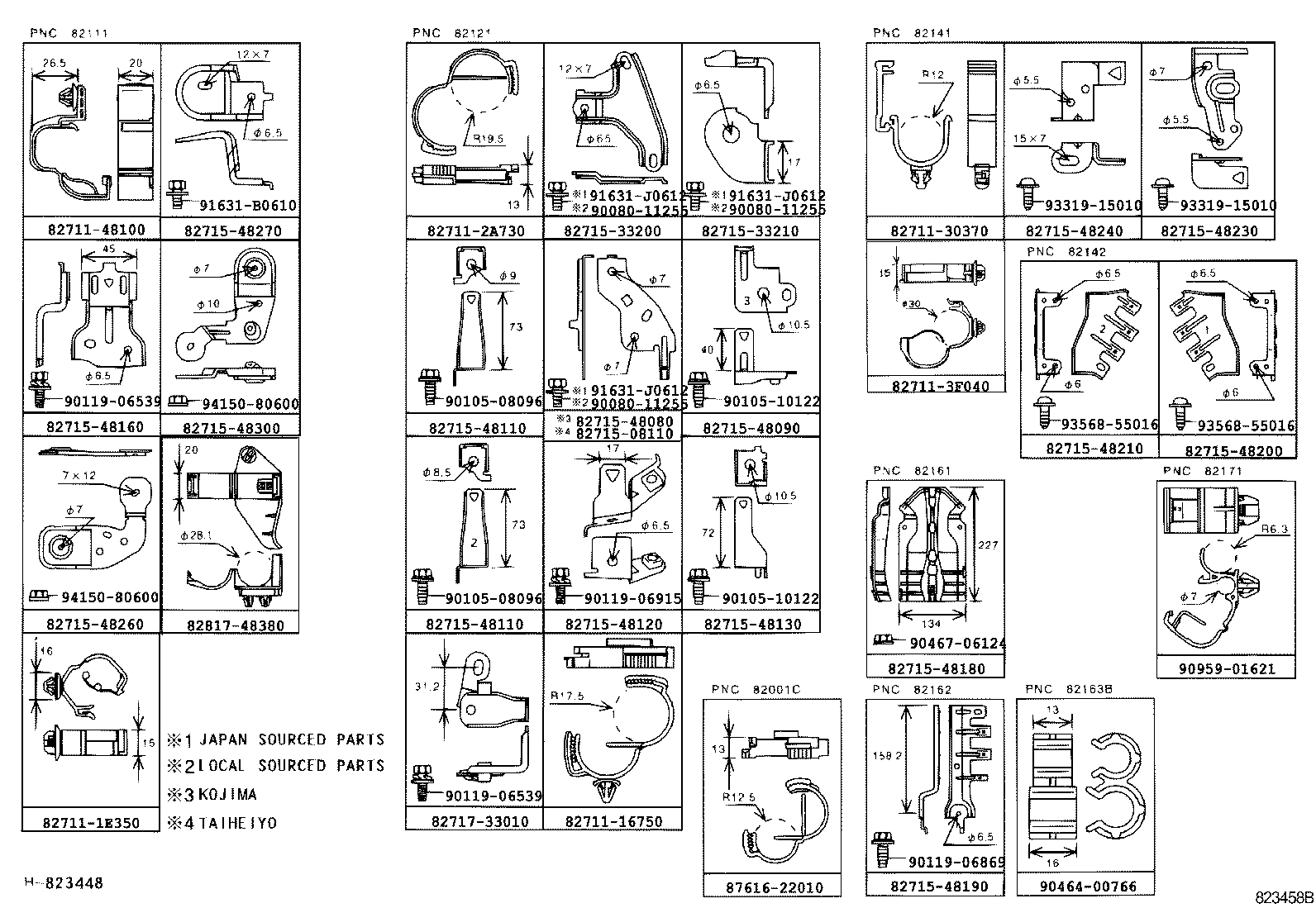

Figure 823458B

823458B 2003-02 → 2006-01

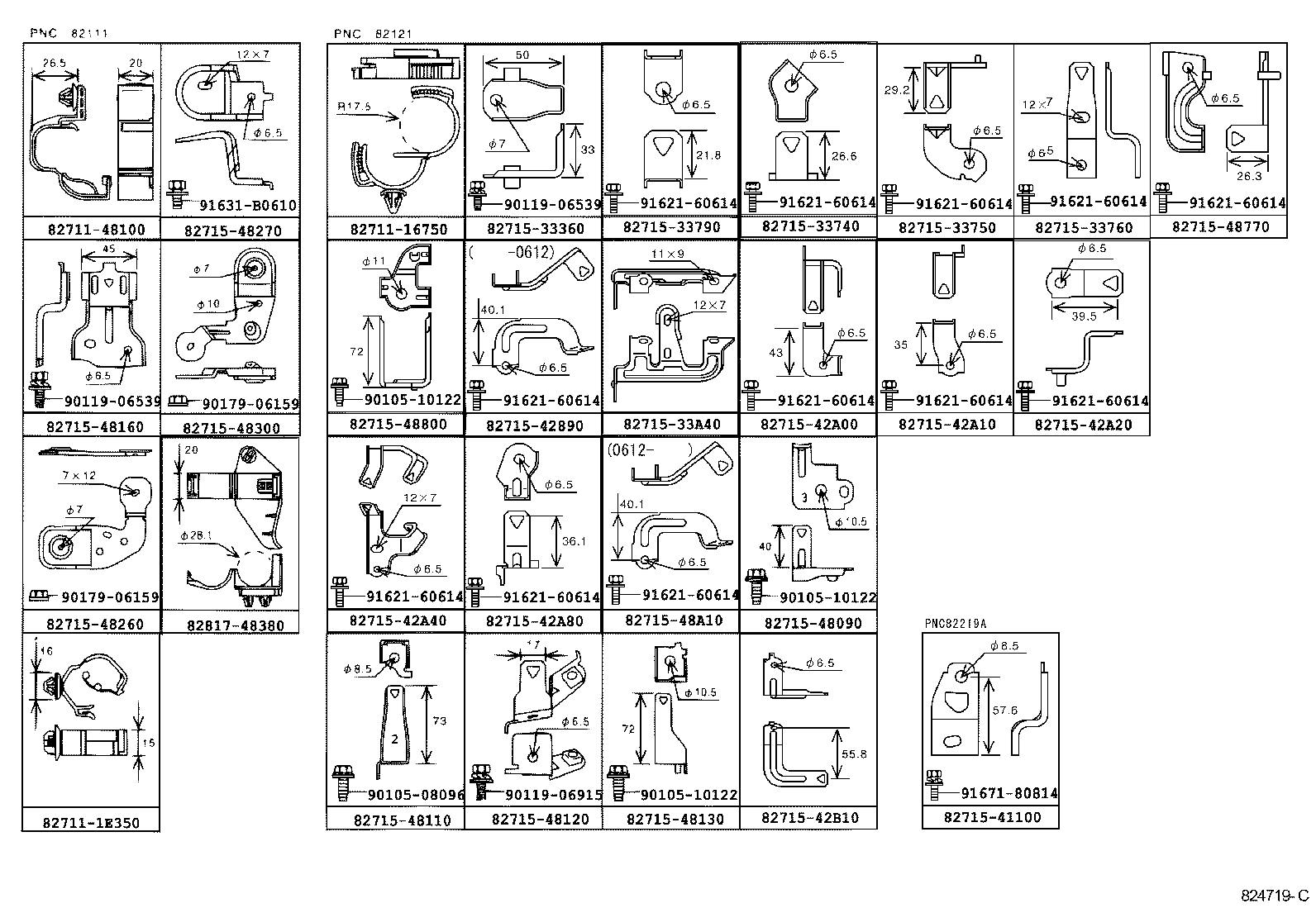

Figure 824719C

824719C 2006-01 → —

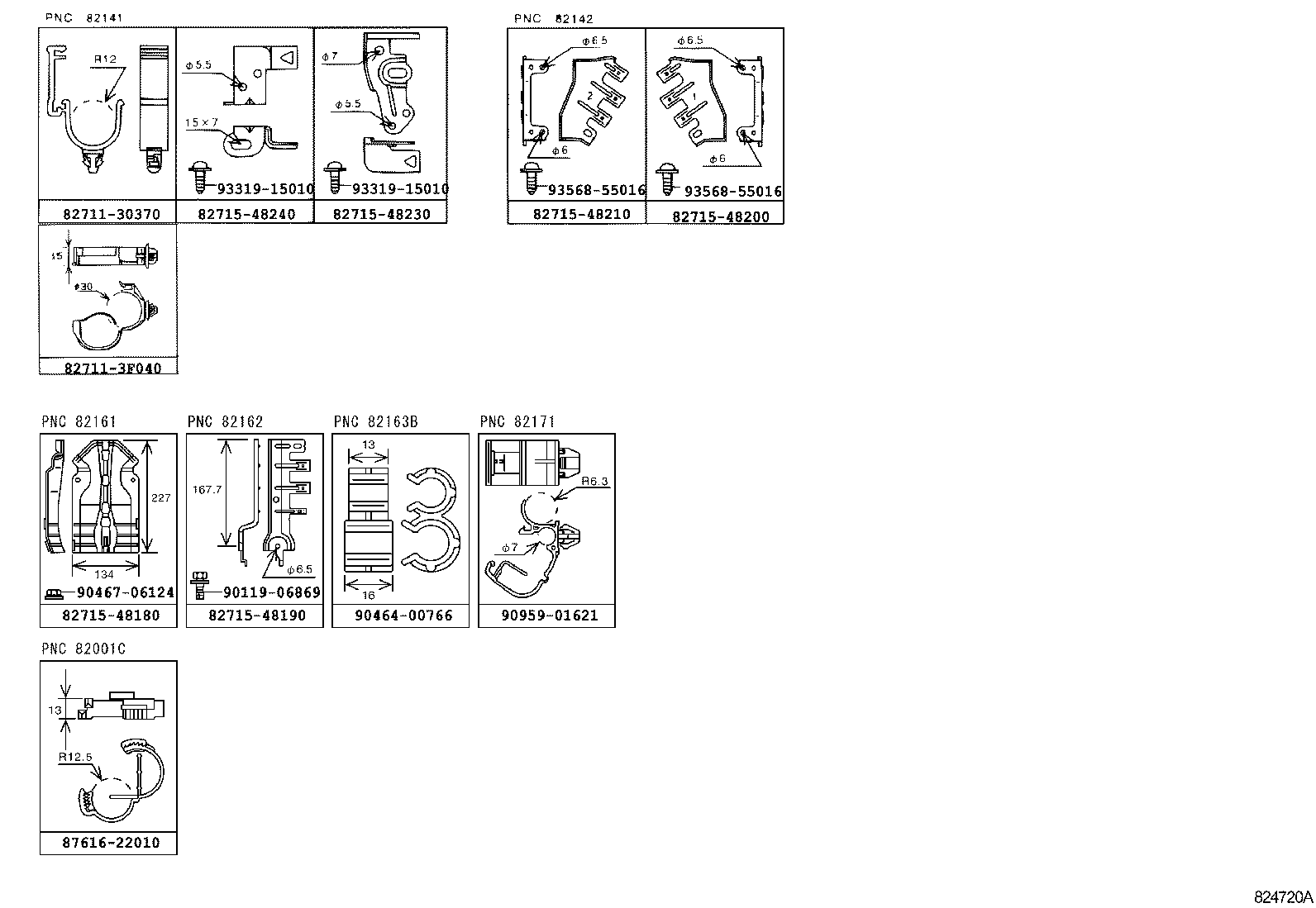

Figure 824720A

824720A 2006-01 → —

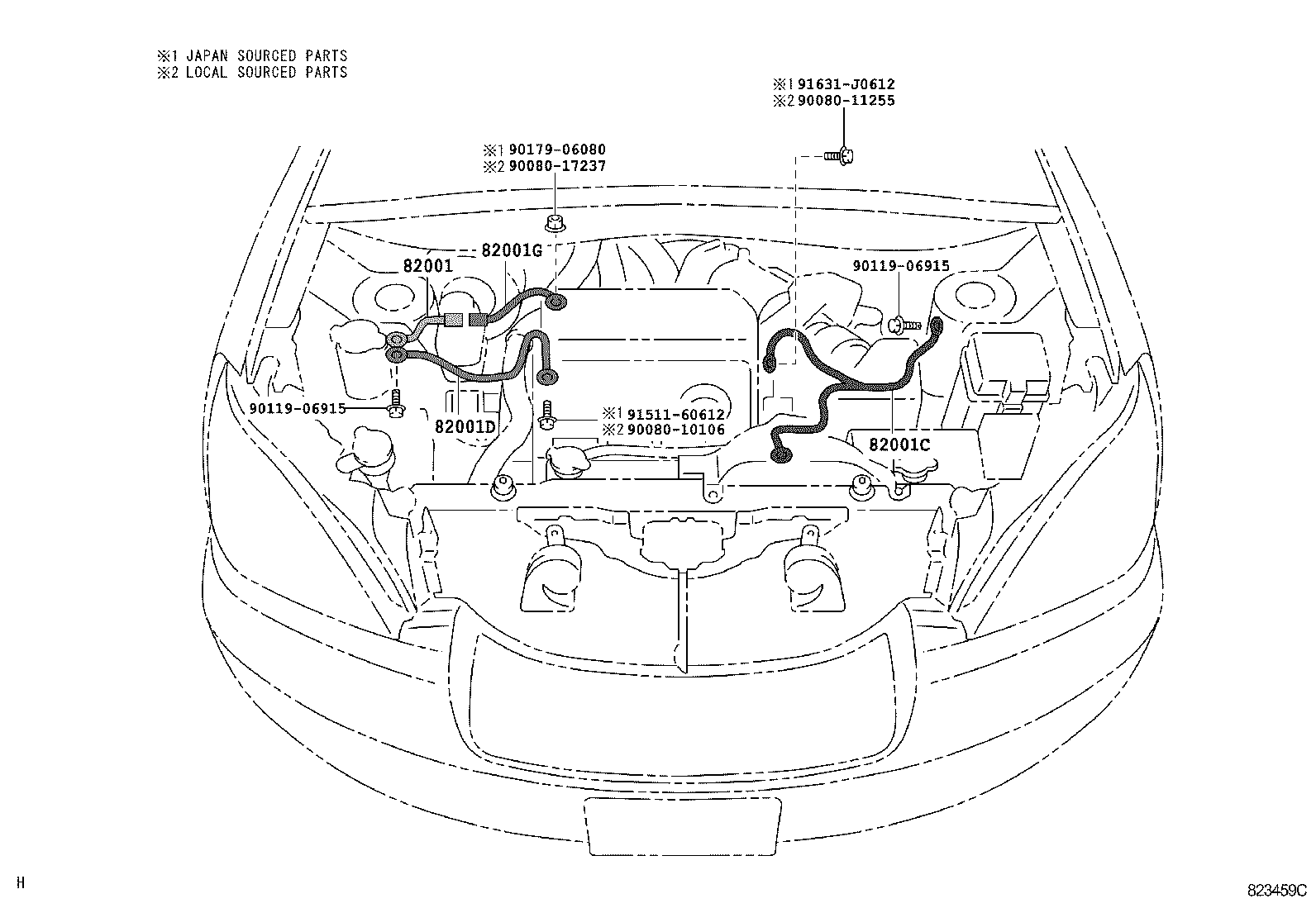

Figure 823459C

823459C 2003-02 → 2006-01

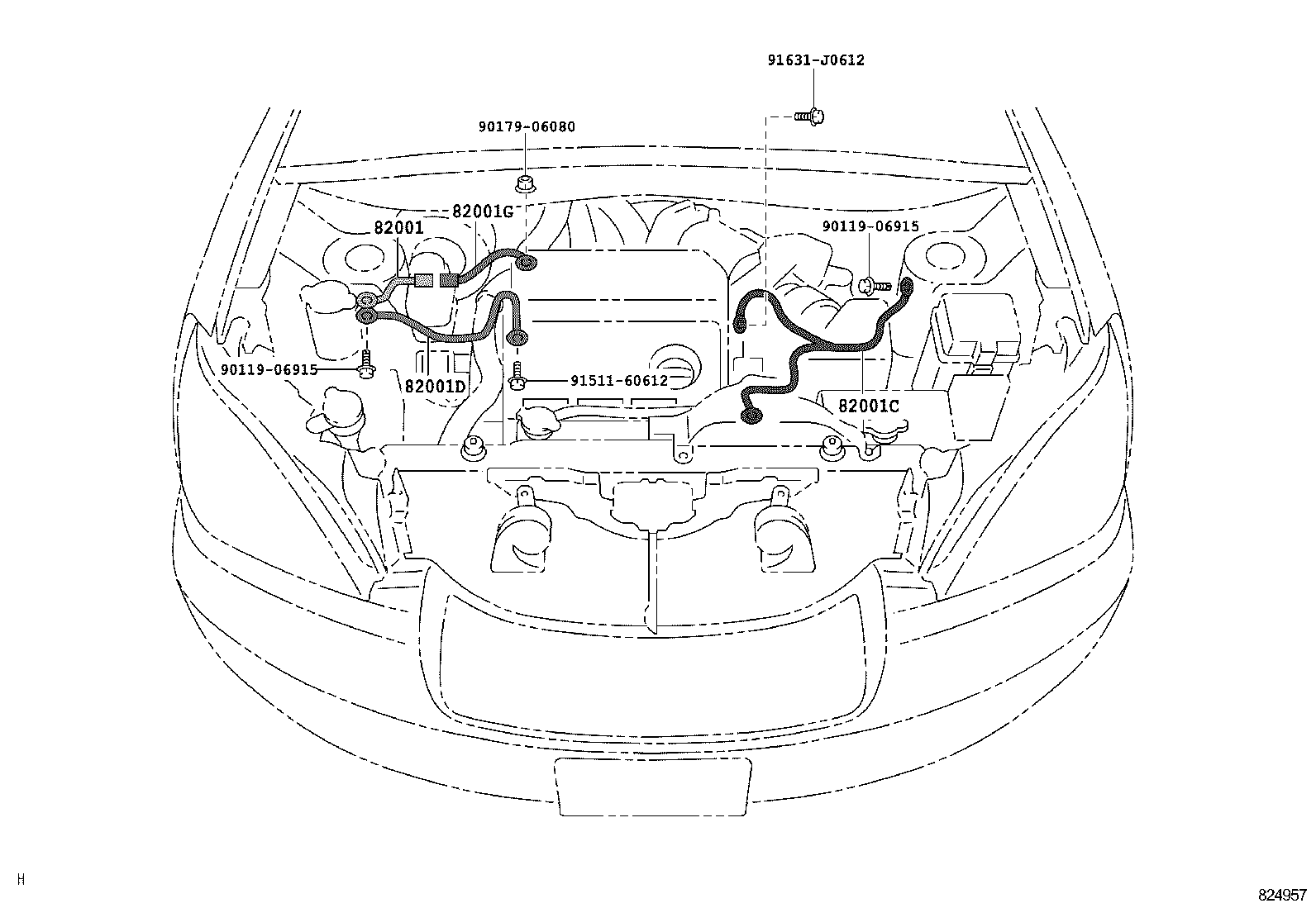

824957 2006-01 → —

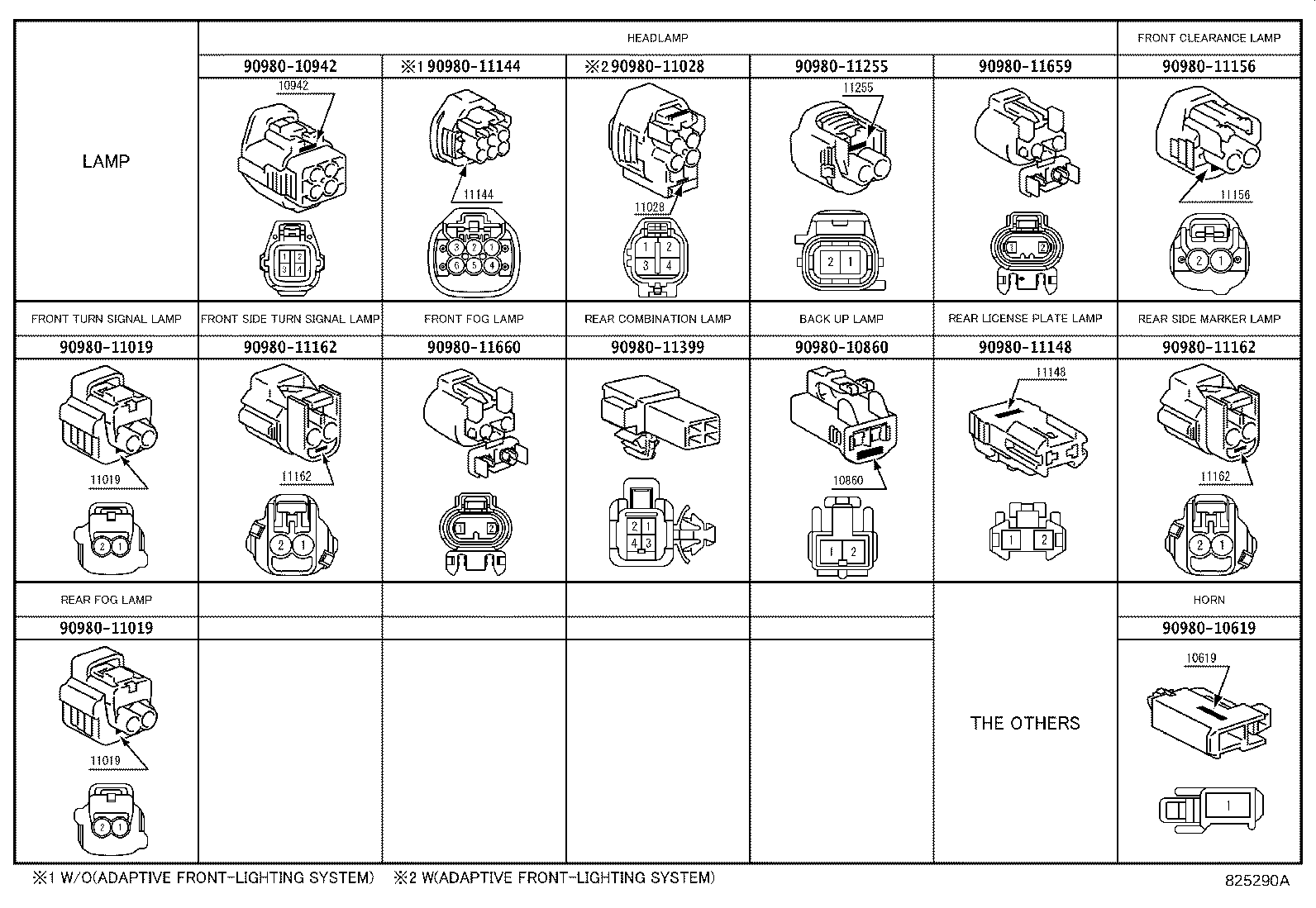

Figure 825290A

825290A 2003-02 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001C	Cable, Bond, NO.2
82001D	Cable, Bond, NO.3
82001G	Cable, Bond, NO.4
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82163B	Wire, Floor NO.5
82164	Wire, Frame
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82219A	Wire, Sensor
82661D	Cover, Relay Block, Side NO.1
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82671	Block, Junction
82671J	Block, Junction, NO.2
82672	Cover, Junktion Block
82672G	Cover, Junction Block
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82817E	Protector, Wiring Harness, NO.6
82823S	Cap, Starter Terminal
82824D	Connector, Wiring Harness
82824E	Connector, Wiring Harness
82824F	Connector, Wiring Harness
82824G	Connector, Wiring Harness
82824H	Connector, Wiring Harness
82824J	Connector, Wiring Harness
82824W	Connector, Wiring Harness
82825C	Connector, Wiring Harness
82825D	Connector, Wiring Harness
82825L	Connector, Wiring Harness

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
