Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 2 illustrations

Illustrations

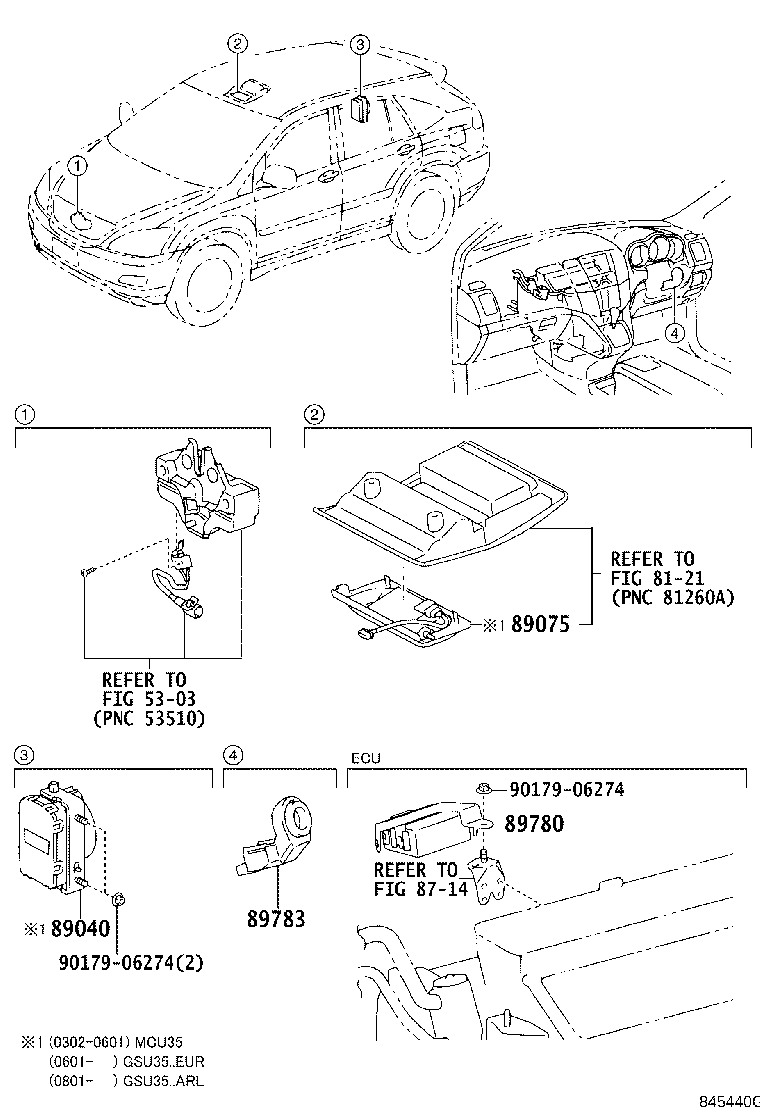

Figure 845439F 845439F 2003-02 → — Figure 845440G 845440G 2003-02 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89075 Sensor Sub-assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
