Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 3 illustrations

Illustrations

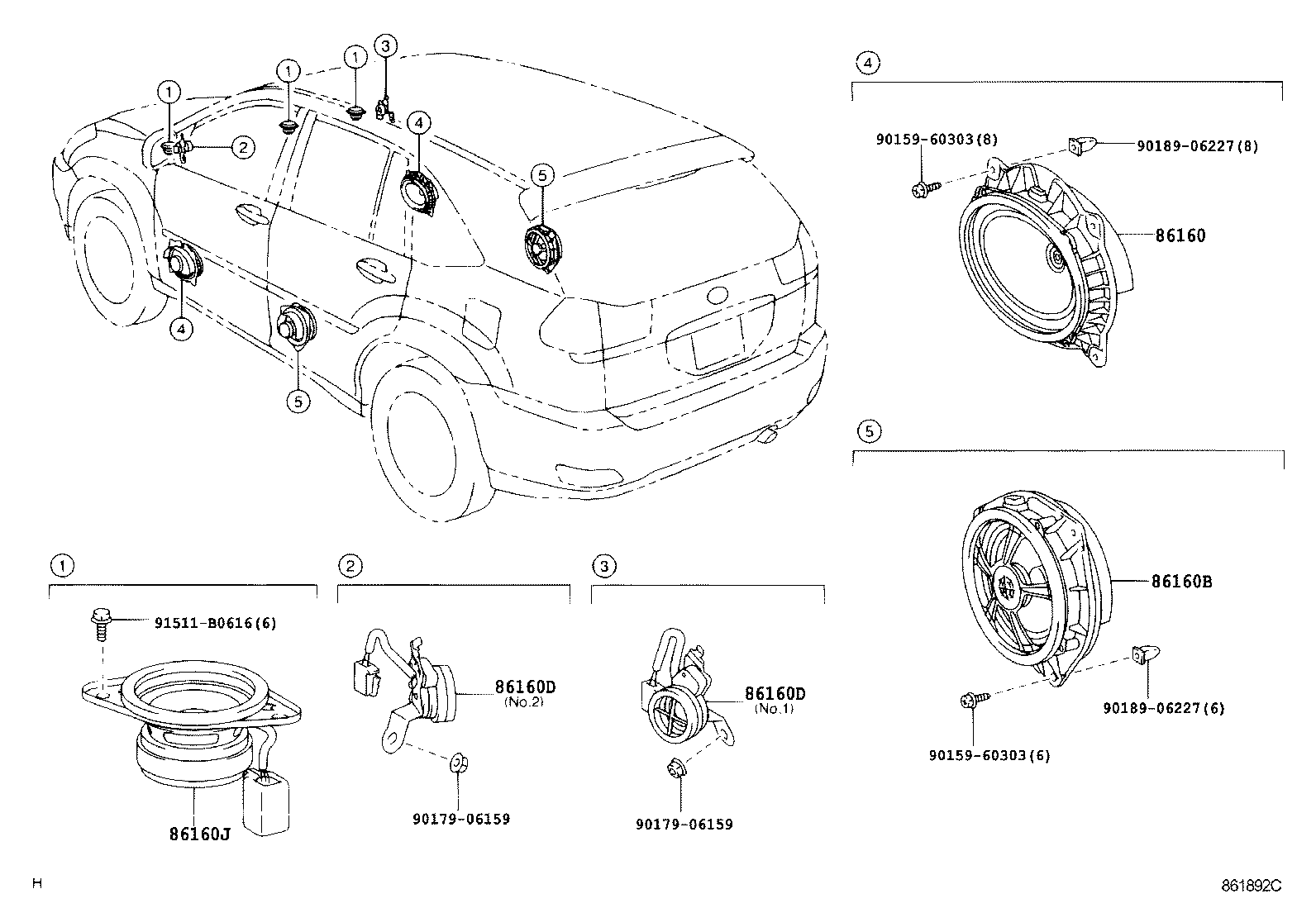

Figure 861891A 861891A 2003-02 → 2006-01 Figure 861891A 861891A 2006-01 → — Figure 861892C 861892C 2003-02 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160D Speaker Assy, Stereo Component, Front
86160J Speaker Assy, Front NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
