Toyota Lexus RX300/330/350
2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe
Supported model
Data version 2009-04

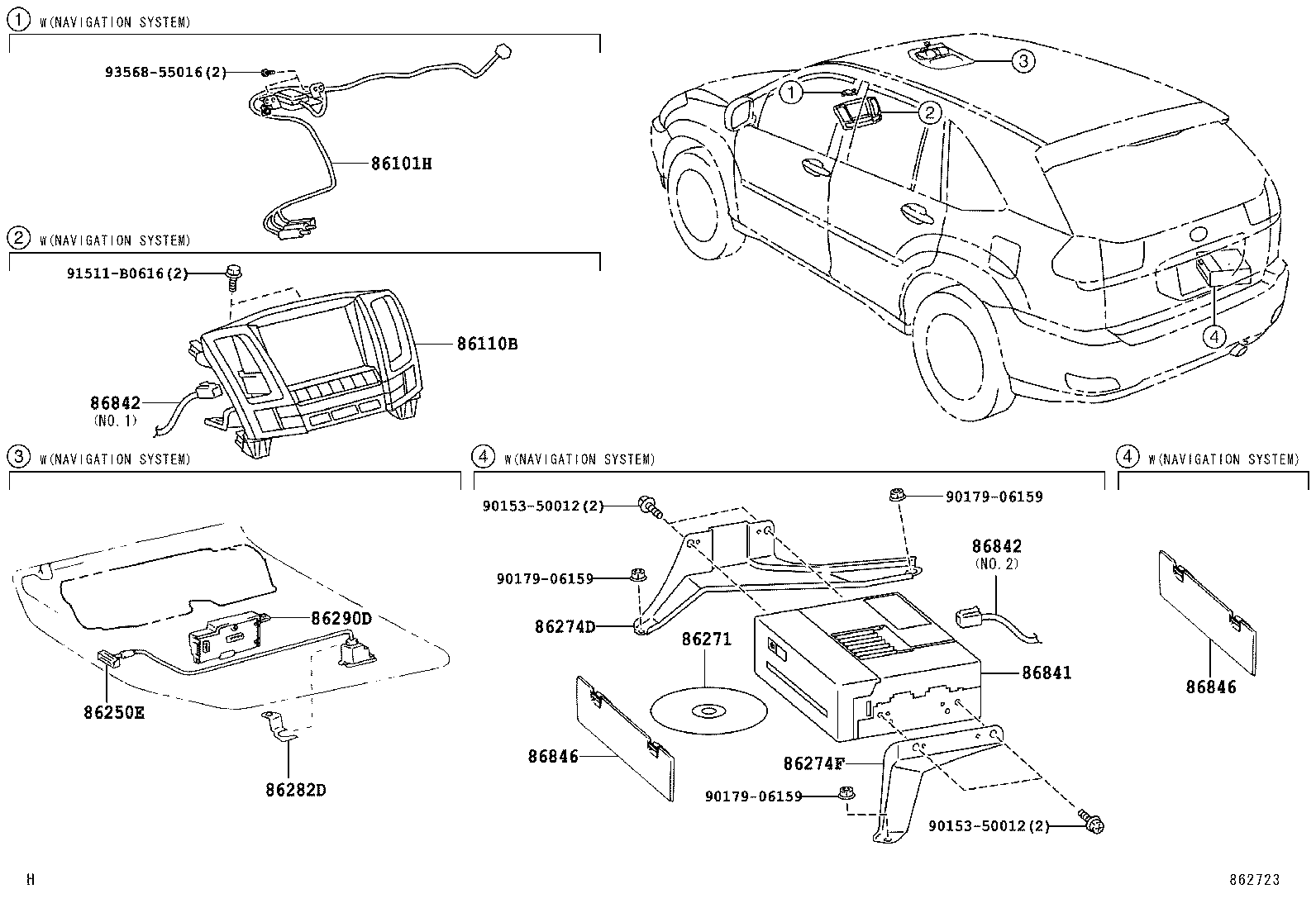

Navigation & Front Monitor Display
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86110B | Multi-display Assy |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86282D | Bracket, Microphone |
| 86290D | Amplifier Assy, Microphone |
| 86792A | Controller, Television Camera |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86846 | Plate, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
