Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

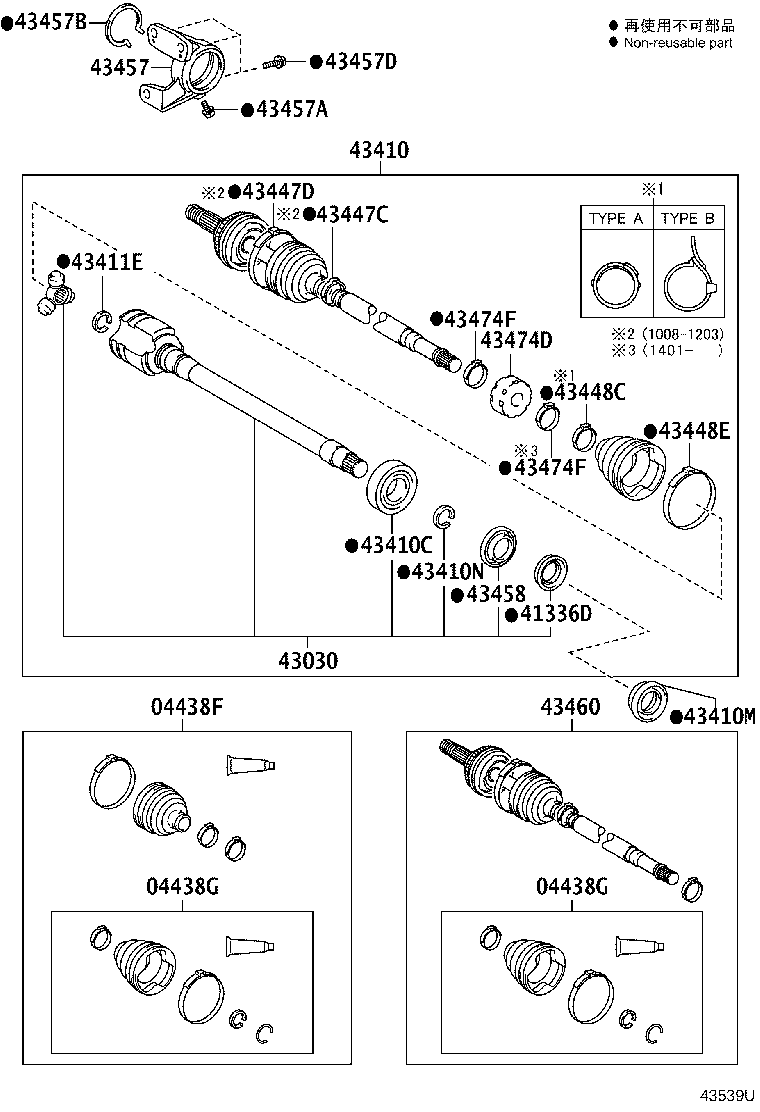

Exploded illustration 43539U 43410 — SHAFT ASSY, FRONT DRIVE, RH (8 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (4 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (4 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (6 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (7 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (4 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (6 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (6 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (6 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (2 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (4 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (3 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (7 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (7 parts)
43539U · 23 callouts Full size ↗
98 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-48170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-08 → 2012-03 ended
AGL10 —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-12 → 2010-03 ended
GGL15,GYL1# —
04428-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-04 → 2012-03 ended
GGL15,GYL1# —
04427-0W110 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-03 → 2015-09 ended
GYL1# —
04427-48170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-03 → 2014-11 ended
AGL10 —
04427-48171 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-11 → 2015-09 ended
AGL10 —
04428-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-03 → 2015-09 ended
GGL15 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-48140 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-08 → 2012-03 ended
AGL10 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-12 → 2012-03 ended
GGL15,GYL1# —
04437-0R050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2013-01 → 2015-09 ended
AGL10 —
04437-48140 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-03 → 2015-09 ended
AGL10 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-03 → 2015-09 ended
GYL1# —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-03 → 2015-09 ended
GGL15 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-06020 Cover, Front Drive Shaft Dust, RH
2009-03 → 2012-03 ended
GYL1# —
41336-12020 Cover, Front Drive Shaft Dust, RH
2010-08 → 2012-03 ended
AGL10 —
41336-06020 Cover, Front Drive Shaft Dust, RH
2012-03 → —
GYL1# —
41336-12020 Cover, Front Drive Shaft Dust, RH
2012-03 → —
AGL10 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-58011 Joint Assy, Front Drive Inboard, RH
2010-08 → 2012-03 ended
AGL10 —
43030-58011 note Joint Assy, Front Drive Inboard, RH
2012-03 → —
AGL10 —
43410 — Shaft Assy, Front Drive, RH
43410-0E040 Shaft Assy, Front Drive, RH
2008-12 → 2009-09 ended
GGL15 —
43410-0E041 Shaft Assy, Front Drive, RH
2009-10 → 2012-03 ended
GGL15 —
43410-0W250 Shaft Assy, Front Drive, RH
2009-03 → 2012-03 ended
GYL1# —
43410-48110 Shaft Assy, Front Drive, RH
2010-08 → 2012-03 ended
AGL10 —
43410-0W340 Shaft Assy, Front Drive, RH
2012-03 → —
GGL15 —
43410-0W350 Shaft Assy, Front Drive, RH
2012-03 → —
GYL1# —
43410-48110 note Shaft Assy, Front Drive, RH
2013-01 → —
AGL10 —
43410-48110 Shaft Assy, Front Drive, RH
2012-03 → 2013-01 ended
AGL10 —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2009-03 → 2012-03 ended
GYL1# —
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2008-12 → 2009-02 ended
GGL15 —
90363-41003 Bearing (FOR FRONT DRIVE SHAFT)
2010-08 → 2012-03 ended
AGL10 —
90363-A0007 Bearing (FOR FRONT DRIVE SHAFT)
2009-03 → 2012-03 ended
GGL15 —
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2012-03 → —
GYL1# —
90363-41003 note Bearing (FOR FRONT DRIVE SHAFT)
2012-03 → —
AGL10 —
90363-A0007 Bearing (FOR FRONT DRIVE SHAFT)
2012-03 → —
GGL15 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40029 Oil Seal, Front Drive Shaft, RH
2009-03 → 2012-03 ended
AGL10,GYL1# —
90316-34001 Oil Seal, Front Drive Shaft, RH
2008-12 → 2012-03 ended
GGL15 —
90311-40029 Oil Seal, Front Drive Shaft, RH
2012-03 → 2012-12 ended
AGL10 —
90311-40029 Oil Seal, Front Drive Shaft, RH
2012-03 → 2013-02 ended
GYL1# —
90311-40038 Oil Seal, Front Drive Shaft, RH
2012-12 → 2015-09 ended
AGL10 —
90311-40039 Oil Seal, Front Drive Shaft, RH
2013-02 → 2015-09 ended
GYL1# —
90316-34001 Oil Seal, Front Drive Shaft, RH
2012-03 → 2015-09 ended
GGL15 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-03 → 2012-03 ended
GYL1# —
90080-52054 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2008-12 → 2012-03 ended
GGL15 —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2010-08 → 2012-03 ended
AGL10 —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-03 → —
GYL1# —
90080-52054 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-03 → —
GGL15 —
90520-38015 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-03 → —
AGL10 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-12 → 2012-03 ended
GGL15,GYL1# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2010-08 → 2012-03 ended
AGL10 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-03 → —
GGL15,GYL1# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-03 → —
AGL10 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-12 → 2012-03 ended
GGL15,GYL1# —
42345-48030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → 2012-03 ended
AGL10 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-03 → —
GGL15,GYL1# —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-12 → 2012-03 ended
GGL15,GYL1# —
42345-44020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → 2012-03 ended
AGL10 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-03 → —
GGL15,GYL1# —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-12 → 2012-03 ended
GGL15,GYL1# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → 2012-03 ended
AGL10 —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → 2012-03 ended
AGL10 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-03 → —
GGL15,GYL1# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-03 → —
AGL10 —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-03 → —
AGL10 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-12 → 2012-03 ended
GGL15,GYL1# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → 2012-03 ended
AGL10 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-03 → —
GGL15,GYL1# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-03 → —
AGL10 —
43457 — Bracket, Drive Shaft Bearing
43457-48010 Bracket, Drive Shaft Bearing
2010-08 → 2012-03 ended
AGL10 —
43457-48010 Bracket, Drive Shaft Bearing
2012-03 → —
AGL10 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-03 → 2012-03 ended
AGL10,GYL1# —
90901-19060 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2008-12 → 2012-03 ended
GGL15 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2012-03 → —
AGL10,GYL1# —
90901-19060 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2012-03 → —
GGL15 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2008-12 → 2012-03 ended
GGL15 —
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2009-03 → 2012-03 ended
AGL10,GYL1# —
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2012-03 → —
GGL15 —
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2012-03 → —
AGL10,GYL1# —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2010-08 → 2012-03 ended
AGL10 —
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2012-03 → —
AGL10 —
43458 — Cover, Front Drive Shaft Dust
43458-06020 Cover, Front Drive Shaft Dust
2009-03 → 2012-03 ended
GYL1# —
43458-12010 Cover, Front Drive Shaft Dust
2010-08 → 2012-03 ended
AGL10 —
43458-06020 Cover, Front Drive Shaft Dust
2012-03 → 2015-08 ended
GYL1# —
43458-12010 Cover, Front Drive Shaft Dust
2012-03 → 2015-09 ended
AGL10 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43470-80270 Shaft Assy, Front Drive Outboard Joint, RH
2010-08 → 2012-03 ended
AGL10 —
43470-80270 Shaft Assy, Front Drive Outboard Joint, RH
2012-03 → 2014-11 ended
AGL10 —
43470-80354 Shaft Assy, Front Drive Outboard Joint, RH
2014-11 → —
AGL10 —
43474D — Damper, Front Drive Shaft, RH
43474-0W030 Damper, Front Drive Shaft, RH
2008-12 → 2009-10 ended
GGL15 —
43474-0W030 Damper, Front Drive Shaft, RH
2008-12 → 2012-03 ended
GYL1# —
43474-48020 Damper, Front Drive Shaft, RH
2010-08 → 2012-03 ended
AGL10 —
43474-0W080 Damper, Front Drive Shaft, RH
2012-03 → —
GYL1# —
43474-48020 note Damper, Front Drive Shaft, RH
2012-03 → 2014-10 ended
AGL10 —
43474-48080 note Damper, Front Drive Shaft, RH
2014-11 → —
AGL10 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-12 → 2009-10 ended
GGL15 —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-12 → 2012-03 ended
GYL1# —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2010-08 → 2012-03 ended
AGL10 —
42345-0W070 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2012-03 → —
GYL1# —
42345-14010 note Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2012-03 → 2014-11 ended
AGL10 —
42345-14010 note Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2014-11 → —
AGL10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
