Engine Oil Pump

8 part groups · 3 illustrations

Illustrations

Figure 151758C

151758C 2010-08 → —

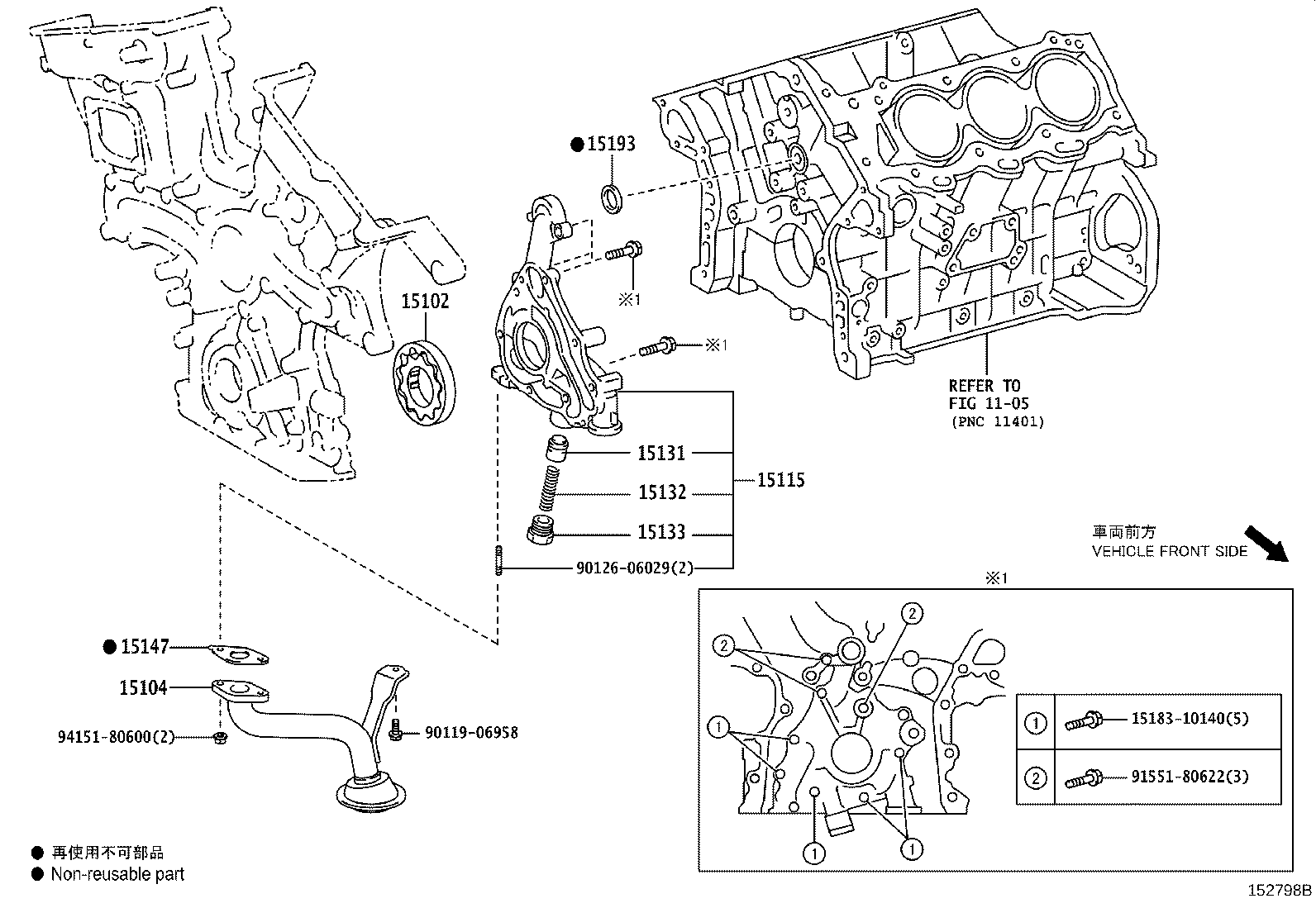

Figure 152798B

152798B 2008-02 → 2015-04

Figure 153479A

153479A 2015-04 → —

Part groups

PNC	Description
15102	Rotor Set, Oil Pump
15104	Strainer Sub-assy, Oil
15115	Cover, Oil Pump
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
