Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03

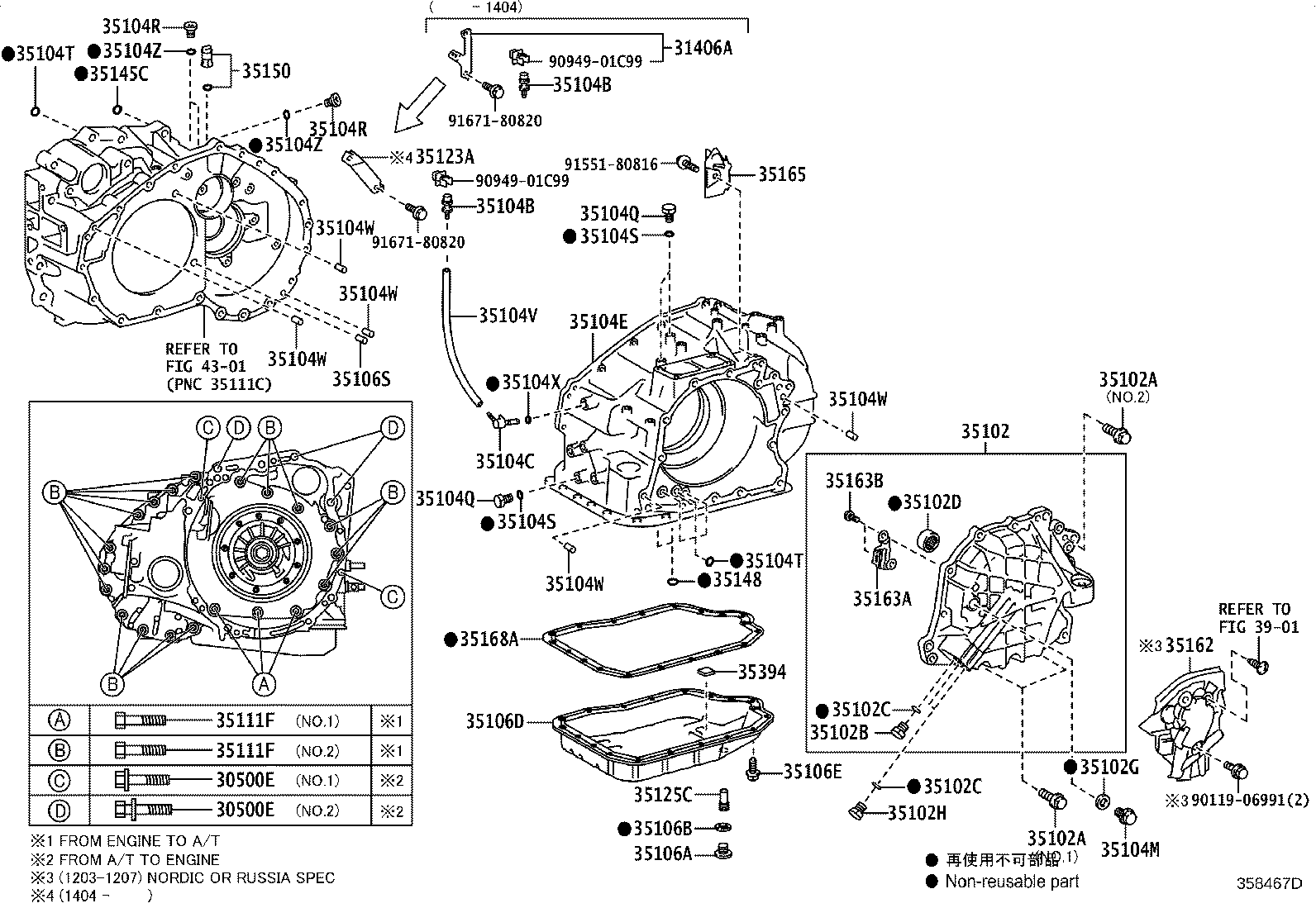

Transmission Case & Oil Pan (ATM)
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30500E | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 31406A | Bracket Sub-assy, Flexible Hose |
| 33403M | Cover Sub-assy, Speedometer Driven Hole (ATM) |
| 33403N | Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) |
| 35102 | Cover Sub-assy, Transaxle Rear |
| 35102A | Bolt (FOR TRANSAXLE REAR COVER SETTING) |
| 35102B | Plug(FOR TRANSAXLE REAR COVER) |
| 35102C | Ring, O(FOR TRANSAXLE REAR COVER PULG) |
| 35102D | Bearing, Needle Roller(FOR TRANSAXLE REAR COVER) |
| 35102G | Gasket (FOR TRANSAXLE REAR COVER ) |
| 35102H | Plug, NO.2 (FOR TRANSAXLE REAR COVER) |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104C | Plug, Breather, NO.2 (ATM) |
| 35104E | Case Sub-assy, Automatic Transaxle |
| 35104M | Plug, Refill(ATM) |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104R | Plug, NO.2 (FOR TRANSAXLE CASE) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104T | Ring, O (FOR TRANSAXLE CASE PLUG NO.2) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104W | Pin, Straight (FOR TRANSAXLE CASE) |
| 35104X | Ring, O (FOR BREATHER PLUG) |
| 35104Z | Gasket (FOR TRANSAXLE CASE) |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106D | Pan Sub-assy, Automatic Transaxle Oil |
| 35106E | Bolt (FOR TRANSAXLE OIL PAN) |
| 35106S | Pin, Ring (FOR TRANSAXLE CASE) |
| 35111F | Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) |
| 35123A | Skirt, Transmission Breather |
| 35125C | Tube, Transmission Oil Filler, NO.1 |
| 35145C | Gasket, Transaxle Case |
| 35148 | Gasket, Governor Apply, NO.1 |
| 35150 | Plug Assy, Transmission Case |
| 35162 | Protector, Automatic Transaxle Case |
| 35163A | Plate, Transaxle Rear Cover |
| 35163B | Screw, Hex Lobular(FOR TRANSAXLE REAR COVER PLATE) |
| 35165 | Plate, Transmission Case, NO.1 |
| 35168A | Gasket, Automatic Transaxle Oil Pan |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
