Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

20 part groups · 3 illustrations

Illustrations

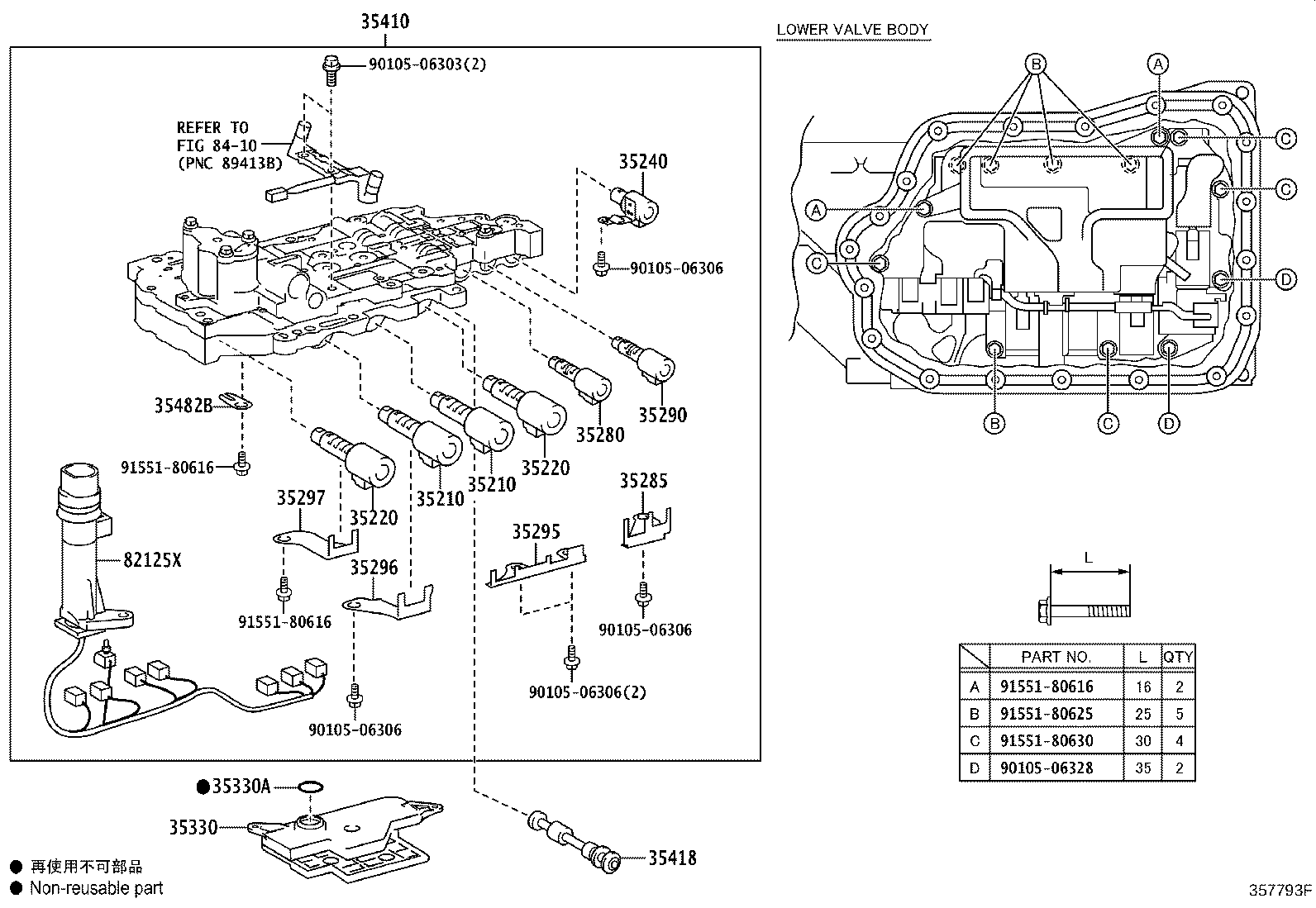

Figure 358281C 358281C 2008-12 → — Figure 357793F 357793F 2010-08 → — Figure 357076 357076 2008-12 → —

Part groups

PNCDescription
35196 Clamp, Transaxle Apply Tube, NO.2
35210 Solenoid Assy, Clutch Control, NO.1
35220 Solenoid Assy, Clutch Control, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35280 Solenoid Assy, Lock UP Control
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35295 Plate, Solenoid Lock, NO.2
35296 Plate, Solenoid Lock, NO.3
35297 Plate, Solenoid Lock, NO.4
35330 Strainer Assy, Valve Body Oil
35330A Ring, O (FOR OIL STRAINER)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35418 Valve, Manual
35482B Clamp, Temperature Sensor
35599 Cover, Manual Detent Spring
35882A Tube, Differential Gear Lube Apply
82125K Wire, Transmission
82125X Wire, Transmission, With Temperature Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
