Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

12 part groups · 4 illustrations

Illustrations

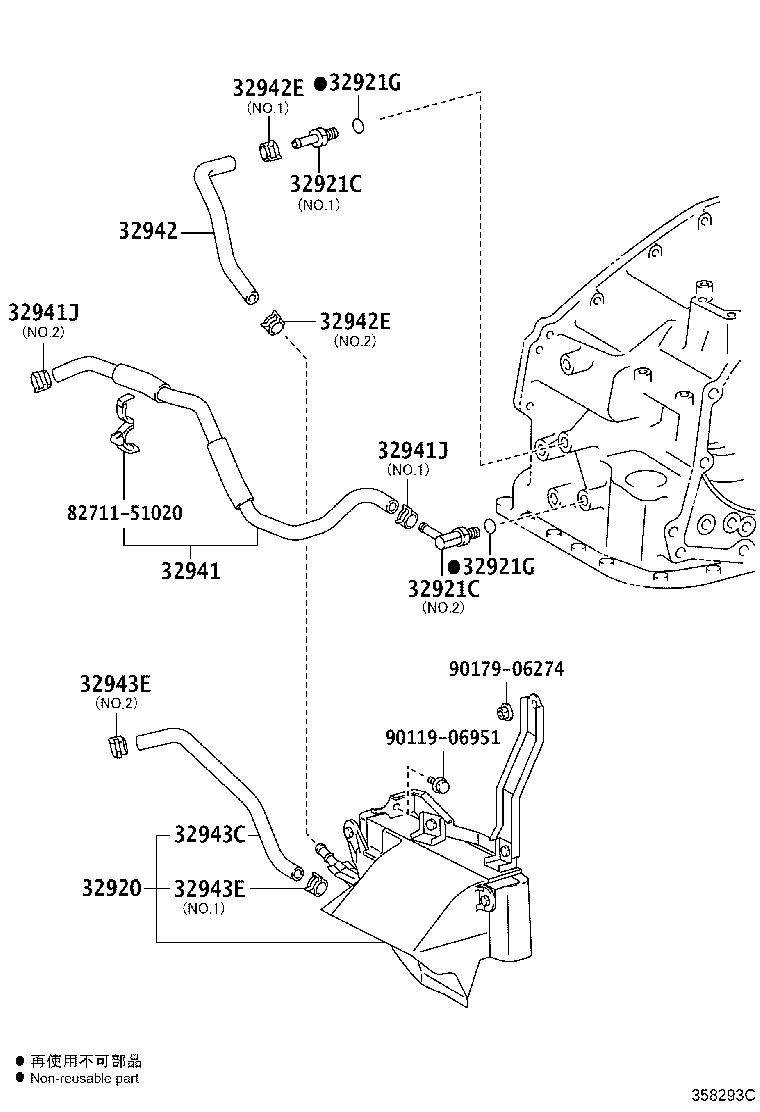

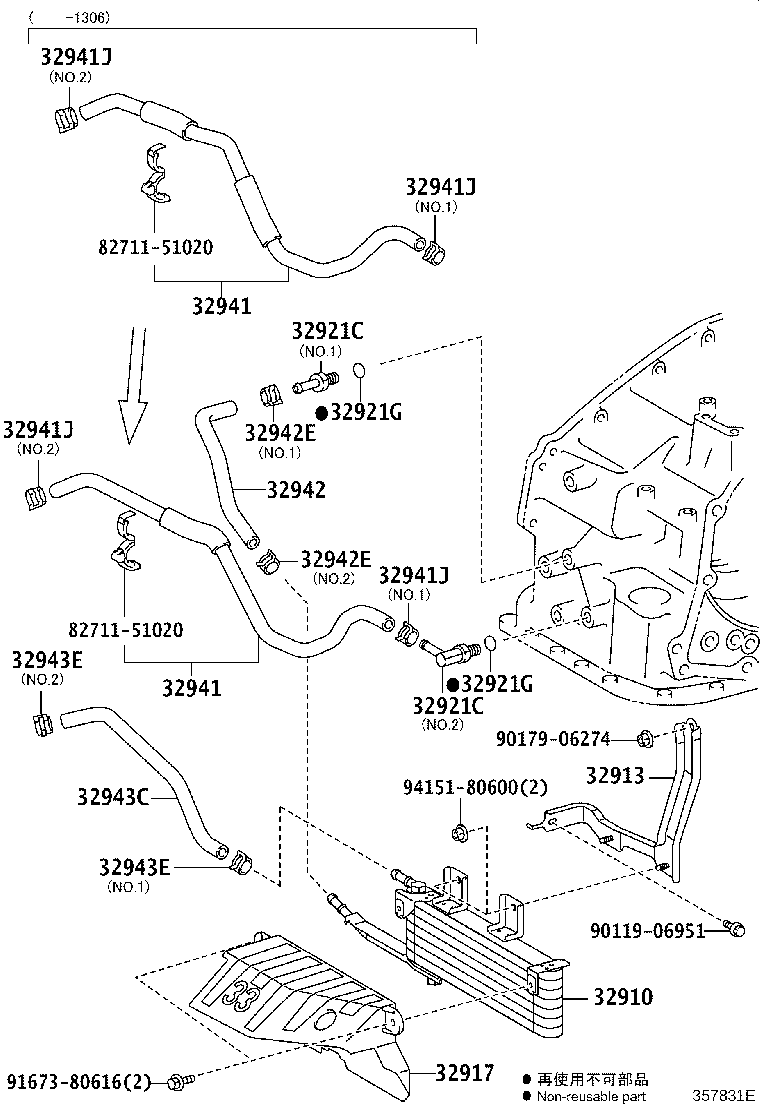

Figure 358680A 358680A 2008-12 → 2012-03 Figure 358293C 358293C 2008-12 → 2012-03 Figure 358681A 358681A 2012-03 → — Figure 357831E 357831E 2012-03 → —

Part groups

PNCDescription
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32920 Cooler Assy, Oil W/Hose
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943C Hose, Transmission Oil Cooler, NO.3
32943E Clip, NO.3(FOR OIL COOLER HOSE)
