Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (HEV OR BEV OR FCEV)

13 part groups · 2 illustrations

Illustrations

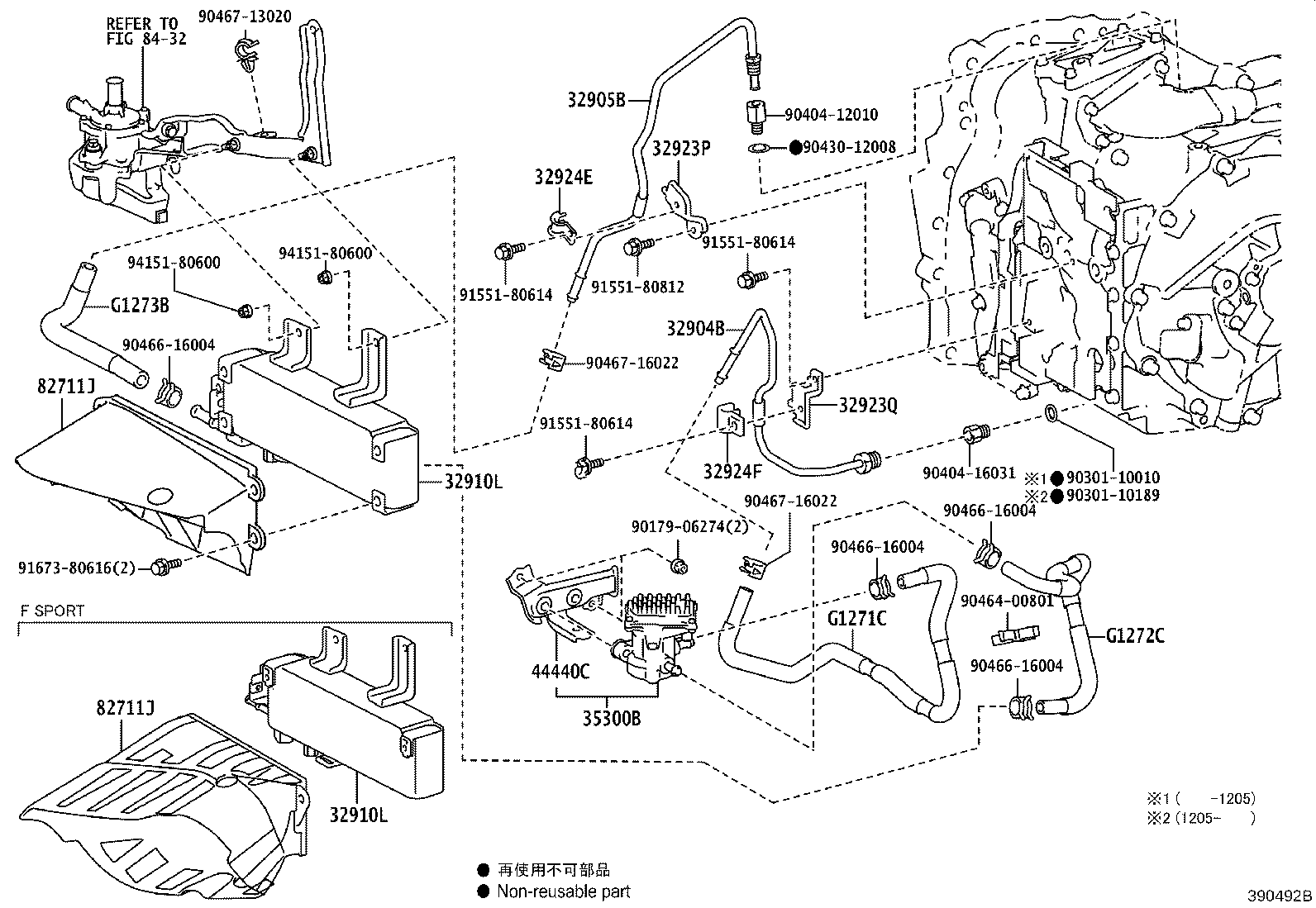

Figure 390184J 390184J 2009-03 → 2012-03 Figure 390492B 390492B 2012-03 → —

Part groups

PNCDescription
32904B Tube Sub-assy, Oil Cooler Inlet
32905B Tube Sub-assy, Oil Cooler Outlet
32910L Cooler Assy, Oil
32923P Clamp, Oil Cooler Tube, NO.1
32923Q Clamp, Oil Cooler Tube
32924E Clamp, Oil Cooler Tube, NO.2
32924F Clamp, Oil Cooler Tube, NO.2
35300B Pump Assy, Oil W/Motor
44440C Bracket Assy, Pump
82711J Duct, Air
G1271C Hose, Motor Cooling, NO.1
G1272C Hose, Motor Cooling, NO.2
G1273B Hose, Motor Cooling, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
