Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

8 part groups · 2 illustrations

Illustrations

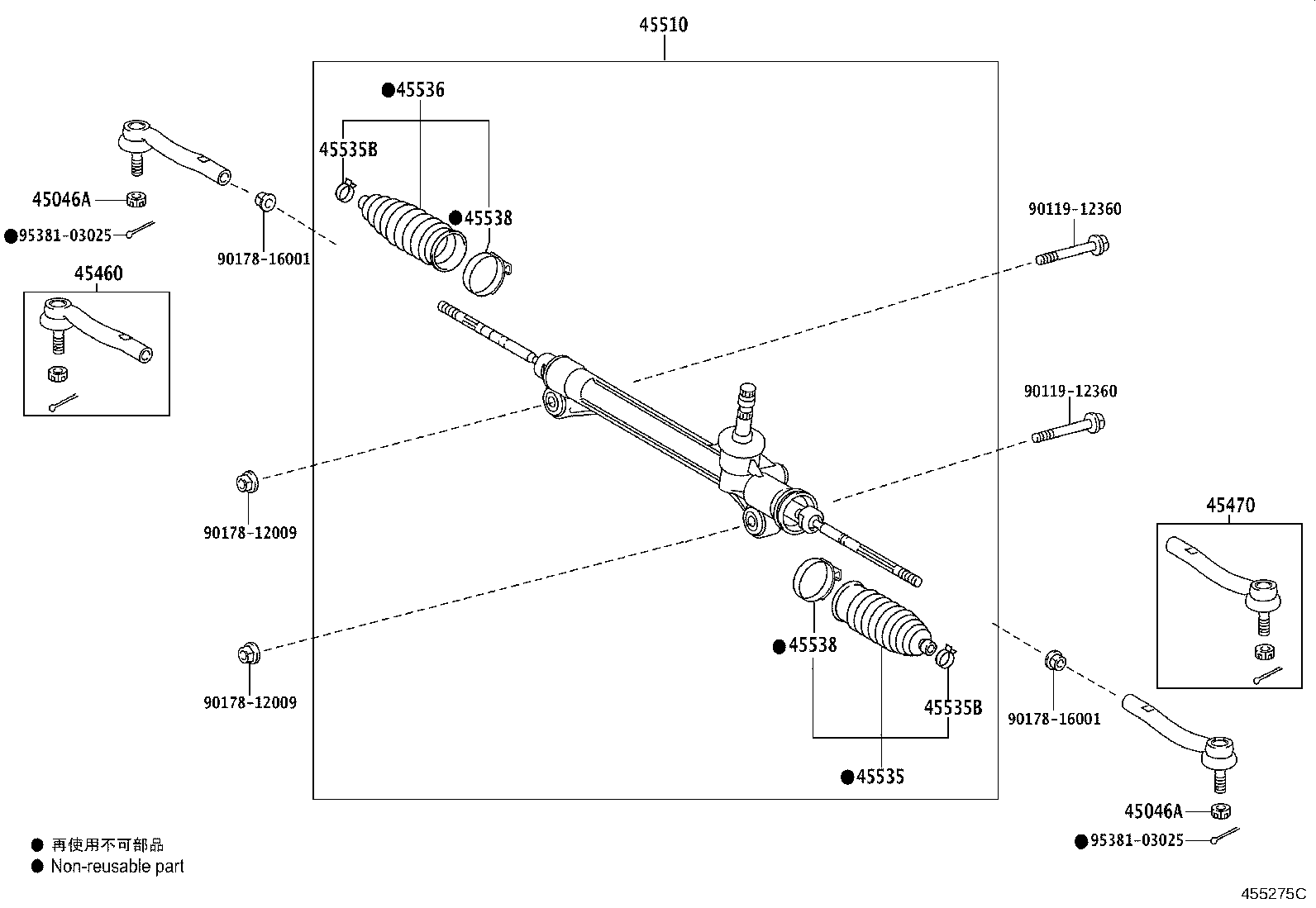

Figure 455274C 455274C 2008-12 → — Figure 455275C 455275C 2008-12 → —

Part groups

PNCDescription
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45538 Retainer, Steering Rack Boot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
