Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 4 illustrations

Illustrations

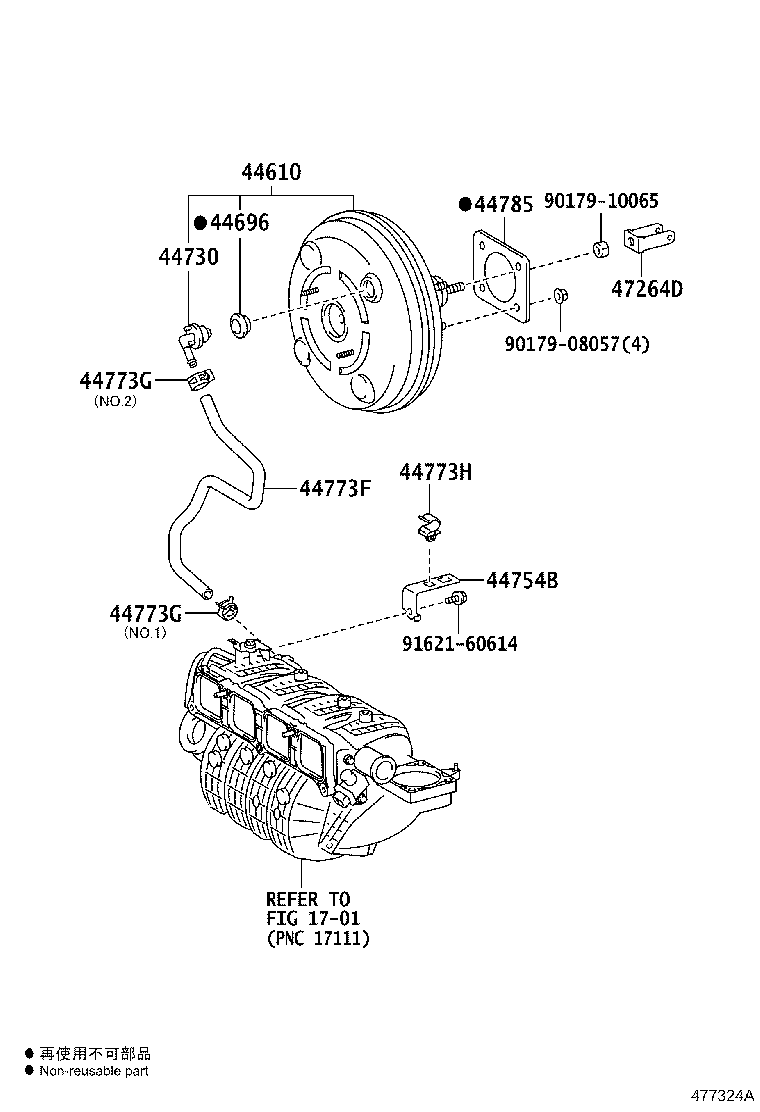

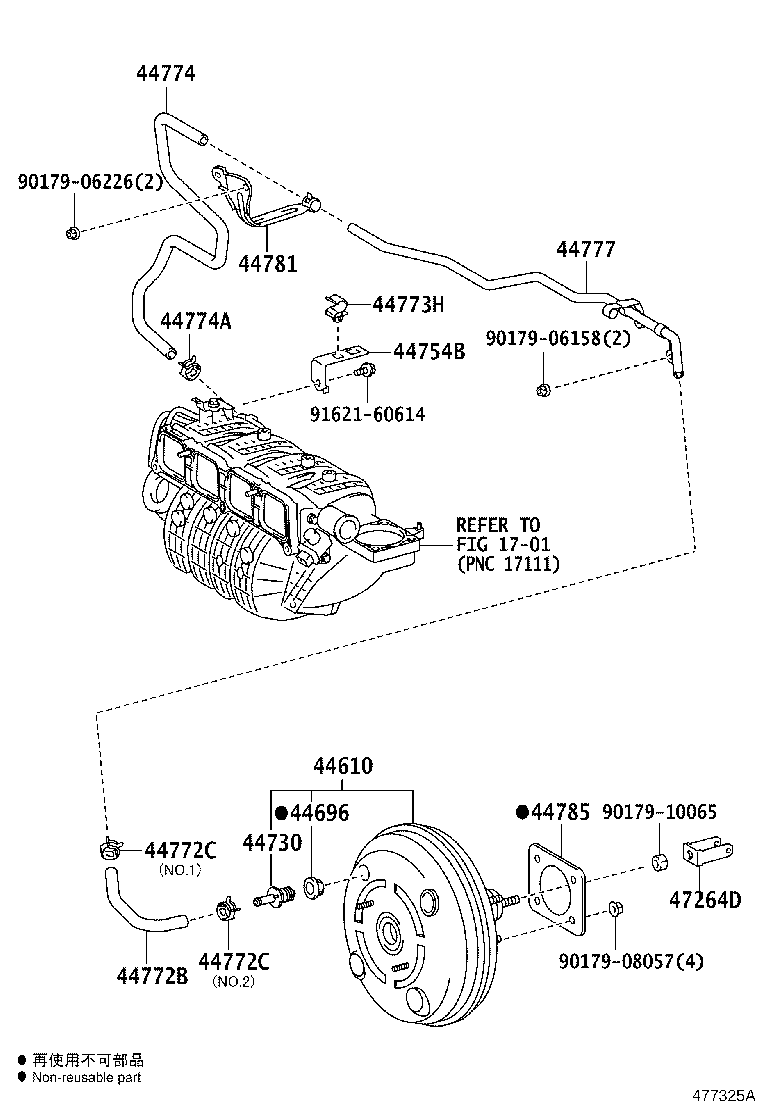

Figure 476710A 476710A 2008-12 → — Figure 476711A 476711A 2008-12 → — Figure 477324A 477324A 2010-08 → — Figure 477325A 477325A 2010-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44753 Clamp, Vacuum Reservoir, NO.2
44754B Bracket, Vacuum Tube
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44773H Clamp(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44777 Connector, Vacuum Hose, NO.1
44781 Bracket, Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
