Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03

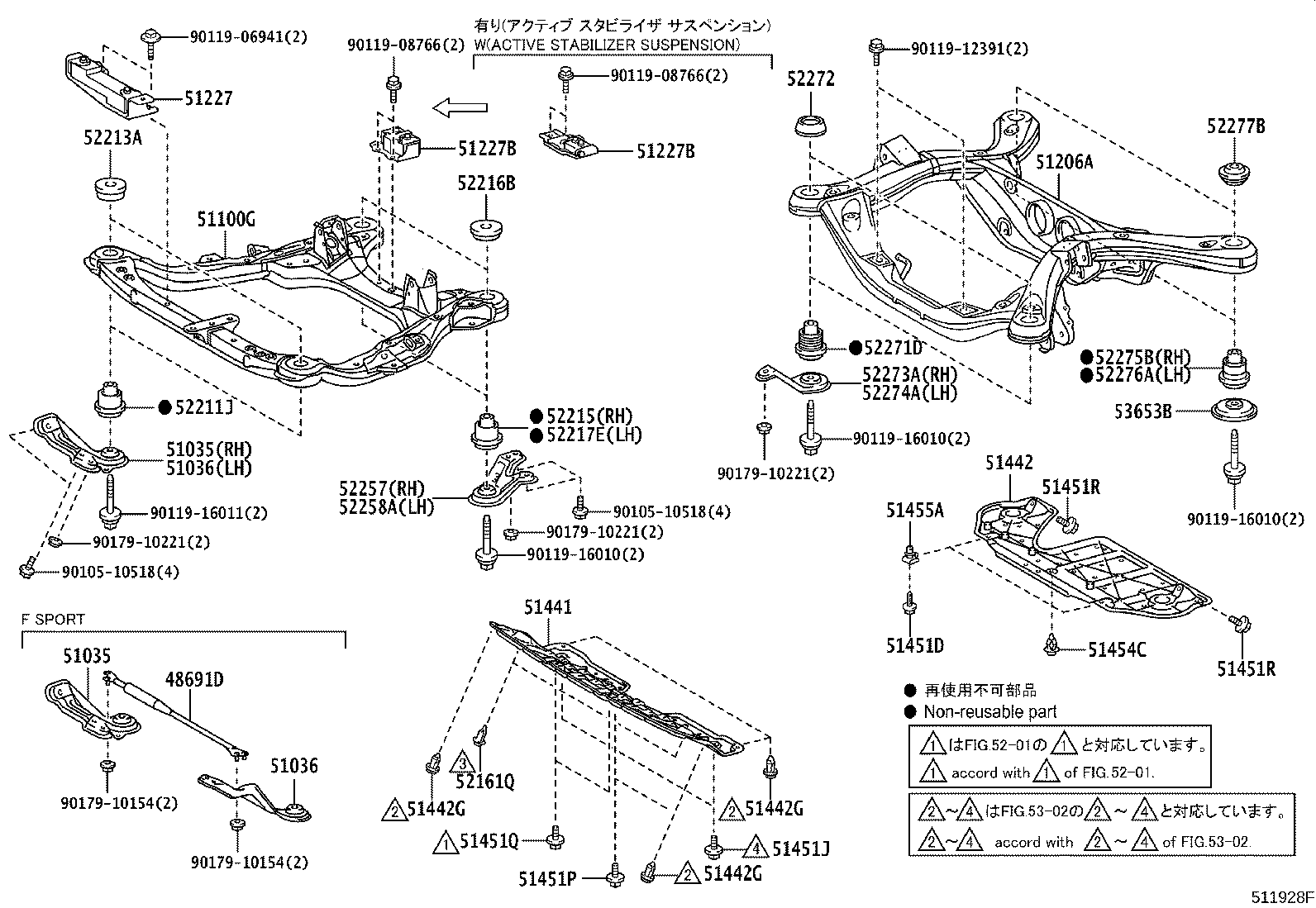

Suspension Crossmember & Under Cover
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48691D | Damper, Suspension Tower |
| 51035 | Plate Sub-assy, Frame Side Rail, RH |
| 51036 | Plate Sub-assy, Frame Side Rail, LH |
| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51227 | Weight, Front Suspension Member Damper |
| 51227B | Damper, Front Suspension Member Dynamic |
| 51441 | Cover, Engine Under, NO.1 |
| 51442 | Cover, Engine Under, NO.2 |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51451D | Screw, NO.1 |
| 51451J | Bolt, NO.1 |
| 51451P | Bolt, NO.2 |
| 51451Q | Bolt, NO.3 |
| 51451R | Bolt, NO.4 |
| 51454C | Silencer, Engine Under Cover, Rear |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 52161Q | Piece, Front Bumper |
| 52211J | Cushion, Front Suspension Member Body Mounting, Front |
| 52213A | Stopper, Front Suspension Member Body Mounting, Front |
| 52215 | Cushion, Front Suspension Member Body Mounting, Rear |
| 52216B | Stopper, Front Suspension Member Body Mounting, Rear |
| 52217E | Cushion, Front Suspension Member Body Mounting, Rear LH |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 53653B | Brace, Rear Suspension, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
