Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

26 part groups · 3 illustrations

Illustrations

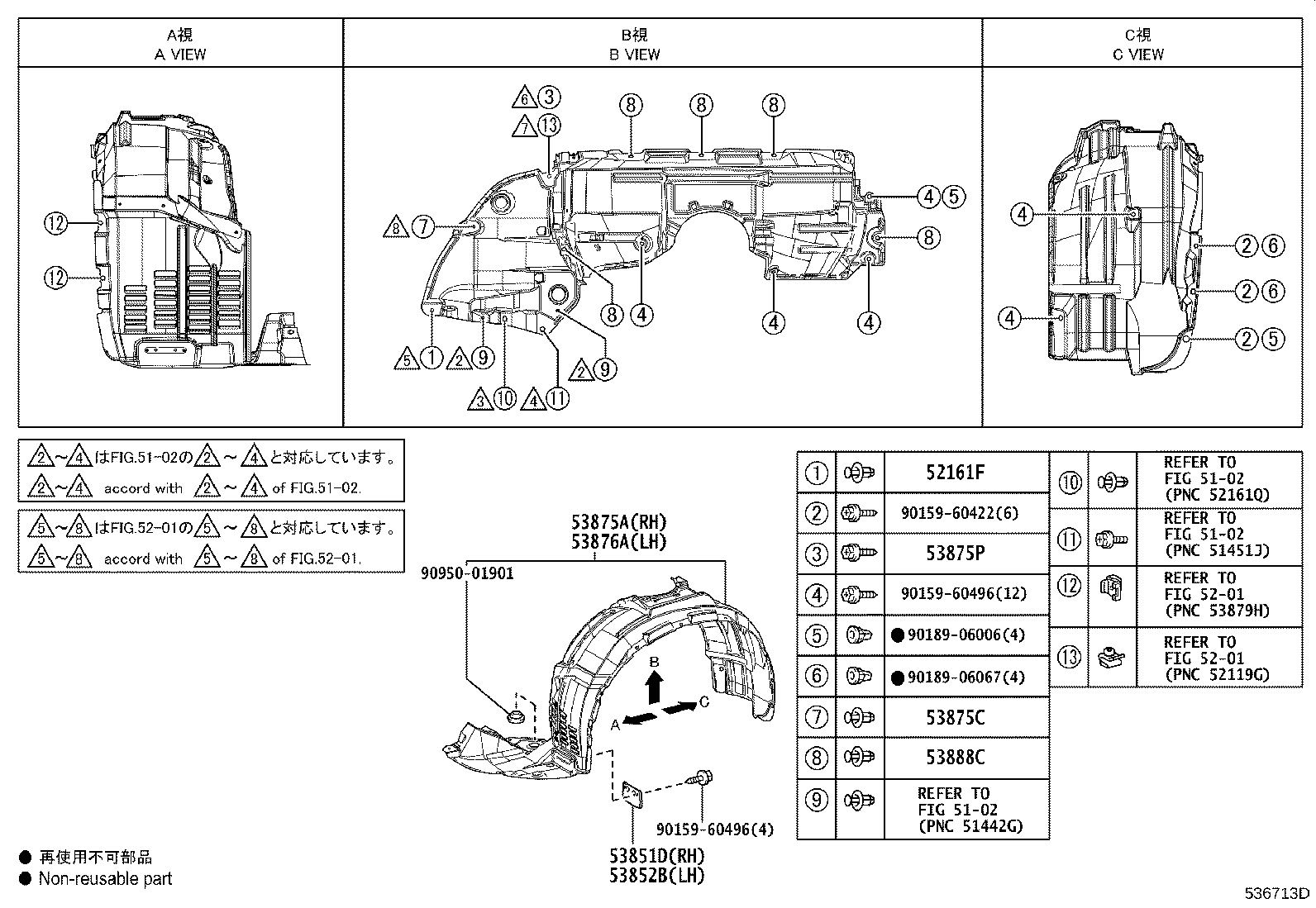

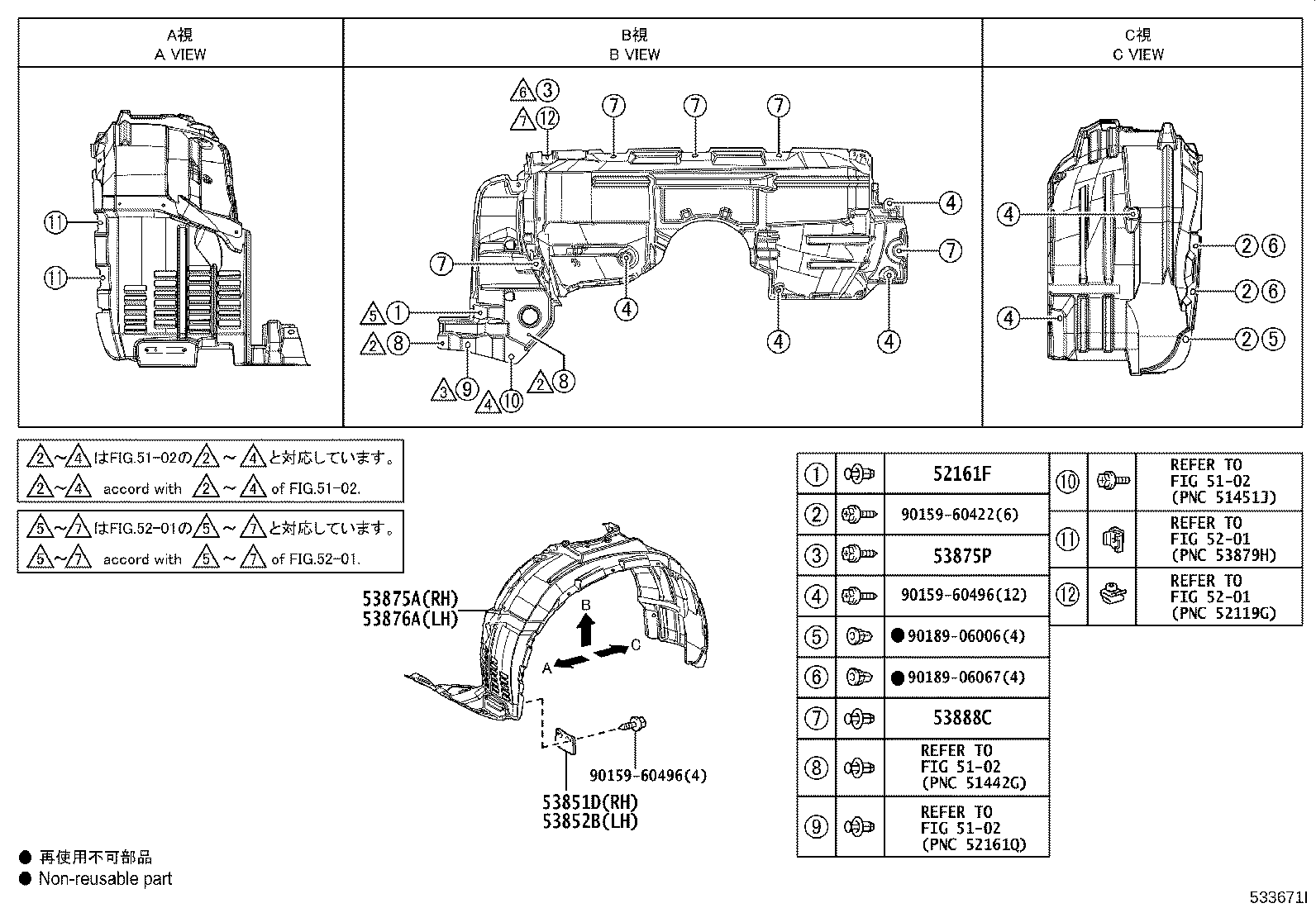

Figure 533672G 533672G 2008-12 → — Figure 533671I 533671I 2008-12 → — Figure 536713D 536713D 2012-03 → —

Part groups

PNCDescription
52161F Piece, Front Bumper
53301 Hood Sub-assy
53301A Plug, Hole(FOR HOOD)
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53807D Reinforcement Sub-assy, Front Fender, Top RH
53807F Clip, Front Fender Reinforcement
53808D Reinforcement Sub-assy, Front Fender, Top LH
53813D Extension, Front Fender
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882B Seal, Front Fender, RH
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53883B Seal, Front Fender, LH
53888C Spacer, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
