Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

64 part groups · 14 illustrations

Illustrations

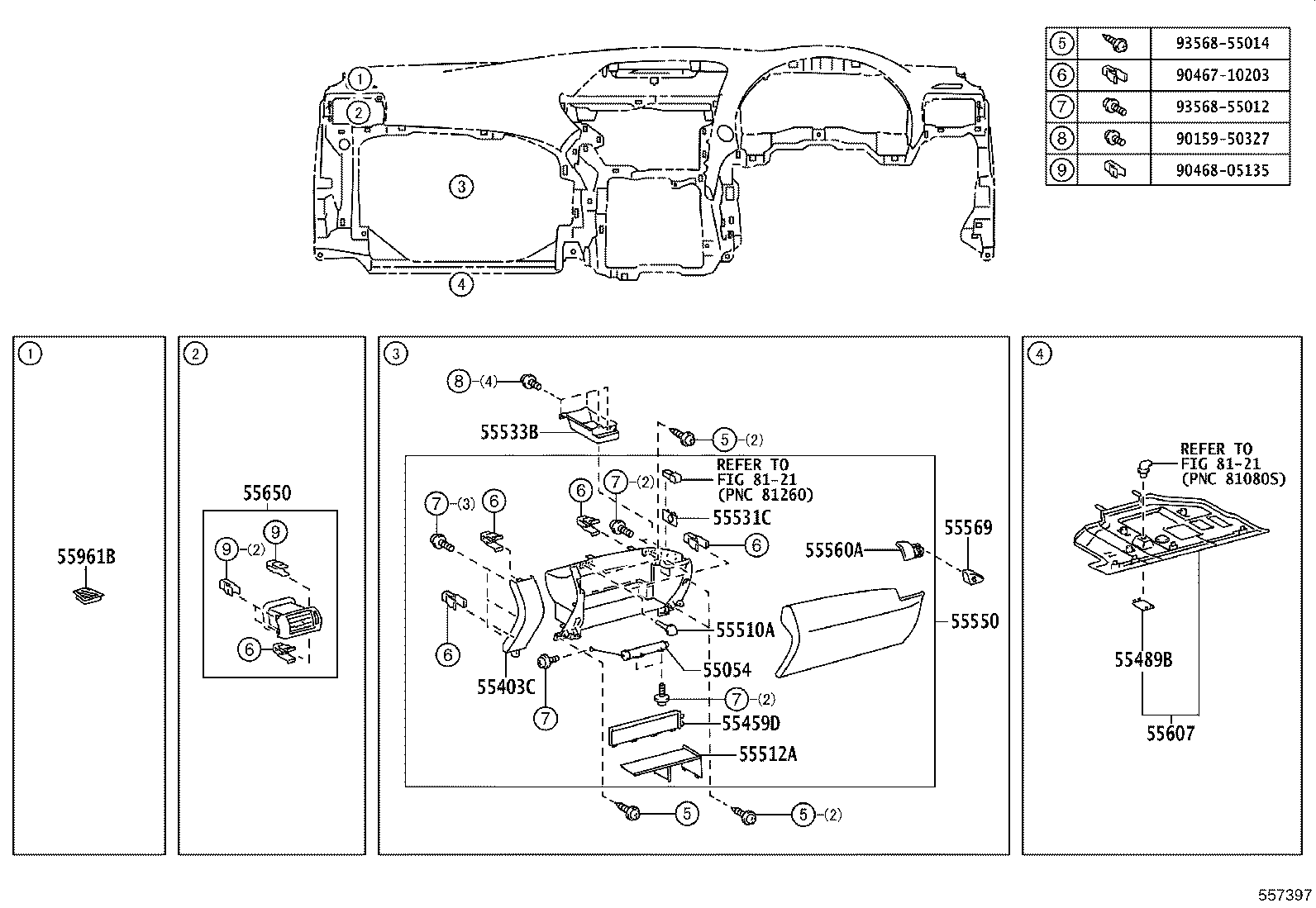

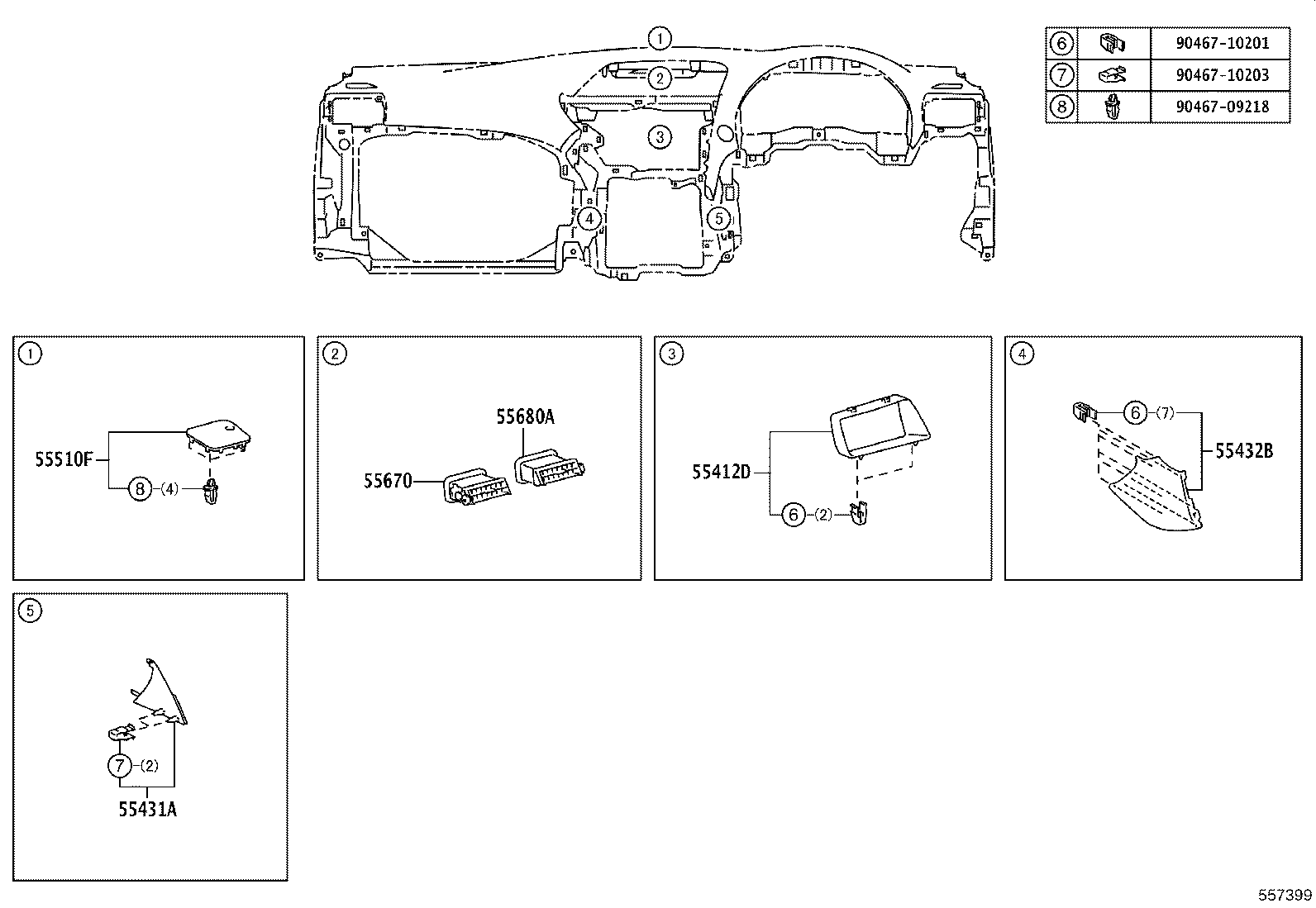

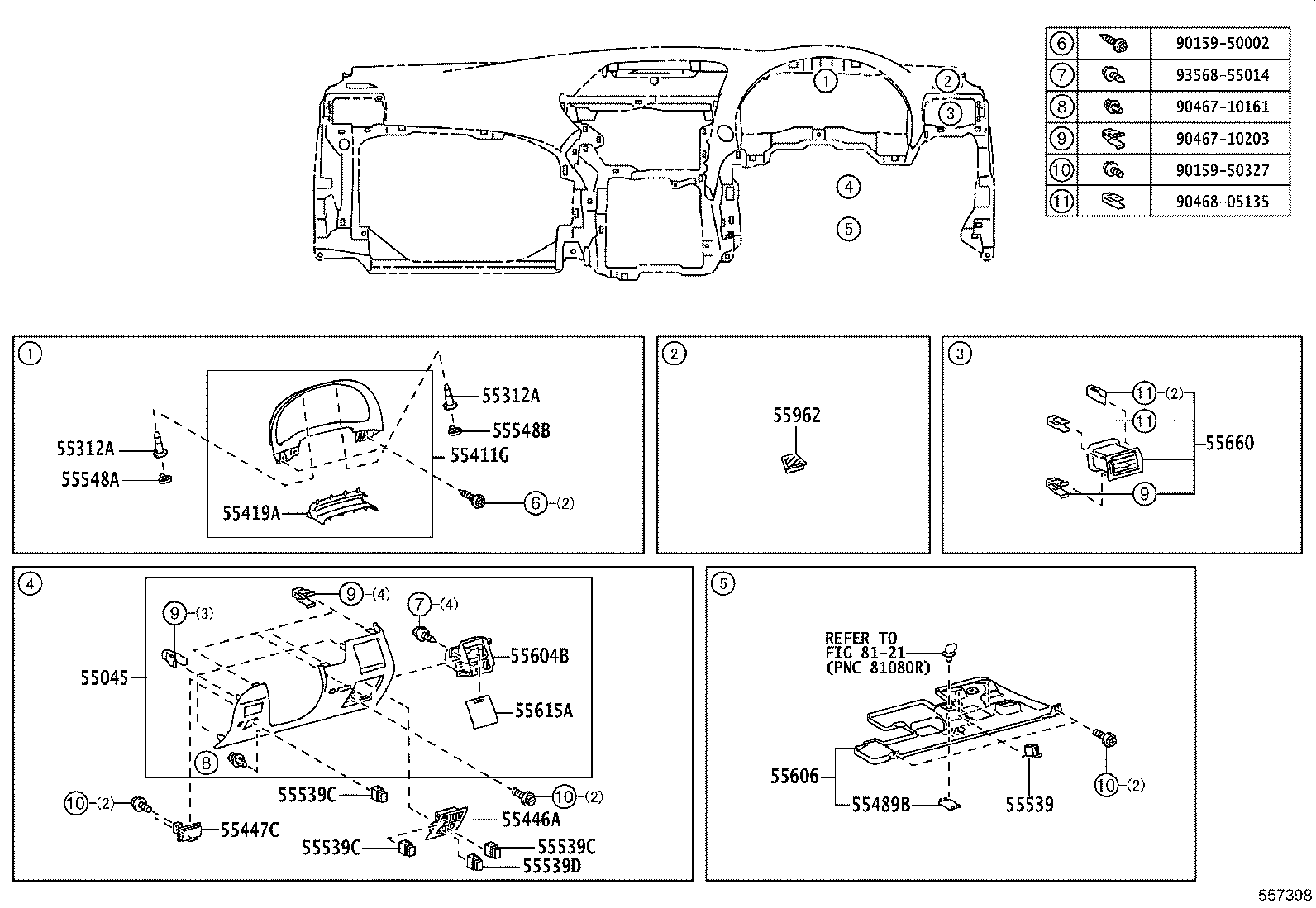

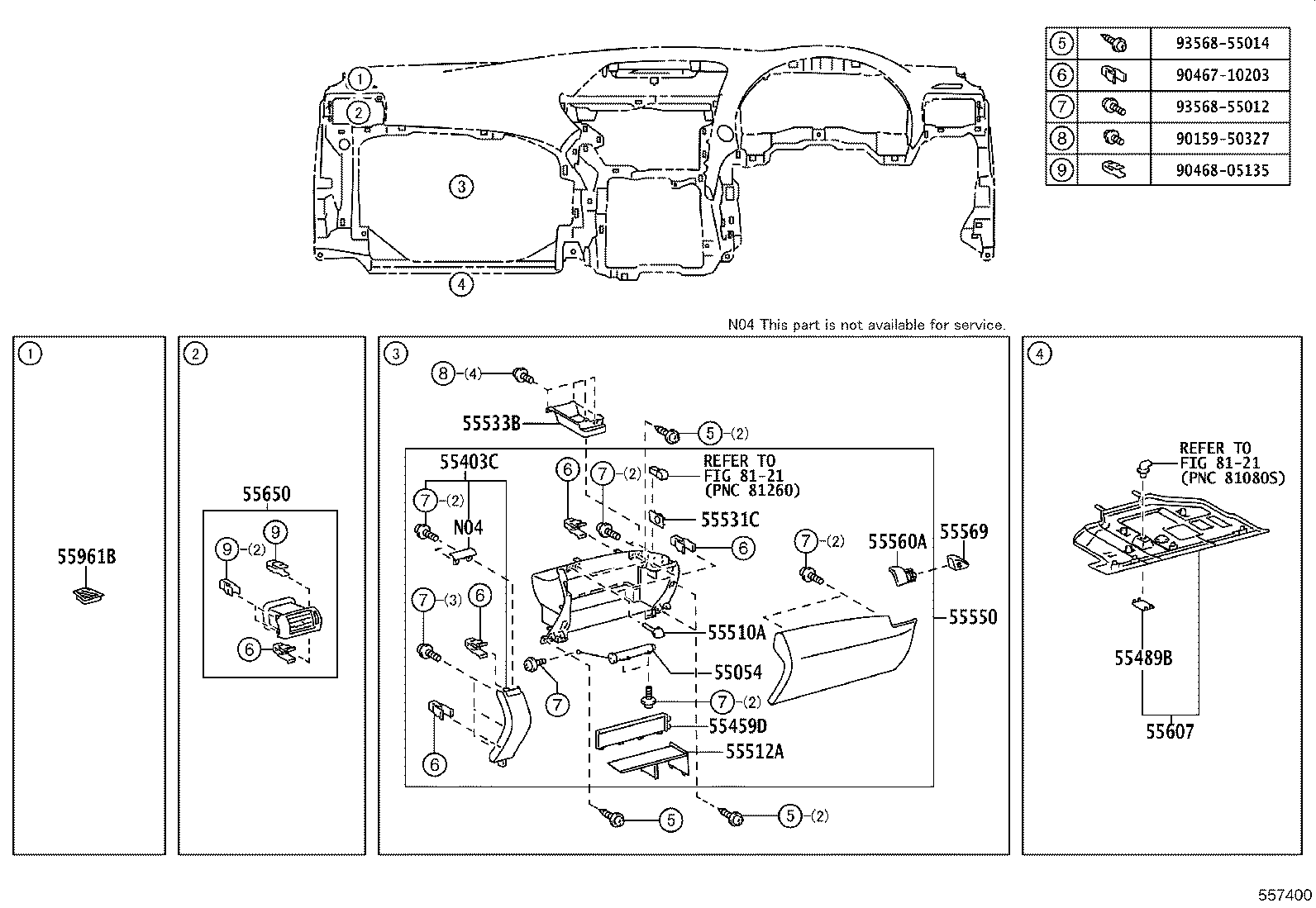

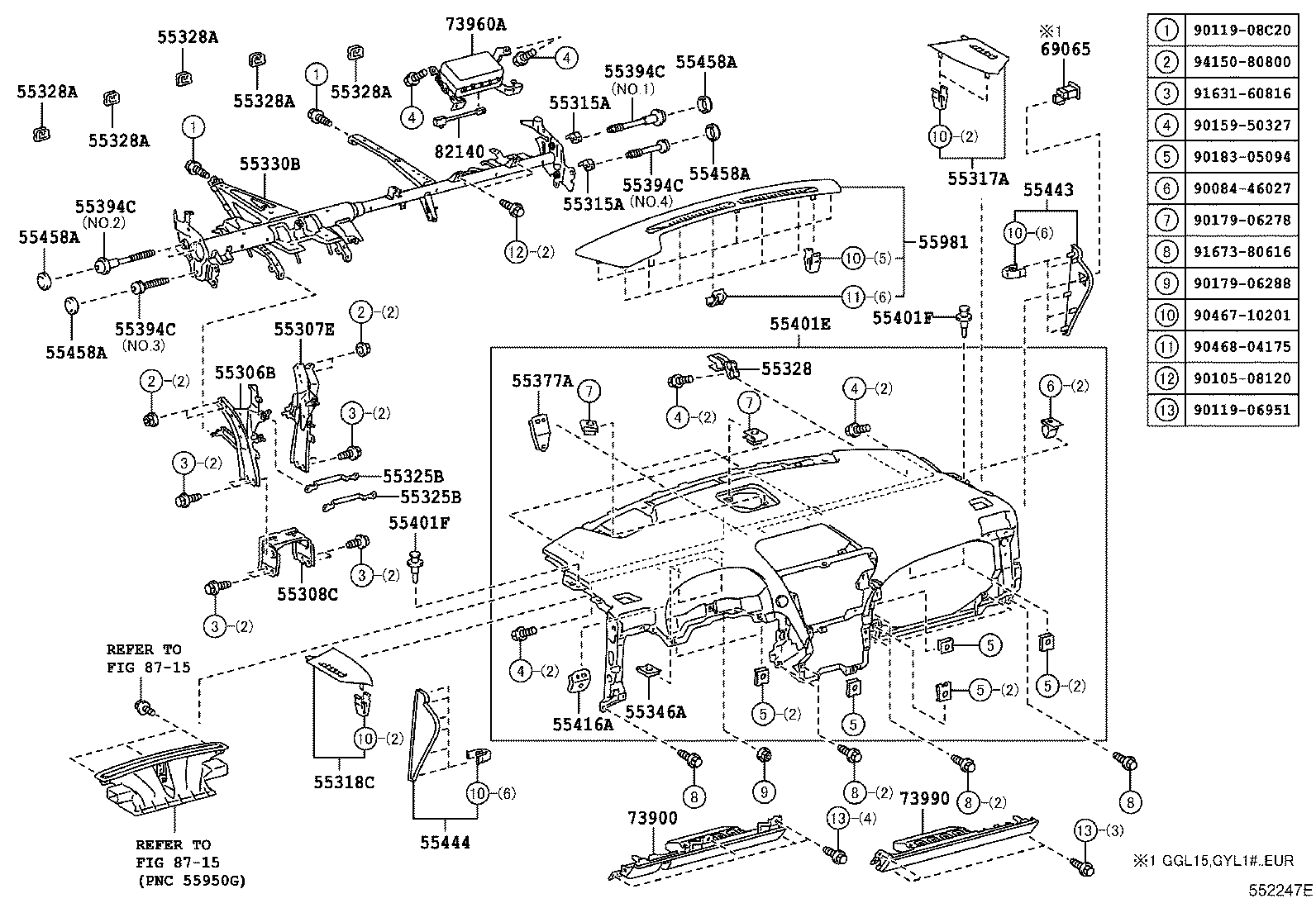

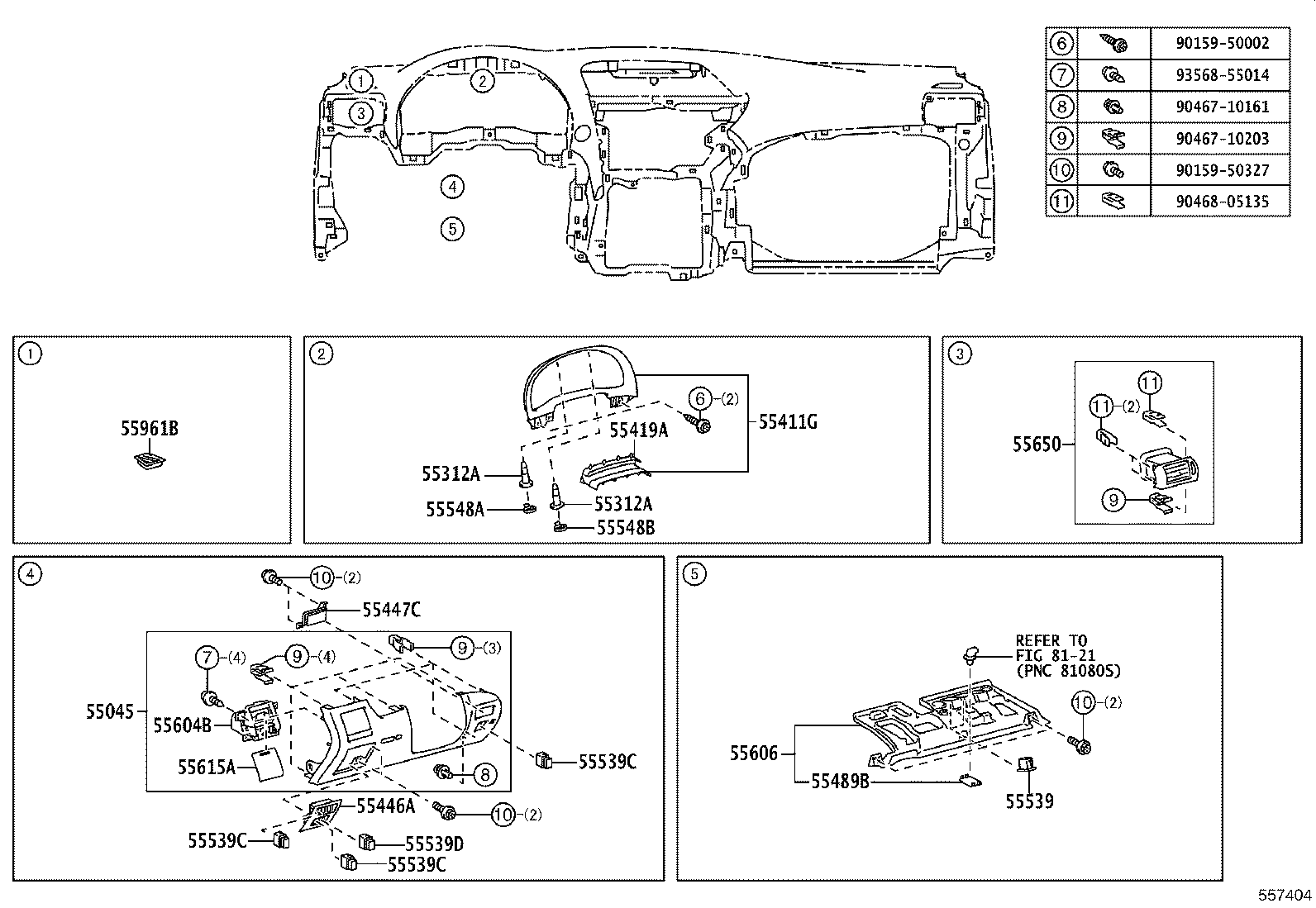

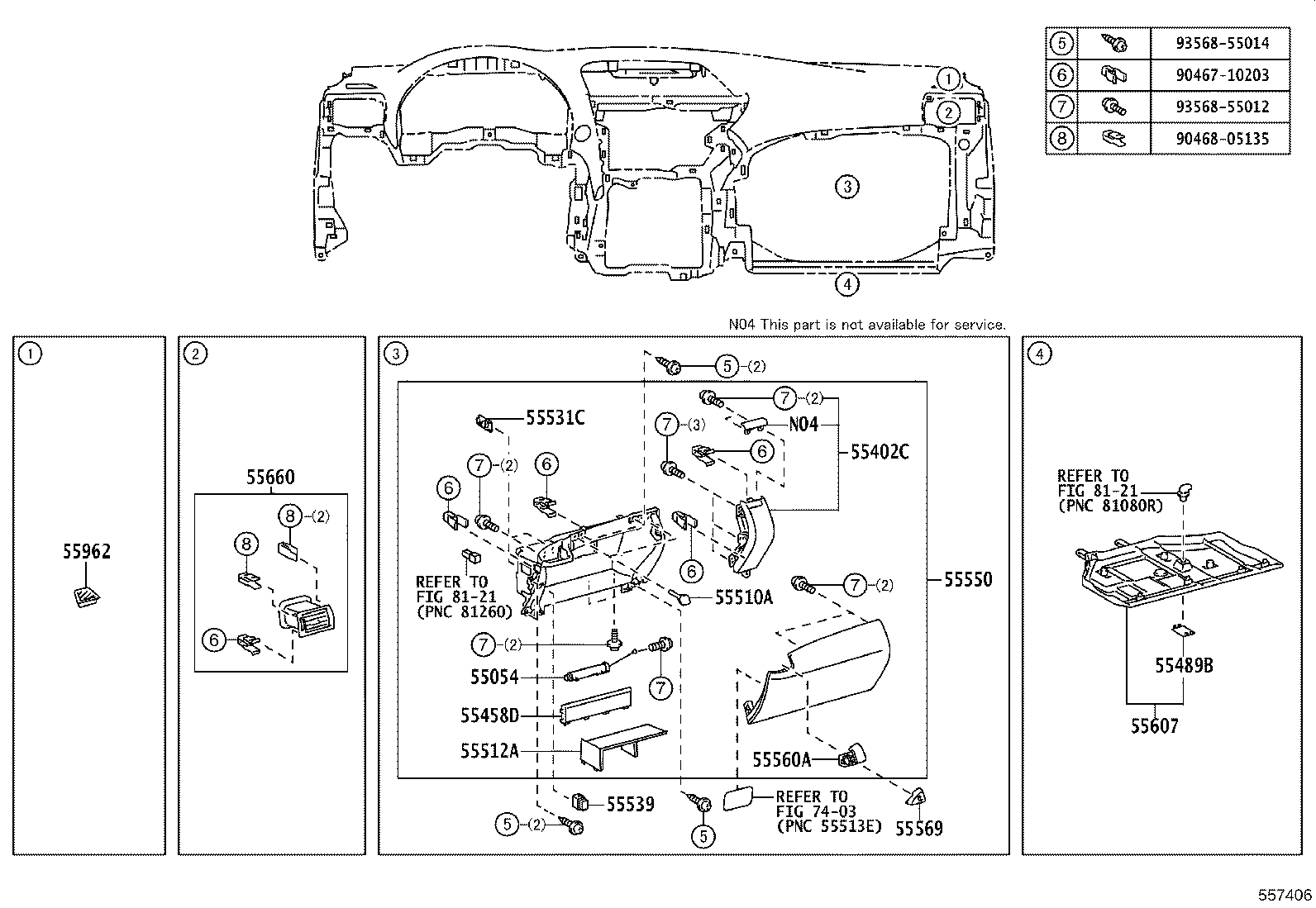

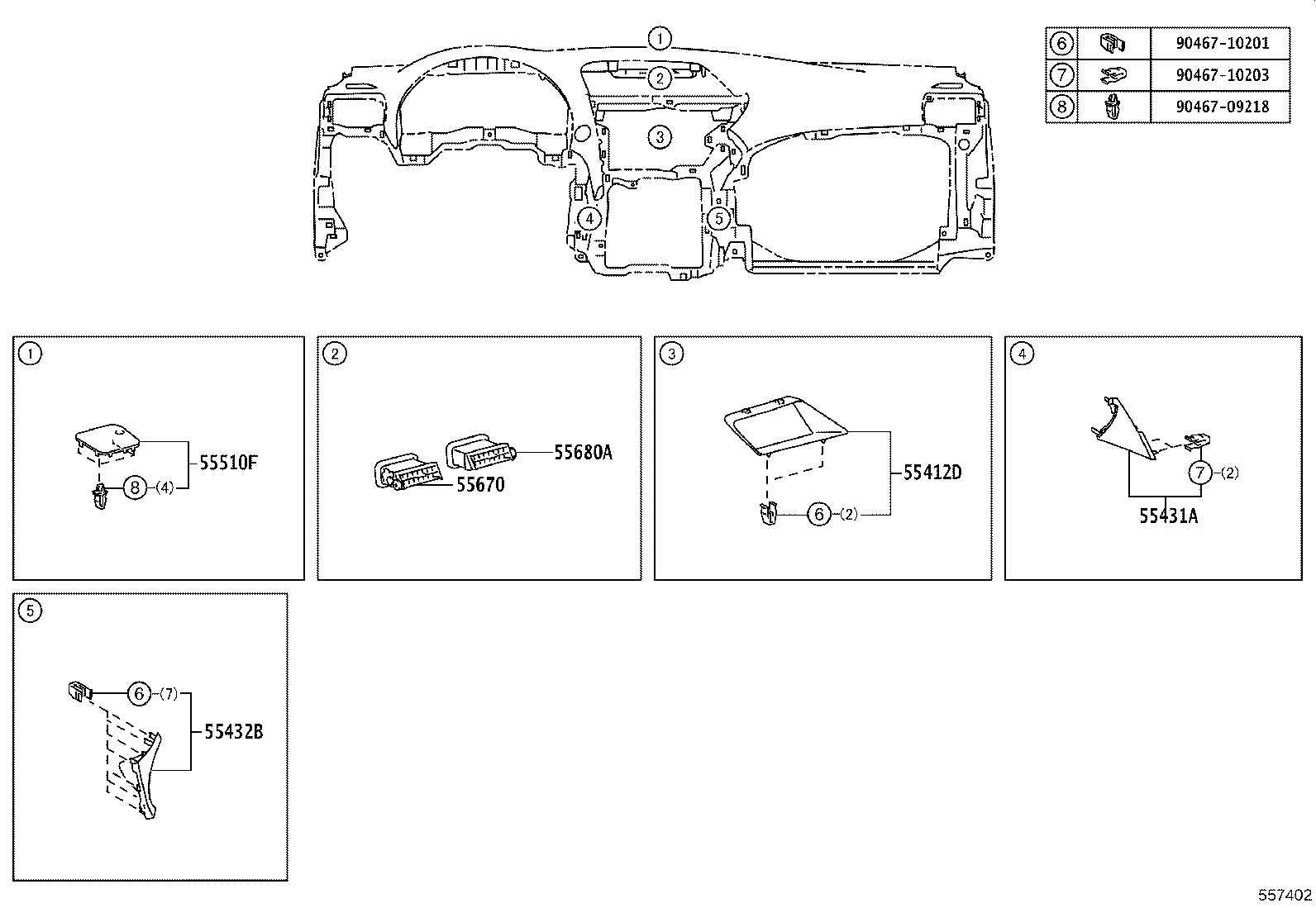

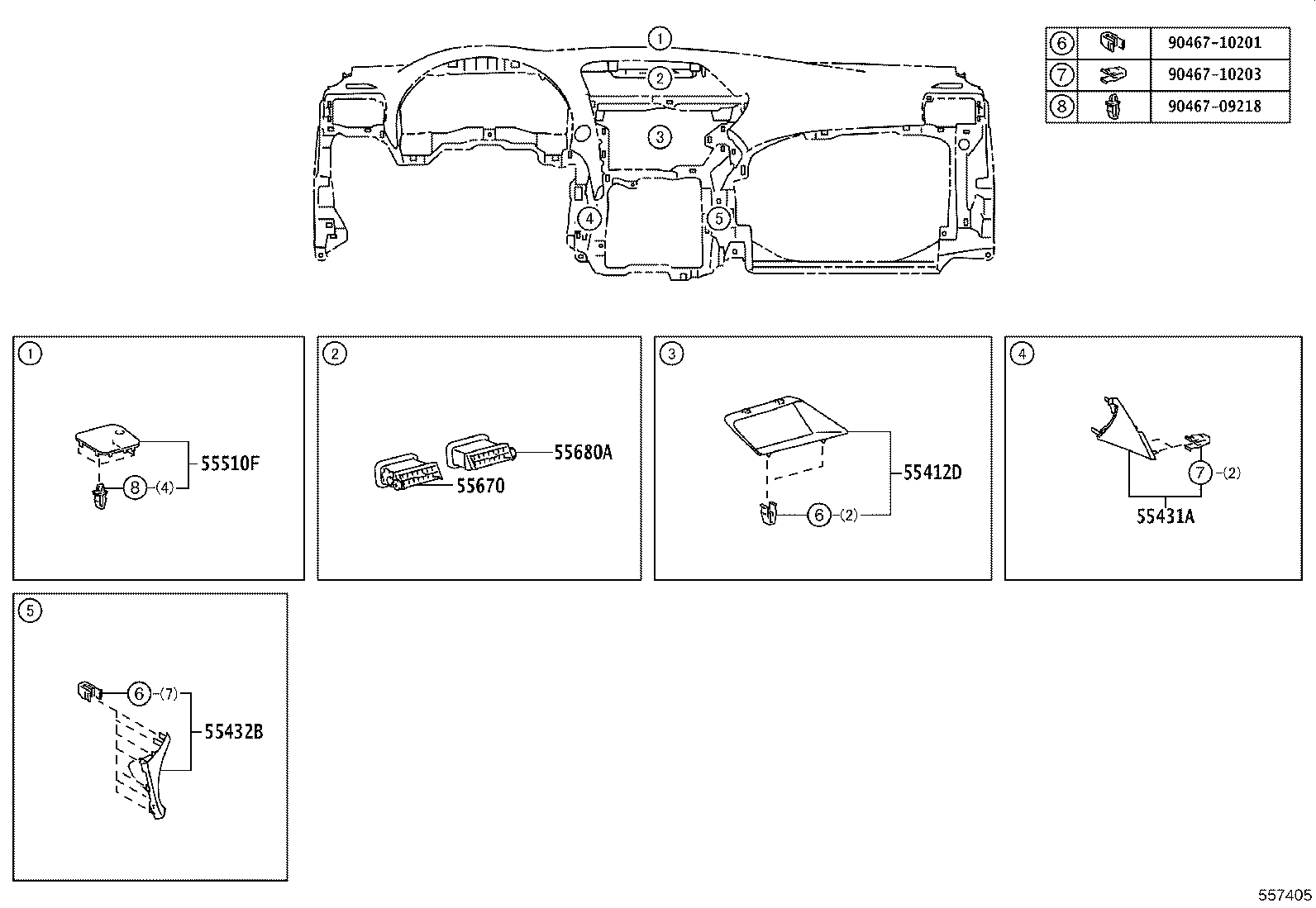

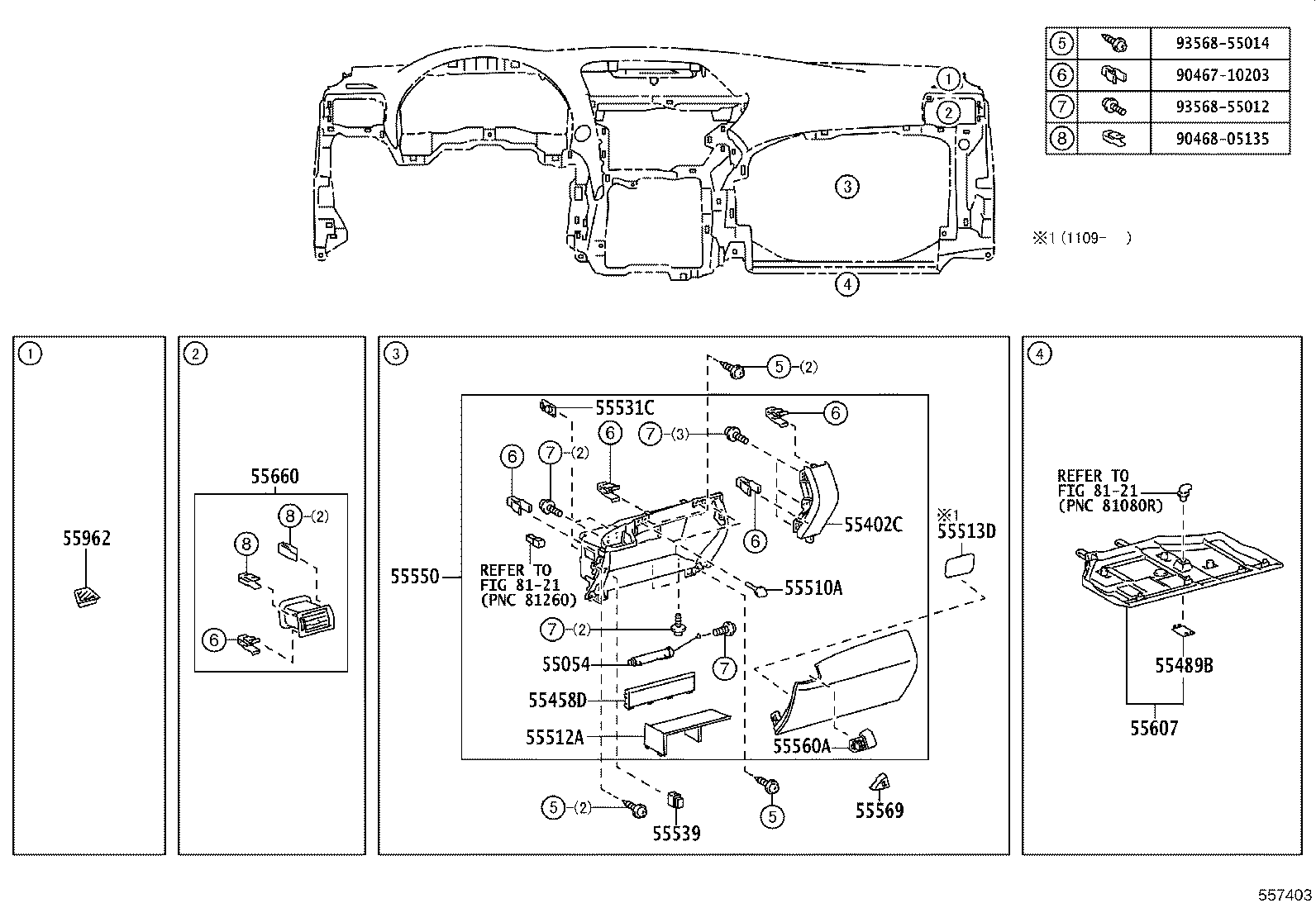

Figure 552246C 552246C 2008-12 → — Figure 557395 557395 2008-12 → 2012-03 Figure 557398 557398 2012-03 → — Figure 557396 557396 2008-12 → 2012-03 Figure 557399 557399 2012-03 → — Figure 557397 557397 2008-12 → 2012-03 Figure 557400 557400 2012-03 → — Figure 552247E 552247E 2008-12 → — Figure 557401 557401 2008-12 → 2012-03 Figure 557404 557404 2012-03 → — Figure 557402 557402 2008-12 → 2012-03 Figure 557405 557405 2012-03 → — Figure 557403 557403 2008-12 → 2012-03 Figure 557406 557406 2012-03 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55306B Brace Sub-assy, Instrument Panel TO Cowl
55307E Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55312A Clip, Instrument Panel
55315A Spacer, Instrument Panel, NO.1
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55325B Bracket, Instrument Panel, NO.5
55328 Pin, Instrument Panel, NO.1
55328A Stay, Instrument Panel, NO.3
55330B Reinforcement Assy, Instrument Panel
55346A Clip, Instrument Panel, NO.2
55377A Bracket, Instrument Panel Mounting, NO.2
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55402C Pad Sub-assy, Instrument Panel, Lower RH
55403C Pad Sub-assy, Instrument Panel, Lower LH
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55416A Retainer, Meter Hood, NO.1
55419A Cushion, Instrument Cluster Finish Panel
55431A Panel, Instrument Panel Finish
55432B Panel, Instrument Panel Finish, Lower
55443 Garnish, Instrument Panel, RH
55444 Garnish, Instrument Panel, LH
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55458A Cap, Instrument Panel Safety Pad
55458D Cover, Instrument Lower, RH
55459D Cover, Instrument, Lower LH
55489B Lens, Front Foot Lamp, NO.2
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55510F Cover Assy, Speaker Opening, NO.1
55512A Plate, Glove Compartment
55513D Plate, Glove Compartment, NO.2
55531C Pin, Glove Door Stopper
55533B Panel, Glove Compartment Side, RH
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55548B Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55560A Lock Assy, Glove Compartment Door
55569 Cover, Glove Compartment Door Lock
55604B Holder Sub-assy, Instrument Panel Cup
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55615A Case, Instrument Panel Cup Holder, Outer
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961B Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
69065 Cylinder Sub-assy, Airbag Cut Off SW
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
82140 Wire Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
