Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

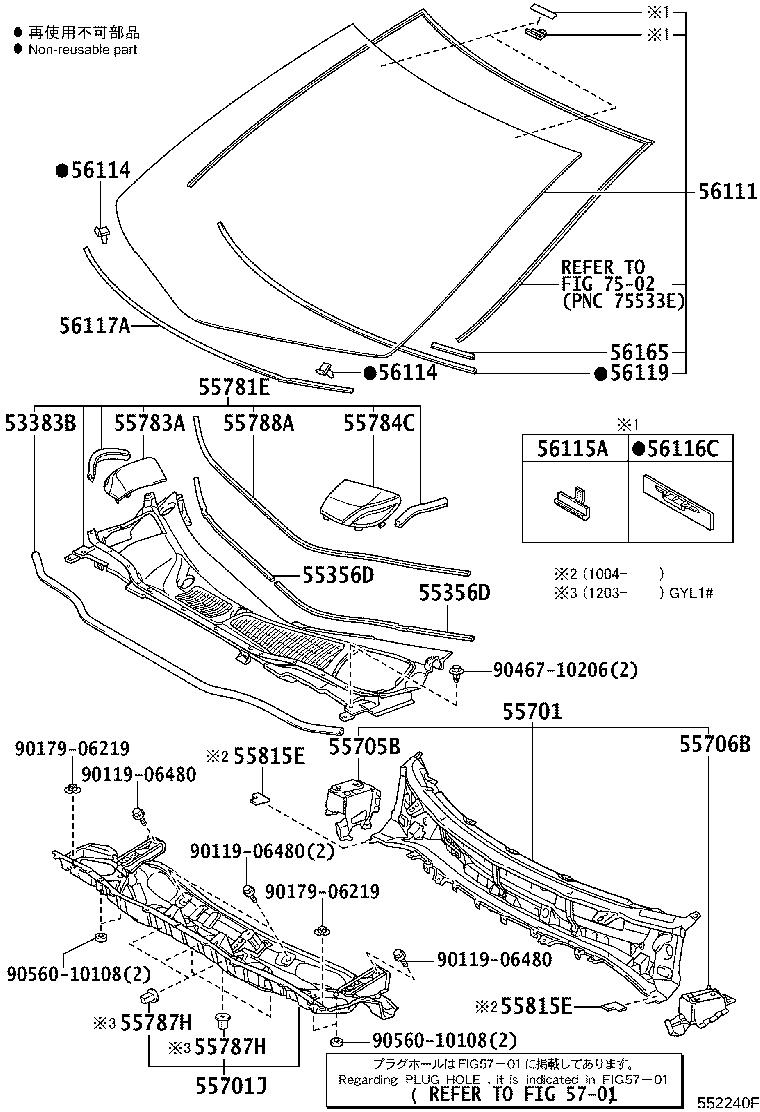

Figure 552239F 552239F 2008-12 → — Figure 552240F 552240F 2008-12 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55356D Cushion, Instrument Panel, NO.2
55701 Panel Sub-assy, Cowl
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
55784C Pad, Cowl Top Silencer, LH
55787H Clip, Cowl Top Panel Insulator
55788A Protector, Cowl Top Ventilator Louver
55815E Seal, Front Ventilator, NO.1
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56119 Seal, Windshield Glass
56165 Cover, Front Window Inner Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
