Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03

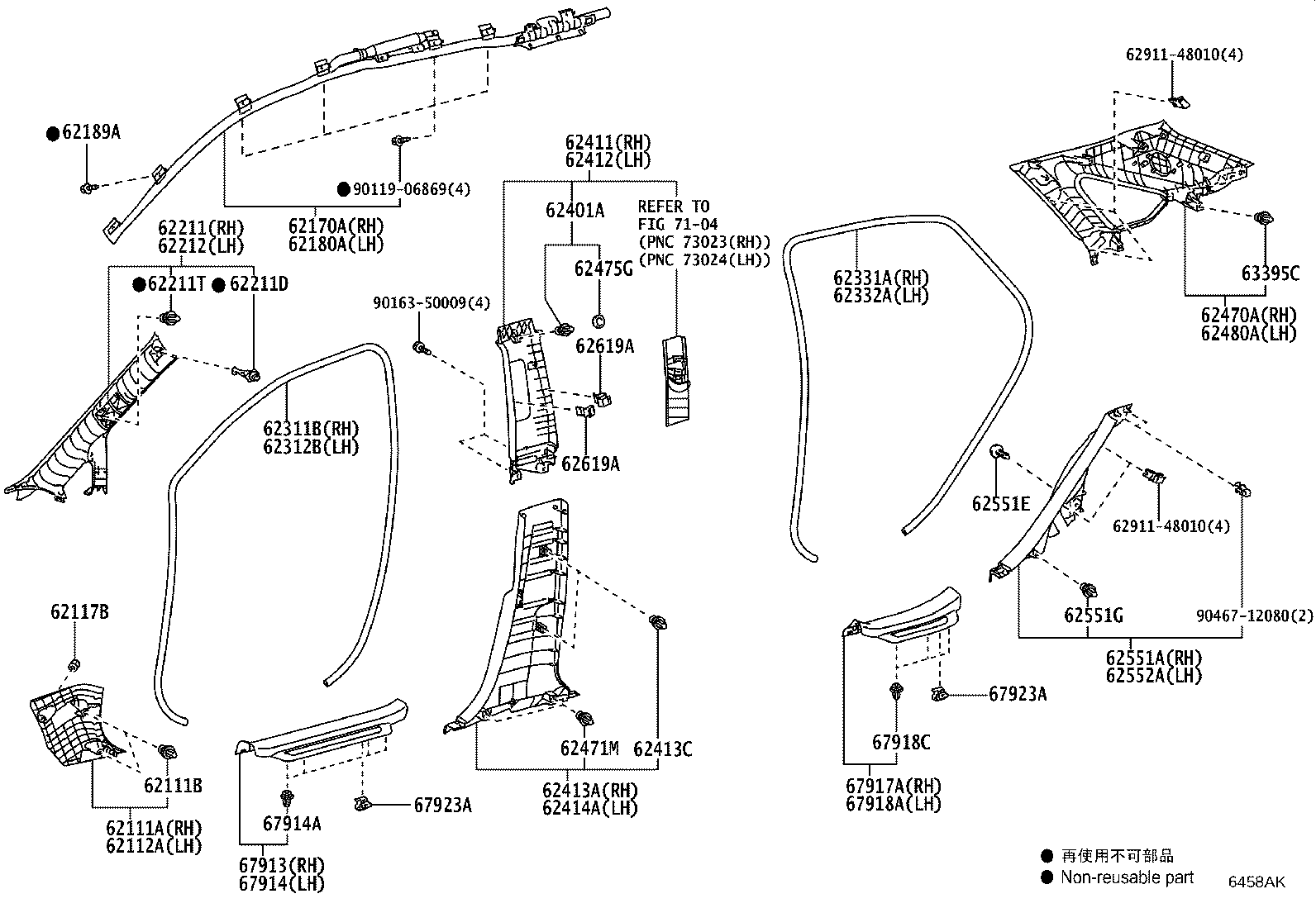

Inside Trim Board & Door Opening Trim Moulding
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471M | Clip |
| 62475G | Seal, Roof Side, Inner |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62551A | Cover, Rear Seat Side, RH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551G | Clip |
| 62552A | Cover, Rear Seat Side, LH |
| 62619A | Plate, Side Trim Set |
| 63395C | Clip(FOR ROOF SIDE INNER GARNISH) |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67914A | Clip(FOR SCUFF PLATE) |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
