Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03

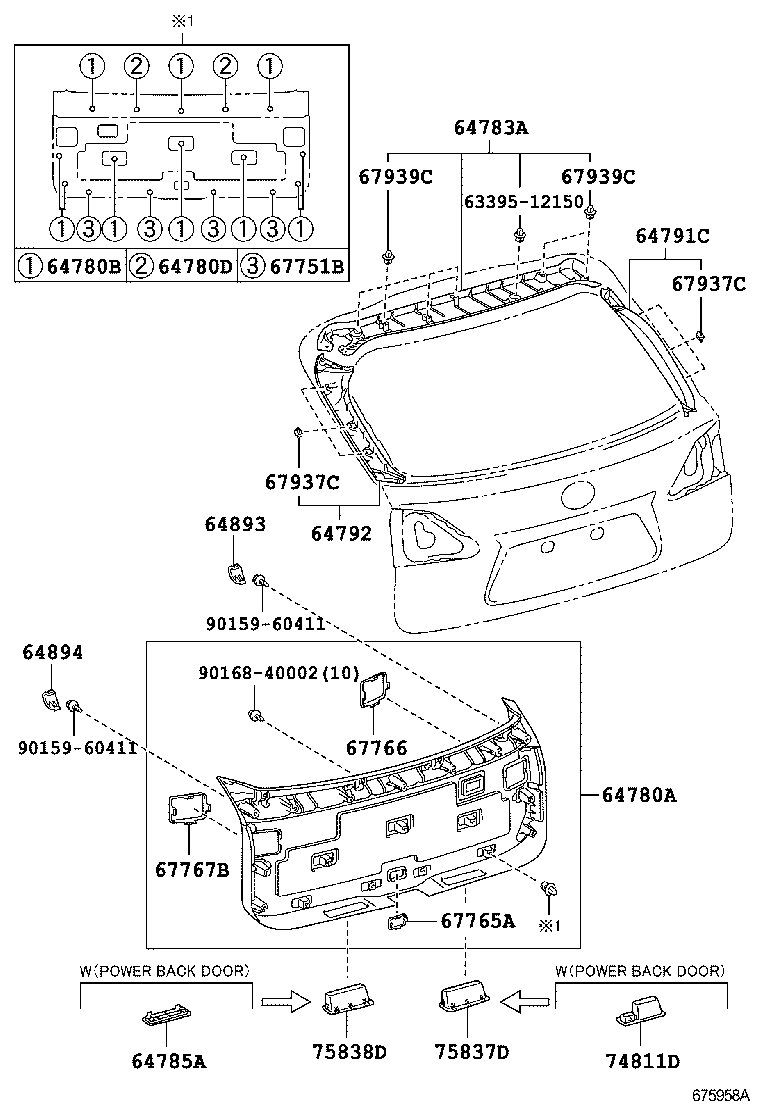

Back Door Panel & Glass
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 63126D | Damper, Windshield Header Panel |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64780D | Retainer(FOR BACK DOOR TRIM BOARD) |
| 64783A | Trim, Back Window Panel, Upper |
| 64785A | Base, Back Door Trim |
| 64791C | Cover, Back Door Trim, RH |
| 64792 | Cover, Back Door Trim, LH |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 64893 | Cover, Back Door Trim, Upper, RH |
| 64894 | Cover, Back Door Trim, Upper, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67373A | Retainer, Back Door Weight, RH |
| 67751B | Retainer(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67881A | Weatherstrip, Back Door |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75571E | Moulding, Back Window, Outside Upper RH |
| 75572E | Moulding, Back Window, Outside Upper LH |
| 75573C | Moulding, Back Window, Outside |
| 75575D | Moulding, Back Window, Lower |
| 75837D | Cover, Back Door Finish, RH |
| 75838D | Cover, Back Door Finish, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
