Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 3 illustrations

Illustrations

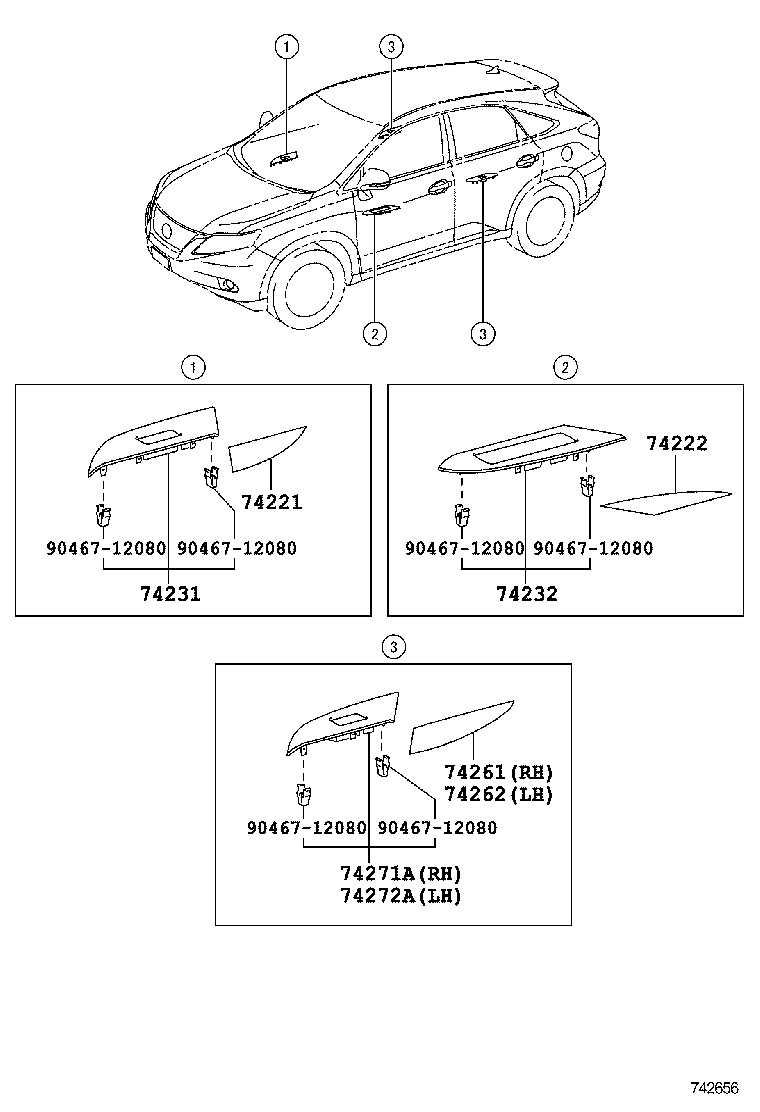

Figure 742657 742657 2008-12 → — Figure 742656 742656 2008-12 → — Figure 742655 742655 2008-12 → —

Part groups

PNCDescription
74221 Cover, Door Armrest, RH
74222 Cover, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74261 Cover, Rear Door Armrest, RH
74262 Cover, Rear Door Armrest, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74631C Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
