Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03
Caution Plate (EXTERIOR & INTERIOR)
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11286B | Plate, Engine Specification |

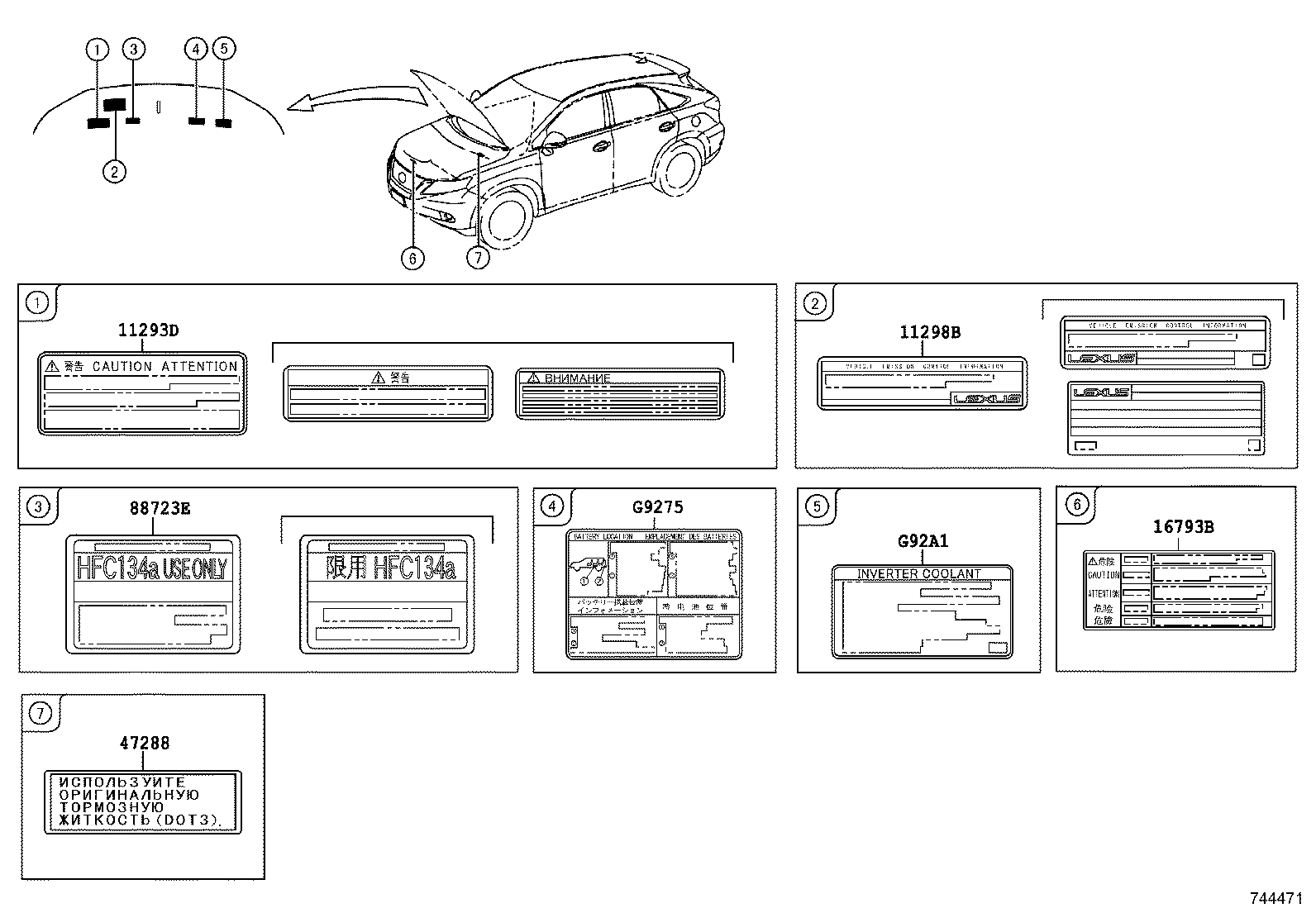

| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16448A | Plate, Radiator Caution |
| 16793B | Label, Cooling Fan Information |
| 16793E | Label, Cooling Fan Caution |
| 28898D | Label, Battery Information |
| 41992 | Label, Differential Notice |
| 47288 | Label, Brake Fluid Notice |

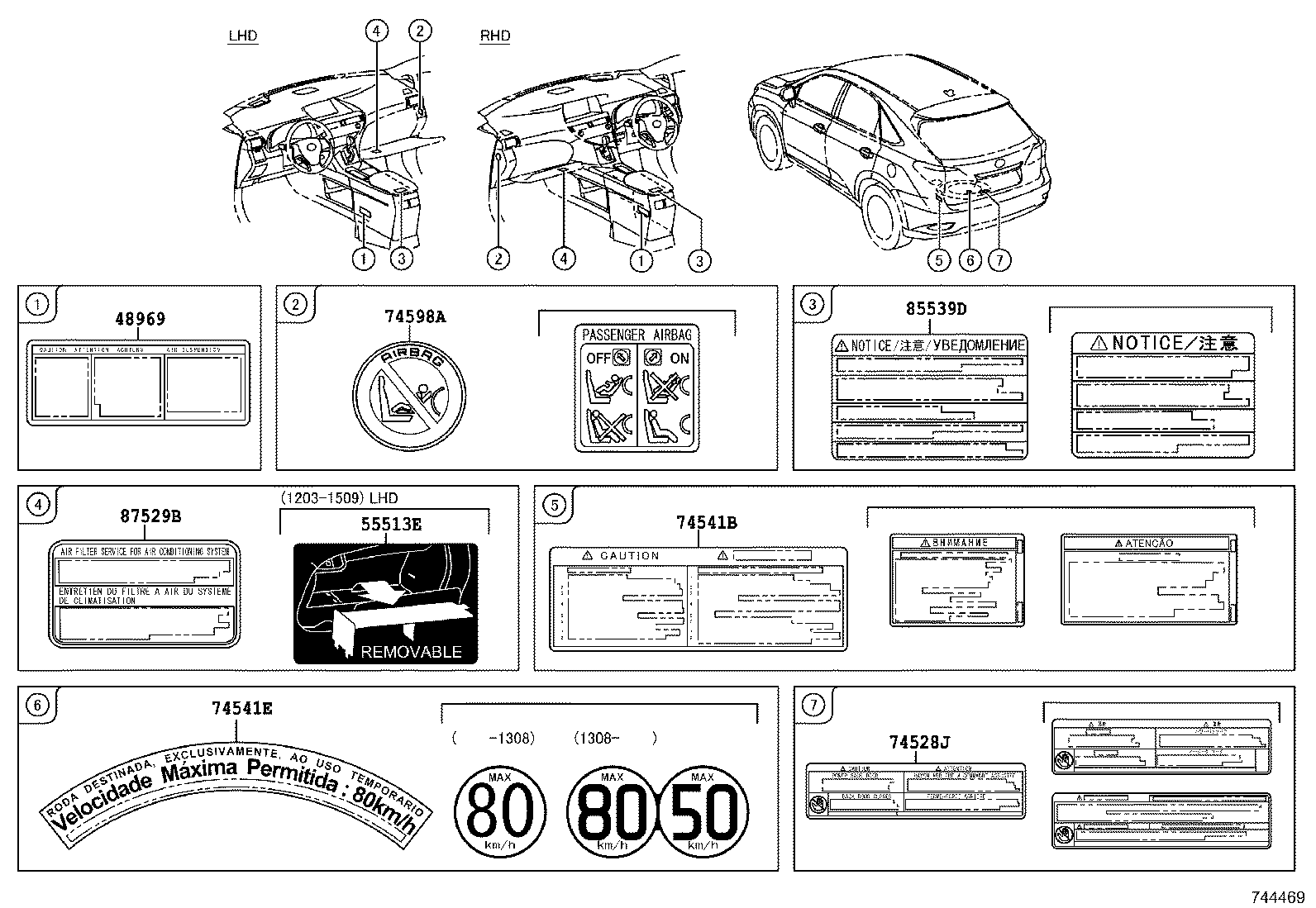

| 48969 | Label, Jack UP Caution |
| 55513E | Plate, Glove Compartment, NO.2 |
| 69339C | Label, Child Protector Information |

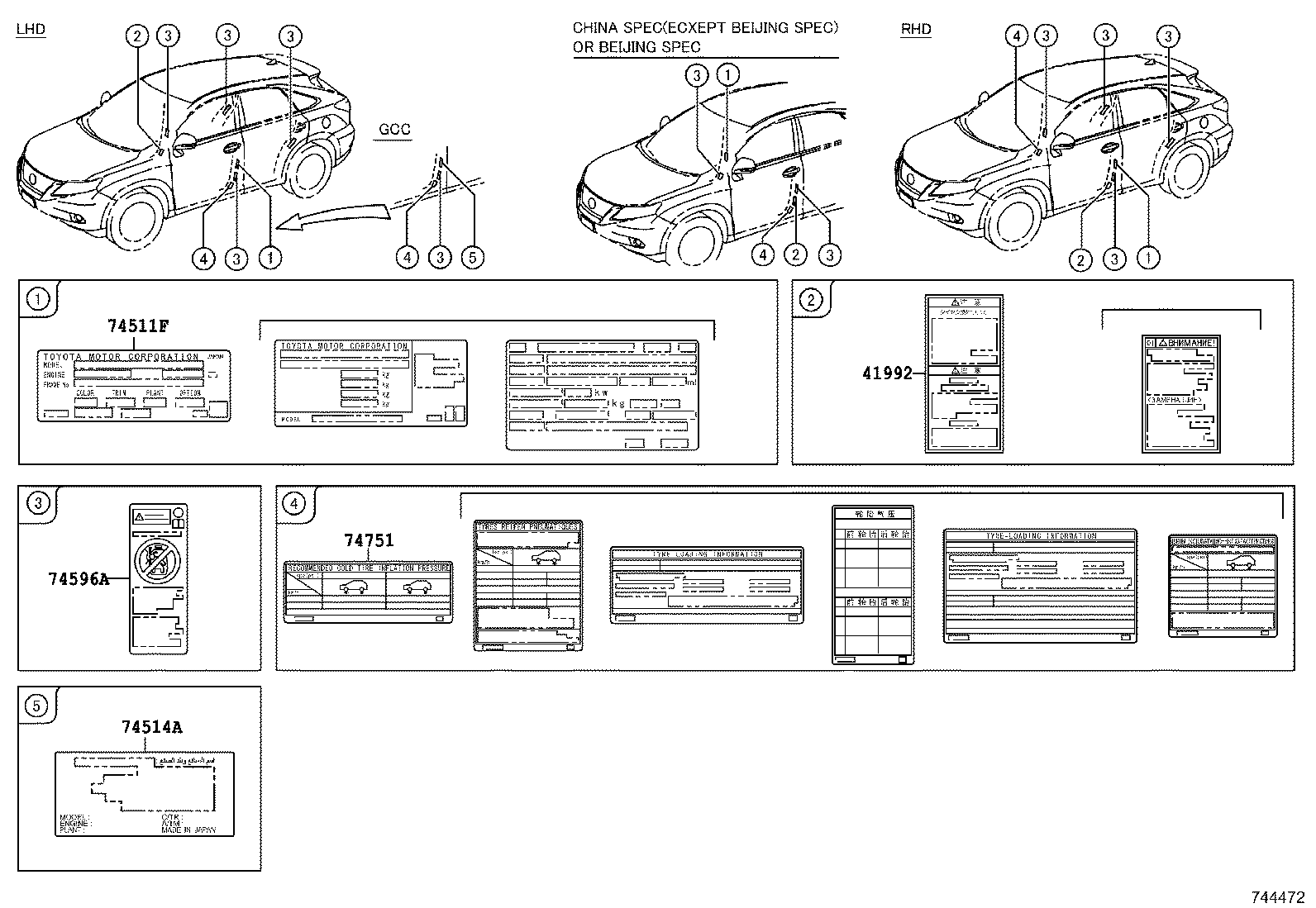

| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74514A | Label, Certification Regulation Information |

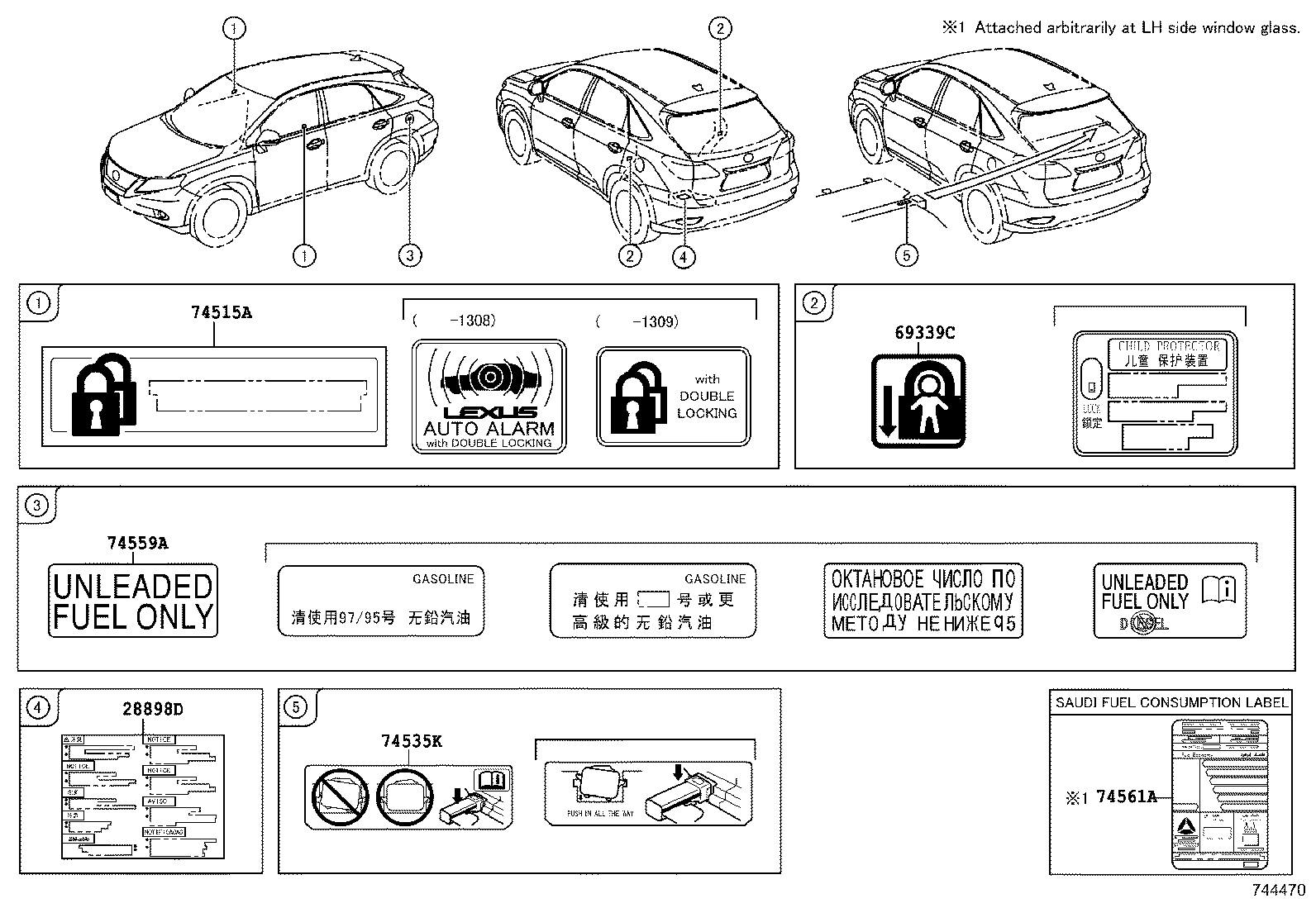

| 74515A | Plate, Theft Warning |
| 74528J | Label, Power Back Door Caution |
| 74535K | Label, Tonneau Cover Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74561A | Label, Fuel Consumption Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 85539D | Label, Power Outlet Notice |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
