Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 2 illustrations

Illustrations

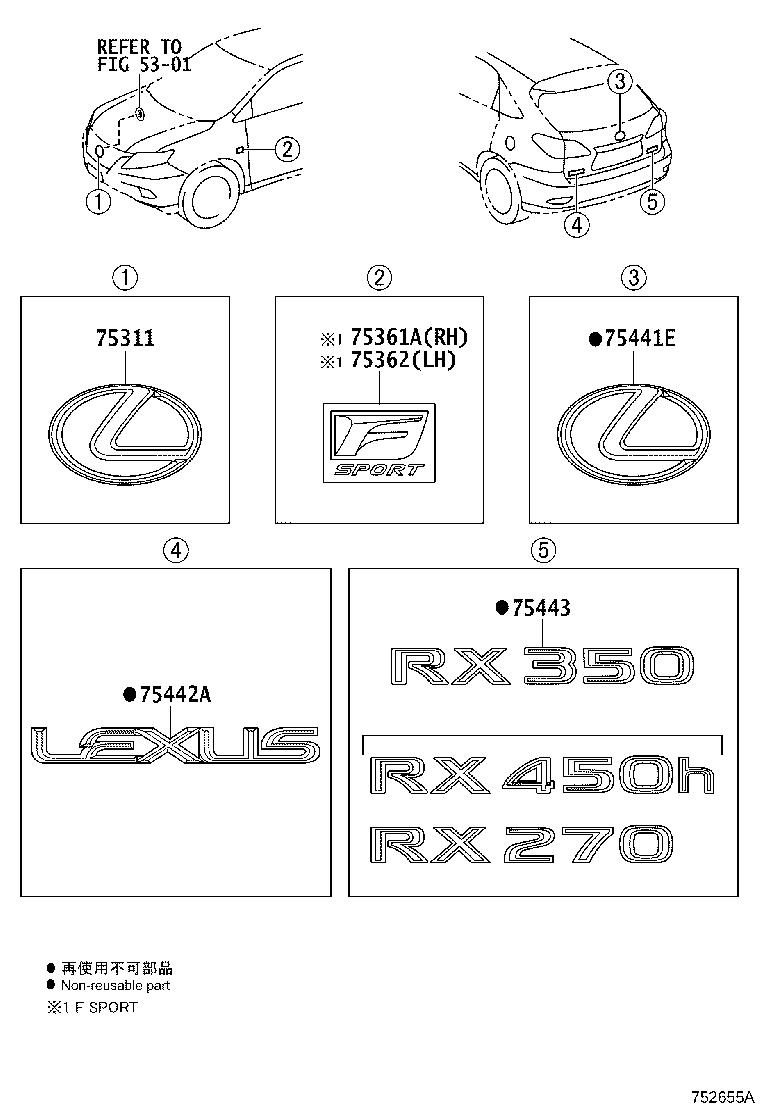

Figure 752157B 752157B 2008-12 → 2012-03 Figure 752655A 752655A 2012-03 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312D Base, Radiator Grille Emblem
75361A Plate, Front Fender Name, NO.1
75362 Plate, Front Fender Name, NO.2
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
