Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 3 illustrations

Illustrations

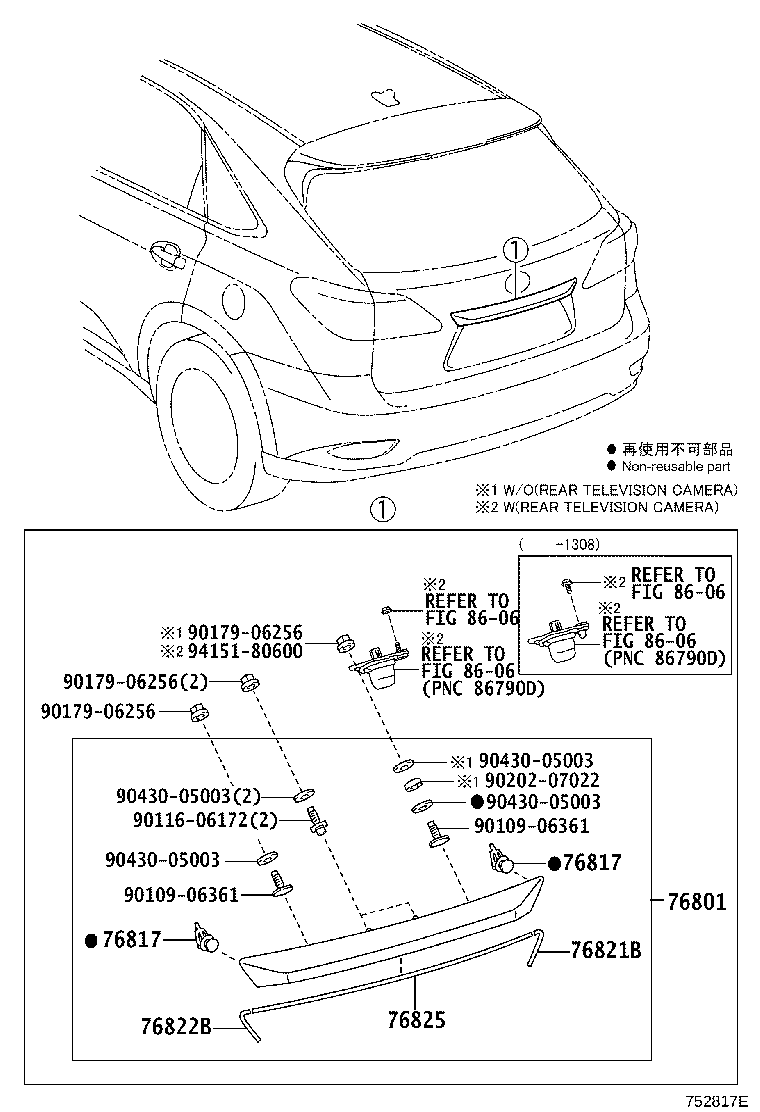

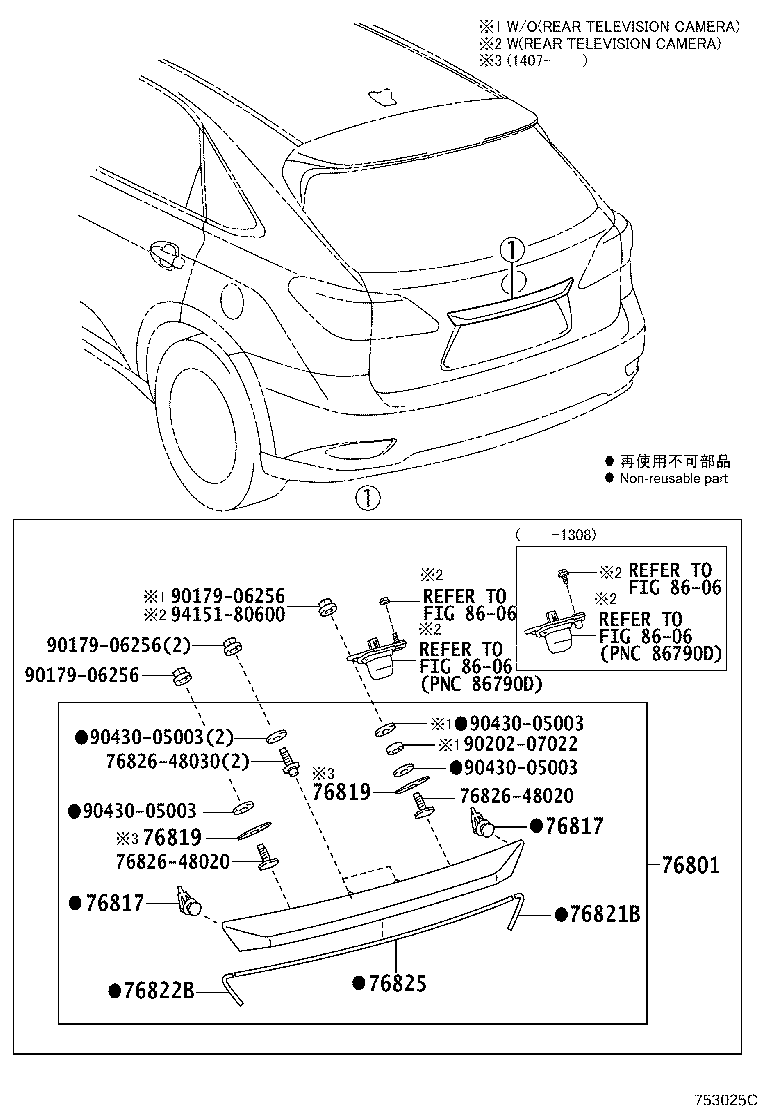

Figure 752132D 752132D 2008-12 → 2013-04 Figure 752817E 752817E 2013-04 → — Figure 753025C 753025C 2013-04 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
