Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

33 part groups · 5 illustrations

Illustrations

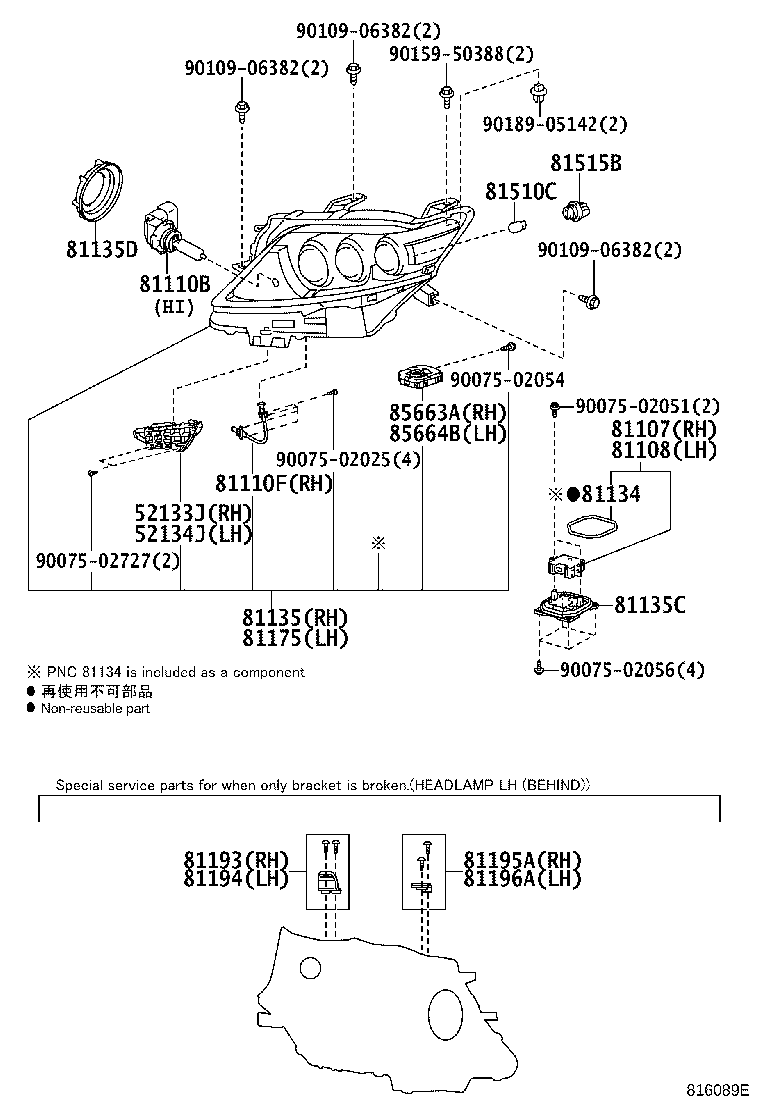

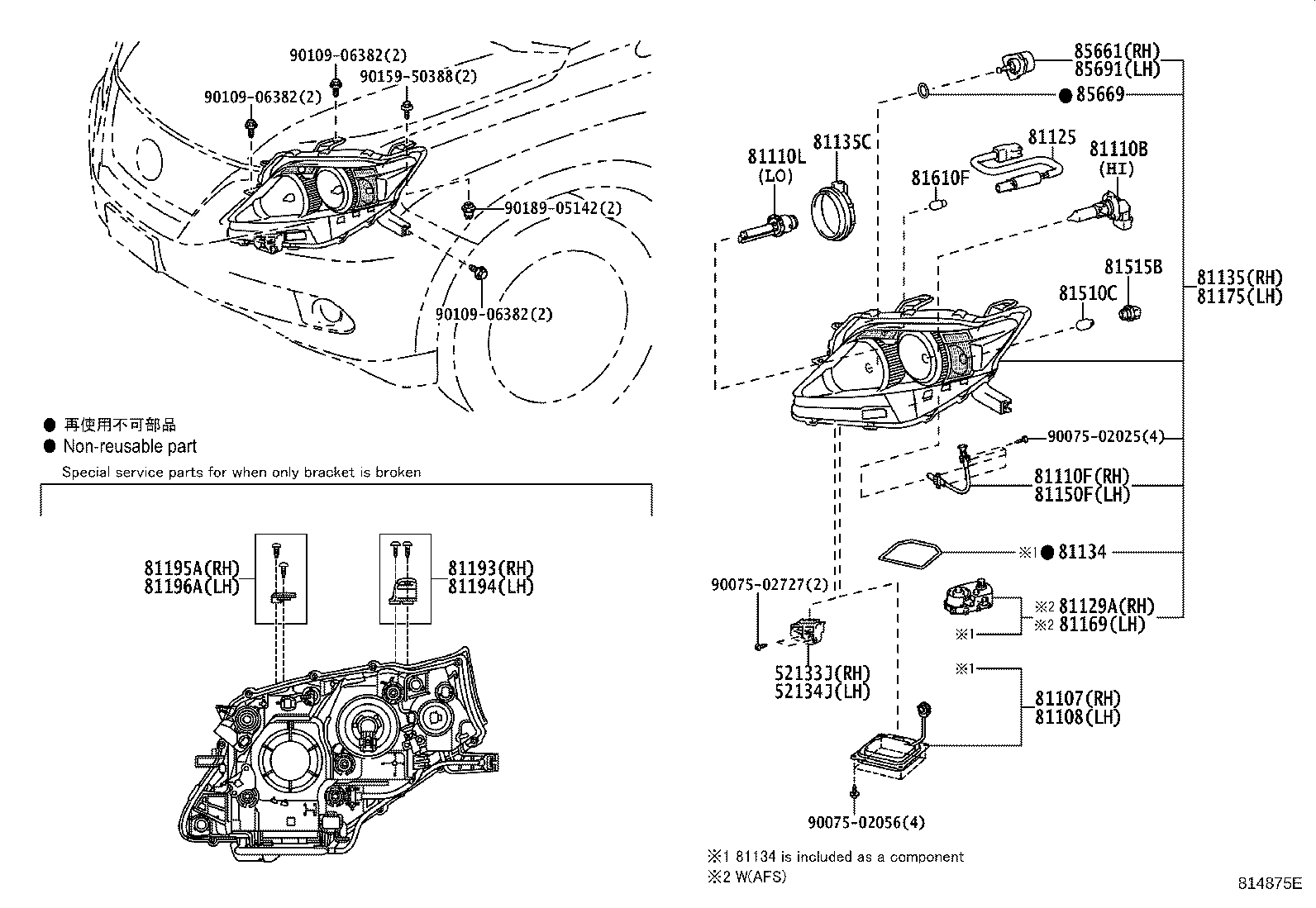

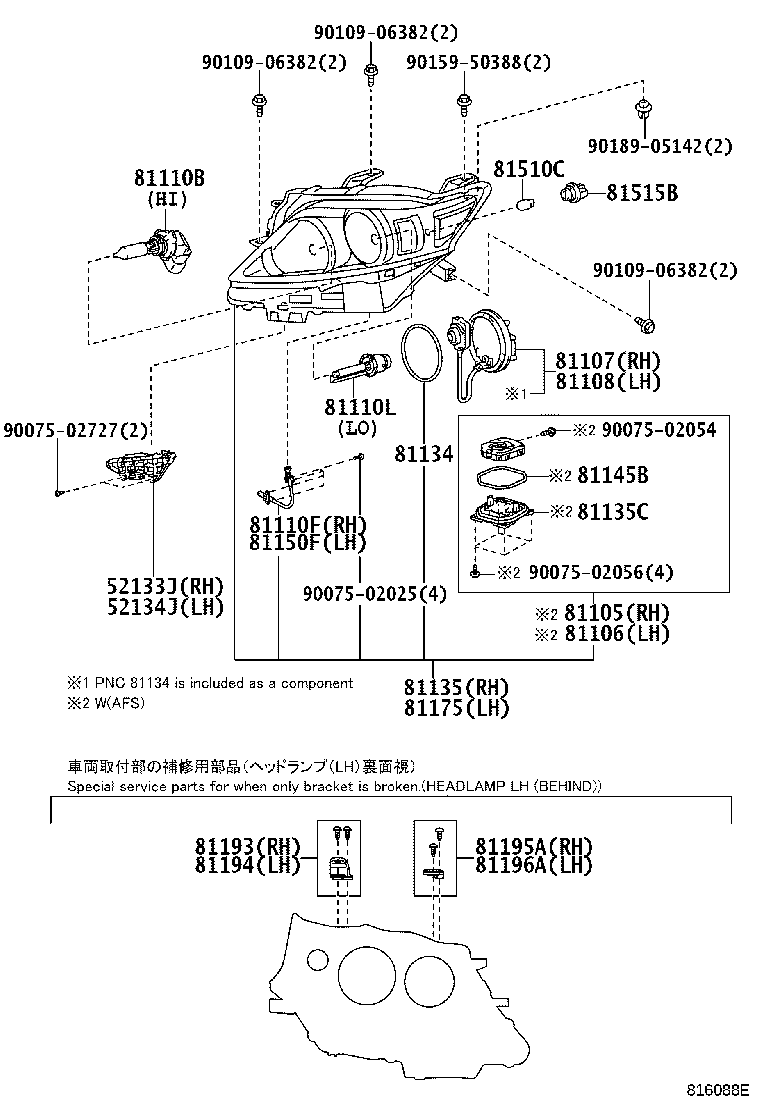

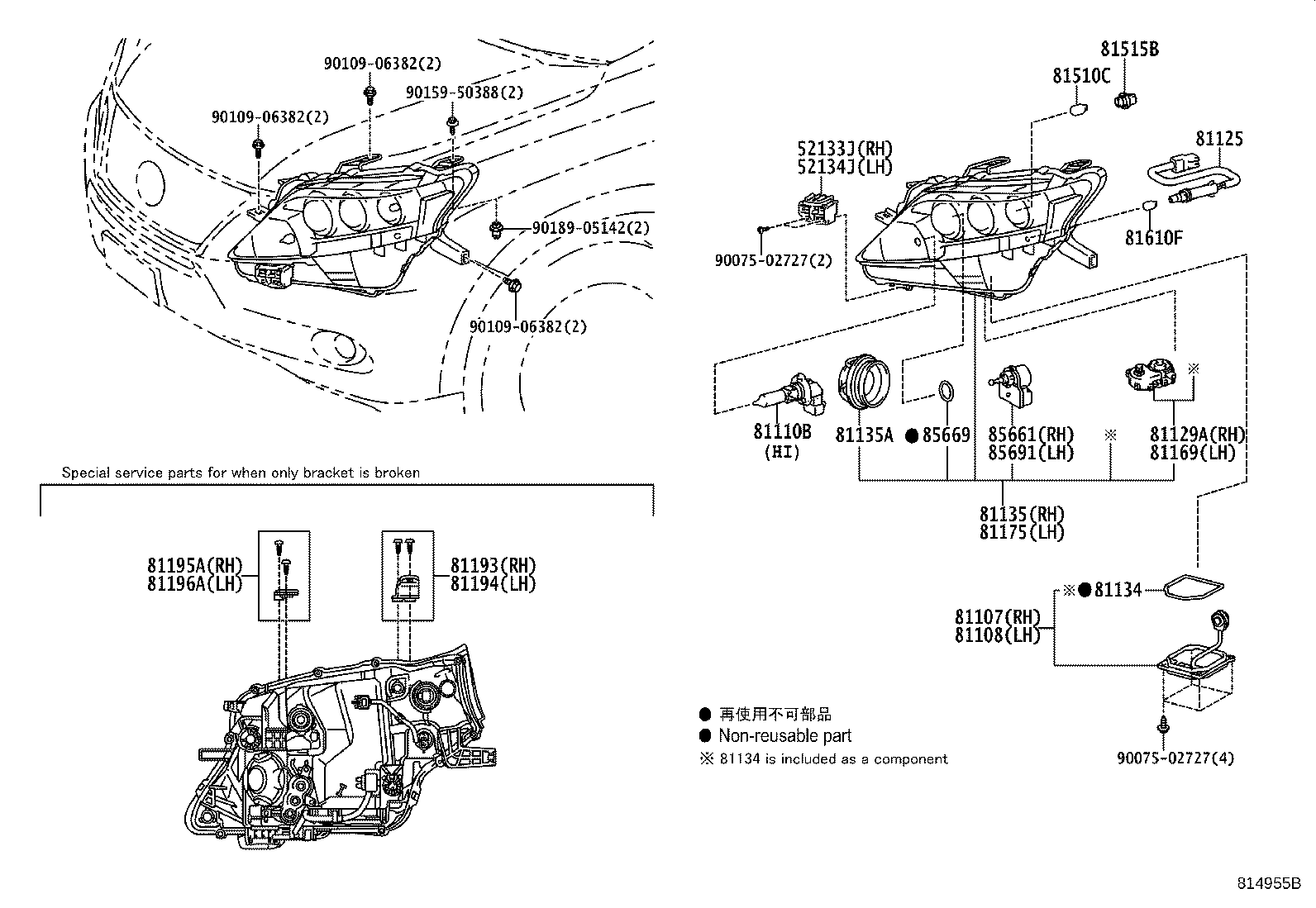

Figure 816087B 816087B 2012-03 → — Figure 814875E 814875E 2008-12 → 2012-03 Figure 816088E 816088E 2012-03 → — Figure 814955B 814955B 2009-03 → 2012-03 Figure 816089E 816089E 2012-03 → —

Part groups

PNCDescription
52133J Reinforcement, Front Bumper Bar, RH
52134J Reinforcement, Front Bumper Bar, LH
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110F Gear Unit Assy, RH NO.1
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81129A Reflector, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135A Cap, Locking
81135C Cover, Headlamp Back, NO.1
81135D Cover, Headlamp Back, NO.2
81145B Gasket, Headlamp Cover, NO.1
81150F Gear Unit Assy, LH NO.1
81169 Reflector, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85663A Motor, Headlamp Swivel, RH
85664B Motor, Headlamp Swivel, LH
85669 Packing, Headlamp Leveling Motor Base
85691 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
