Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 3 illustrations

Illustrations

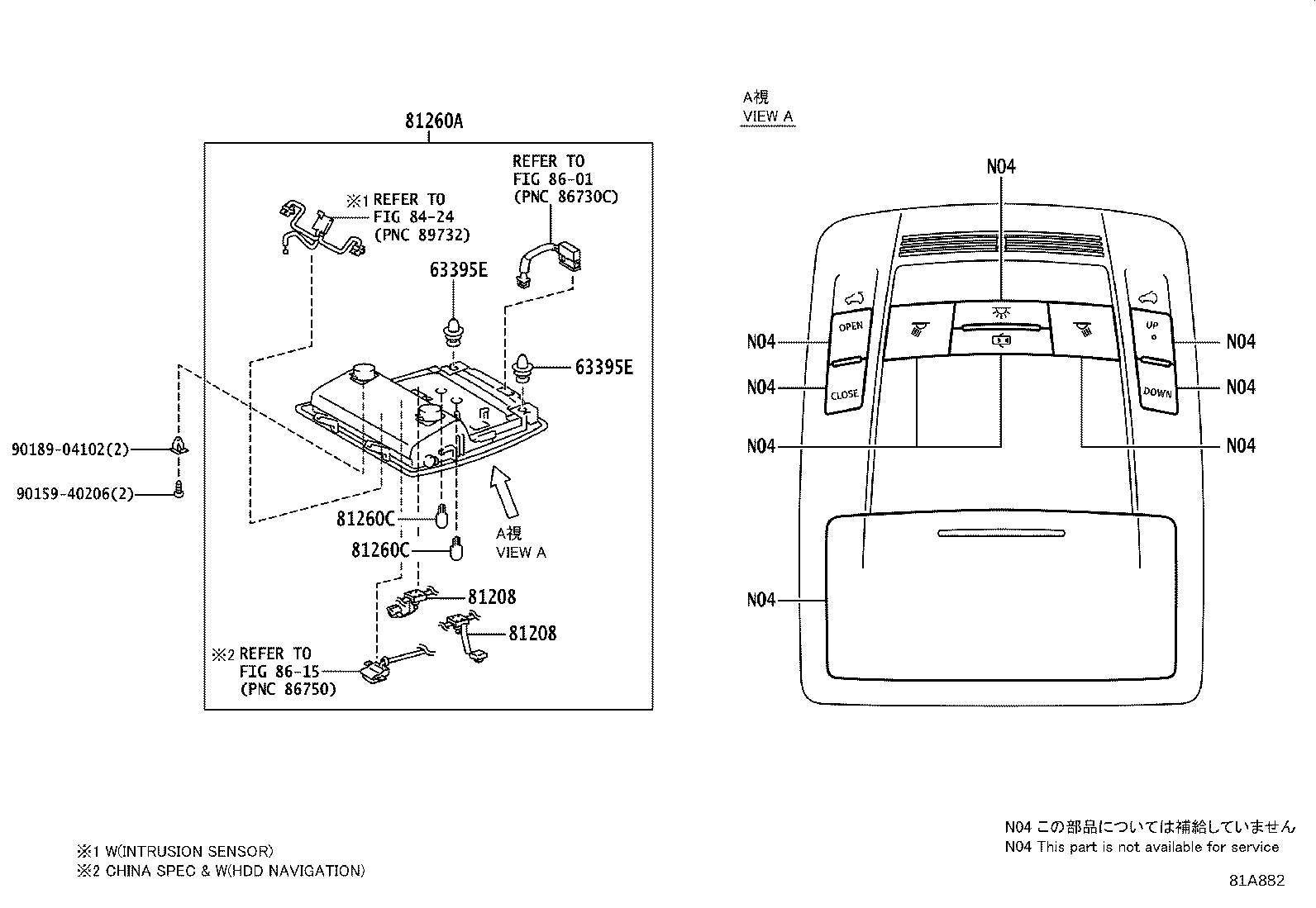

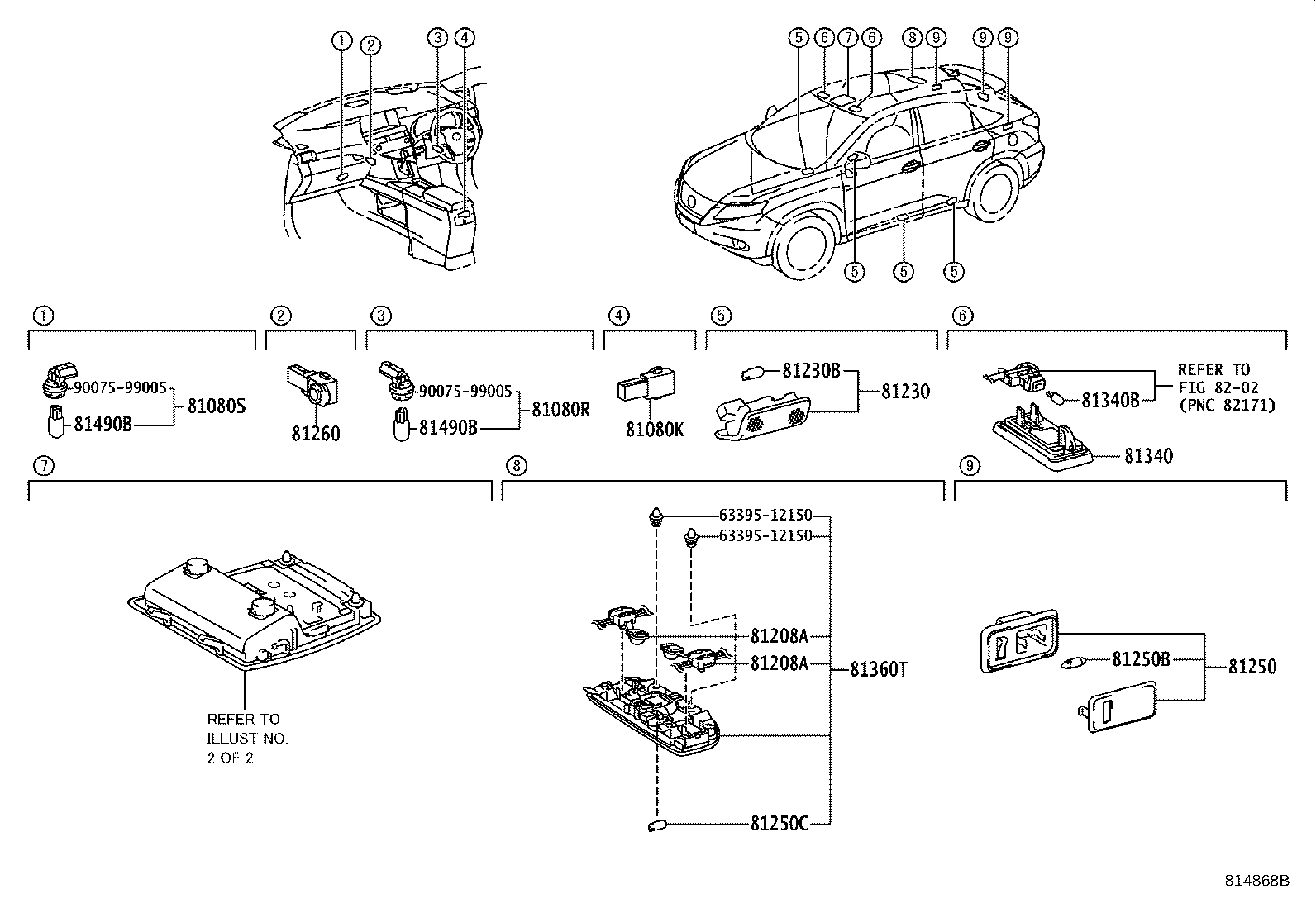

Figure 814869B 814869B 2008-12 → — Figure 814868B 814868B 2008-12 → — Figure 81A882 81A882 2008-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080K Lamp Assy, Console Box Illumination
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81208 Lamp Sub-assy, Map
81208A Lamp Sub-assy, Map, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81250C Bulb, Spot Lamp
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81490B Bulb (FOR FOOT LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
