Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03
Switch & Relay & Computer
134 part groups · 19 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371F | Relay, Ignition, NO.5 |

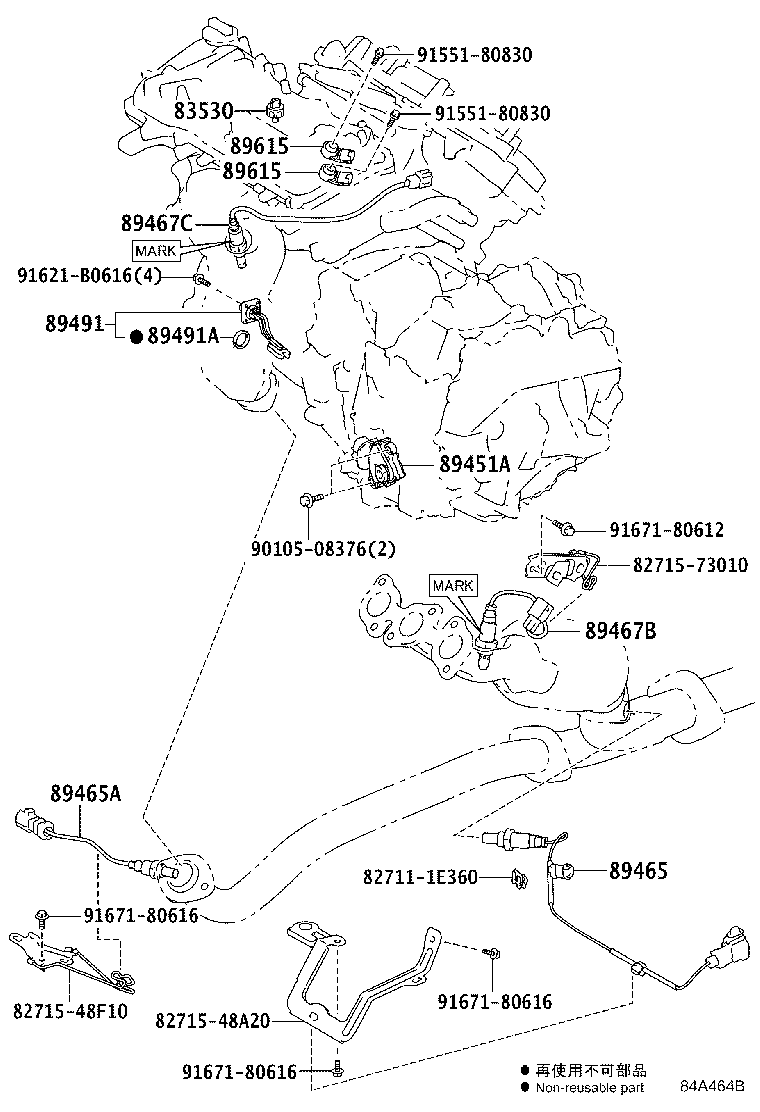

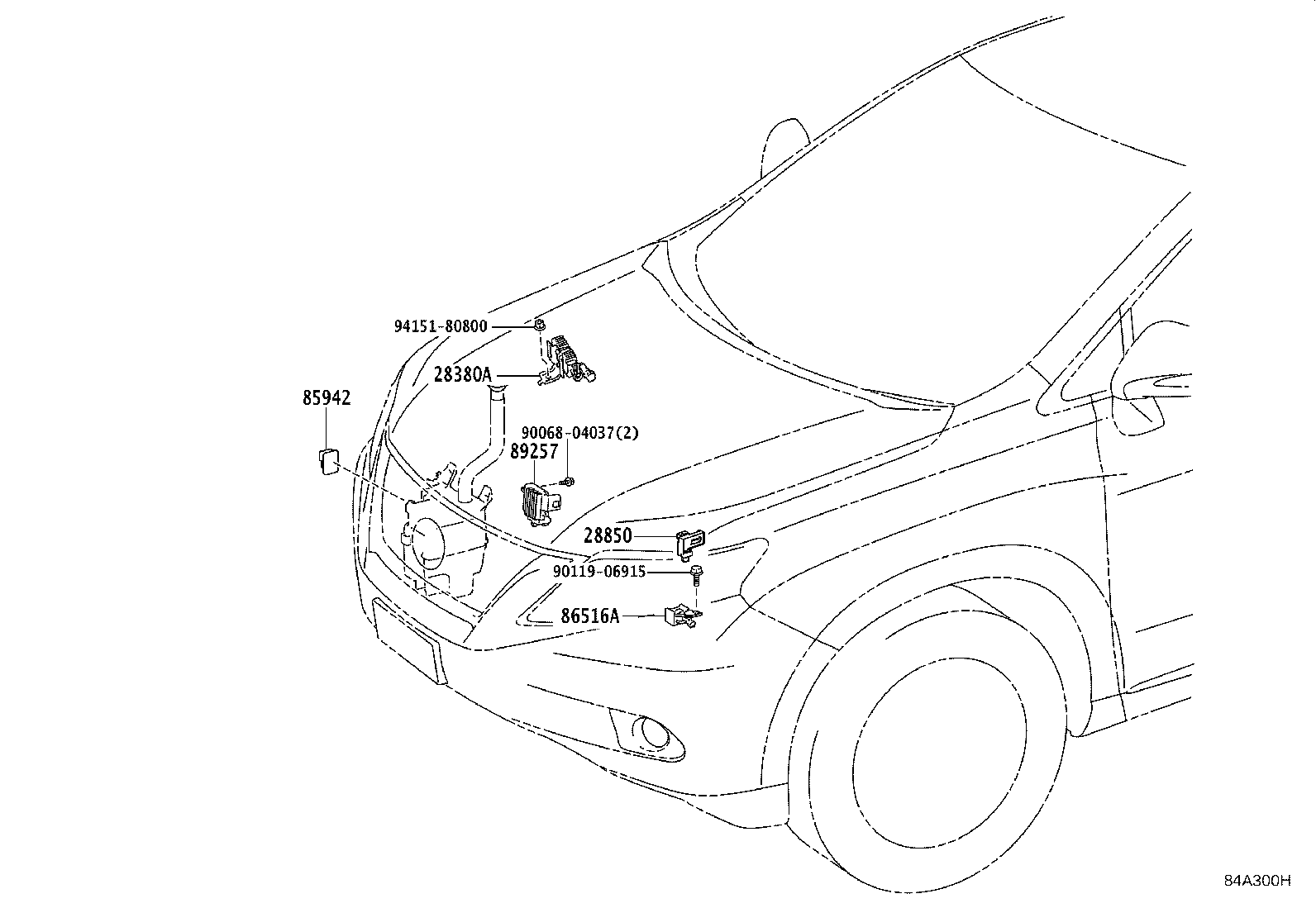

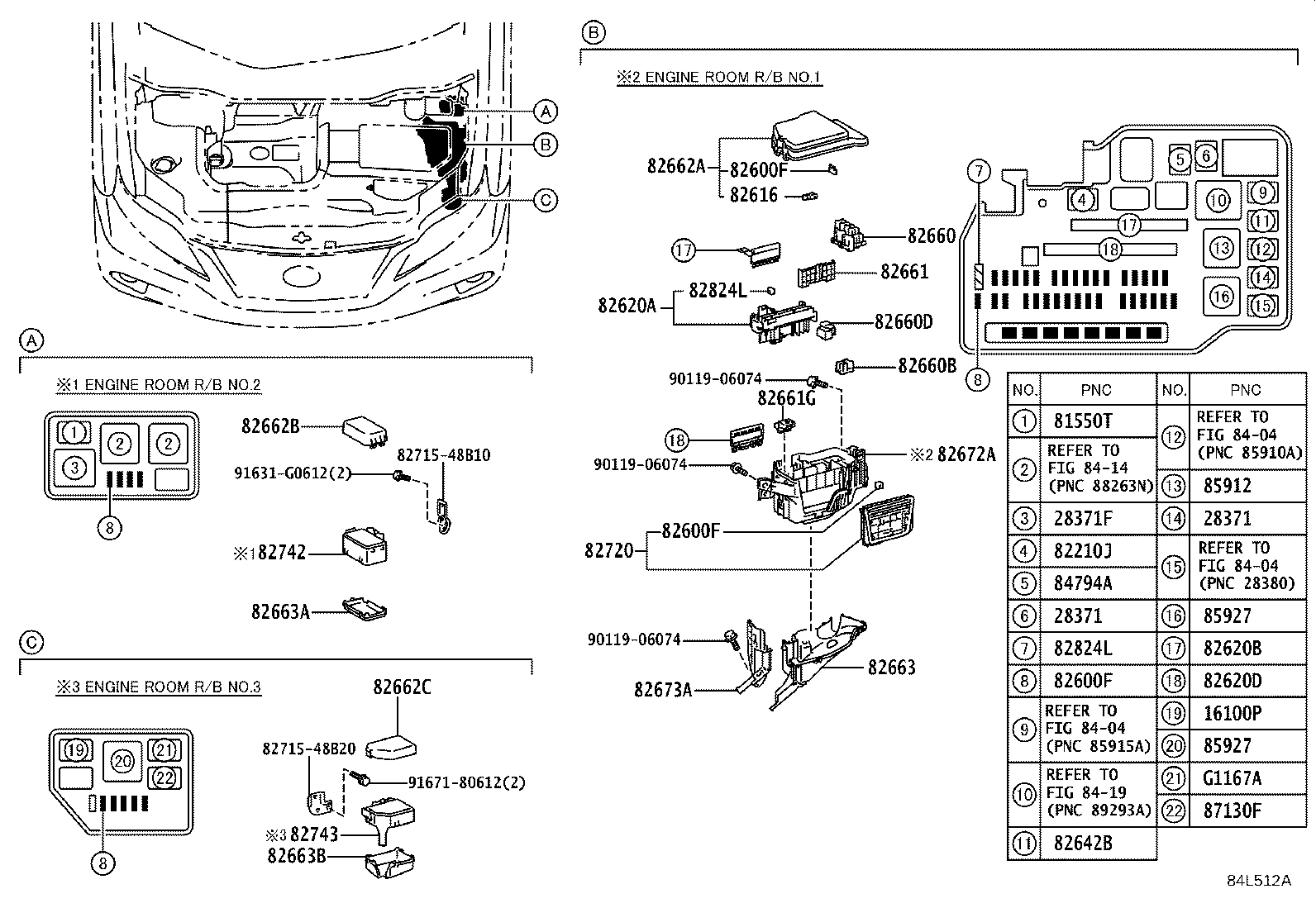

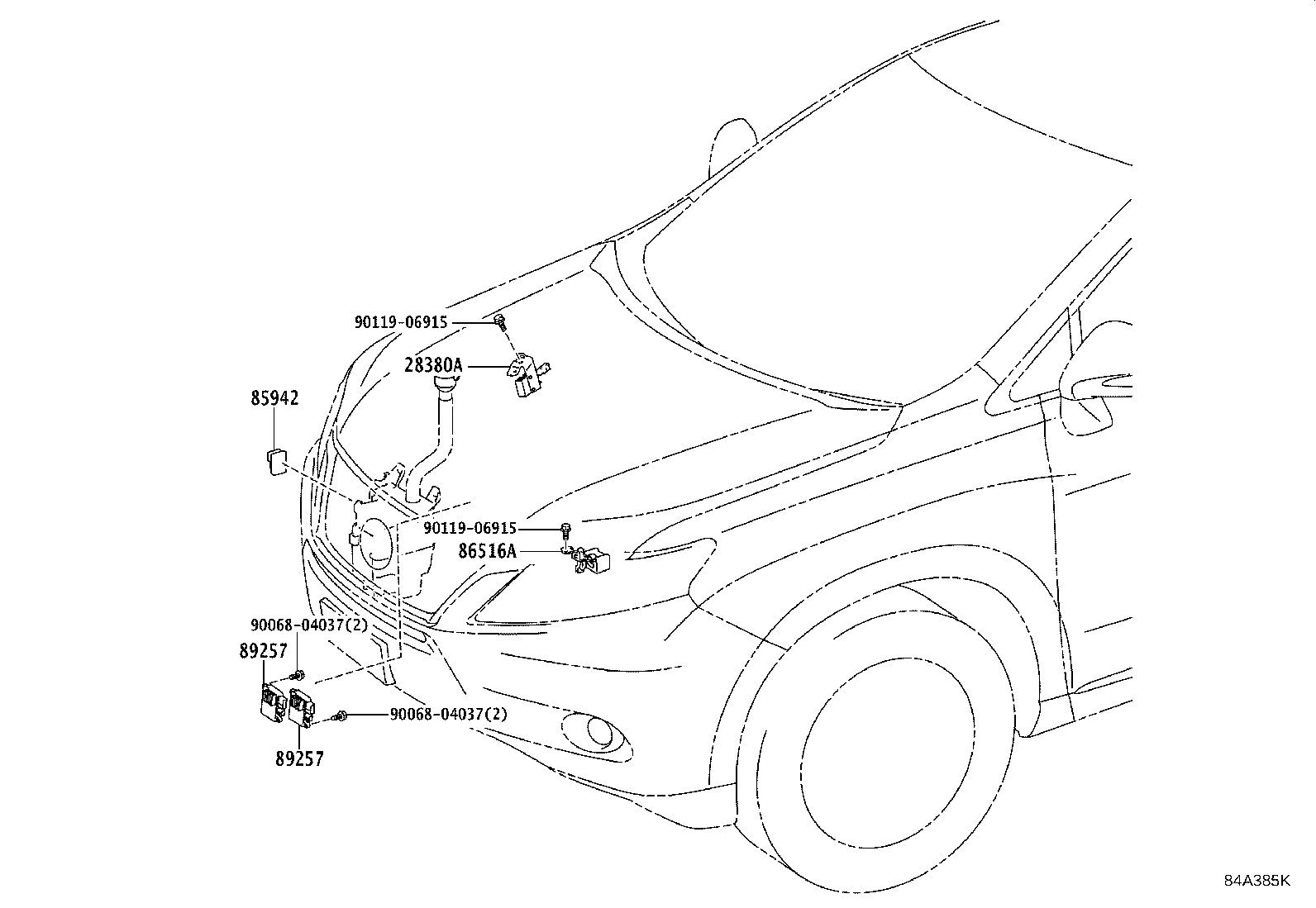

| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 81550T | Relay, Back UP Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82602A | Block Sub-assy, Relay |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620C | Clip |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82642A | Relay, Running Light |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661G | Cover, Booster Terminal |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82720 | Block Assy, Engine Room Junction |

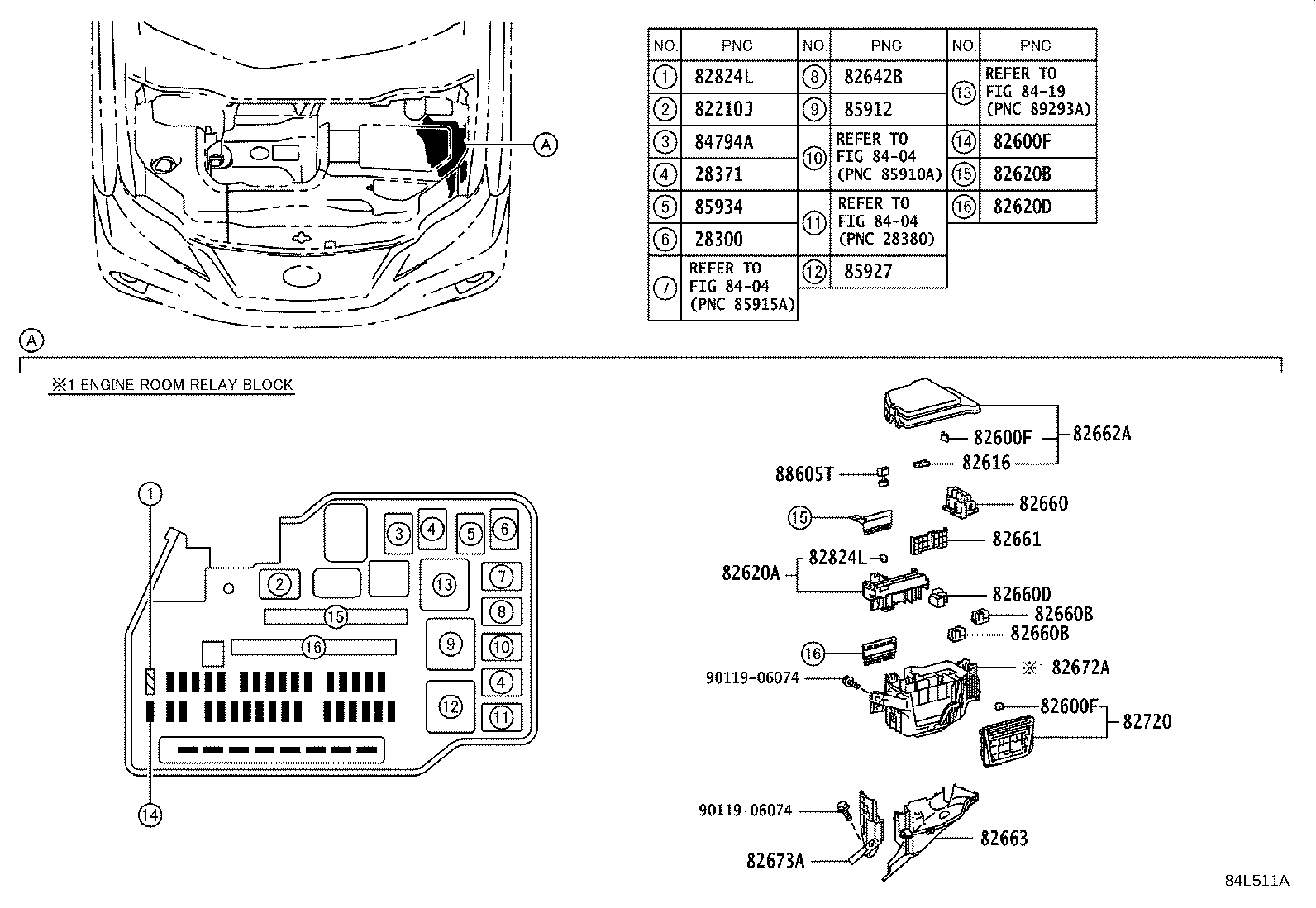

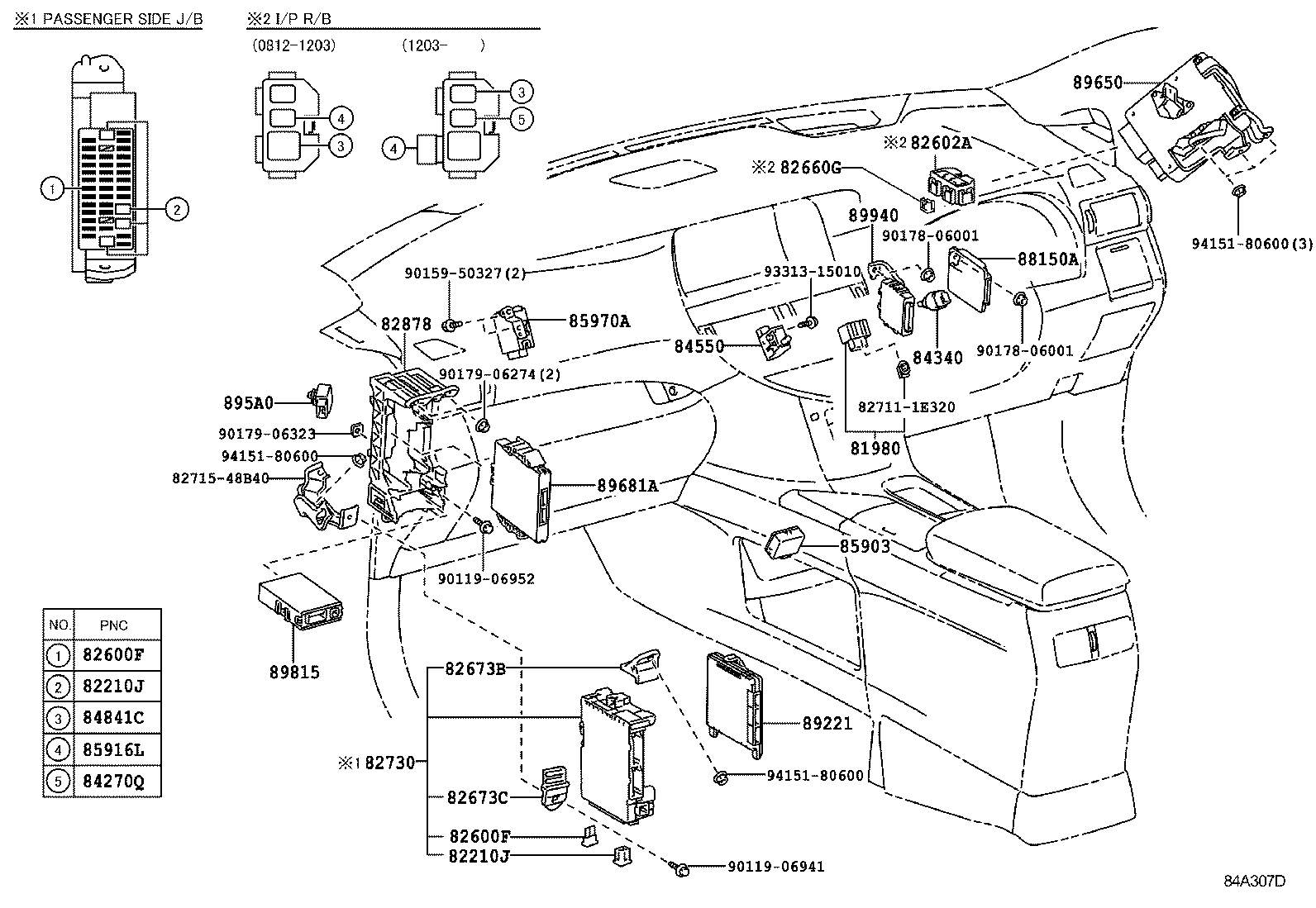

| 82730 | Block Assy, Instrument Panel Junction |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

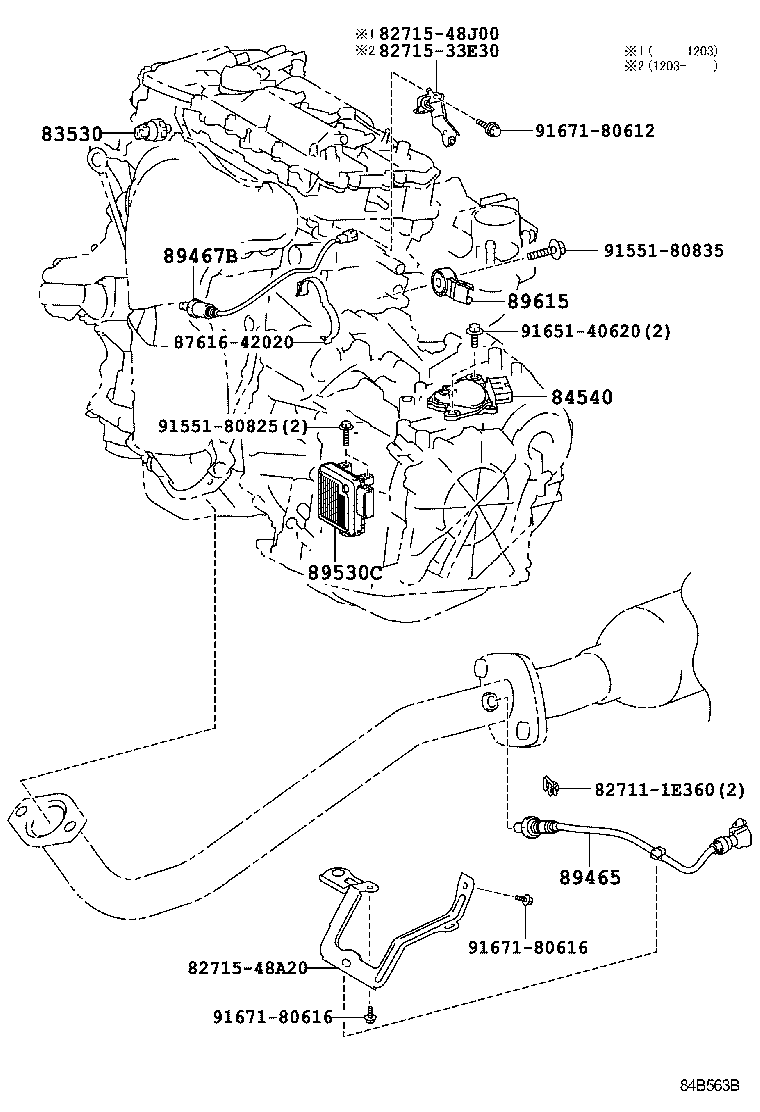

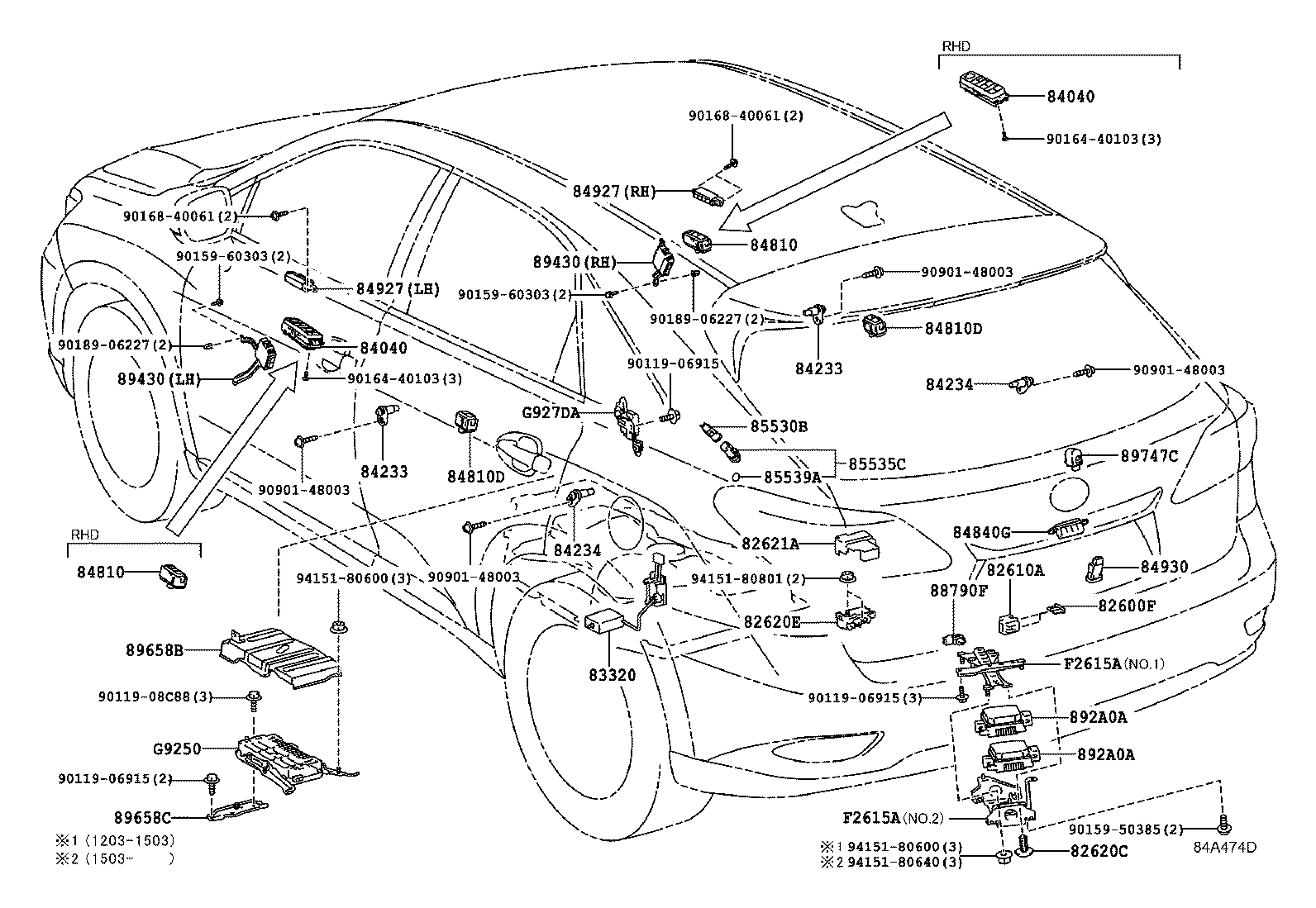

| 84040 | Master Switch Assy,Multiplex Network |
| 84091 | Switch Set, Satellite |
| 84140 | Switch Assy, Headlamp Dimmer |

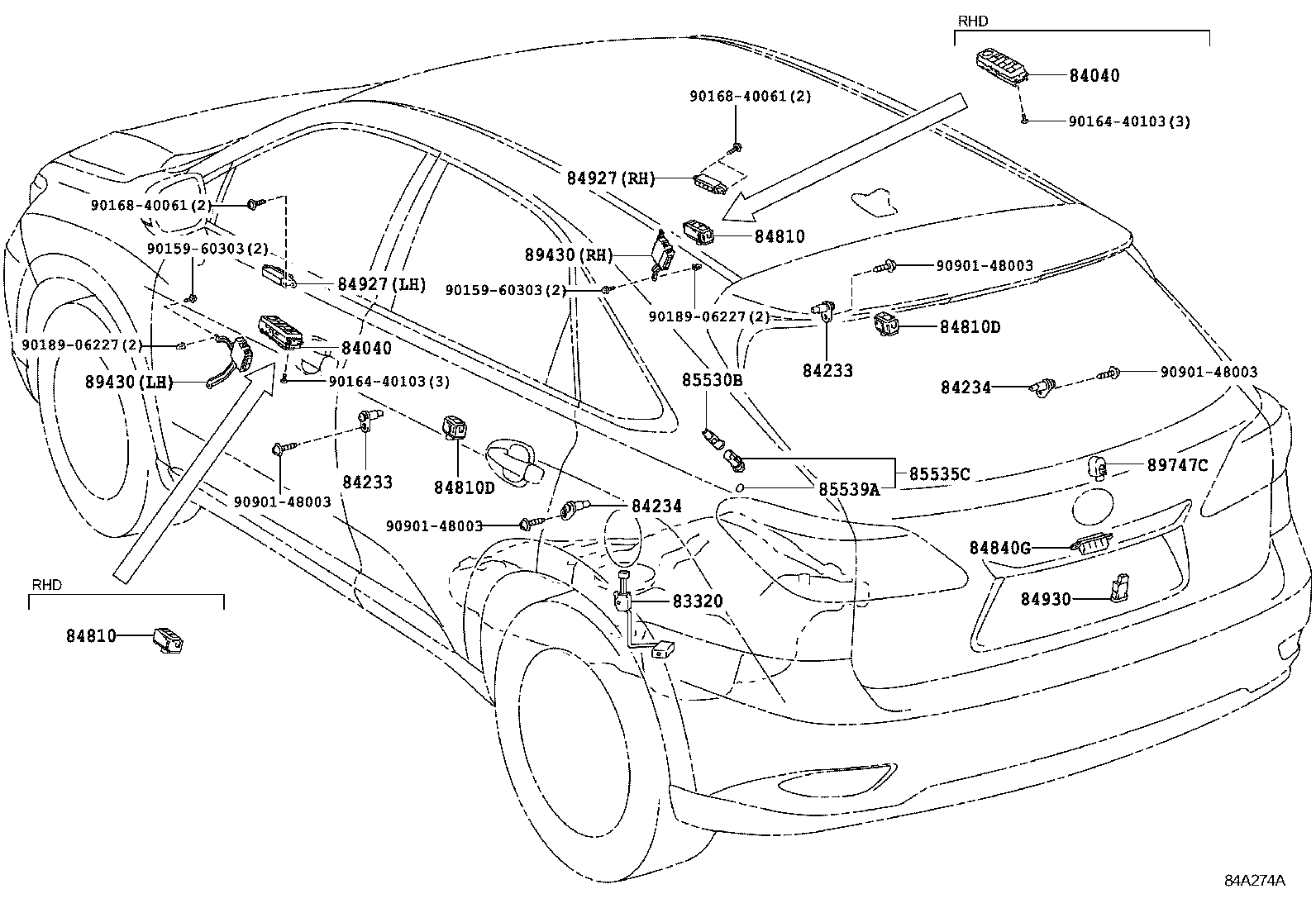

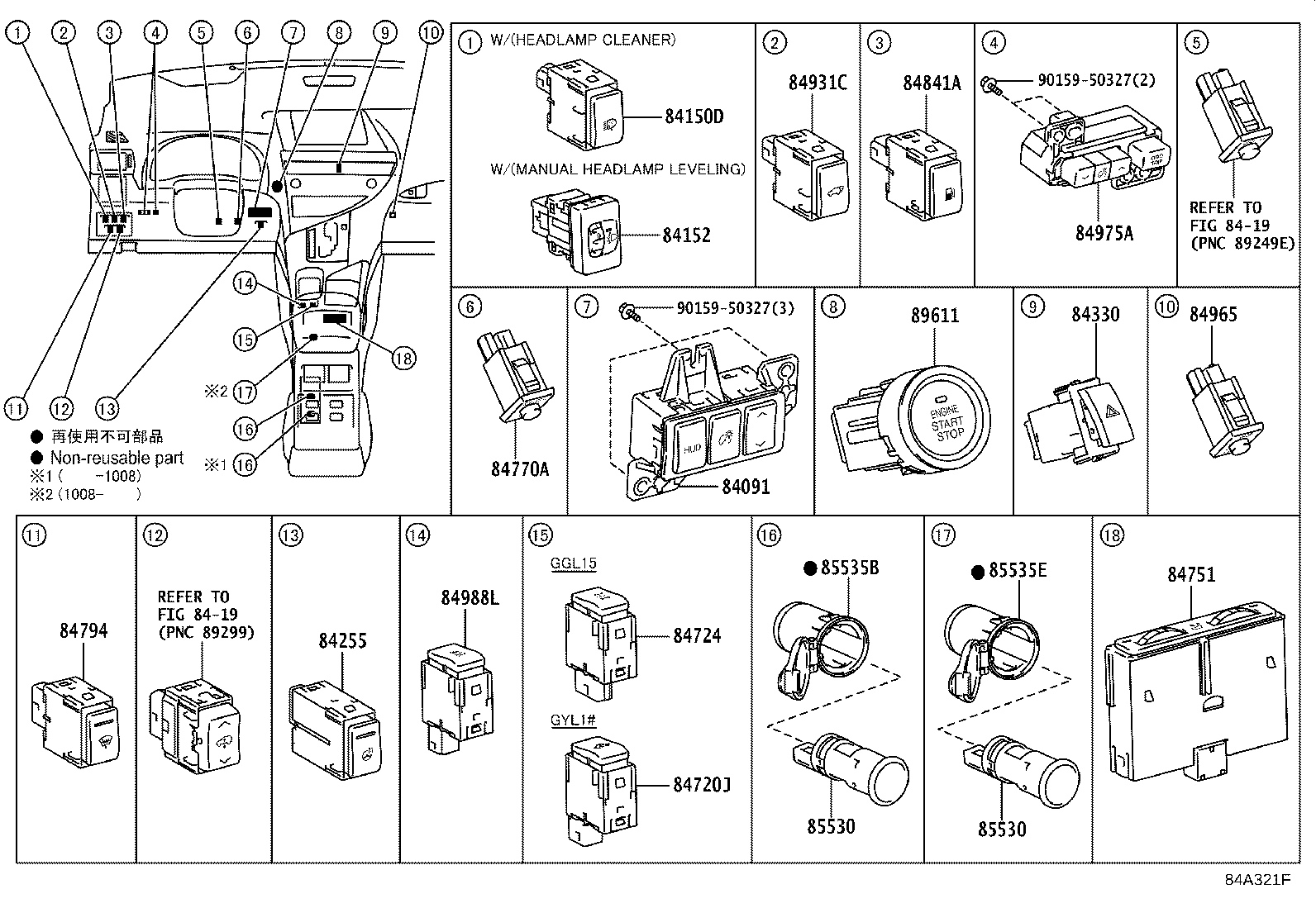

| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

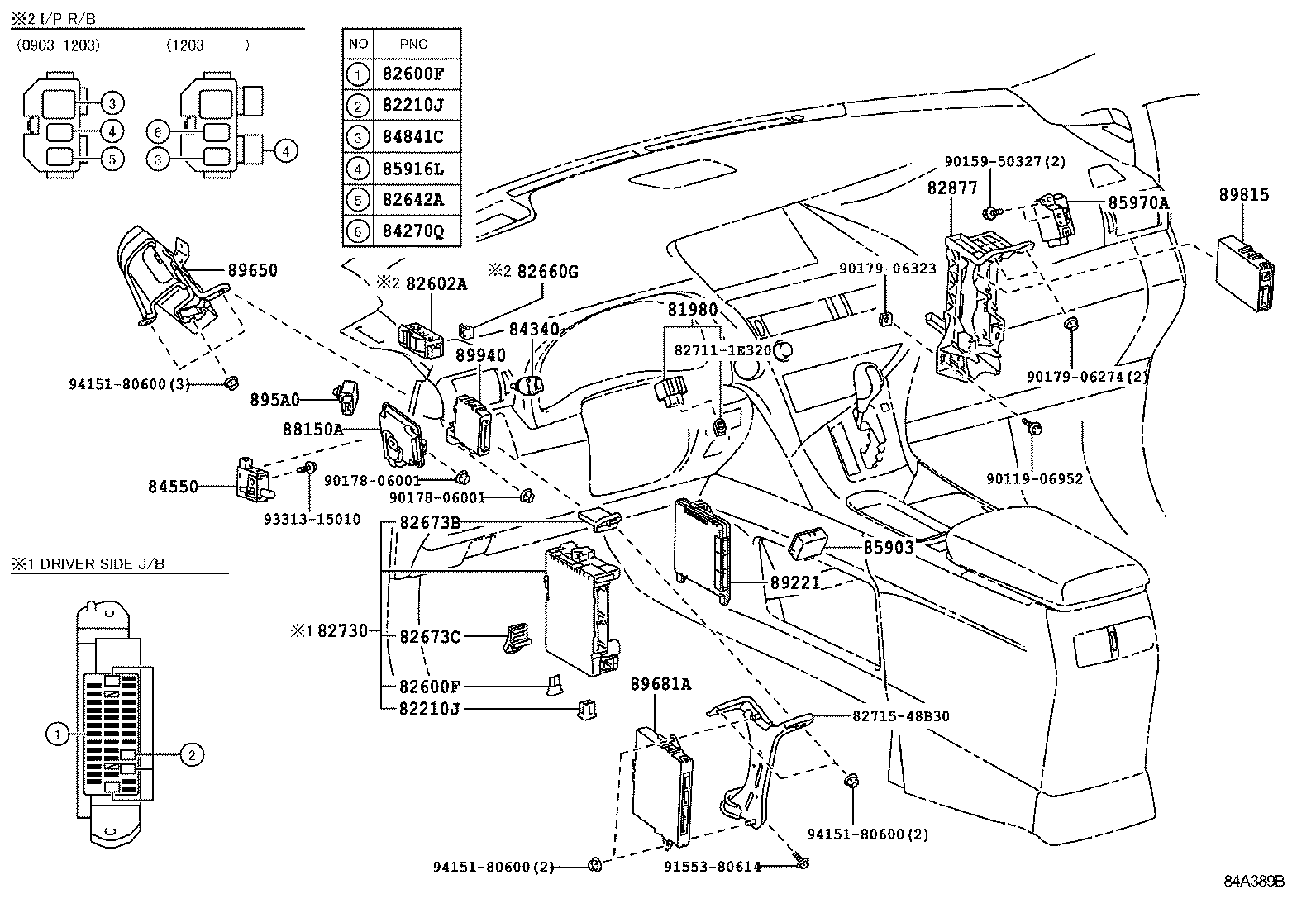

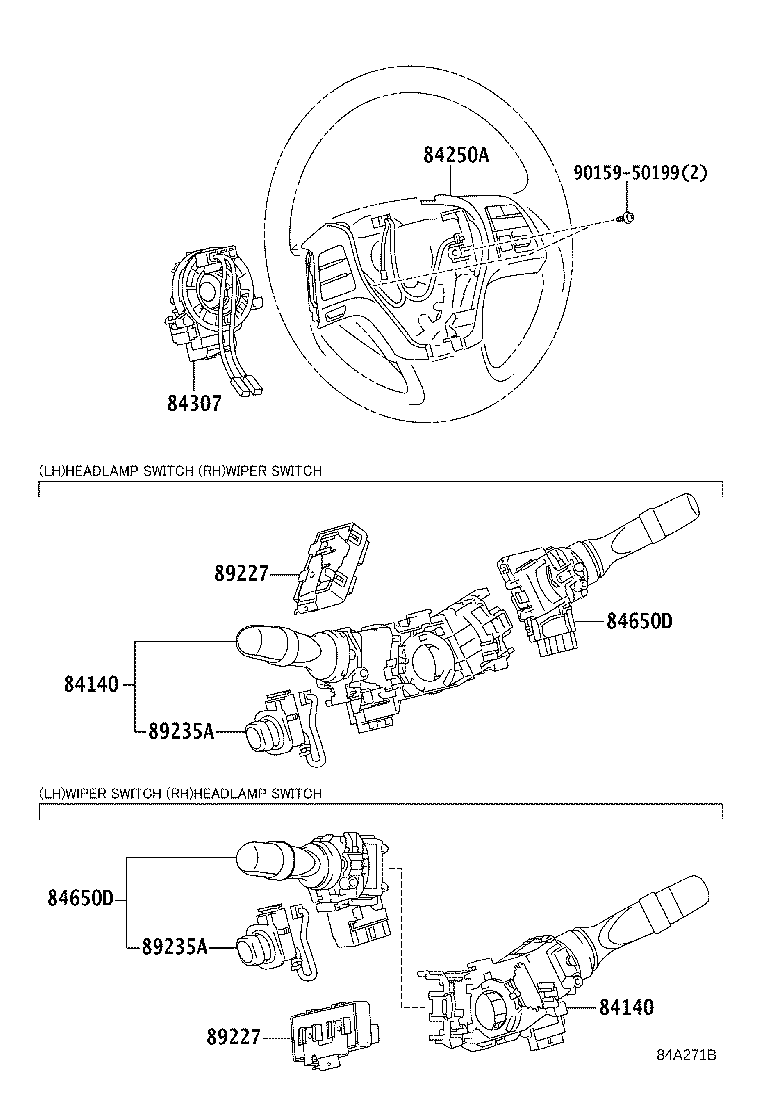

| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84270Q | Relay, Lamp Cut |
| 84307 | Cable Sub-assy, Spiral W/Sensor |

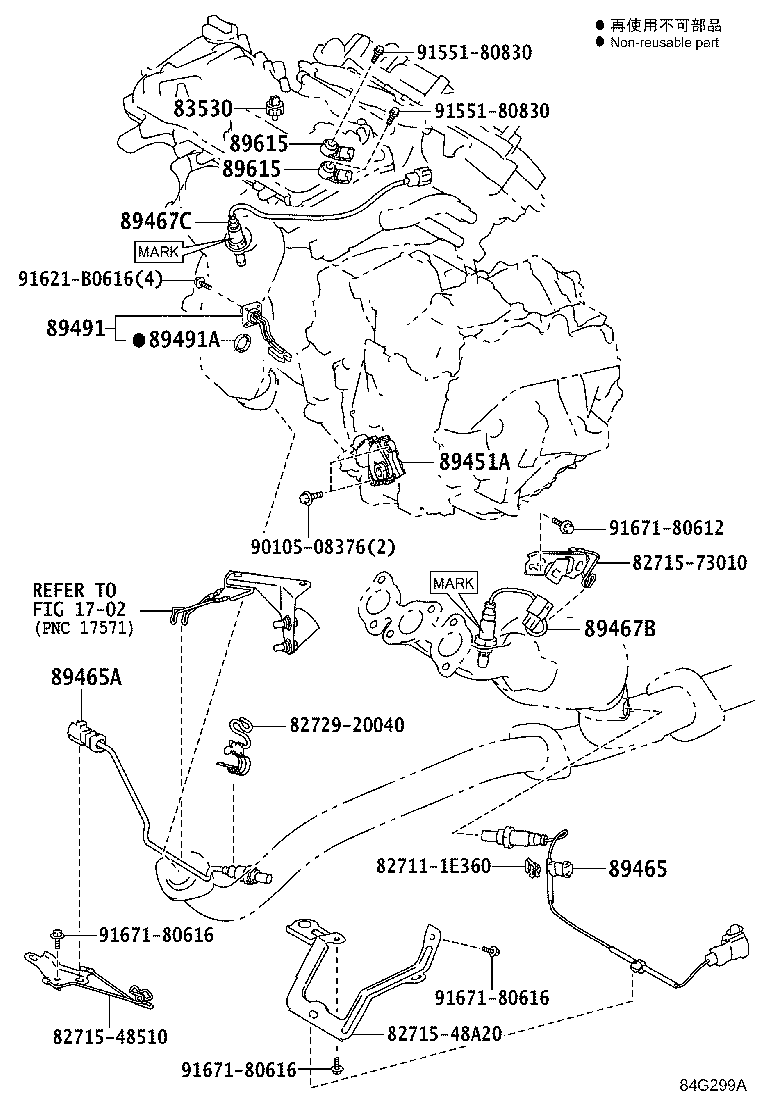

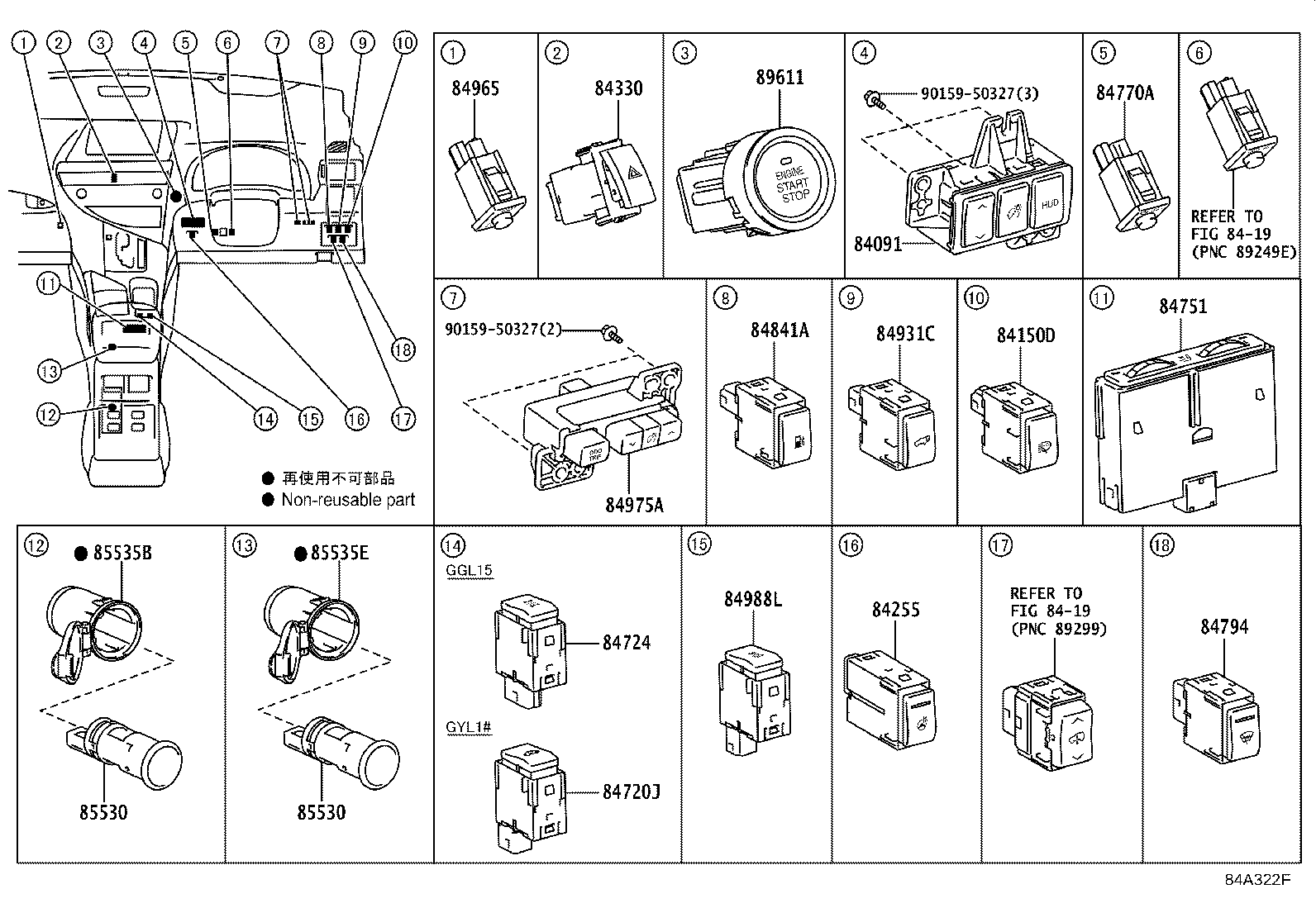

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |

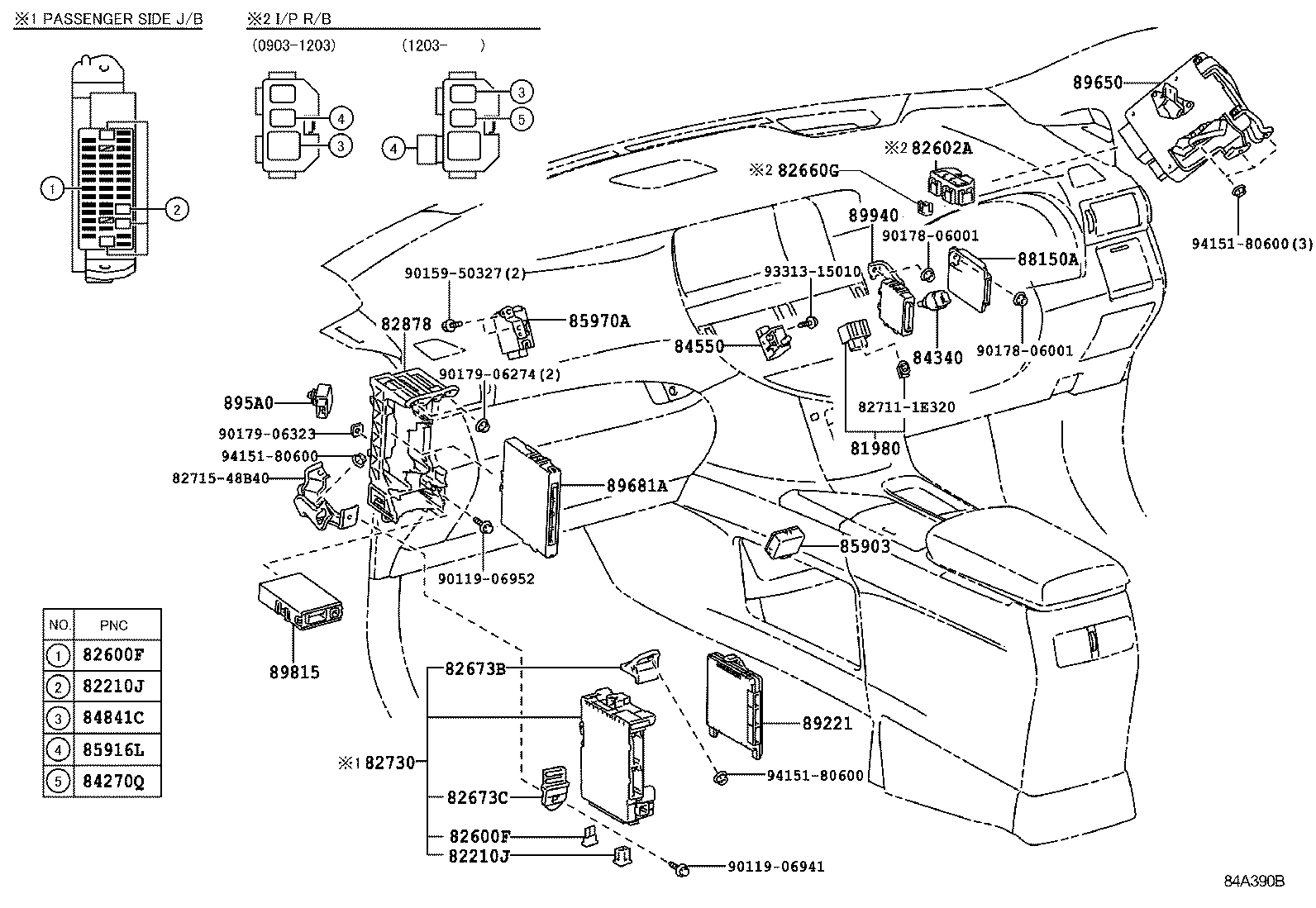

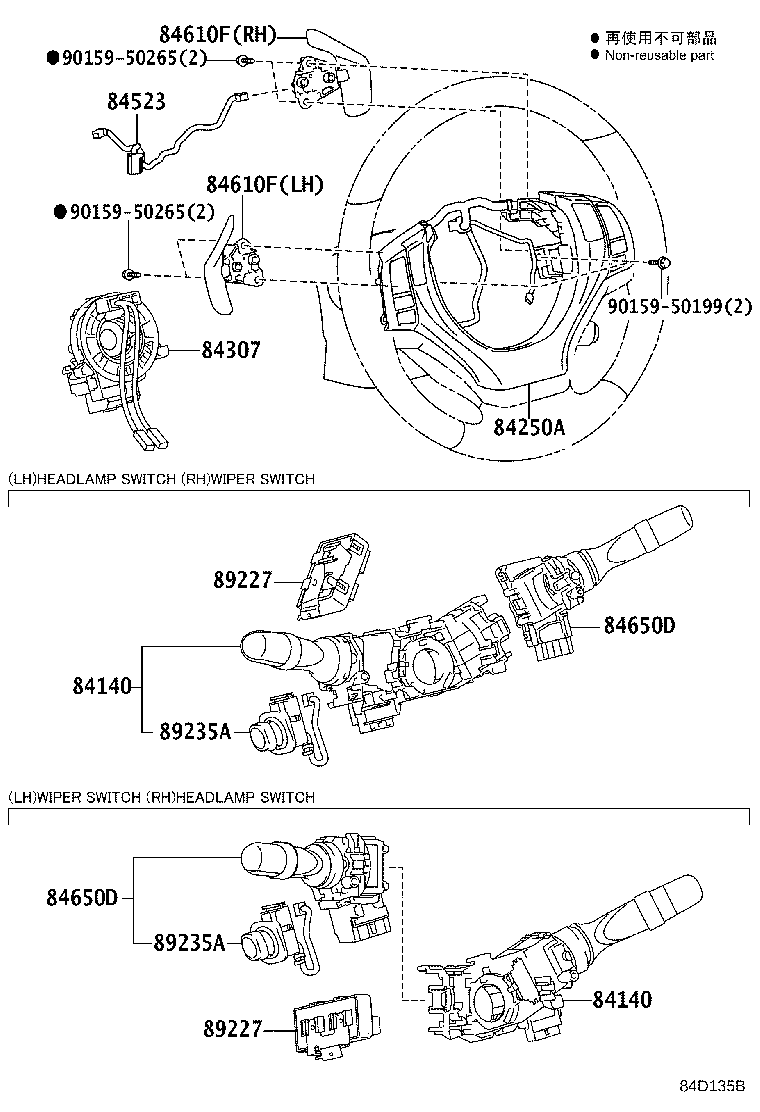

| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720J | Switch Assy, Pattern Select |
| 84724 | Switch, 4 Wheel Drive Control |
| 84751 | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84841C | Relay, Fuel Lid Opener |
| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84928 | Switch, Seat Variable Cushion |
| 84930 | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84965 | Switch, Power Back Door Main |
| 84975A | Trip & Rheostat Switch Assy |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539A | Label, Power Outlet Notice, Rear |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85916L | Relay, Rear Fog Lamp |
| 85927 | Relay, Cooling Fan |
| 85934 | Relay, Magnet-clutch |
| 85942 | Relay, Headlamp Cleaner Control |
| 85970A | Relay Assy, Double Lock Door Control |
| 86516A | Condenser |
| 87130F | Relay, Battery Blower, NO.1 |
| 88150A | Computer Assy, Driving Support |
| 88605T | Harness Sub-assy, Air Conditioner Wiring |
| 88790F | Thermistor Assy |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89257 | Computer, Cooling Fan |
| 892A0A | Computer Assy, Active Stabilizer Control |
| 89430 | Computer Assy, Outer Mirror Control |
| 89451A | Sensor, Shift Lever Position |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89530C | Computer Assy, Transmission Control |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89658B | Bracket, Power Steering, NO.1 |
| 89658C | Bracket, Power Steering, NO.2 |
| 89681A | Computer, Power Management Control |
| 89747C | Buzzer, Power Slide Back Door Warning |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| F2615A | Bracket, Active Stabilizer Computer |
| G1167A | Relay (FOR OIL PUMP MOTOR) |
| G9250 | Converter Assy, Power Steering |
| G927DA | Filter, Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
