Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 3 illustrations

Illustrations

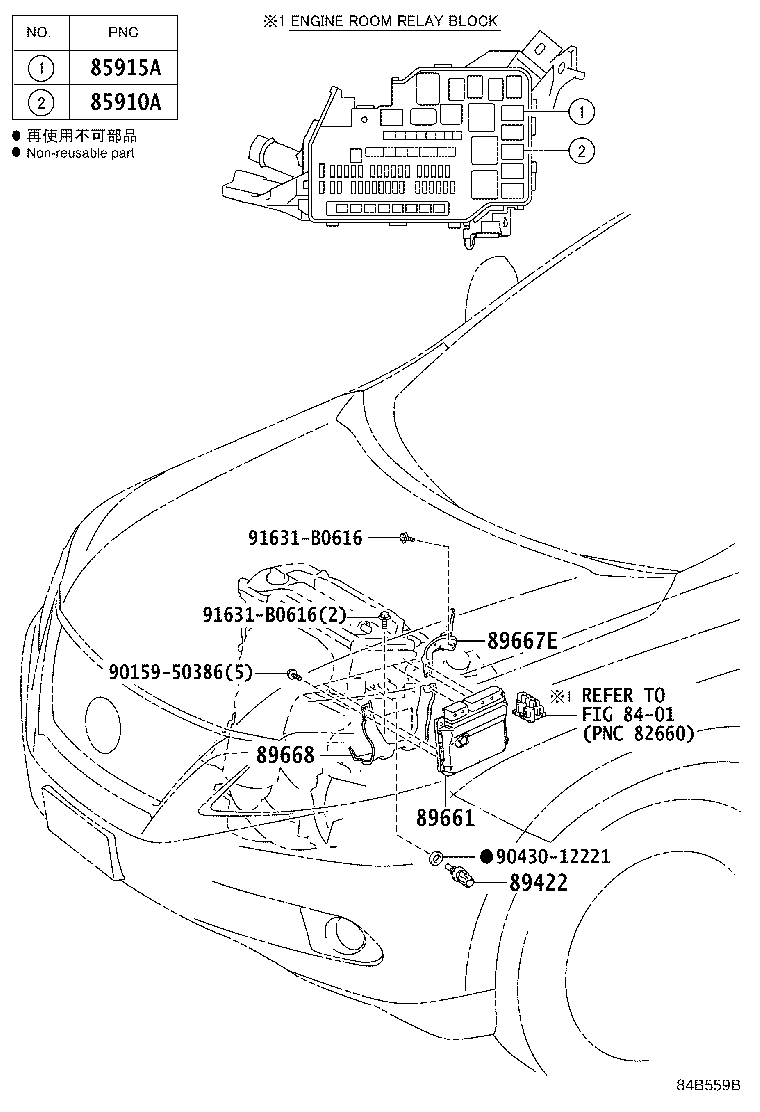

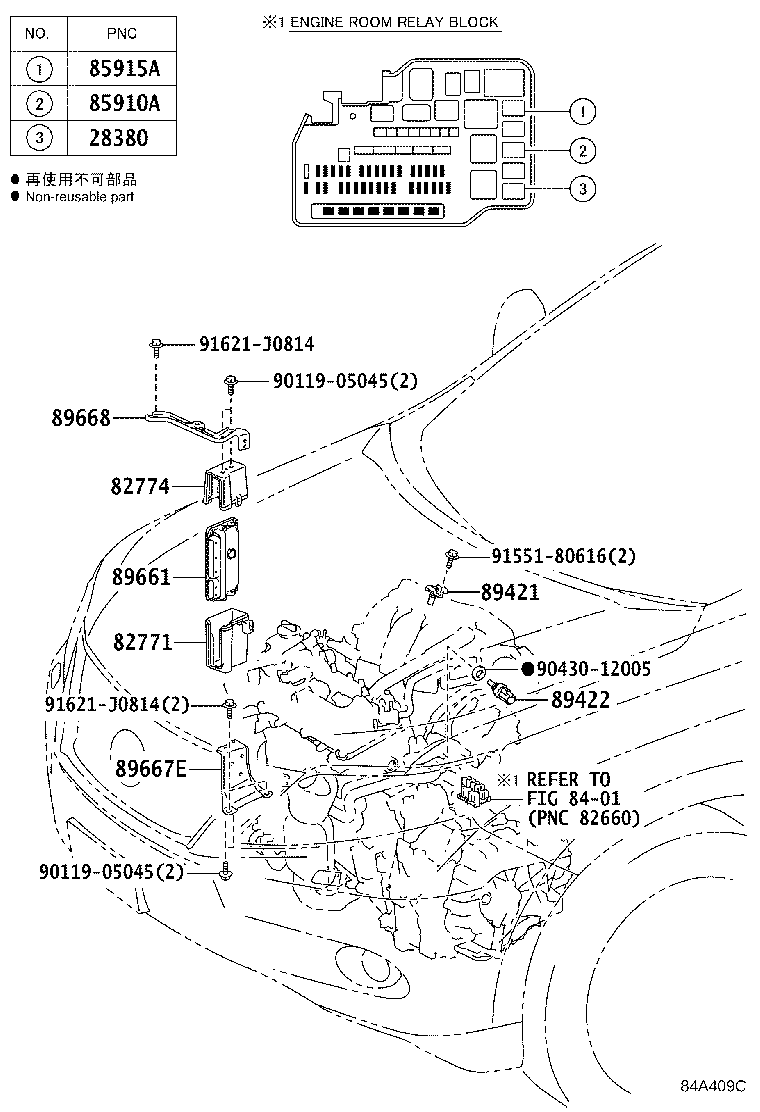

Figure 84A228B 84A228B 2008-12 → — Figure 84A409C 84A409C 2009-03 → — Figure 84B559B 84B559B 2010-08 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
