Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

15 part groups · 2 illustrations

Illustrations

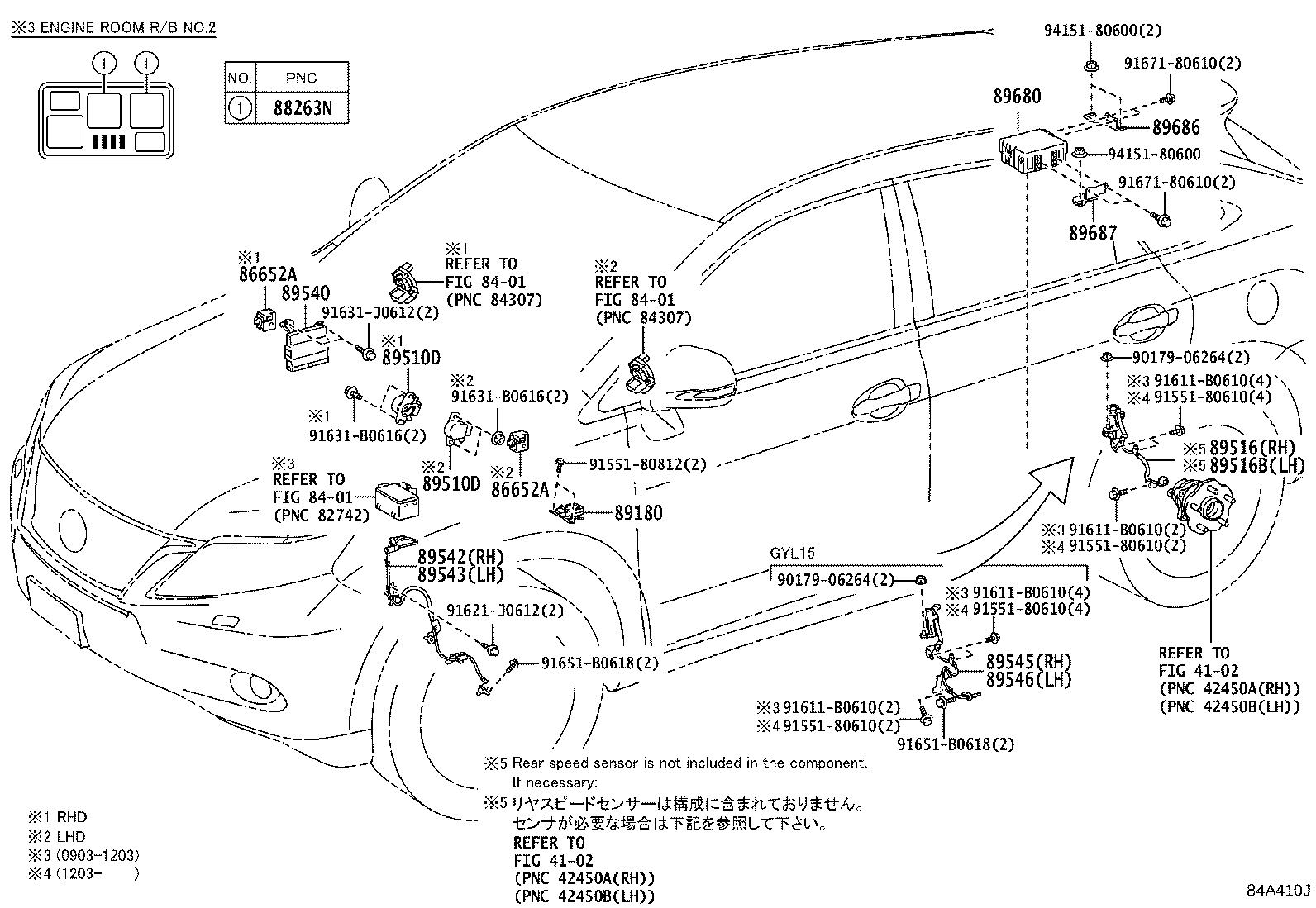

Figure 84A231G 84A231G 2008-12 → — Figure 84A410J 84A410J 2009-03 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263N Relay, Abs Motor
89180 Sensor Assy, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89687 Bracket, Brake Control Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
