Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

9 part groups · 2 illustrations

Illustrations

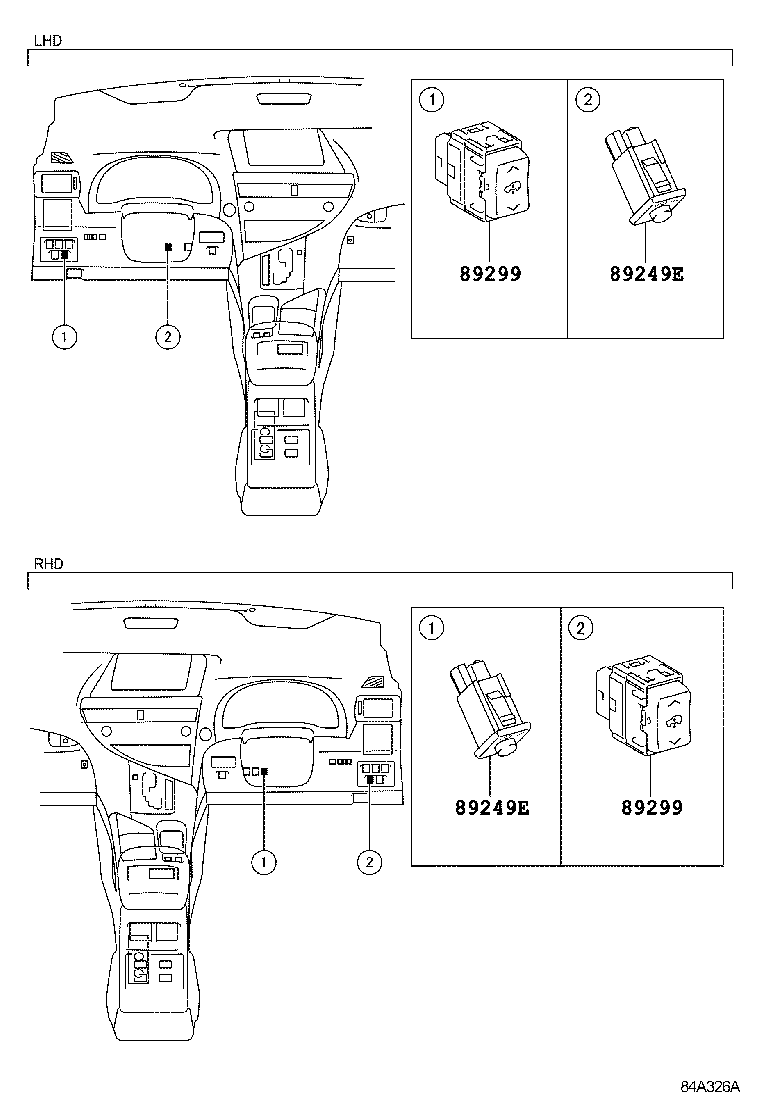

Figure 84A247C 84A247C 2008-12 → — Figure 84A326A 84A326A 2008-12 → —

Part groups

PNCDescription
89249E Switch, Height Control Off
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89299 Switch, Suspension Control
89299D Switch, Suspension Control, NO.2
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
