Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

3 part groups · 4 illustrations

Illustrations

Figure 84A314A

84A314A 2008-12 → 2010-08

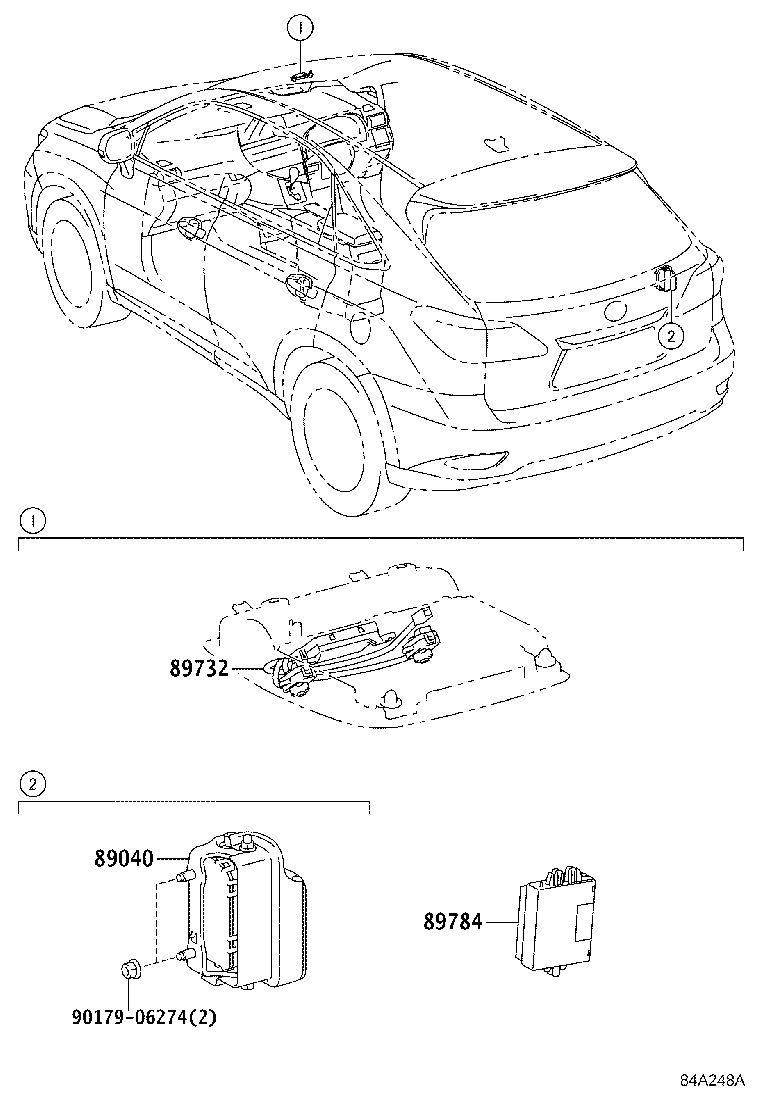

Figure 84A248A

84A248A 2008-12 → 2010-08

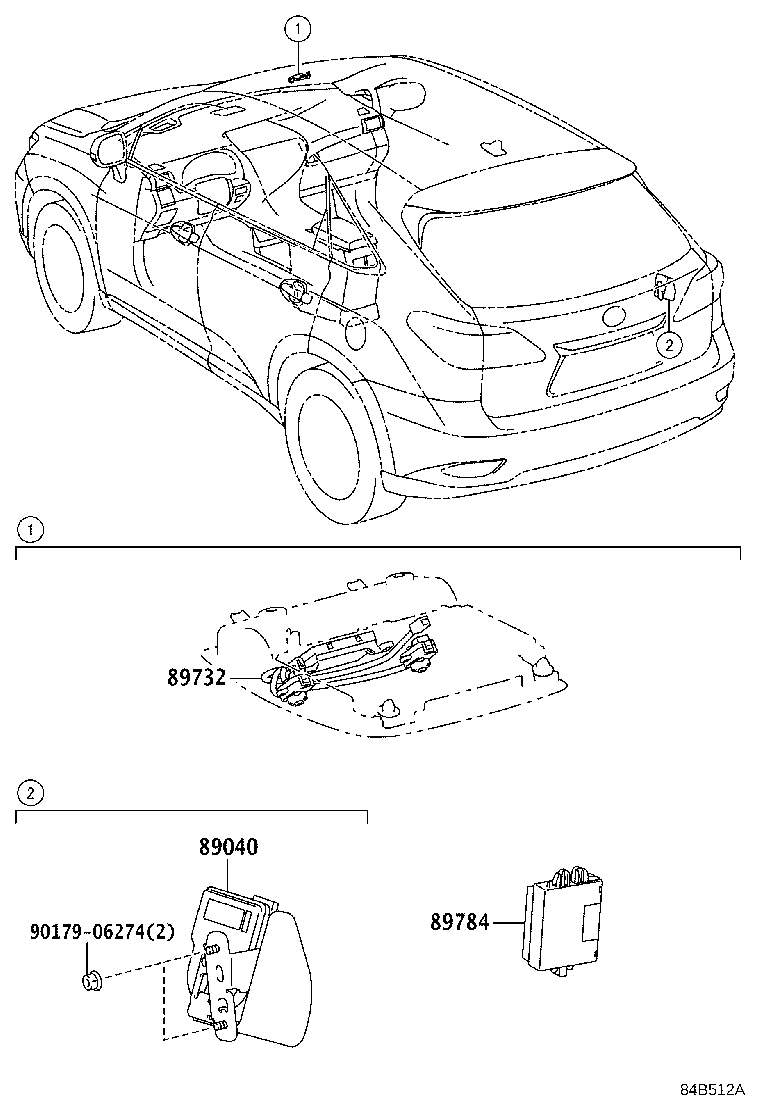

Figure 84B512A

84B512A 2010-08 → —

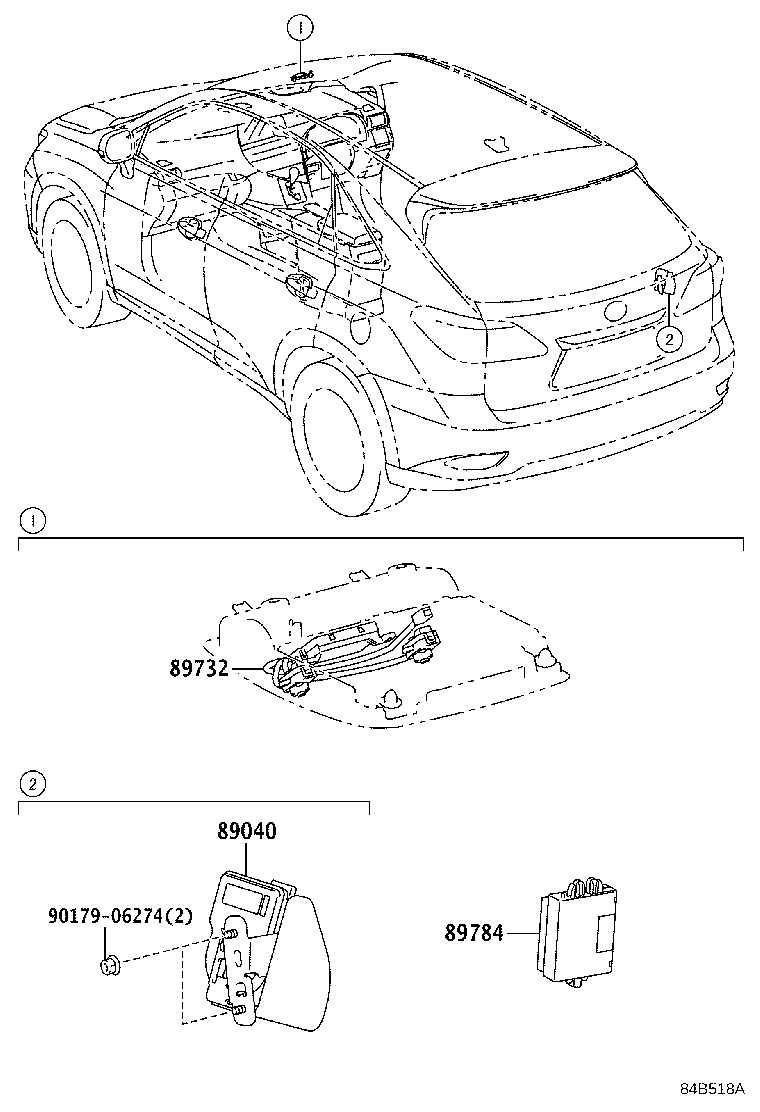

Figure 84B518A

84B518A 2010-08 → —

Part groups

PNC	Description
89040	Siren Assy, Theft Warning
89732	Sensor, Theft Warning Radar
89784	Computer, Immobilizer Code

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
