Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

14 part groups · 3 illustrations

Illustrations

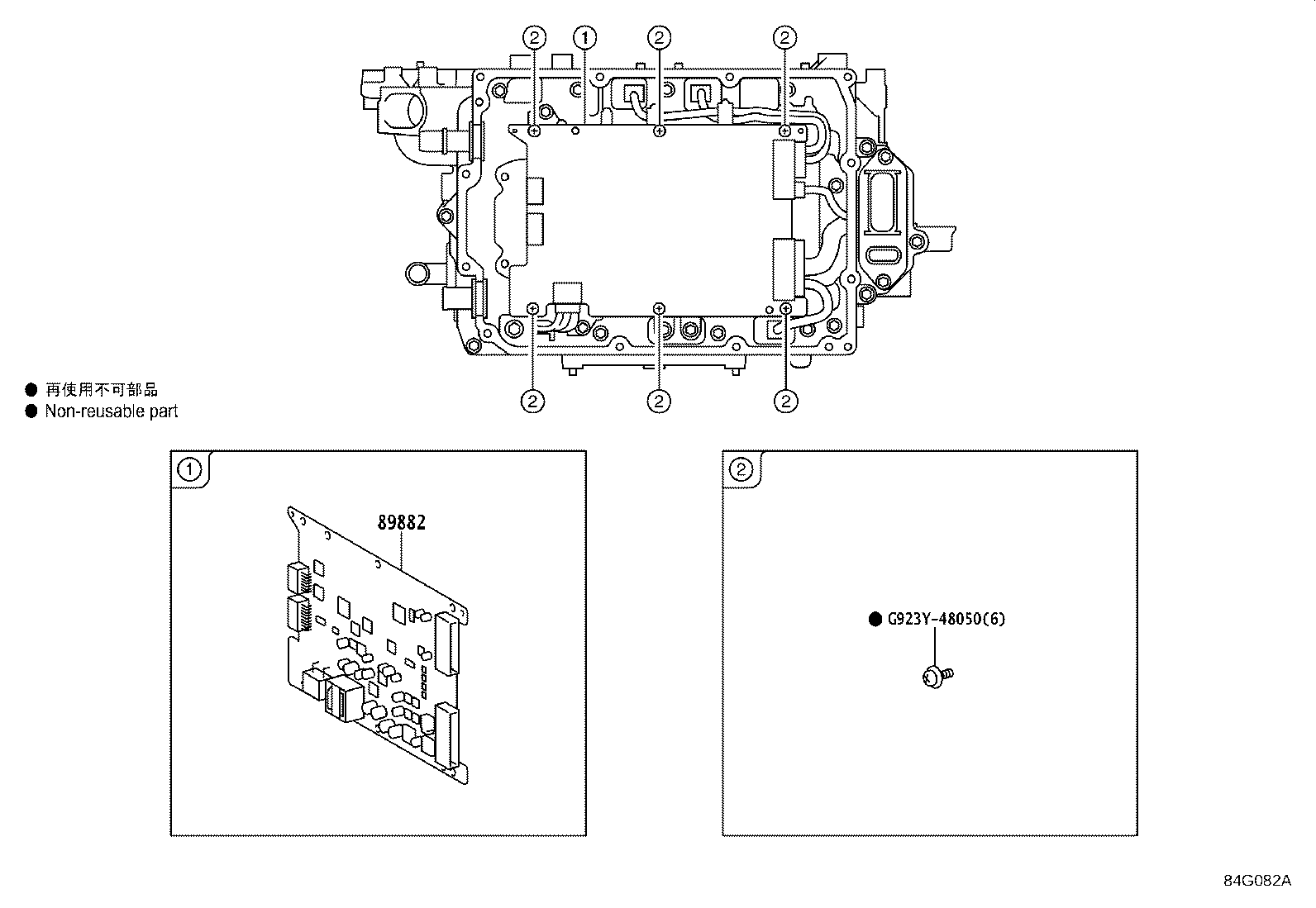

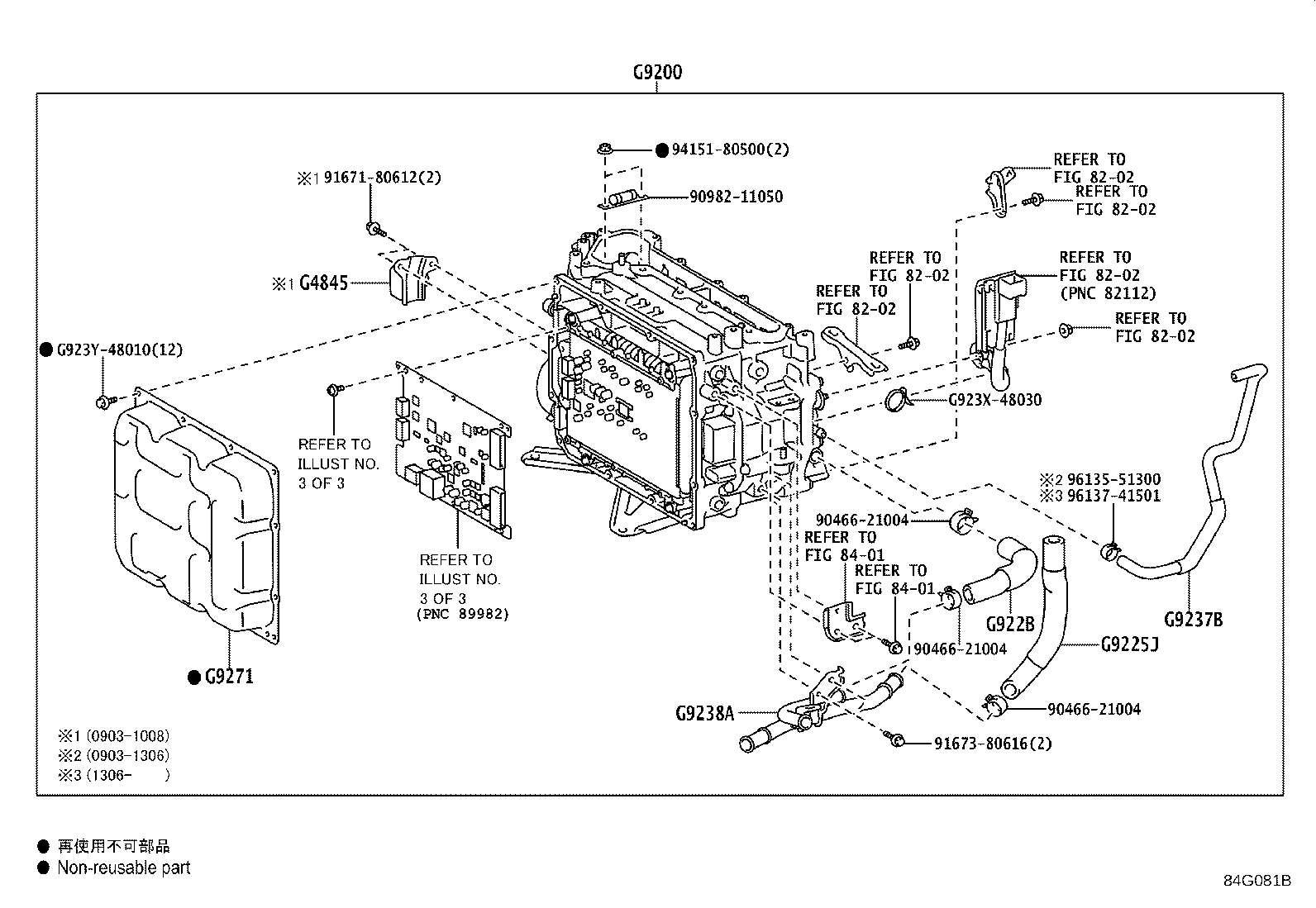

Figure 84A437I 84A437I 2009-03 → — Figure 84G081B 84G081B 2009-03 → — Figure 84G082A 84G082A 2009-03 → —

Part groups

PNCDescription
89882 Computer, Motor Generator Control
G4845 Sensor, Circuit Breaker, NO.1
G9018 Bracket Sub-assy, Inverter, NO.5
G9019 Bracket Sub-assy, Inverter Tray
G9200 Inverter Assy, W/Converter
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9223 Cover, Inverter Terminal
G9225J Hose, Inverter Cooling, NO.1
G922B Hose, Inverter Cooling Inlet, NO.2
G9237B Hose, Inverter Drain
G9238A Pipe, Inverter Cooling
G925B Bracket, Inverter, NO.6
G9271 Cover, Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
