Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

16 part groups · 2 illustrations

Illustrations

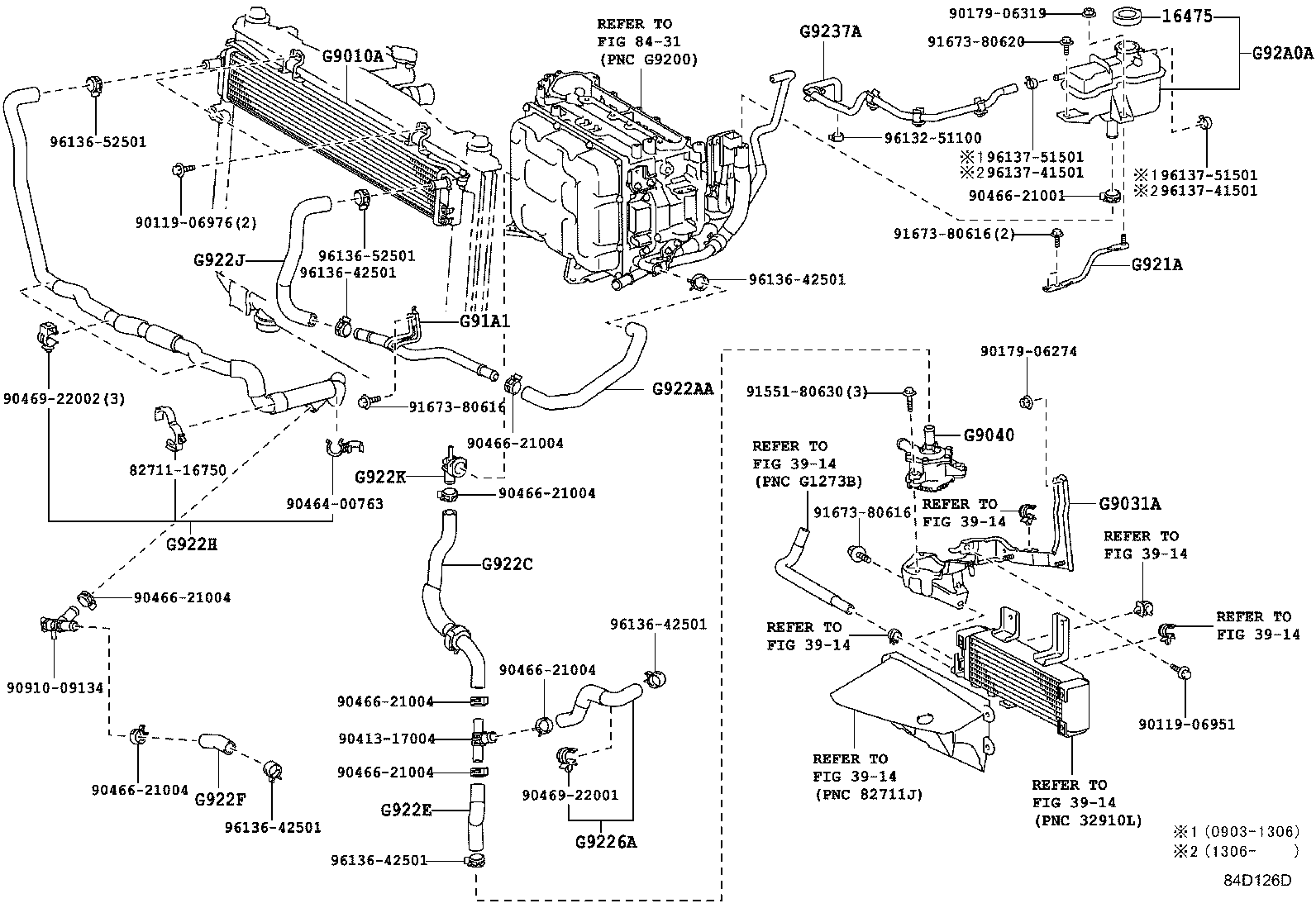

Figure 84A438B 84A438B 2009-03 → 2012-03 Figure 84D126D 84D126D 2012-03 → —

Part groups

PNCDescription
16475 Cap, Reserve Tank
G9010A Radiator Assy
G9031A Bracket Sub-assy, HV Water Pump
G9040 Inverter Water Pump Assy(W/MOTOR)
G91A1 Pipe, Inverter Cooling, Inlet
G921A Bracket, Inverter Reserve Tank, NO.1
G9226A Hose, Inverter Cooling, NO.2
G922AA Hose, Inverter Cooling Inlet, NO.1
G922C Hose, Inverter Cooling Outlet, NO.1
G922E Hose, Hybrid Water Pump Inlet
G922F Hose, Hybrid Water Pump Outlet, NO.1
G922H Hose, Hybrid Radiator Inlet
G922J Hose, Hybrid Radiator Outlet
G922K Connector, Hybrid Water Hose
G9237A Hose, Inverter Drain
G92A0A Tank Assy, Inverter Reserve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
