Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 2 illustrations

Illustrations

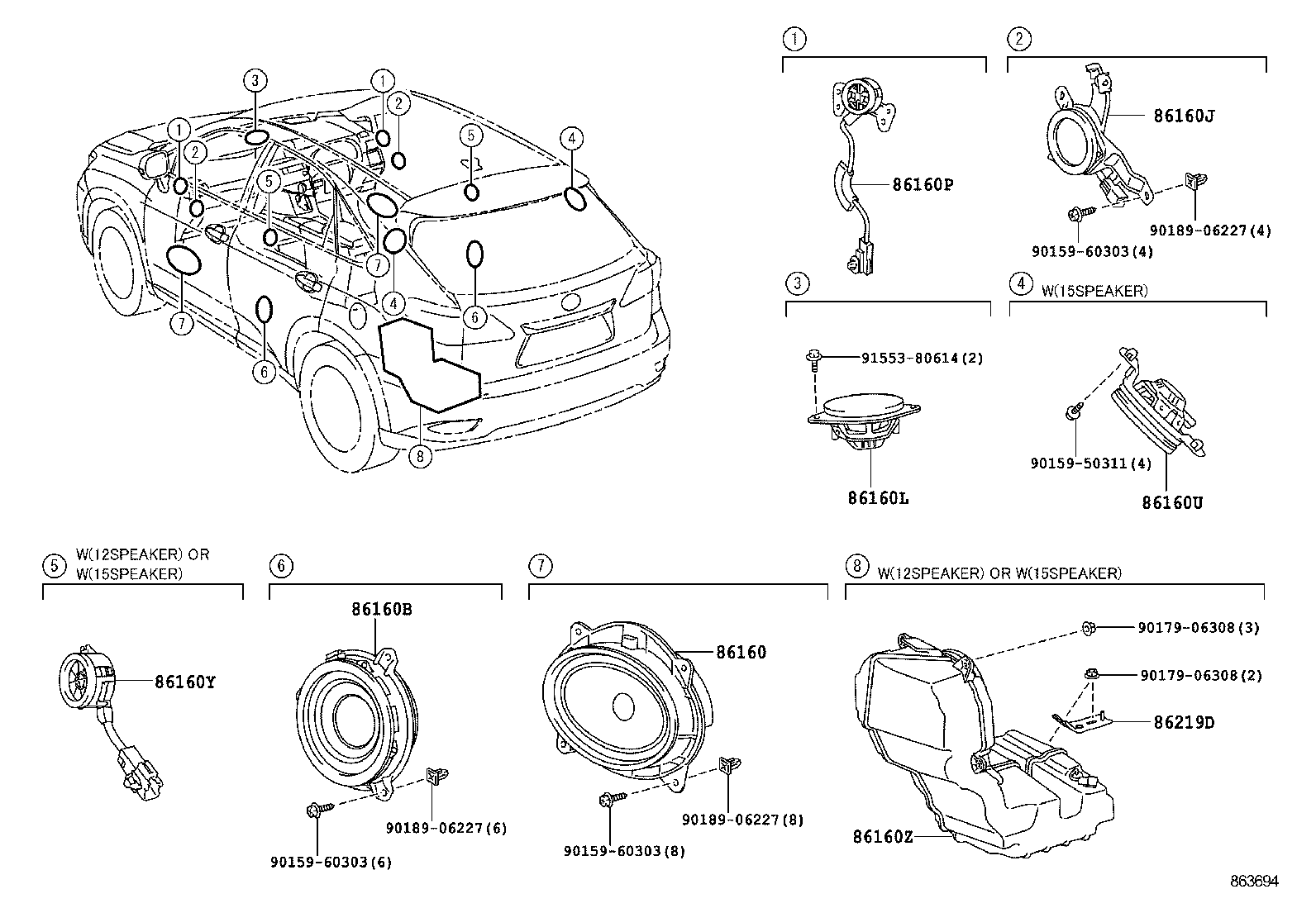

Figure 863693 863693 2008-12 → — Figure 863694 863694 2008-12 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160U Speaker Assy, Quarter Side
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86219D Bracket, Speaker, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
