Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

21 part groups · 12 illustrations

Illustrations

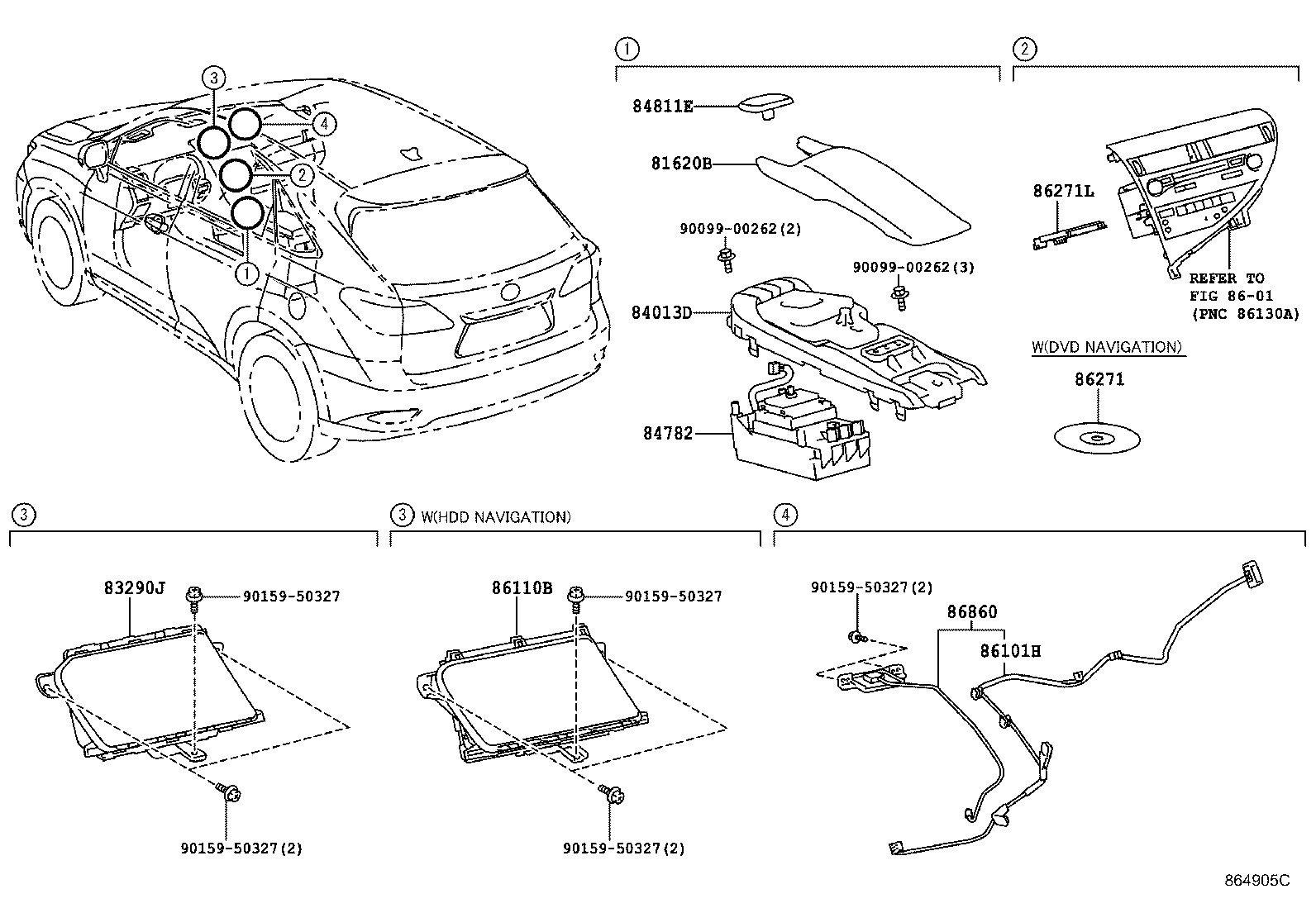

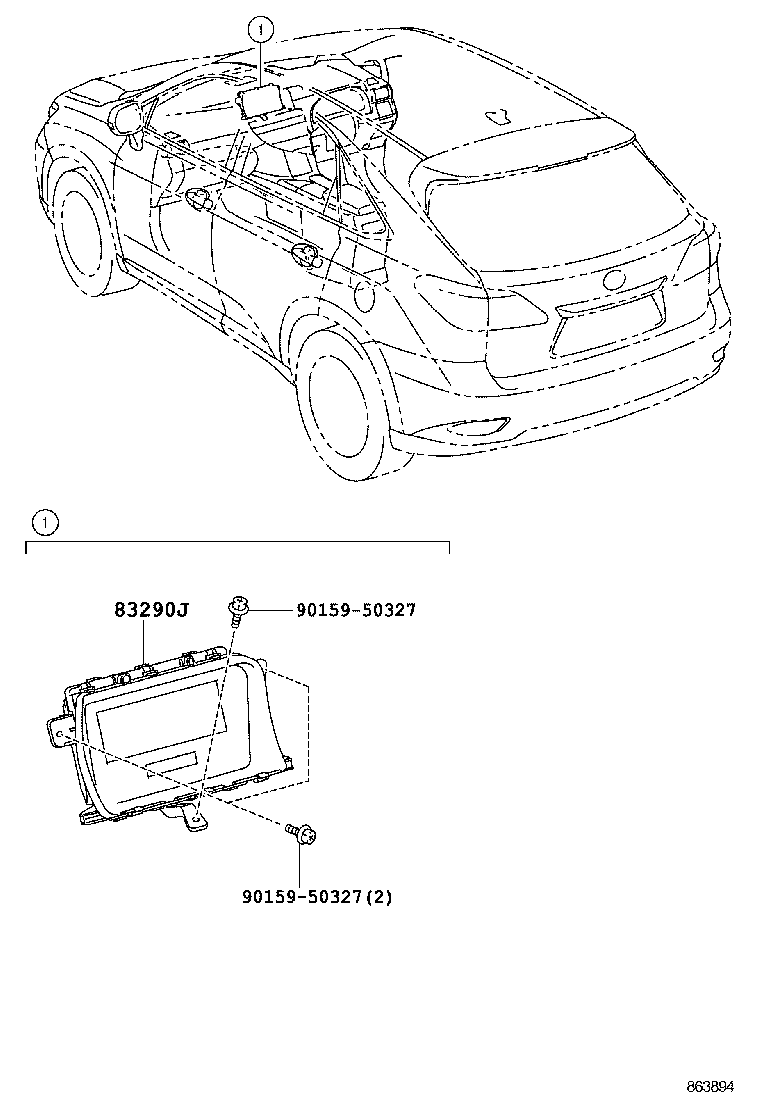

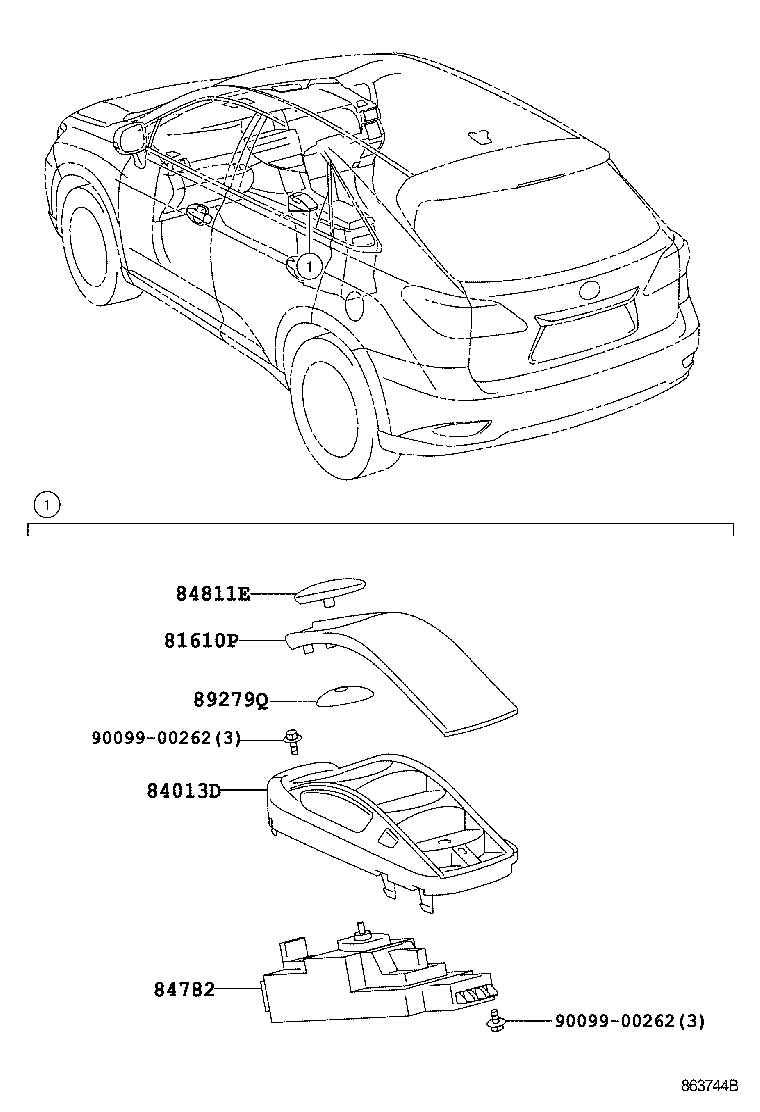

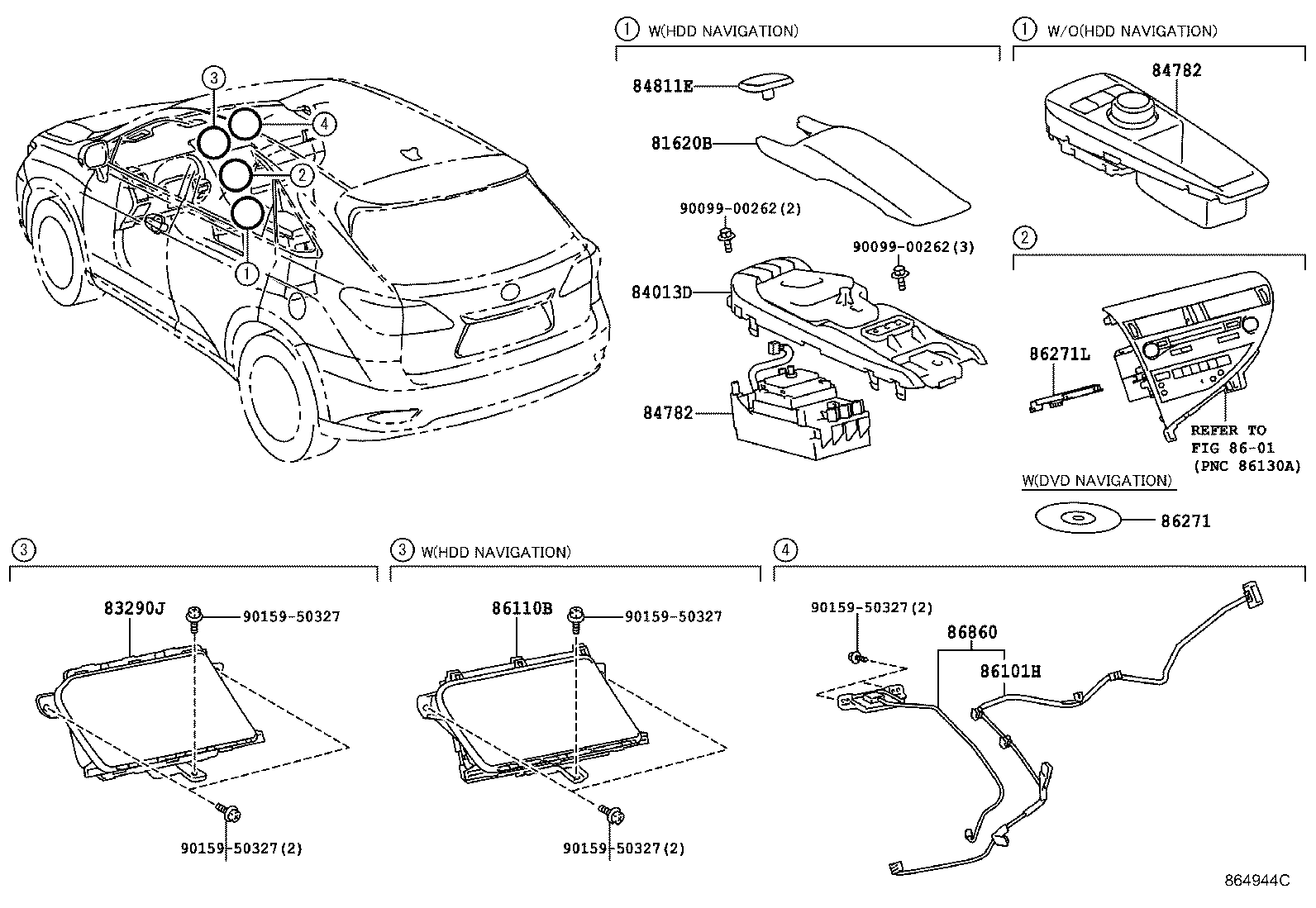

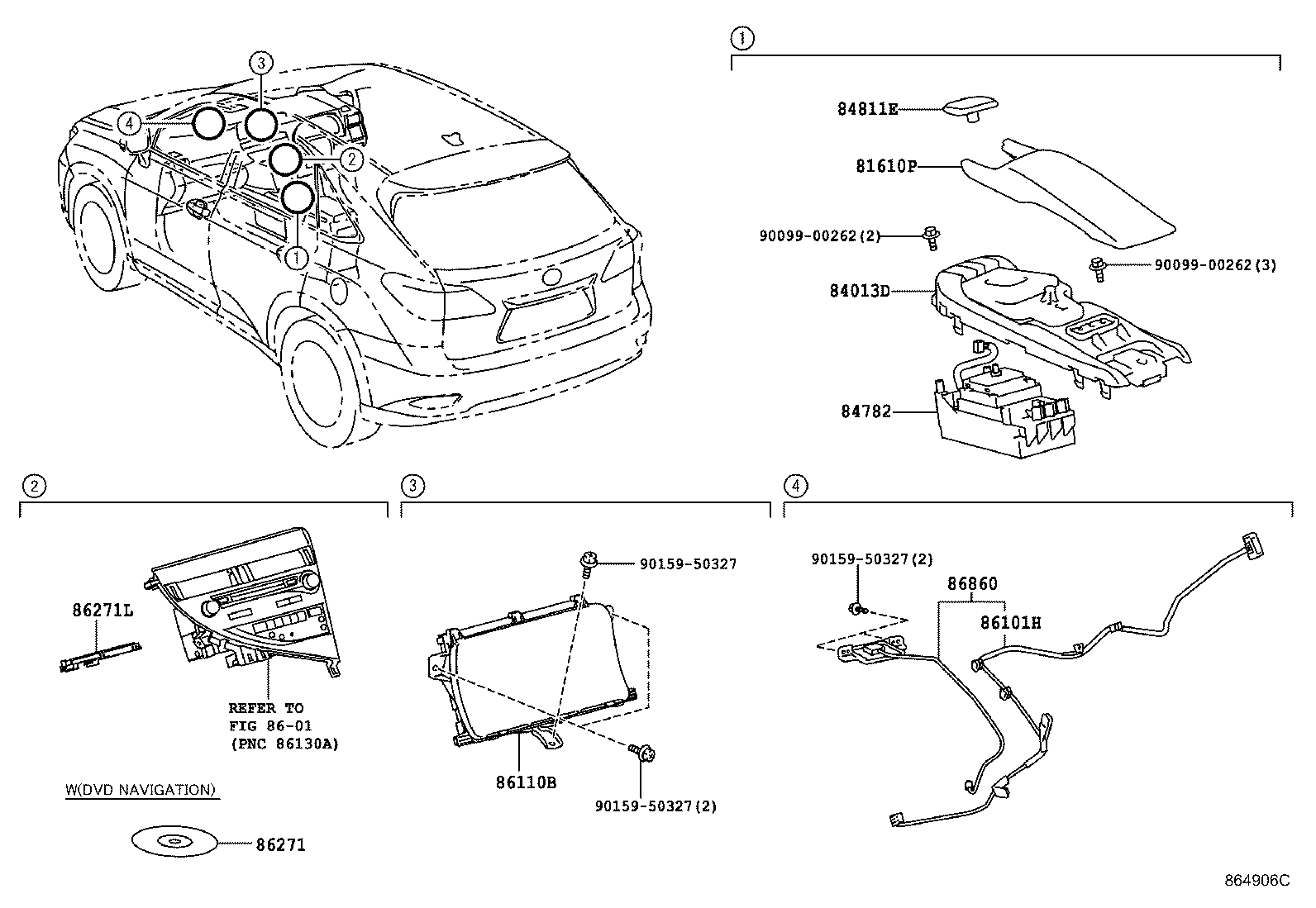

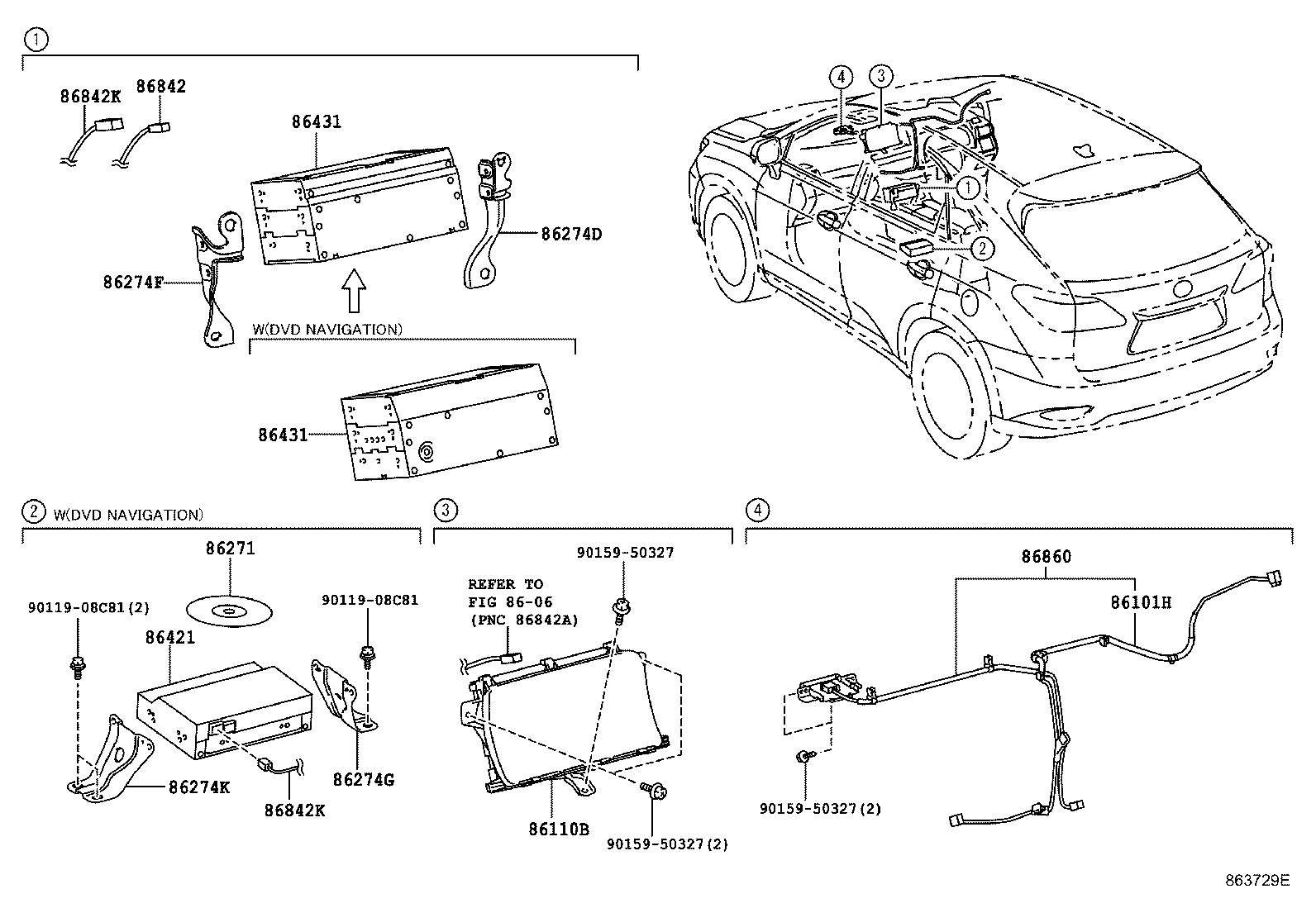

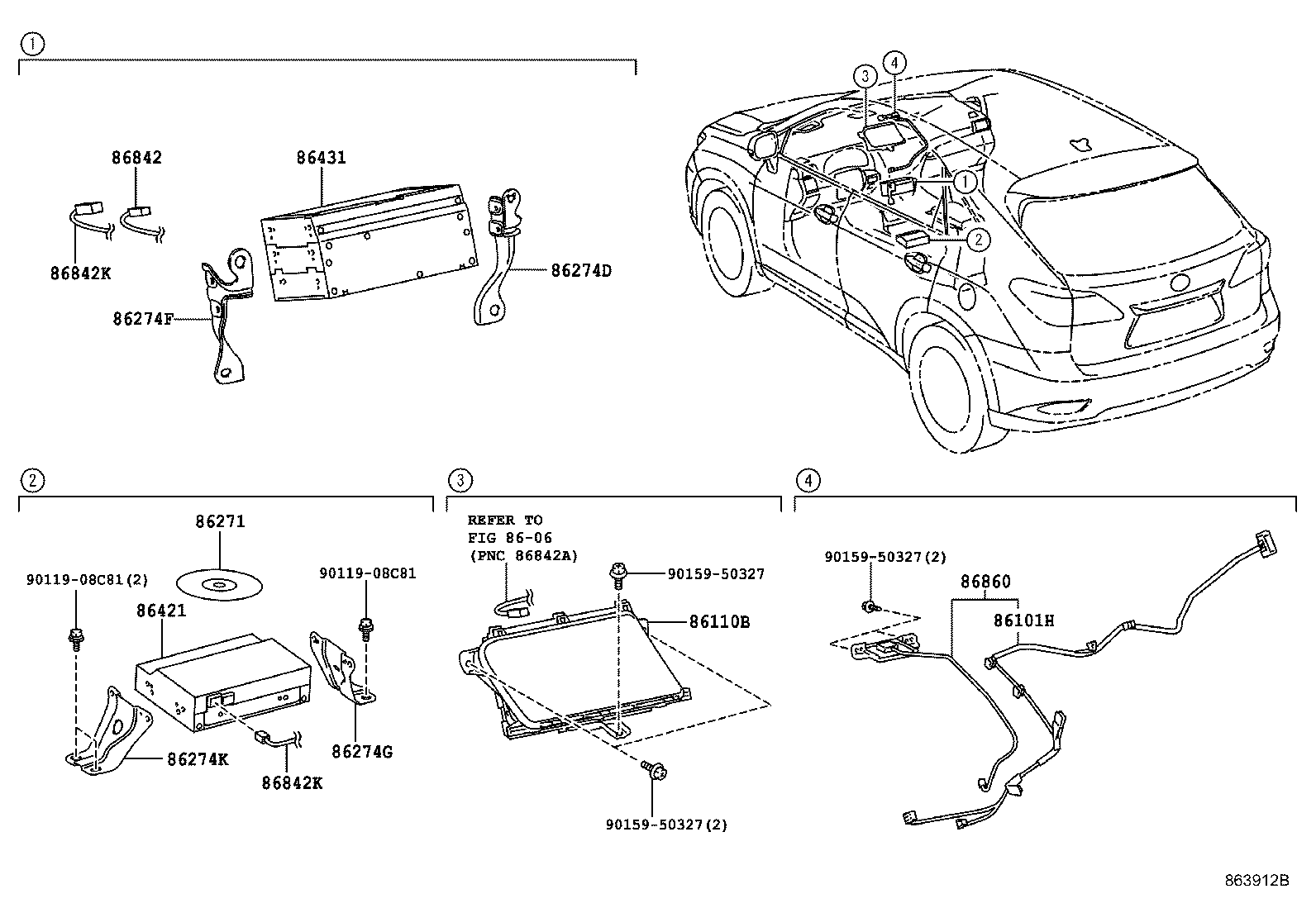

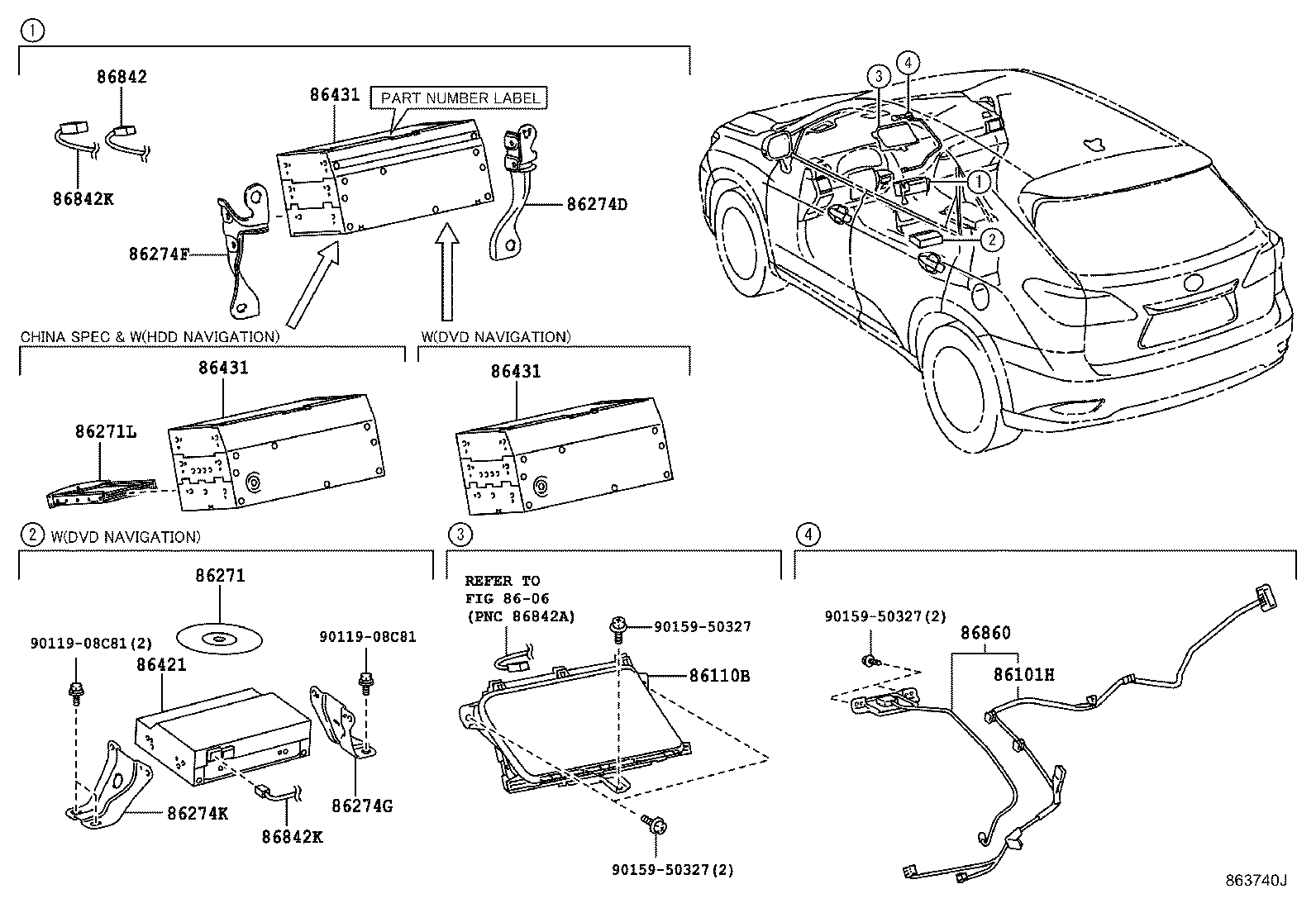

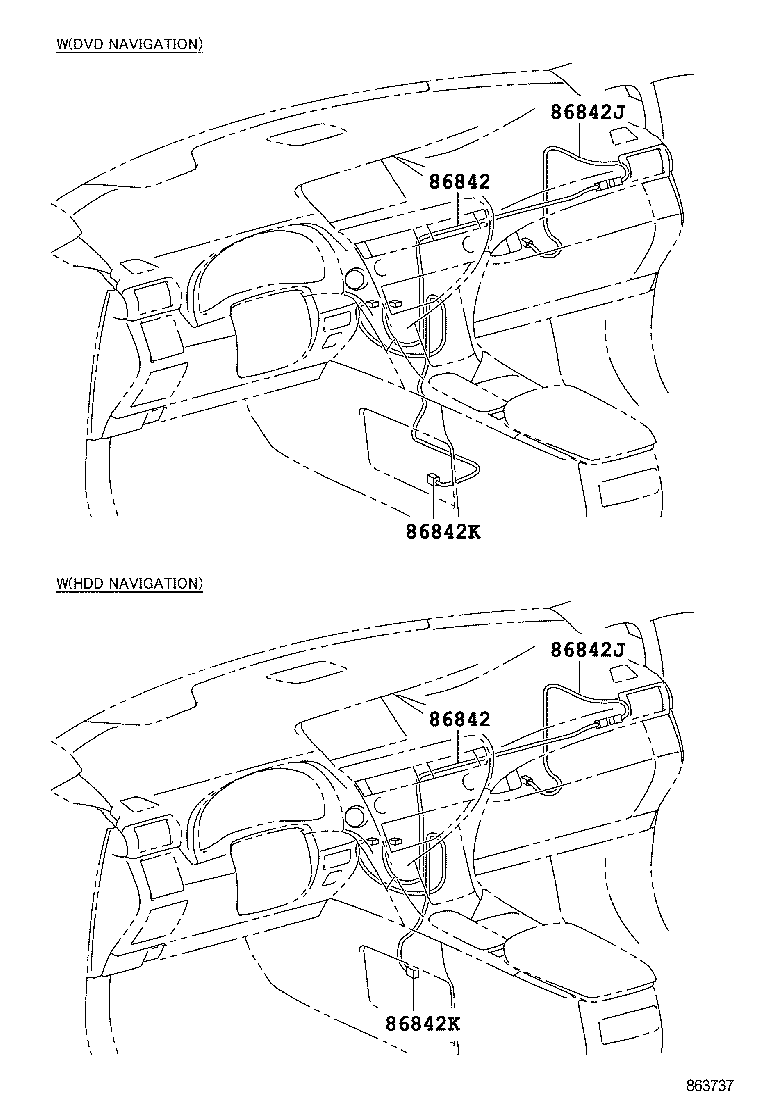

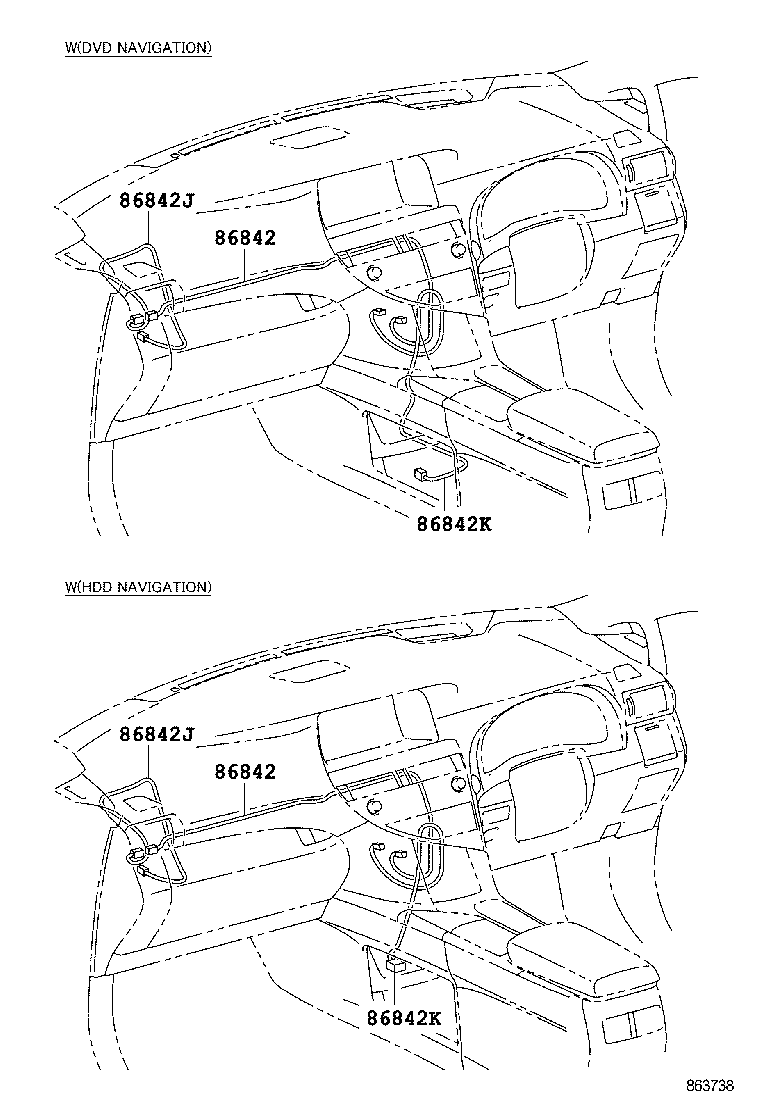

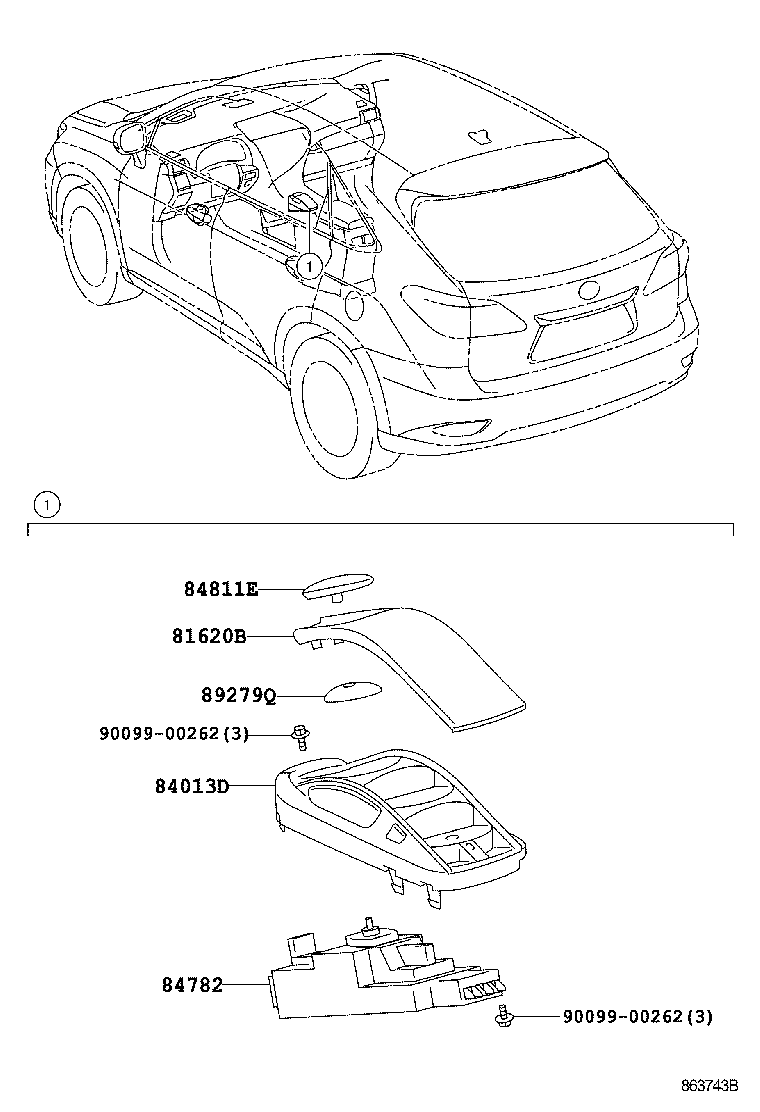

Figure 863893 863893 2008-12 → 2012-03 Figure 863894 863894 2008-12 → — Figure 863740J 863740J 2008-12 → 2012-03 Figure 864905C 864905C 2012-03 → — Figure 863912B 863912B 2008-12 → 2012-03 Figure 864944C 864944C 2012-03 → — Figure 863729E 863729E 2008-12 → 2012-03 Figure 864906C 864906C 2012-03 → — Figure 863743B 863743B 2008-12 → 2012-03 Figure 863744B 863744B 2008-12 → 2012-03 Figure 863737 863737 2008-12 → 2012-03 Figure 863738 863738 2008-12 → 2012-03

Part groups

PNCDescription
81610P Cover Assy, RH
81620B Cover Assy LH
83290J Meter Assy, Accessory
84013D Panel Sub-assy, Integration
84782 Board, Remote Operation
84811E Knob, Switch
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86274K Bracket, Disc Player, NO.4
86421 Board, Navigation Module
86431 Display, Display & Navigation Module
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86842K Wire, Navigation, NO.3
86860 Antenna Assy, Navigation
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
