Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe
Supported model
Data version 2016-03
Telephone & Mayday

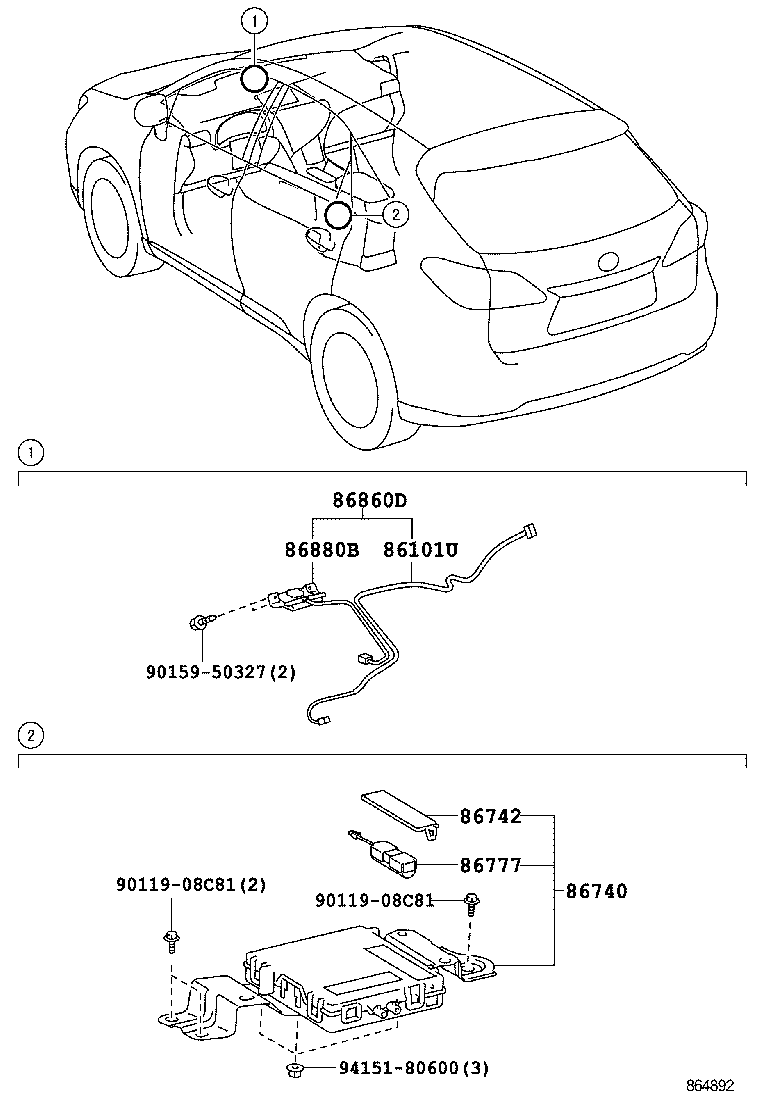

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101U | Cord Sub-assy, Antenna |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 86750 | Switch Assy, Telephone |
| 86777 | Battery, Mayday |
| 86860D | Antenna, Navigation |
| 86880B | Antenna Assy, Instrument Panel Integration |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
