Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 2 illustrations

Illustrations

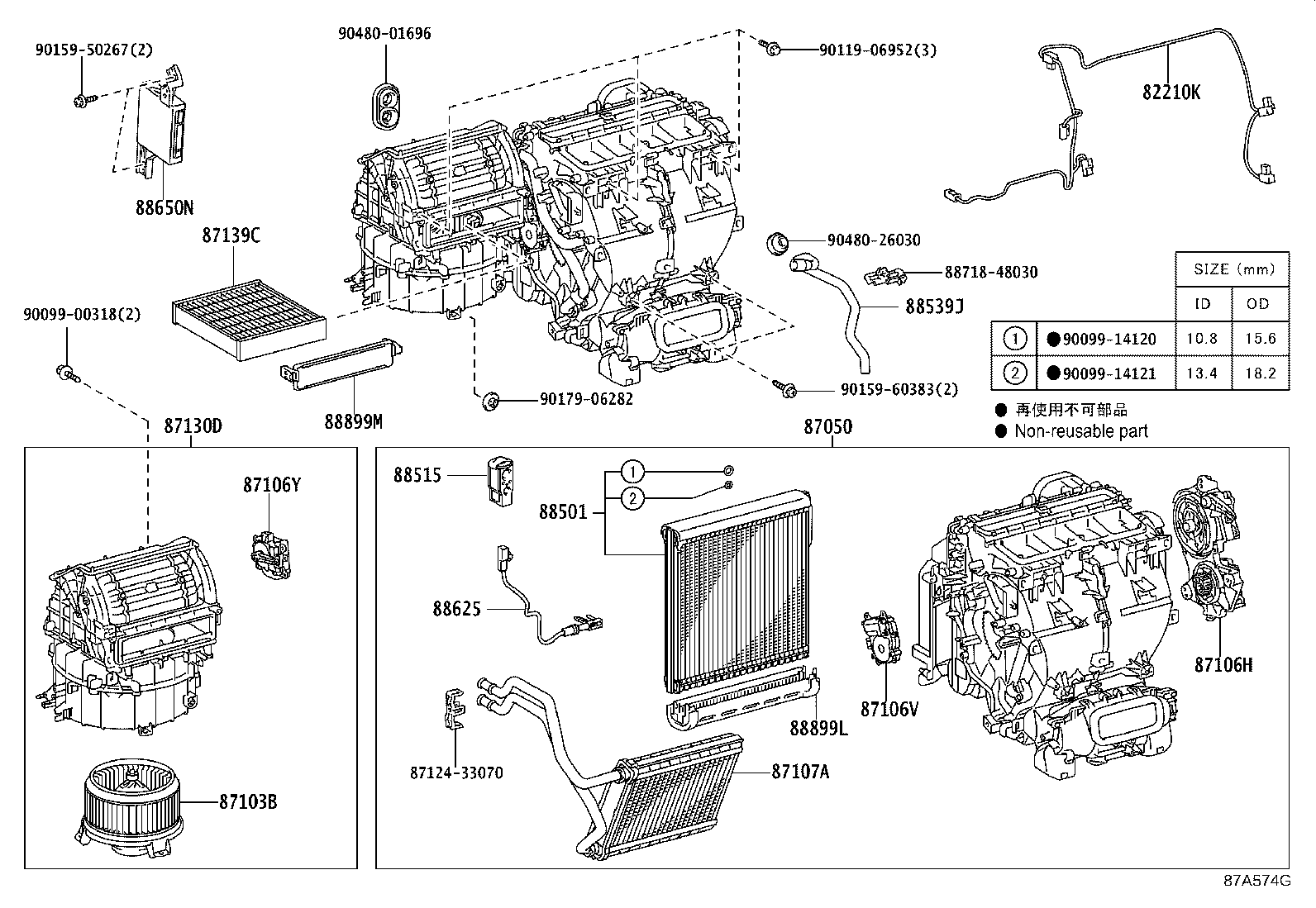

Figure 87A575F 87A575F 2008-12 → — Figure 87A574G 87A574G 2008-12 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
