Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 8 illustrations

Illustrations

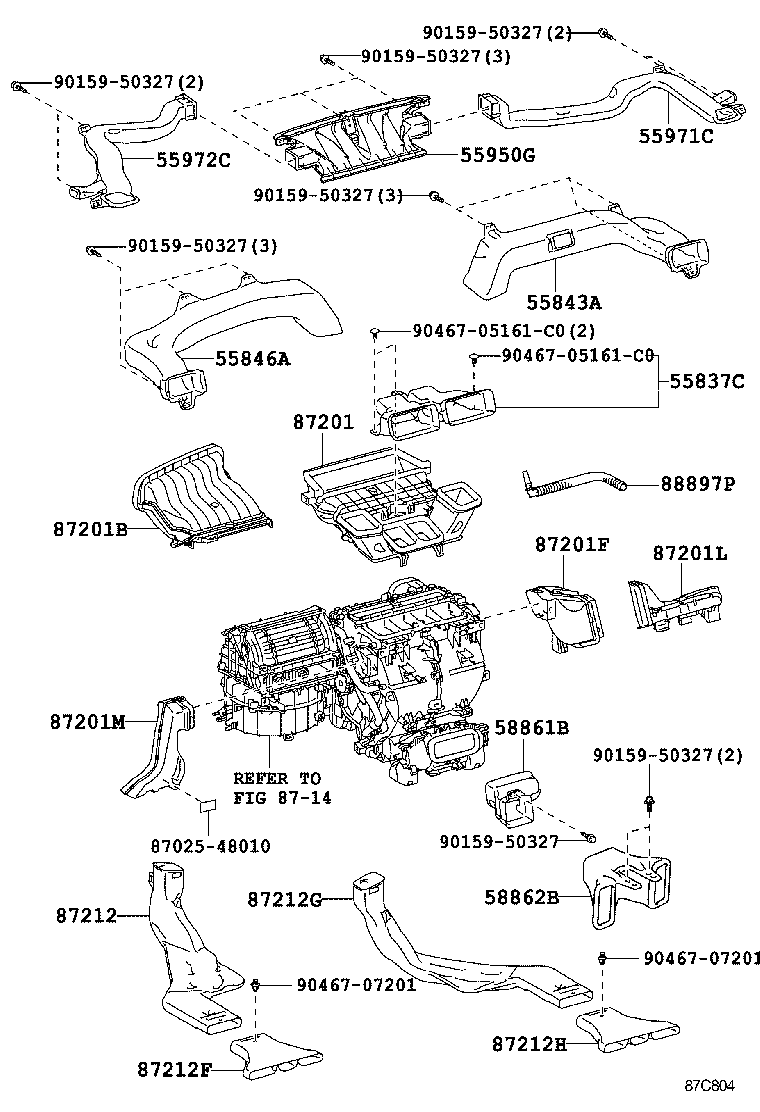

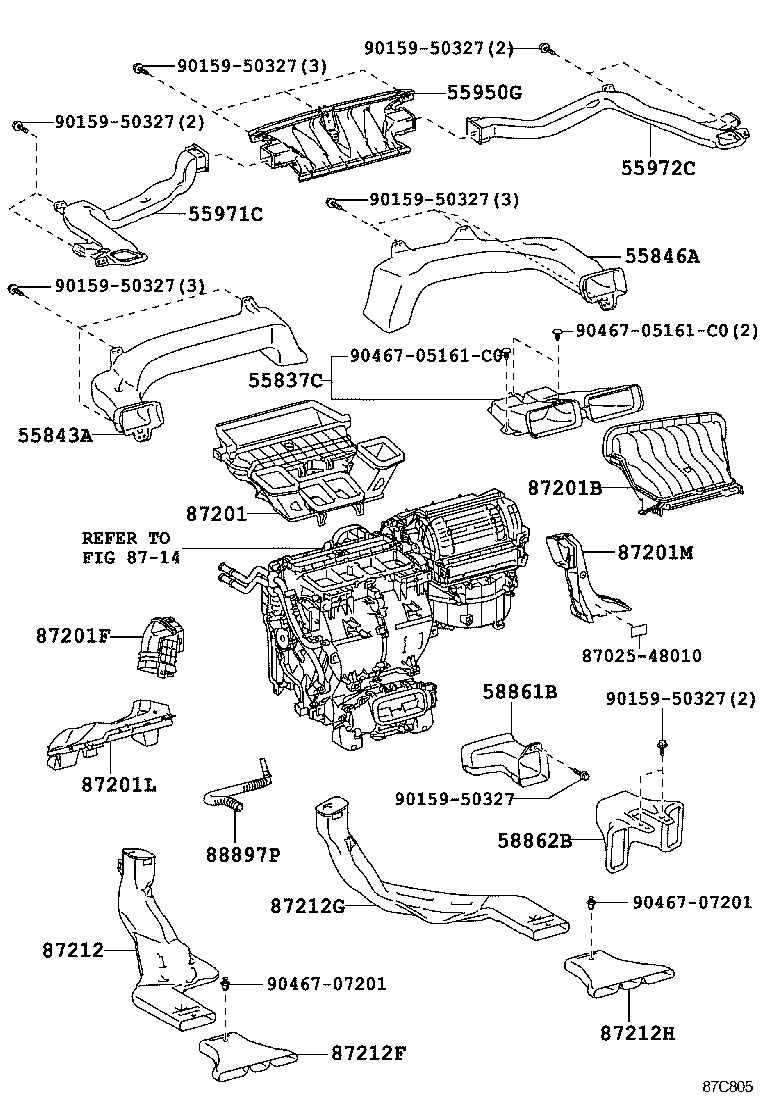

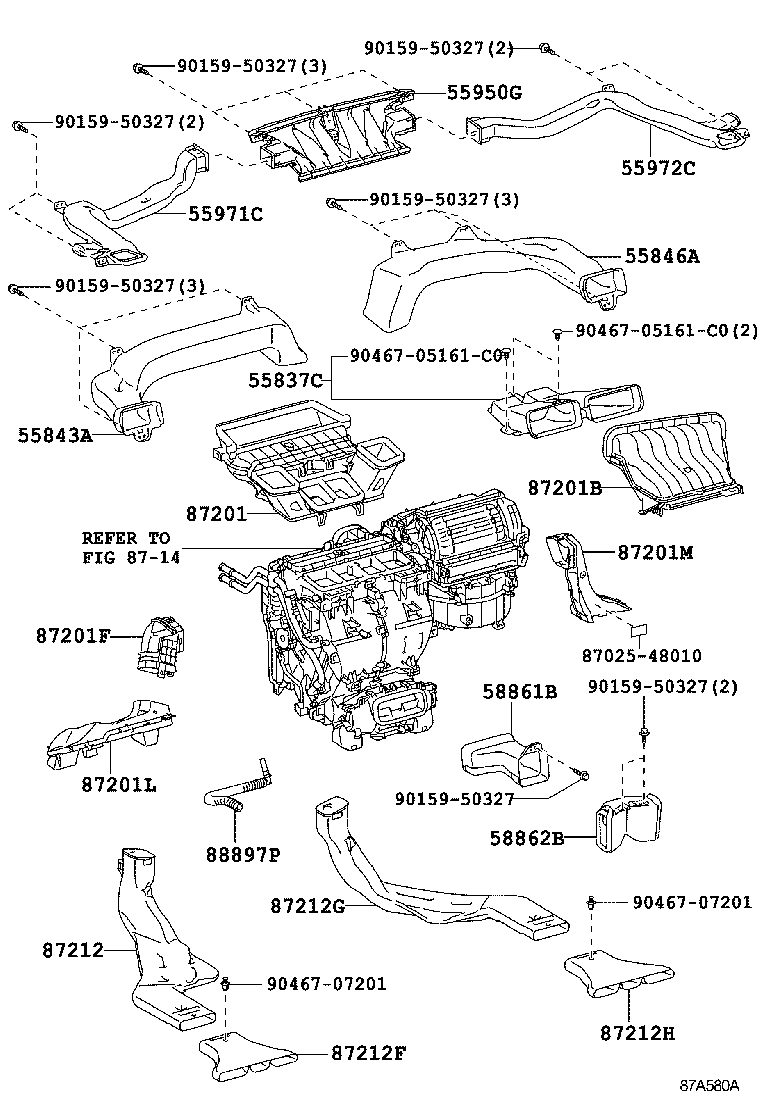

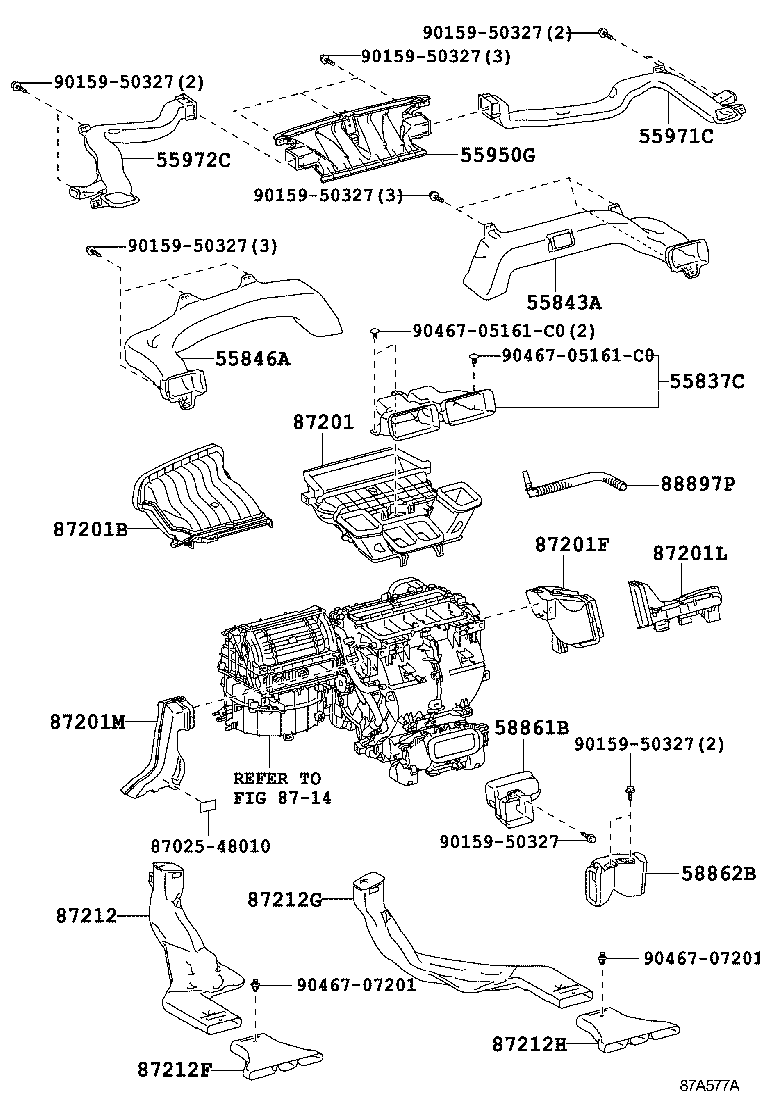

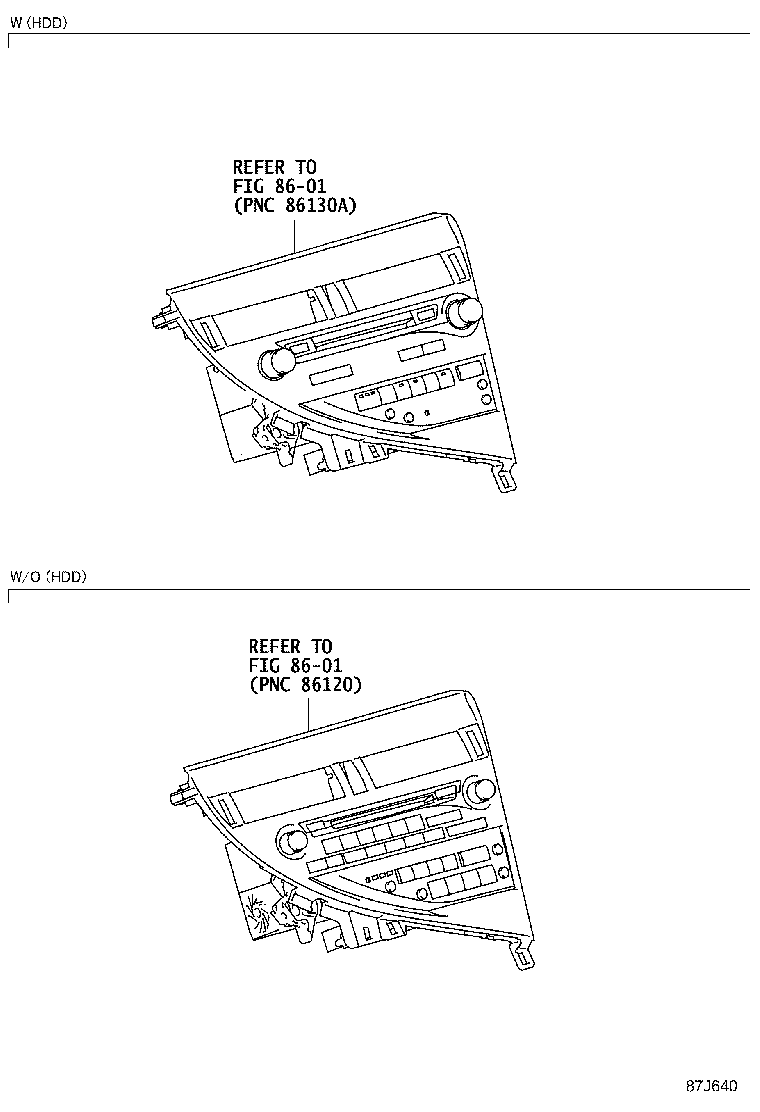

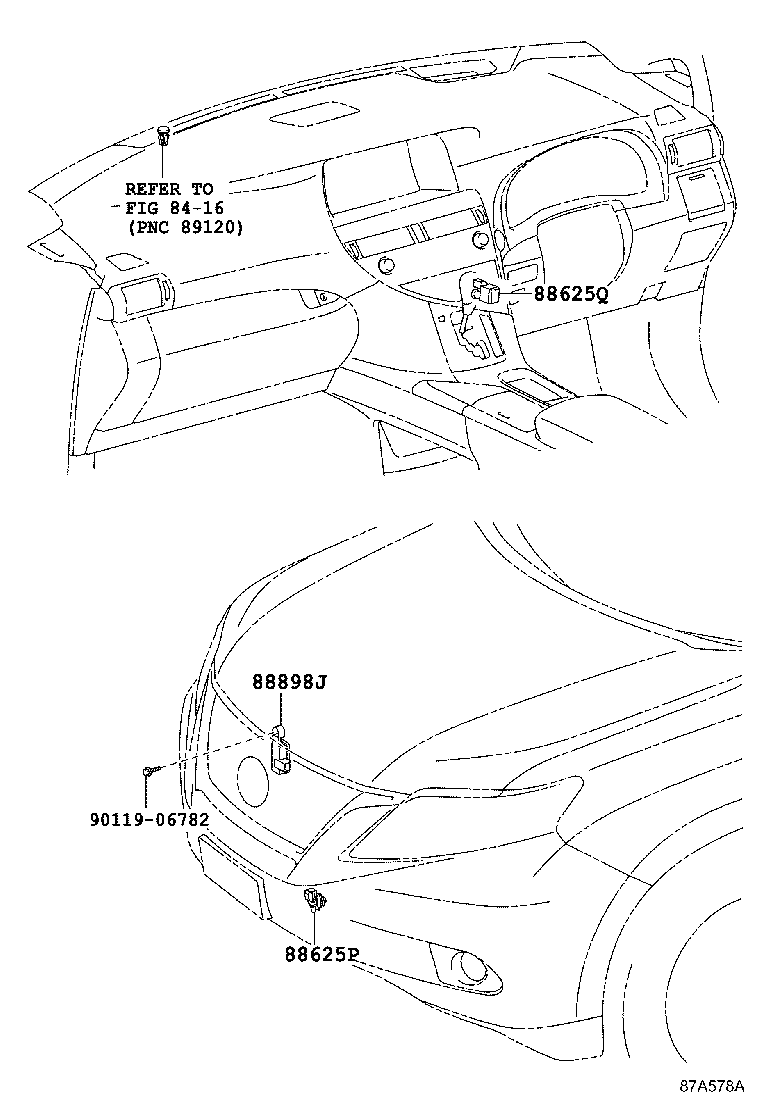

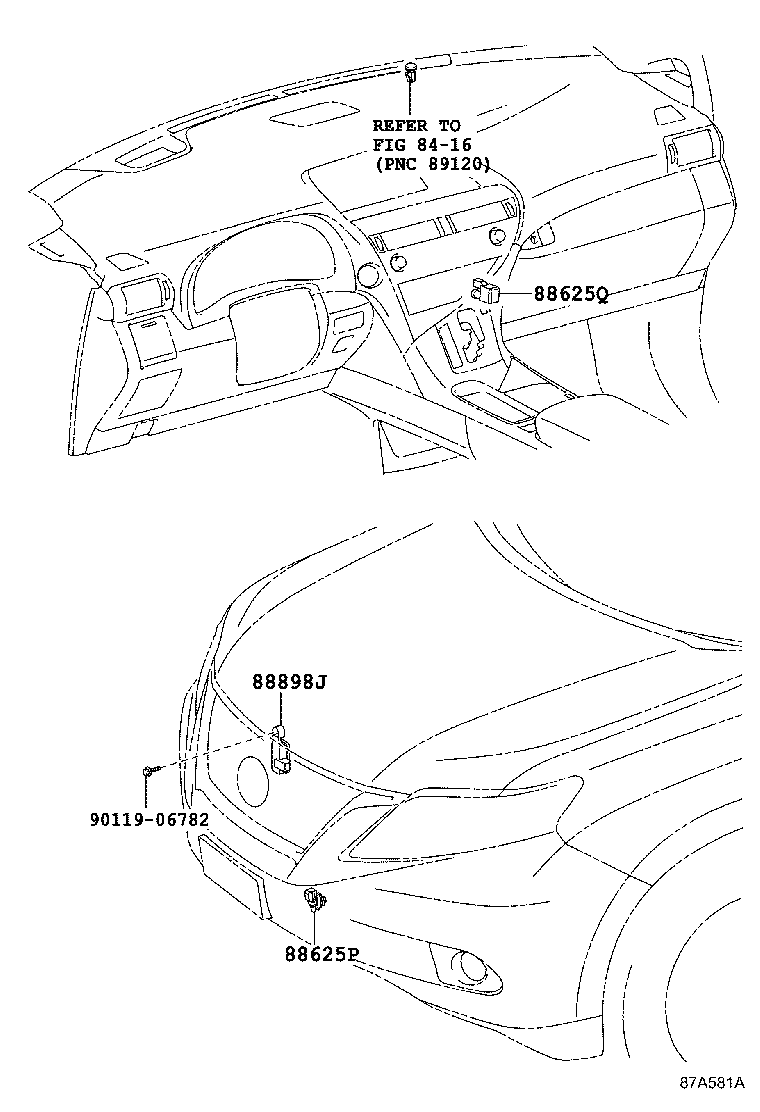

Figure 87A579B 87A579B 2008-12 → — Figure 87J640 87J640 2008-12 → — Figure 87A580A 87A580A 2008-12 → 2012-03 Figure 87A577A 87A577A 2008-12 → 2012-03 Figure 87C805 87C805 2012-03 → — Figure 87C804 87C804 2012-03 → — Figure 87A581A 87A581A 2008-12 → — Figure 87A578A 87A578A 2008-12 → —

Part groups

PNCDescription
55837C Duct, Heater TO Register Center Sub
55843A Duct, Heater TO Register, NO.1
55846A Duct, Heater TO Register, NO.4
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87201M Duct Sub-assy, Air, NO.5
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
