Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · Europe

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

14 part groups · 5 illustrations

Illustrations

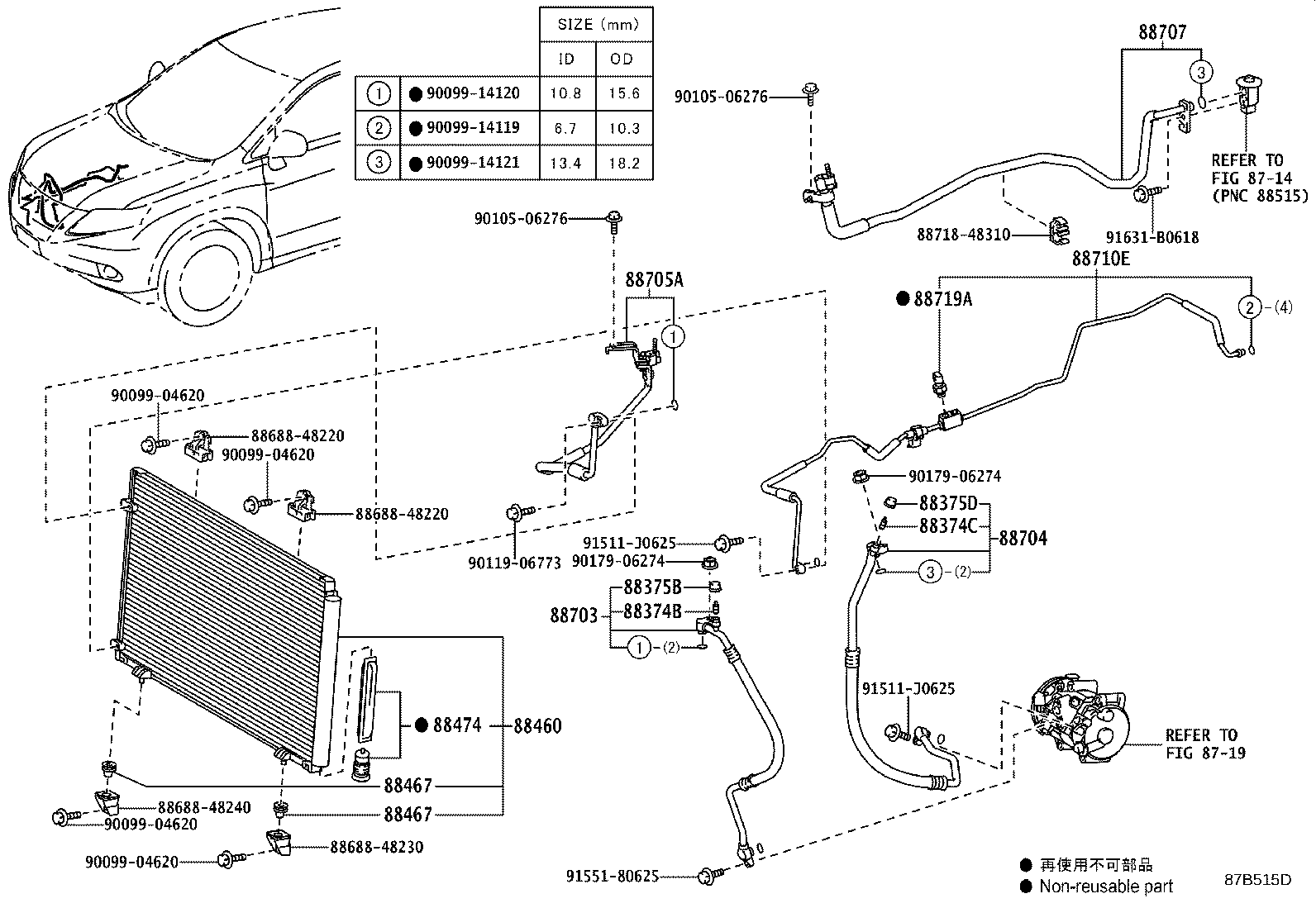

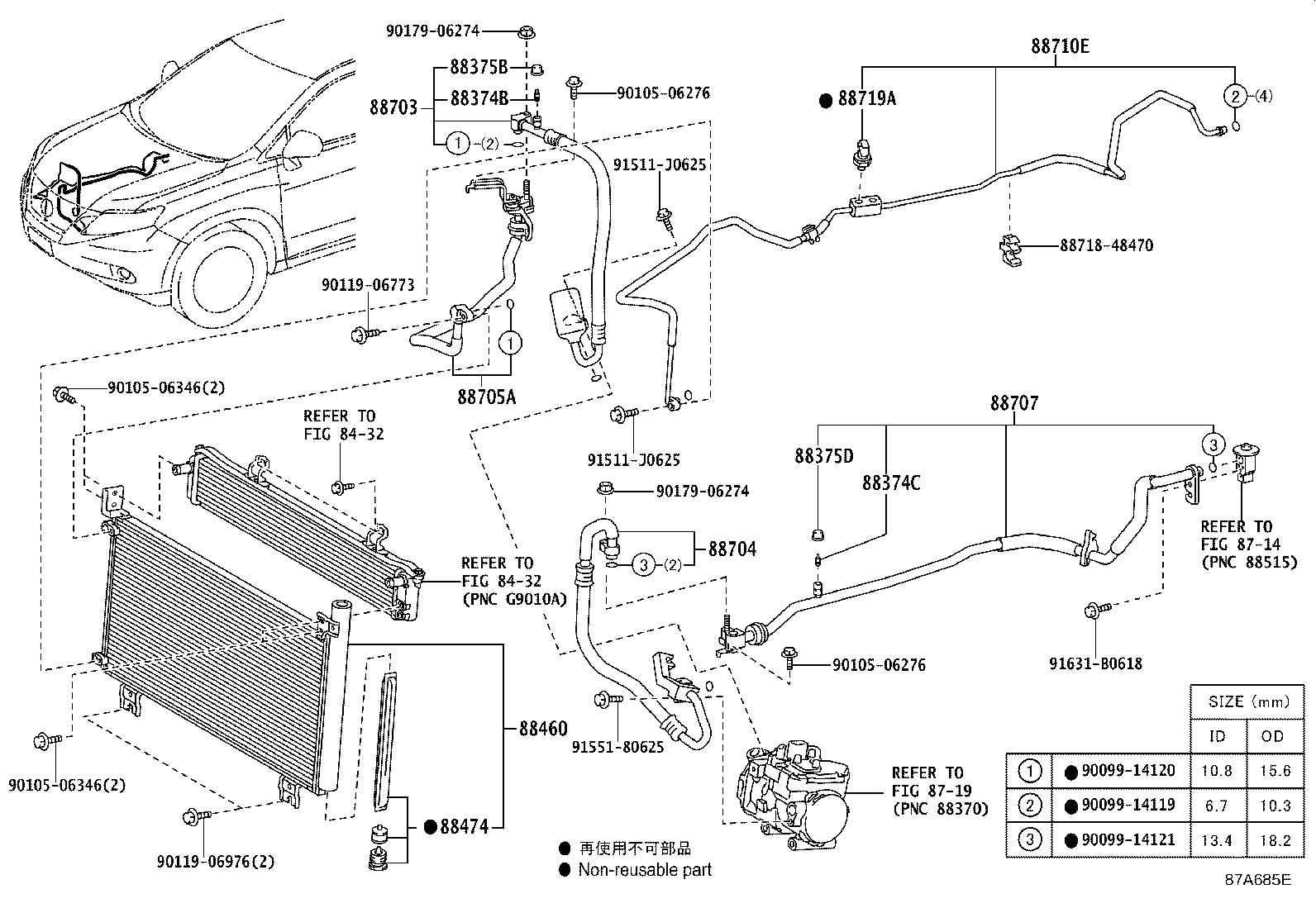

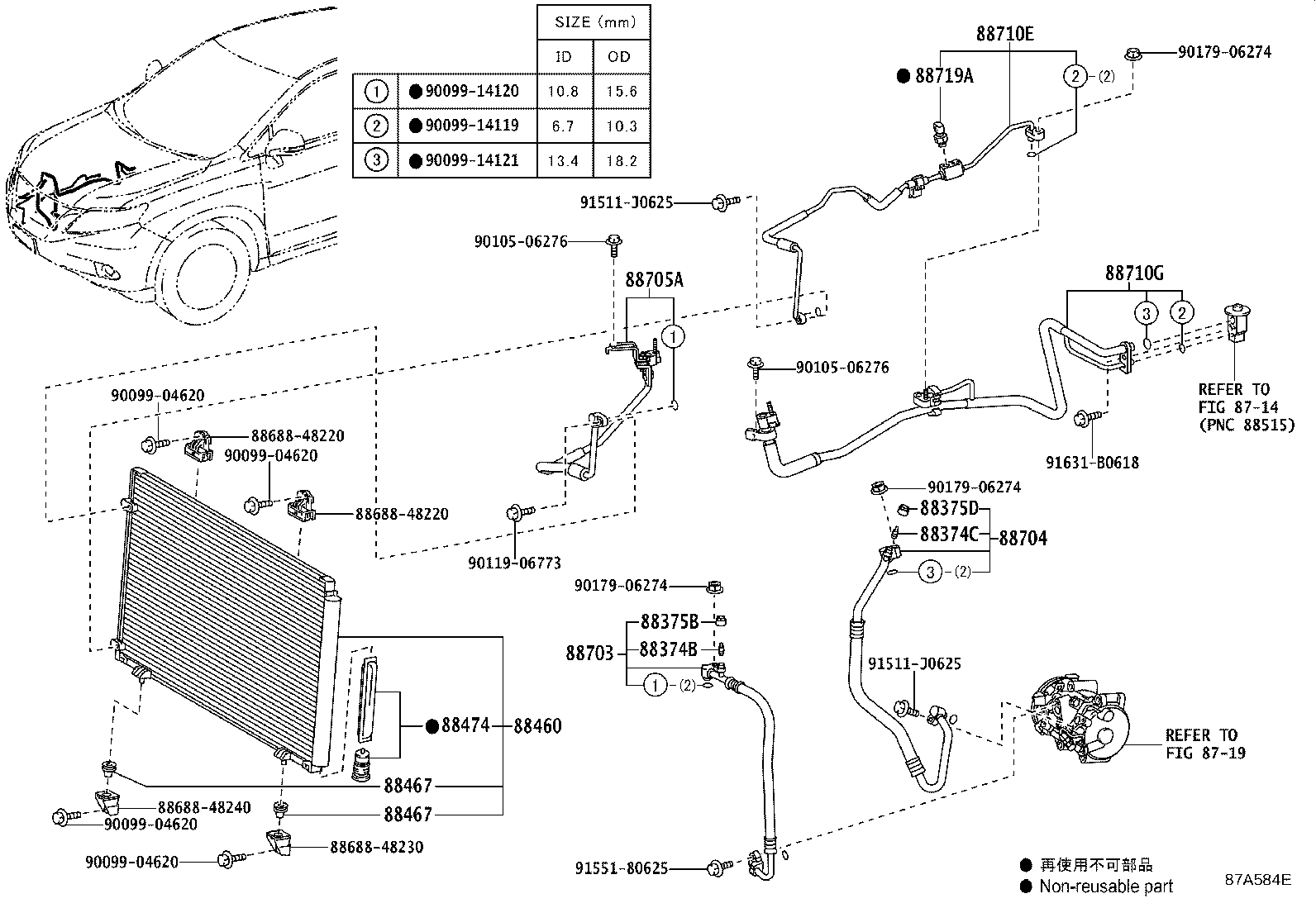

Figure 87A583E 87A583E 2008-12 → — Figure 87A584E 87A584E 2008-12 → — Figure 87A684E 87A684E 2009-03 → — Figure 87A685E 87A685E 2009-03 → — Figure 87B515D 87B515D 2010-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
